MA Lighting grandMA3 I/O Node PoE
Model: MA4023577-1
About: MA Lighting grandMA3 I/O Node PoE
The grandMA3 I/O Node PoE is the multi-tool of signal distribution within a grandMA3 lighting control system. Wherever the signal is generated or needed – just place a grandMA3 I/O Node PoE there and receive or send external signals.

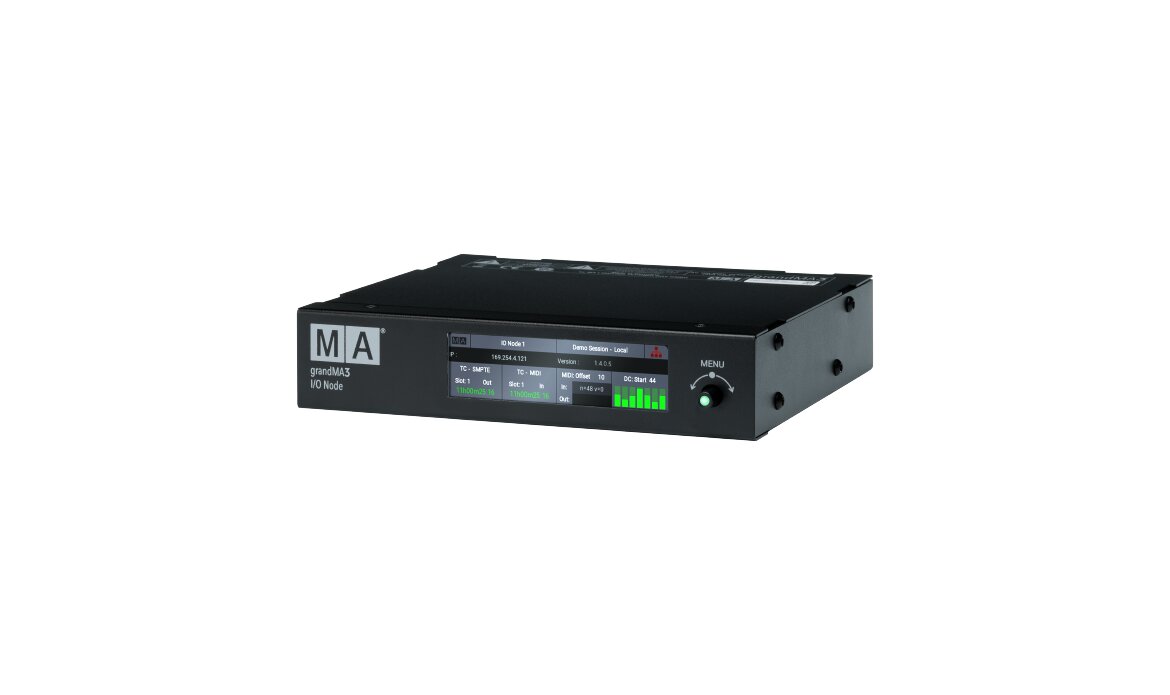

The grandMA3 I/O Node PoE comes in the same housing as a grandMA3 2/4 Port Node. The PoE version (Power over Ethernet) offers a simple and fast solution for power supply.

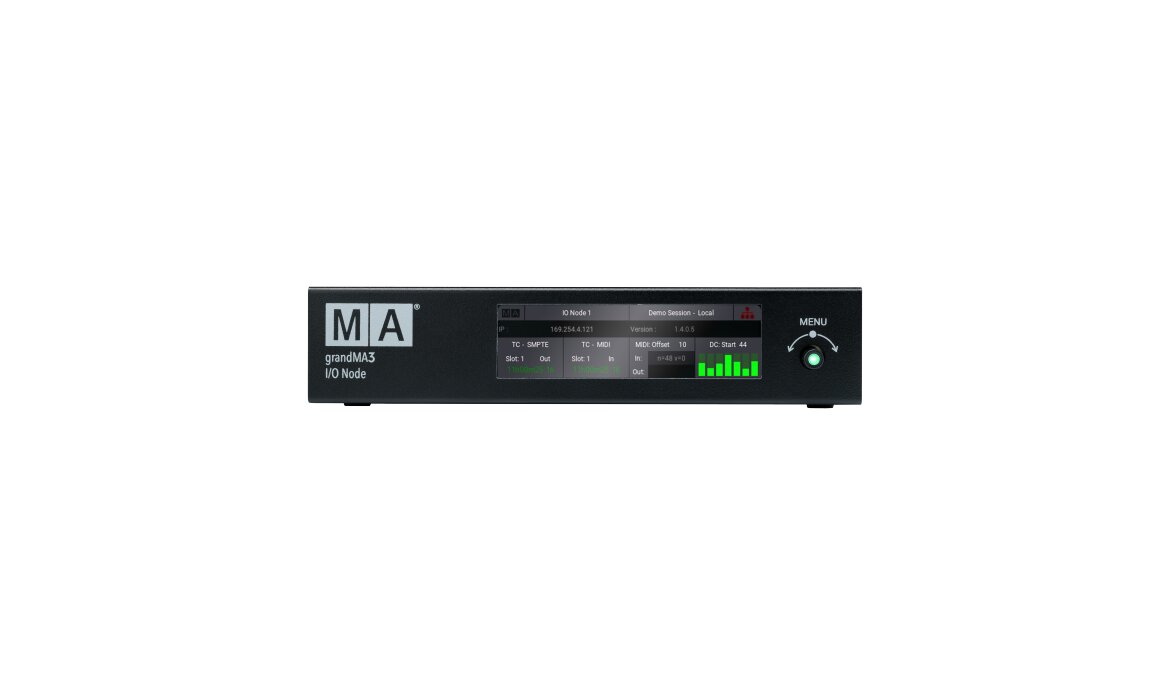

The display shows the status of all input and output signals. Just add the grandMA3 I/O Node as a Session Member and it is ready to go.
It has never been easier to integrate external signal flows into the MA-Net workflow. Once a grandMA3 I/O Node receives MIDI, Timecode or DC Remote signals, these are available immediately throughout the grandMA3 lighting control system, and can be used in any grandMA3 onPC or console. The same is true for transmitting MIDI or Timecode signals.
Just add a grandMA3 I/O Node and connect locally with external signals to integrate them into the MA-Net3 workflow.
Specifications
- Parameters none
- Parameters Mode2 none
- Operating voltage/ Supply voltage
- AC 100 - 240 V; 50/60 Hz
- PoE (IEEE 802.3af; 48 V DC/max. 12 W)
- Power max. 15 VA
- Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
- Dimensions 207 x 184 x 43 mm / 9 x 8 x 2 in (width x depth x height)
- Net weight 2 kg / 5 lbs

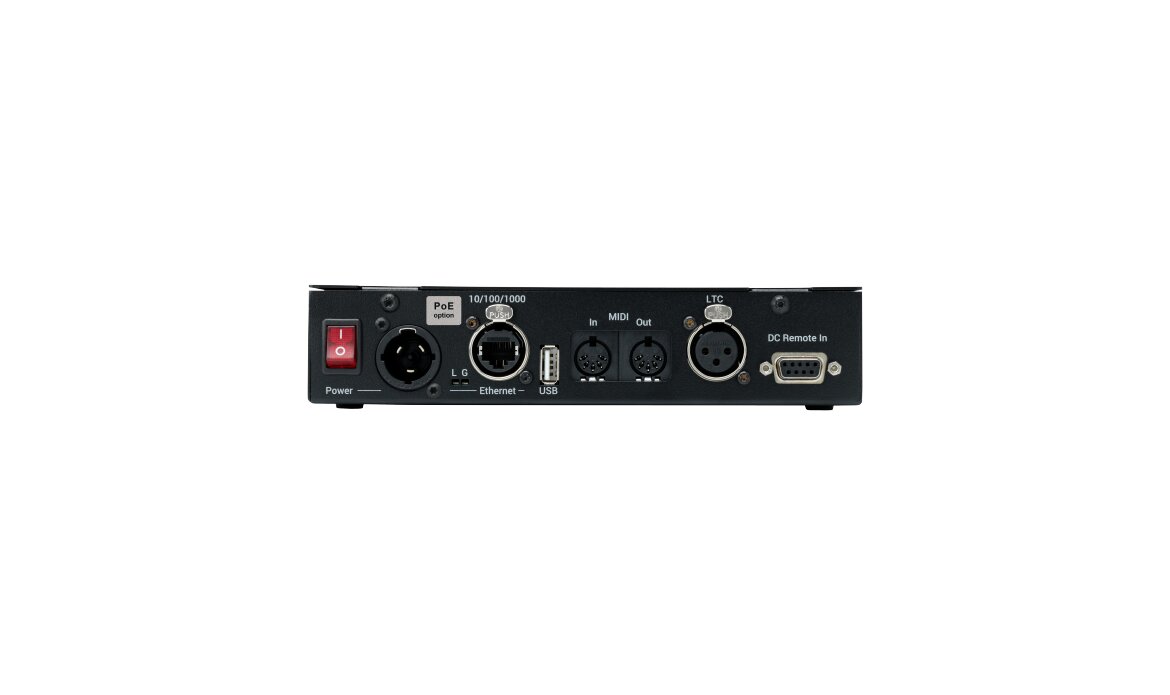

- Connectors
- 1 x powerCON TRUE1
- 1 x etherCON/RJ45
- 1 x MIDI In (5pin DIN female)
- 1 x MIDI Out (5pin DIN female)
- 1 x Linear Timecode (3pin XLR female)
- 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
- 1 x USB 2.0 (type A)
Supplied with
- 1x MA Quick Manual for grandMA3 I/O Nodes
