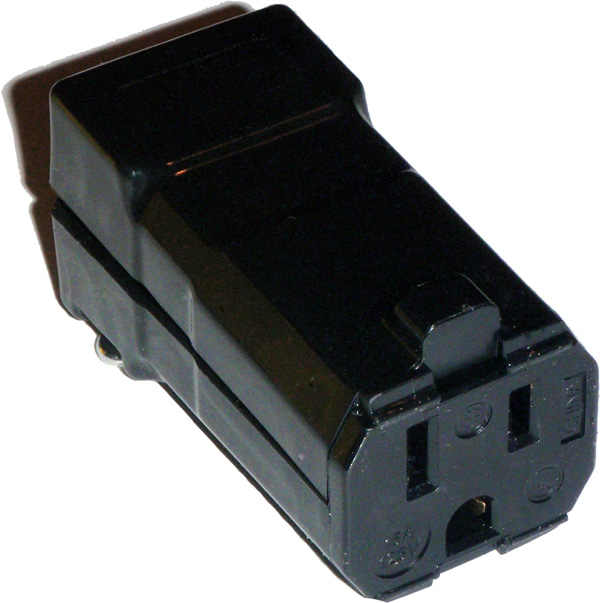

Hubbell HBL5969V-BLK Female Black UGround 15a NEMA 5-15
Model: 5969VBLK
About: Hubbell HBL5969V-BLK Female Black UGround 15a NEMA 5-15
- Body Style: Straight
- Standard: NEMA
- Amperage: 15A
- Voltage: 125V
- Poles and Wires: 2 Pole, 3-Wire Grounding
- Wiring Method: Back Wire
- Plug/Connector Grade: Valise
- Color: Black

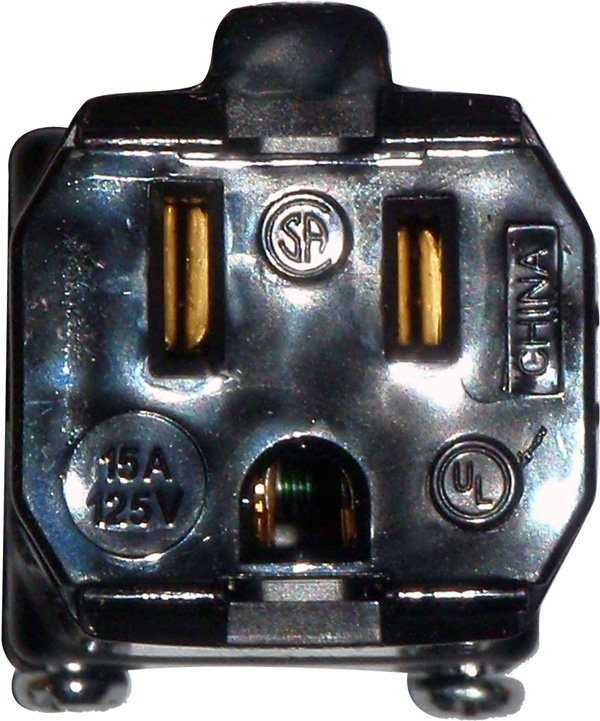

- NEMA No.: 5-15R
- Cord Dia.: .220"-.660" (5.6-16.8)
- Type: 2 Pole, 3 Wire, Grounding
- Rating: 15A, 125V
- Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
- IP Suitability: IP20
- Housing Material: Nylon
- Cord Clamp Material: Noryl
- Terminal Screw Material: #8-32 Steel (copper or nickel finish)
- Ground Screw Material: #8-32 Steel, (green finish)
- Power Contacts Material: .040" (1.0) Phosphor Bronze
- Dielectric Voltage: Withstands 2,000V minimum.
- Current Interrupting: Certified for current interrupting at full rated current.
- Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
- Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
- Terminal Accommodation: #18-#10 AWG copper stranded conductor
- Product Identification: Ratings are a permanent part of the device.
- Flammability: UL 94 HB or better.
- Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
- UPC Number: 783585013275
- Weight in LBs: 0.150
UPC: 783585013275
Reviews: Hubbell HBL5969V-BLK Female Black UGround 15a NEMA 5-15
Calvin I. - 08/23/2014
Pros:
-Clamshell design
-clear instructions if you need
-5 screws total assembly,
-No guessing if the strain relief is going to work or not
-Extreme durability
-Once you go black you don't go back (think clean please)
-clear instructions if you need
-5 screws total assembly,
-No guessing if the strain relief is going to work or not
-Extreme durability
-Once you go black you don't go back (think clean please)
Cons:
Not a con but: OUCH if you clamp your finger in the clamshell
Comments:
I regularly throw these around, hitting terrazol, concrete, steel, hardwood, tables, you name it. THEY DON'T BREAK. I've switched to using only these because their so easy to explain how to install them to the techs.
Bottom Line:
Yes, I would recommend this to a friend
Dale G. - 11/26/2010
Pros:
Good price for a black plug. Easy to install. Square shape fits where round ones don't, eg. floor plates, back of ETC Smartpack dimmers.
Cons:
No Cons
Comments:
I use these for lighting power cords. The black color is important on stage and in trusses, etc.
Bottom Line:
Yes, I would recommend this to a friend
Warranty: Hubbell HBL5969V-BLK Female Black UGround 15a NEMA 5-15
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
