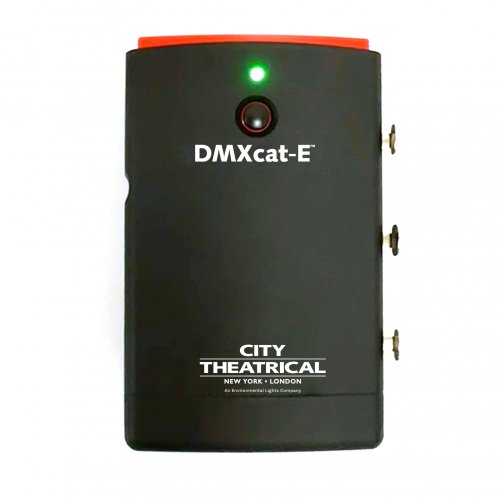

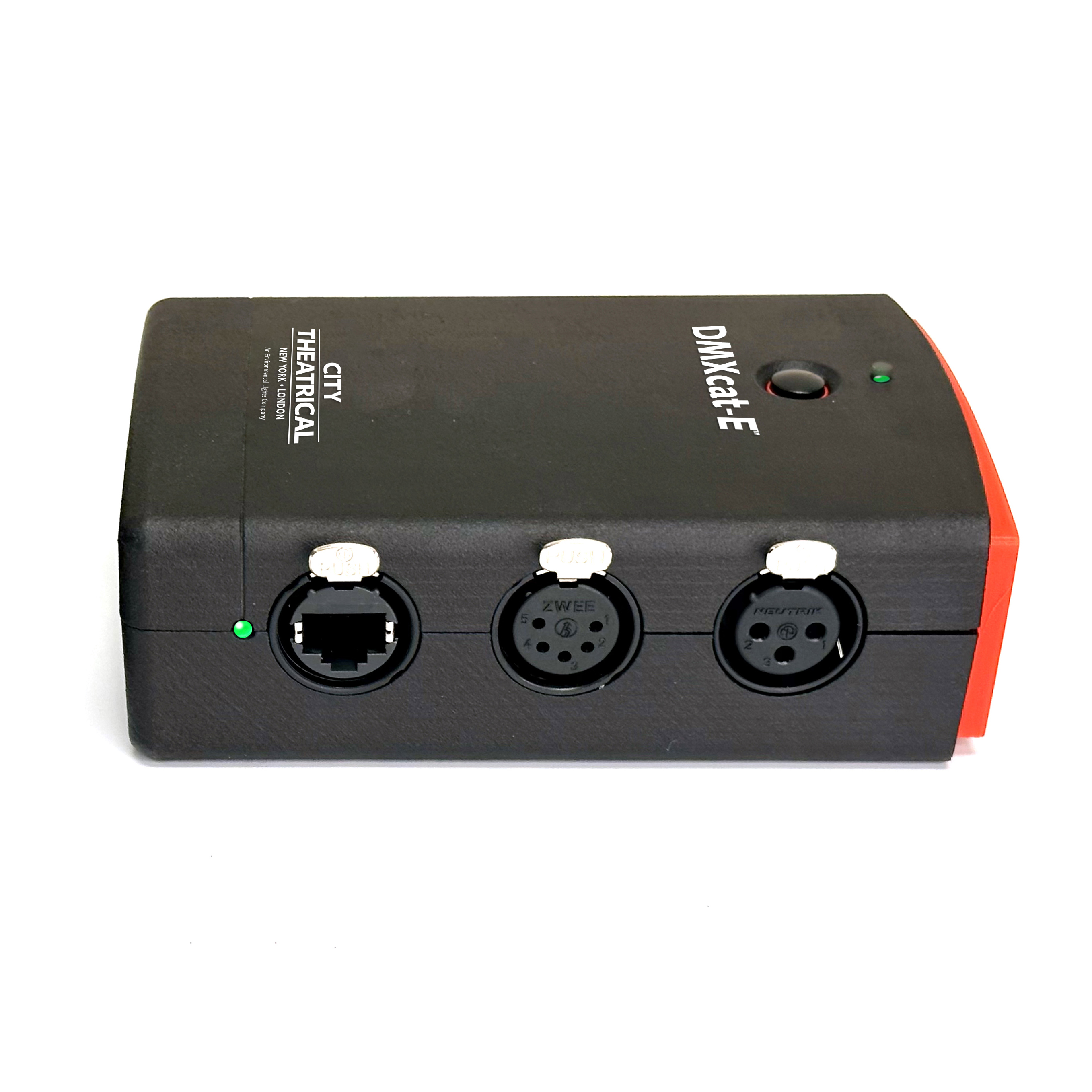

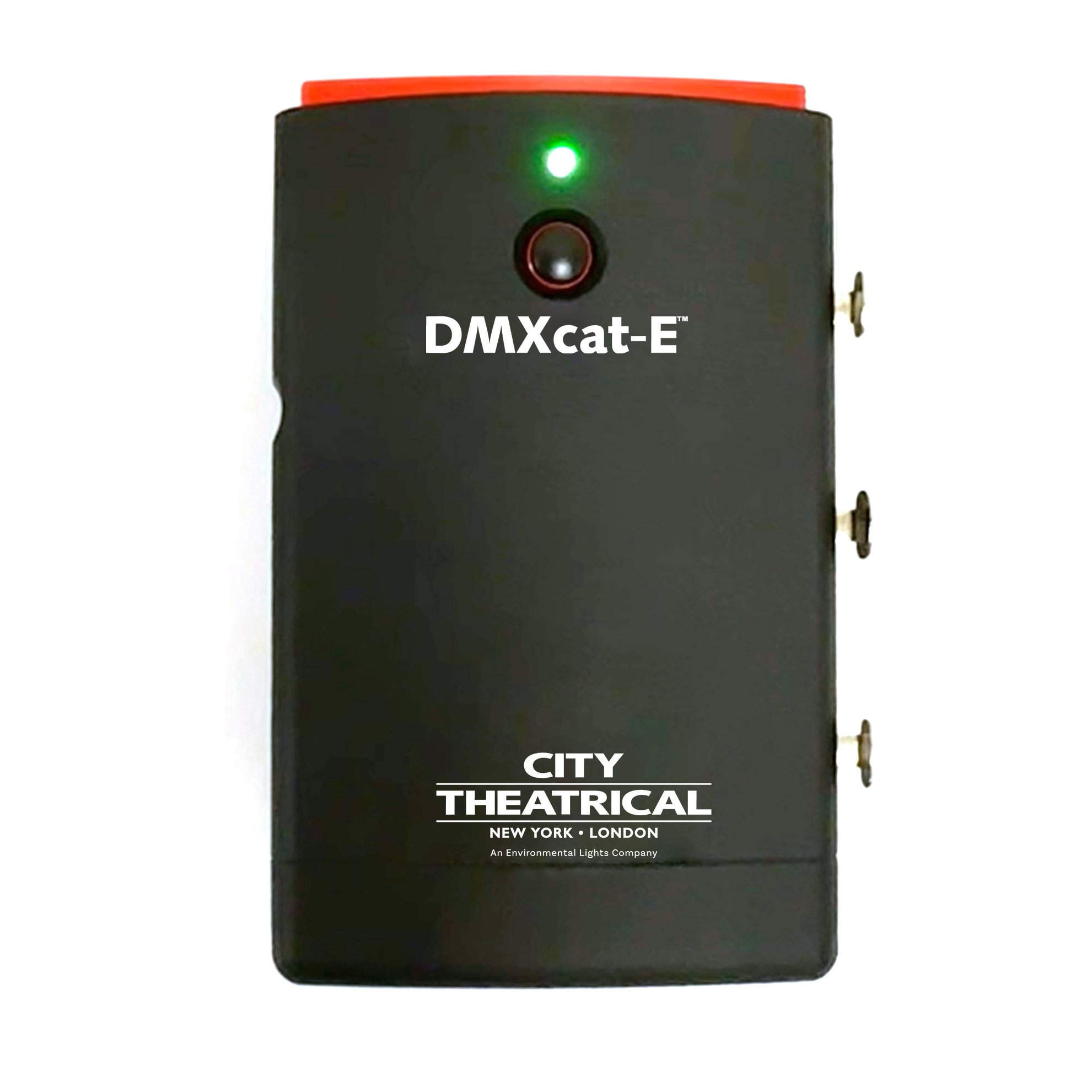

City Theatrical DMXcat-E Multi Function Test Tool

About: City Theatrical DMXcat-E Multi Function Test Tool

City Theatrical’s new DMXcat-E is an expansion to City Theatrical’s award-winning DMXcat Multi Function Test Tool system of solutions that allows for Ethernet control of a lighting fixture. As more lighting manufacturers implement RDM Net into their fixtures, the DMXcat-E is the essential test tool for the future of lighting.

In addition to all the functions DMXcat users currently enjoy, including utilization of the DMXcat free smartphone application for iPhone and Android, DMXcat-E also features:

• Allows for Ethernet control of a lighting fixture
• View and send Ethernet protocols, including ArtNet and sACN
• View DMX timings and PoE voltages
• Perform cable testing of 5-pin XLR and Ethernet cables via included external remote.
• Read SMPTE timecode, MIDI timecode, and regular MIDI
• Bookmark timecode
• Save to file functions for ease of use.
• Comes with a flashlight, buzzer, and USB-C charging.
• Includes all the functions DMXcat users currently enjoy, including utilization of the DMXcat free smartphone application for iPhone and Android
• As more lighting manufacturers implement RDM Net into their fixtures, the DMXcat-E is the essential test tool for the future of lighting

Specifications

• Wireless Communication: Bluetooth LE
• Range: 100' (30m)
• Status LED indicator: Two multicolor status LED indicators (one is the same as the original DMXcat, and the other is an Ethernet link light)
• Flashlight: White LED
• Charging port: USB-C
• DMX Connectors: XLR-5M, XLR-5F, DIN-5, XLR-3F, & EtherCon
• Apps: 6 new Apps (Android total: 9, and iOS total: 7)
• Included: New apps include: MIDI, Timecode, Ethernet Sources, Ping, Cable Testing, and PoE Tester
• Construction: NEMA 1 ABS enclosure
• Compliance: CE, RoHS, FCC
• Physical:
• Weight: 0.4 lbs. (0.18 kg)
• Dimensions  (W x L x H): 3.35 x 4.92 x 1.38 inch (85 x 125 x 35 mm)
• System Requirements:
  • Bluetooth 4.0 or greater
  • Android 6.0 or greater
  • iOS 11 or greater (iPhone 6S and newer)
