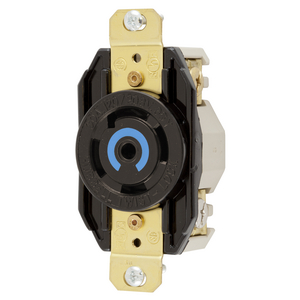

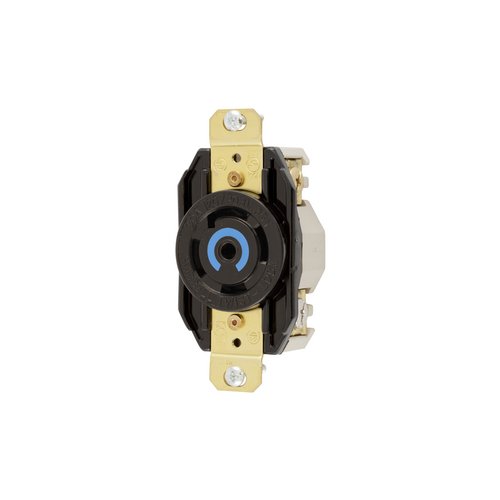

Hubbell HBL2810 - 3 Phase 30A Twist-Lock Receptacle
Model: HBL2810
About: Hubbell HBL2810 - 3 Phase 30A Twist-Lock Receptacle
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, L21-30R, Screw Terminal, Black
High-impact, abuse-resistant nylon face
Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Product Details
General
Application: Heavy Duty Industrial
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum: 3
Item Type: Single Flush Receptacles
Material: Nylon
Material - Mounting Hardware: Screw Mounting
Number Of Poles: 4-Pole
OEM Brand Name: Hubbell Wiring Device-Kellems
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Moisture Resistance - IP20 Suitability
Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Type: Single Flush Receptacle
UPC: 783585236230
Dimensions
Display Size: Standard Sized Product
Height: 1.23 in
Length: 3.28 in
Weight: 0.30 lb
Width: 1.7 in
Electrical Ratings
Amperage Rating: 30 A
Connectivity: Back and Side Wired Screw Terminals
Current / Amperage Rating: 30 A
Current Rating: 30 A
Dielectric Strength: Withstands 2,000V minimum
Phase: 3 Phase WYE
Voltage Rating: 3 Phase WYE 120/208 VAC
Voltage Rating Description: 3 Phase WYE 120/208 VAC
Wattage: 6240 W
Conductor Related
Number Of Wires: 5-Wire
Wire Size: #16 AWG to #8 AWG
Certifications and Compliance
Industry Standard(s): Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Nema Rating: L21-30R
UPC: 783585236230
