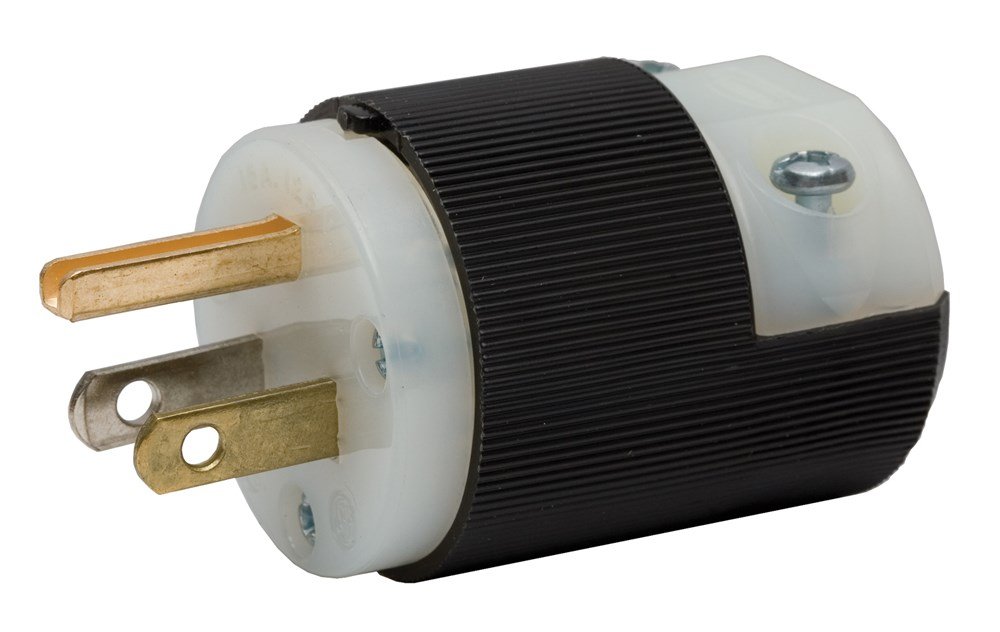

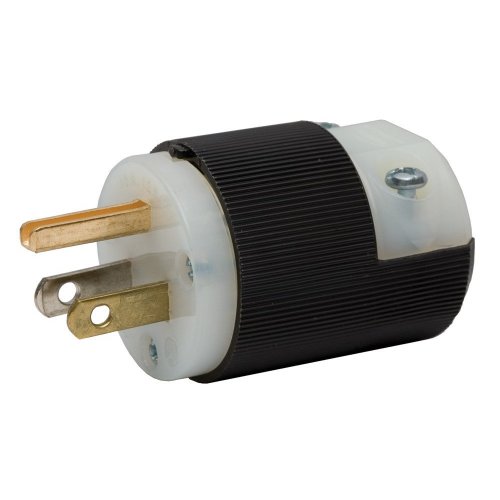

Hubbell HBL5266C Male Round UGround Edison 15a 125v 2P3W
Model: HBL5266C
About: Hubbell HBL5266C Male Round UGround Edison 15a 125v 2P3W
Straight Blade Products, Insulgrip Series
- Body Style Straight
- Standard NEMA
- Amperage 15A
- Voltage 125V
- Poles and Wires 2 Pole, 3-Wire Grounding
- Hospital Grade ? No
- Plug/Connector Grade Insulgrip
- Color
- NEMA No. 5-15P
- Horsepower 0.5
- Cord Dia. .230"-.720" (5.8-18.3)
- Type 2 Pole, 3 Wire, Grounding
- Rating 15A,125V
- Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
- IP Suitability IP20
- Housing Material Nylon-Black
- Blade Holder Material Nylon-Natural
- Retainer Material Polycarbonate-Clear
- Cord Clamp Material Nylon-Natural
- Contact Blades Material .060" (1.5) Brass
- Ground Contact Blade Material .040" (1.0) Copper Alloy
- Terminal Screw Material #8-32 Brass /Ni plated for neutral
- Ground Screw Material #8-32 Brass, Multiple Drive (Green)
- Dielectric Voltage Withstands 2,000V minimum.
- Current Interrupting Certified for current interrupting at full rated current.
- Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
- Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
- Terminal Accommodation #18-#10 AWG copper stranded conductor
- Product Identification Ratings are a permanent part of the device.
- Flammability UL 94 HB or better.
- Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
- UPC Number 783585173009
- Weight in LBs 0.350
