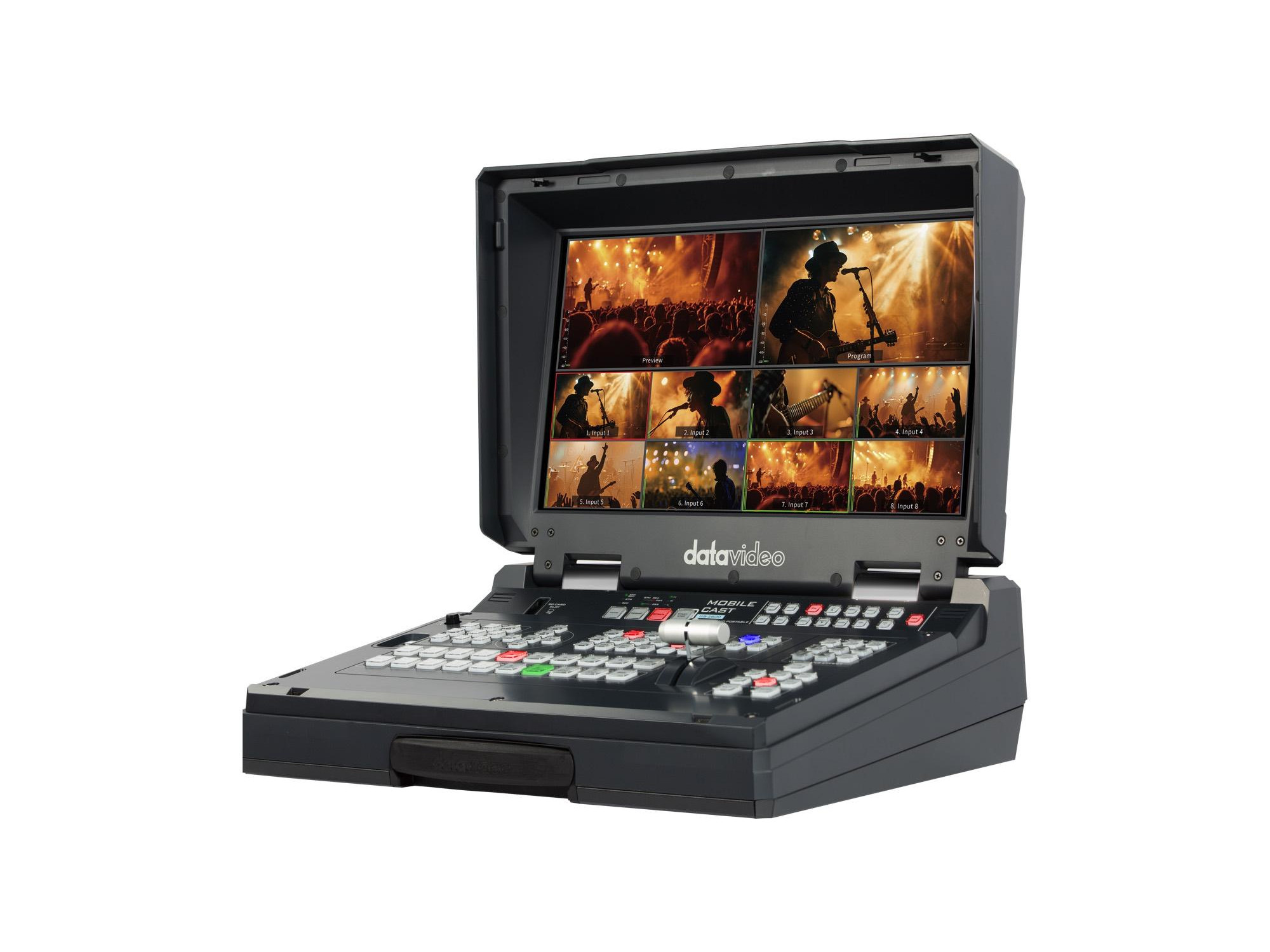

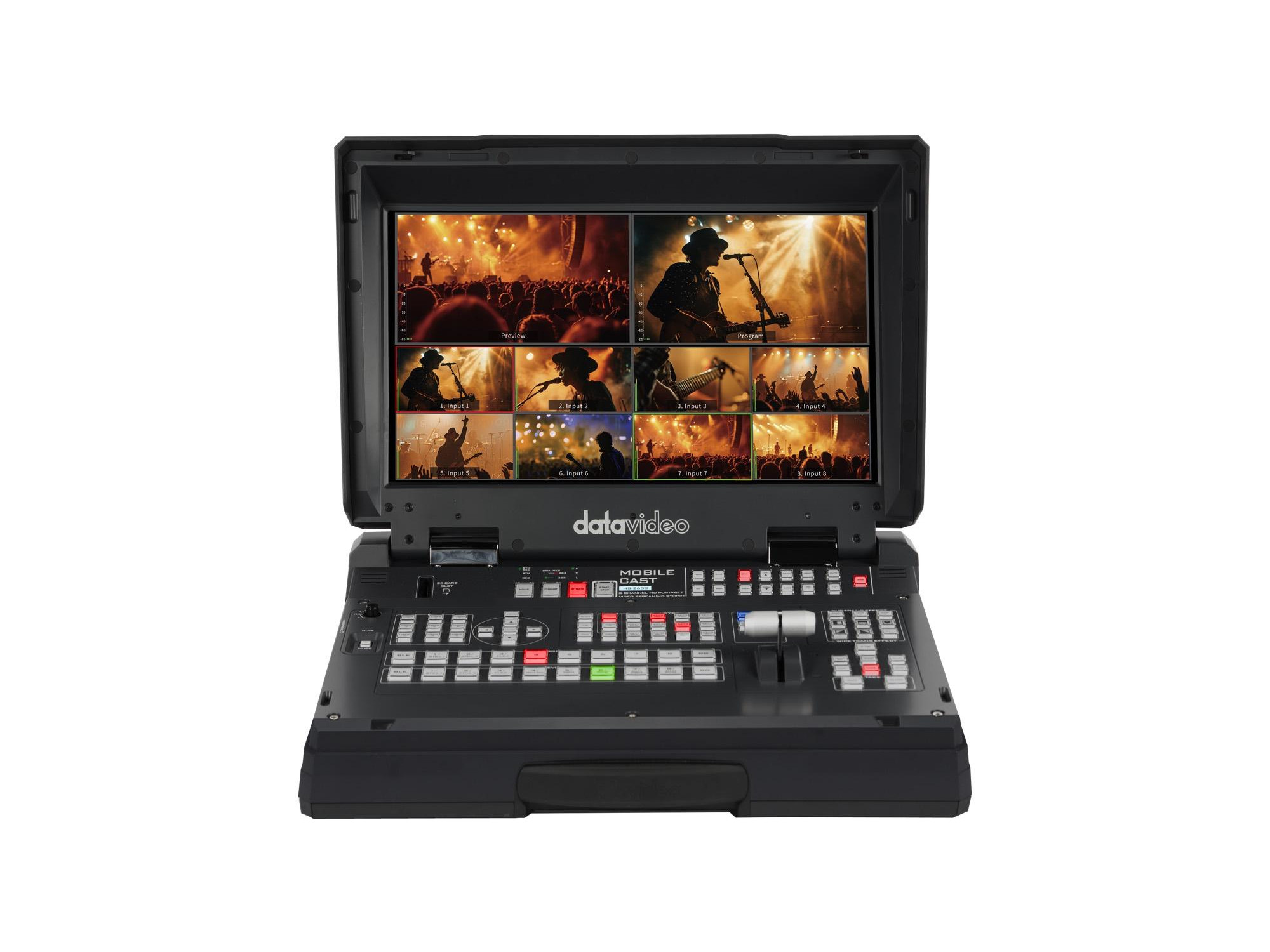

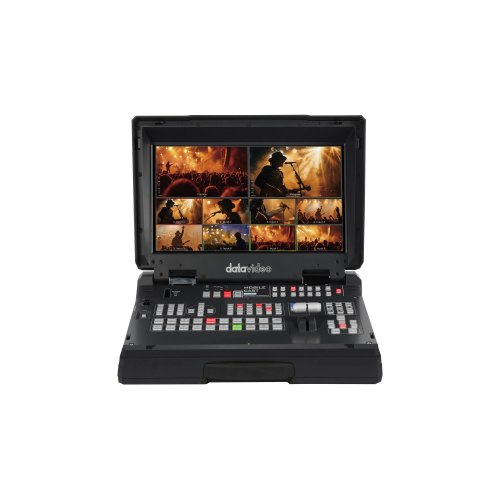

Datavideo HS-2600 HD 8-Channel Portable Video Streaming Studio

About: Datavideo HS-2600 HD 8-Channel Portable Video Streaming Studio

The HS-2600 is a high-performance portable HD studio designed for live production and broadcasting.

Combining functionality and mobility, it is the perfect solution for on-the-go professionals who need to set up and produce live events quickly and efficiently.

Whether you are broadcasting a live event, a conference, or a sporting event, the HS-2600 ensures a professional and seamless production experience.

All-in-One

The HS-2600 is your comprehensive solution for live production, allowing you to switch, stream, and record seamlessly from a single, portable unit. With built-in XLR audio connections, you can easily integrate master audio from an external mixer, ensuring professional sound quality alongside your high-definition video output. This all-in-one production studio simplifies complex workflows, making it an indispensable tool for live events, broadcasts, and productions.

• Completely Customizable 8 Input Full HD Production Switcher: The HS-2600 is equipped with 8 inputs (4x SDI+4x HDMI) and 7 outputs (3x SDI+4x HDMI) to help you produce a sophisticated and professional live event.
• Stream to Facebook Live, YouTube, Twitch and More: The built-in H.264 web streaming encoder allows you to stream your show to Facebook, YouTube or Twitch in no time.
• Built-in H.264 Recorder for SD Cards: The HS-2600 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

Create Stunning Video Effects with Advanced Features

Advanced features include 4x PIPs, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent logos or chromakeyers.

Variety of Video and Audio Input/Output

The HS-2600 is equipped with 8 inputs (4x 3G-SDI+4x HDMI) and 7 outputs (3x SDI+4x HDMI) to help you produce a sophisticated and professional live event.

17.3'' LED Backlit Monitor

Built-in Monitor Display. 17.3" HD TFT LED backlit monior with resolution 1920x1080 pix.

Built-in Animations and Backgrounds

Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects.

Included CG Title Creator

All 2600 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

Flex Source to Go that Extra Mile

Flex Source gives you the power of a 2 M/E switcher, in a 1 M/E switcher! Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button.

Custom Multiview Layout & Dual Multiview Output

Connect up to two displays to all 2600 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own!

4 Chromakeyers for a Complete Virtual Studio Experience

Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.

Create Stunning Video Effects with Advanced Features in 2600 Series Switcher

HS-2600 switcher advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.

Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button.

Support SRT Streaming Protocol, no Need to Worry About Unreliable Network Environment

Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility.

Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently.

It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization.

Seamlessly Compatible with dvCloud

Get the most out of your streaming hardware using DVCloud. The HS-2600 is seamlessly compatible with Datavideo’s DVCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.

Stream to 25 Platforms Simultaneously (dv Cloud Professional)

dvCloud Professional (please refer to www.dvcloud.tv for more info) can stream to 25 platforms simultaneously. It can stream to either different platforms or different channels of the same platform. Thus, even if your local network bandwidth is limited, you can still stream to multiple platforms at the same time with dvCloud.

Real Time Statistics

dvCloud provides powerful real-time statistics for all video sources and destinations so you can be sure every frame reaches its destination:

• Monitor your video sources and be sure every frame makes it to the cloud
• Leave nothing to chance, check your networks performance and adjust your streaming settings before you go live
• Monitor your NVD-3X MARK II decoders and be sure every frame makes it to the decoder
• Monitor your streaming destinations in real time with our easy-to-use traffic light system
• All statistics are graphed, you can see the previous 10 minutes statistics.

Build a Reliable SRT Live Streaming Workflow with All Datavideo Products

Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Tutorial Videos Created Specifically for the HS-2600

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the HS-2600 is available at Datavideo Academy to help you get the best performance out of the product.

Specifications

• Video Standard: HD
• Video Format
  • 1080p 50/ 59.94/ 60Hz
  • 1080i 50/ 59.94/ 60Hz
  • 720p 50/ 59.94/ 60Hz
• Input Routable / Crosspoint: All 8, repeatable

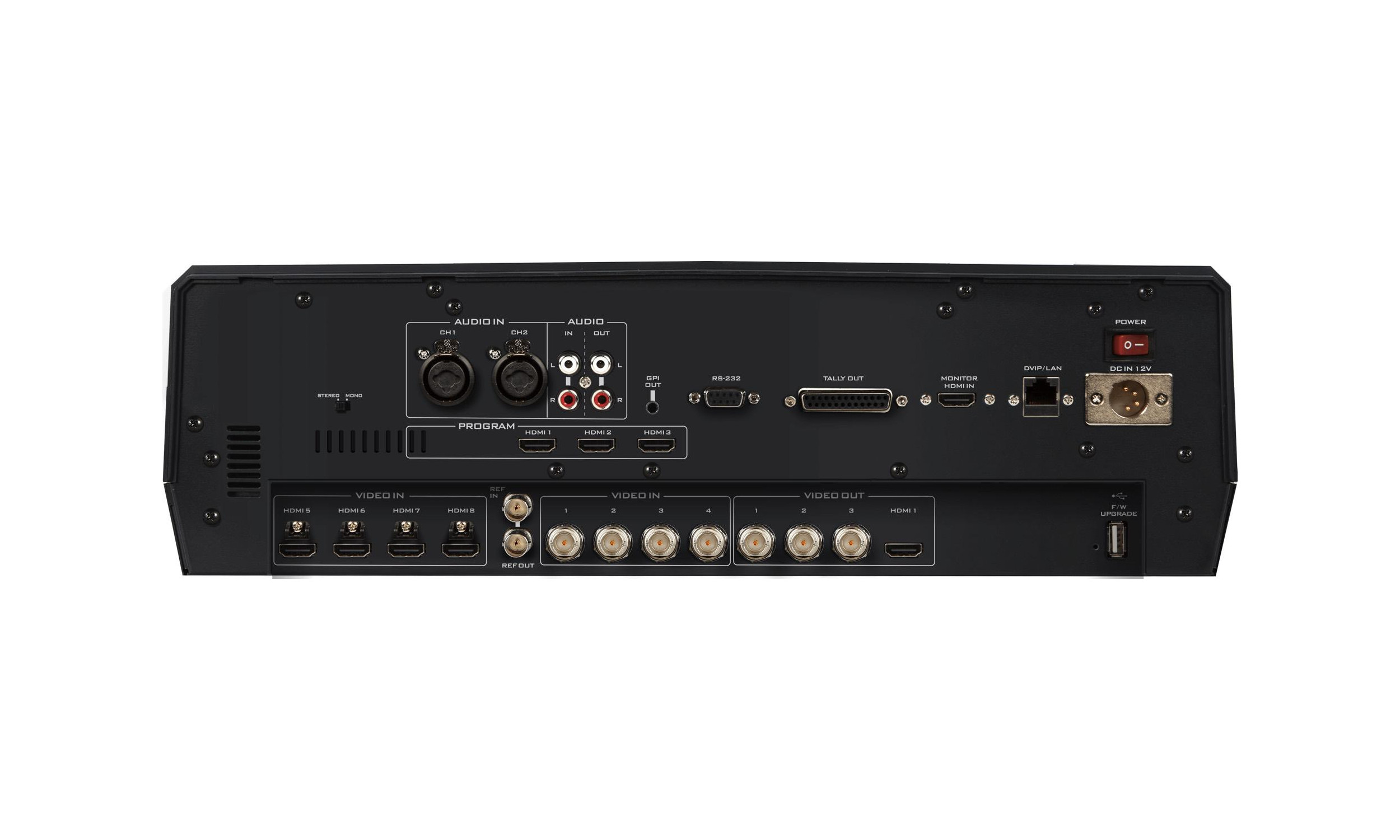

• Video Input
  • 4 x 3G-SDI
  • 4 x HDMI
• Computer Graphic Interface: 4 via HDMI
• Down-converted Output: -----
• Video Output
  • 3 x 3G-SDI for PGM (AUX assignable)
  • 1 x HDMI 1.4 for PGM (AUX assignable)
  • 3 x HDMI 1.4 for PGM
• Analogue Audio Input
  • 2 x XLR/MIC (6.3mm) Combo Socket
  • 1 x stereo RCA audio
• Analogue Audio Output: 1 x stereo RCA audio
• Digital Embedded Audio Support
  • SDI Input/Output 4 channels,
  • HDMI Input/Output 2 channels
• Audio Delay Calibration: Up to 16 frames
• A+V Switching: Yes
• USK: 4
• DSK: 2
• Picture in Picture: 4
• Logo Insertion: 2
• Title Creator: Yes
• Built-in Audio Mixer: ----
• Built-in Monitor Display: 17.3” HD TFT LED backlit, 1920x1080 pix
• Built-in Intercom & Tally: ----
• Streaming
  • Streaming
    • H.264: MAX RES 1080p
    • H.265: MAX RES 1080p
  • Streaming Audio Encode
    • AAC 2CH,
    • 16bit 48KHz 192Kbps
  • Streaming Protocol
    • RTSP
    • RTMP
    • SRT
  • Streaming Control: Web browser UI for configuration and control Socket commands
  • Recording File System: FAT32, exFAT
  • Recording File Format: MP4 (H.265+ AAC) or (H.264+ AAC)
  • Streaming & Recording Setting Control: Web UI for system configuration and control
• Others
  • Special Features
    • 4 Chroma-Key Virtual Studio
    • 9 stinger transition and 4 user preset
    • Built-in CG title overlay system
    • Streaming encoder and recorder
    • Reinforce Plastic Case
  • Power: DC 12V, 11A
  • Operating Temp. Range: ​0~40 °C
  • Dimension (LxWxH): 17.91 x 13.98 x 5.28 in (455 x 355 x 134 mm)
  • Weight: 18.74 lbs (8.5 kg)

What's in the Box

• 1x HS-2600 Unit
• 1x AD Switch DC 12V with AC Cord
