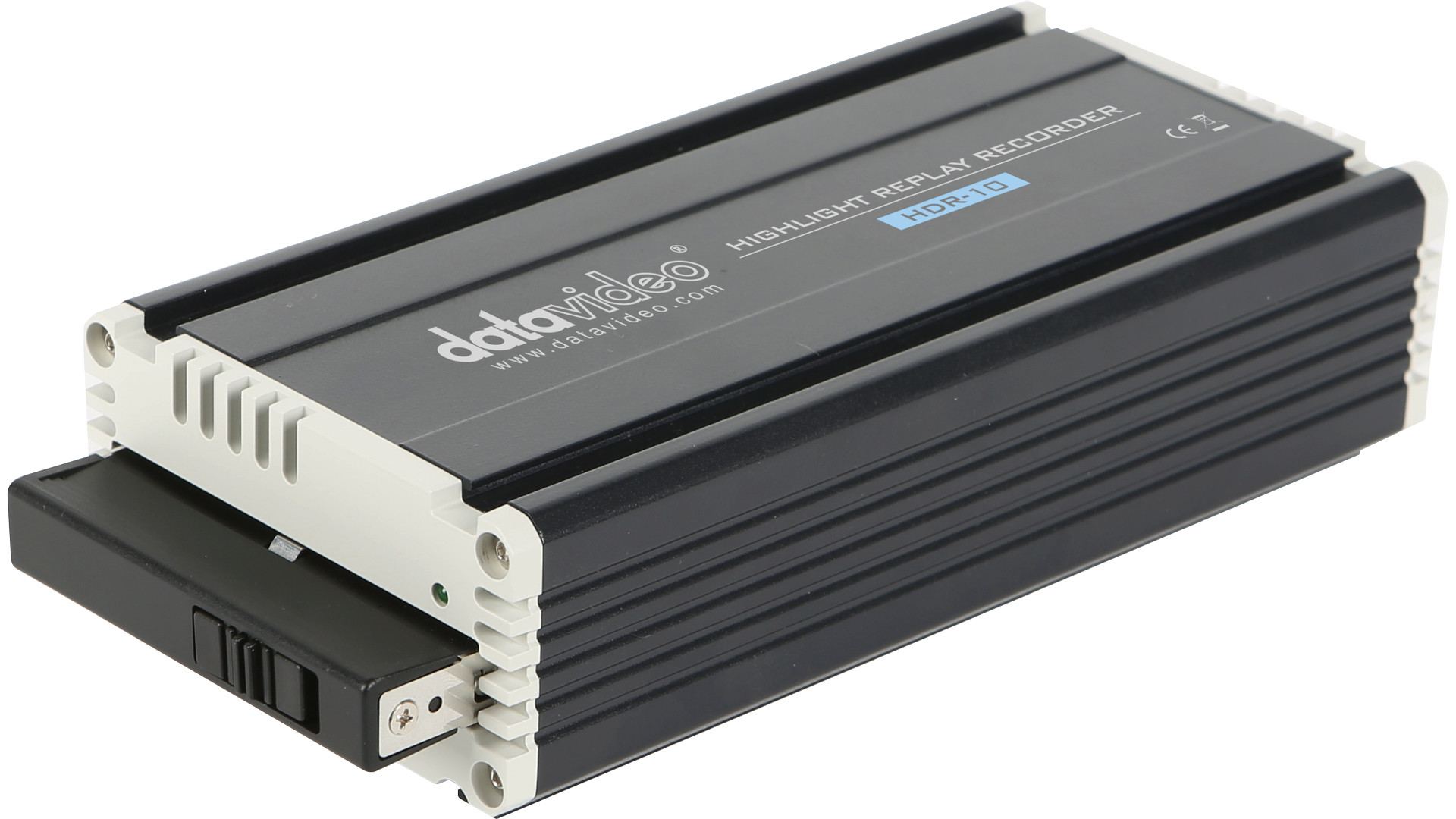

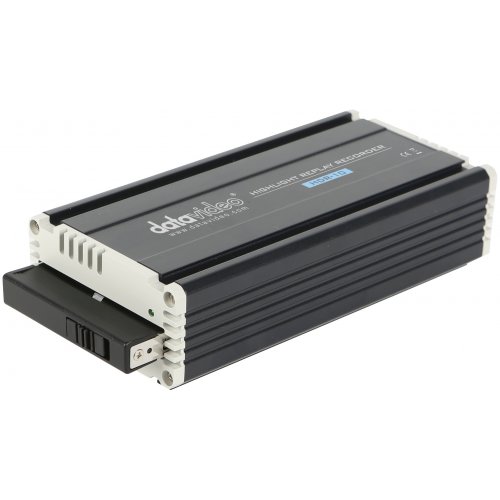

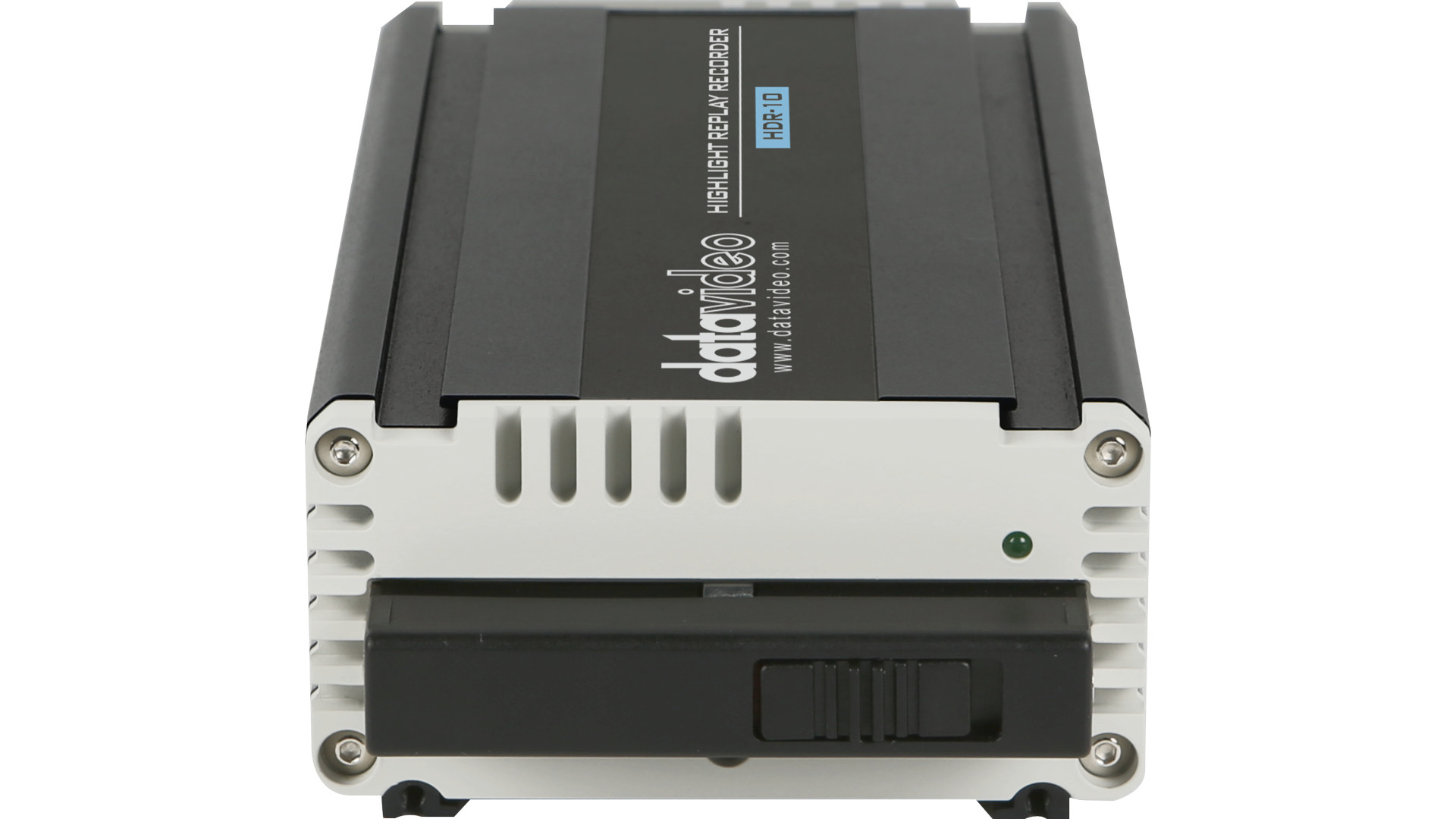

Datavideo HDR-10 Instant Replay Recorder

About: Datavideo HDR-10 Instant Replay Recorder

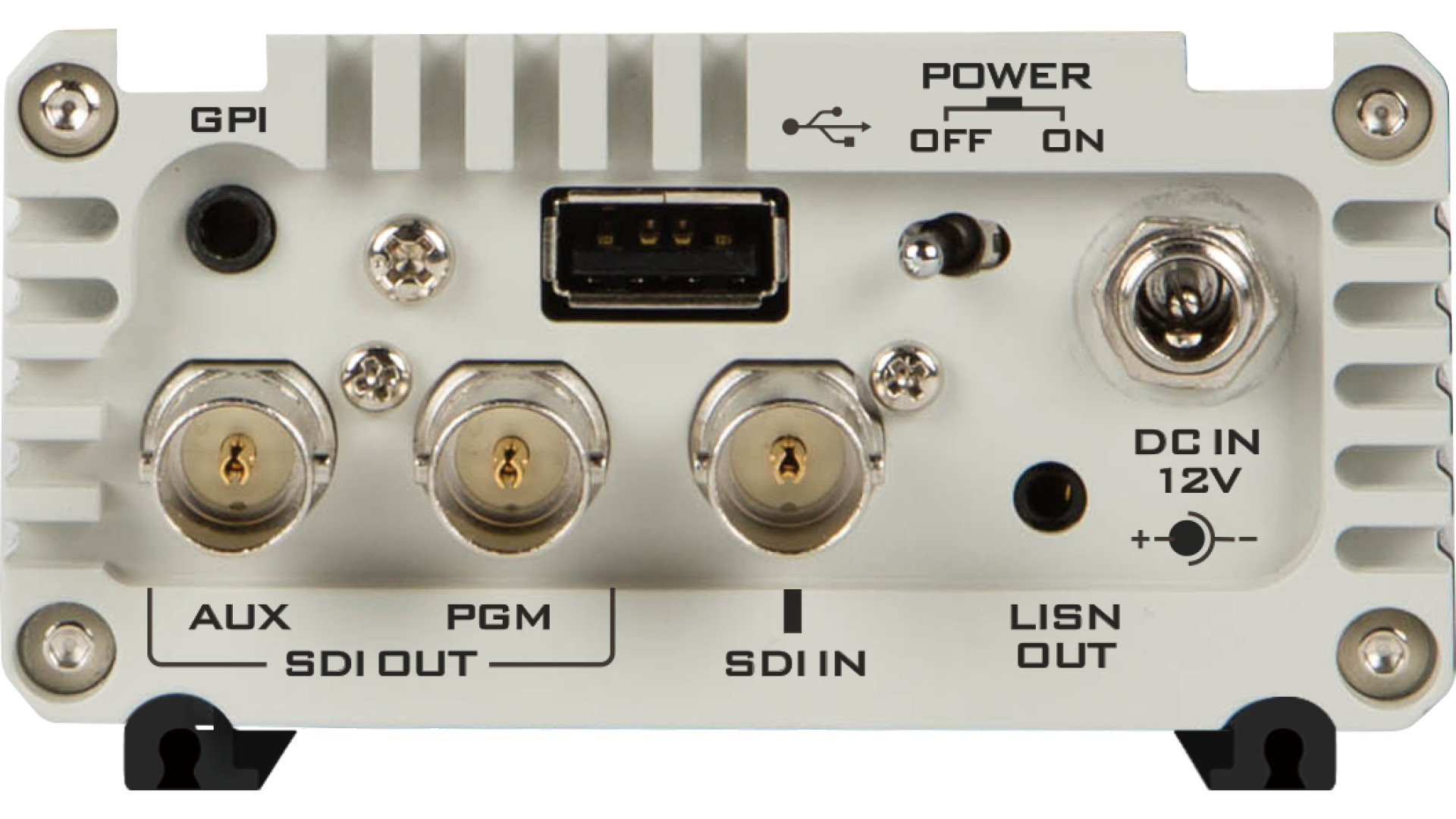

The HDR-10 is a Highlight Replay Recorder (3G/HD/SD SDI) capable of capturing specific, desired or special scenes during any sports game. The captured scene is then output to the switcher as a replay. The HDR-10 also allows the user to store the chosen Highlights into removable compatible media (2.5” SSD recommended). The User controls the unit with a simple USB 2.0 compatible Jog/Shuttle wheel which has five function buttons. An SDI AUX video output from the HDR-10 unit provides an On Screen Display (OSD) menu and the PGM SDI output provides clean video output.

• Note: The HDR-10 3G input accepts video signals from Level A camera only.

Simple instant replay

Video production team can use with slow motion to review plays for referees and coaches during games and matches. (hard drive sold separately)

multi-resolution for different cameras

Supports 1080p/1080i/720p video resolutions

Capture and review the highlight

Built in internal 4GB (30sec.) buffer can be used in the highlights of the event, the captured video can be repeated in speed or playback mode to seize the perfect moment.

GPI interface

Allows other devices such as a switcher to trigger the playback.

Easy-to-use control device available

The RMC-400 as a control input device can command up to four HDR-10 instant replay units simultaneously. Shortcut keys and jog wheel make performing live instant replay a breeze.

Features

• Single channel highlight replay recorder
• Internal 4GB Buffer to capture and review the event
• 3G/HD/SD SDI input, output and loop through with embedded audio
• A third party Jog/Shuttle control device is provided with the unit
• GPI interface allows other devices such as switcher to trigger the playback.
• Recording file formats: Uncompressed 4:2:2 MOV
• LISN (Local Interconnect Synchronous Network) connection between main unit, remote controller and other devices.
