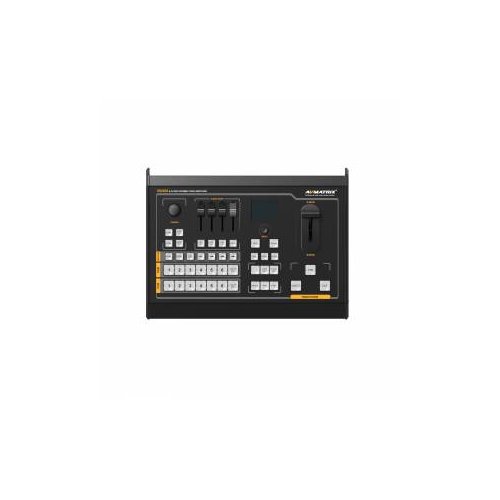

AVMatrix VS0605 - 6CH SDI/HDMI Multi-Format Video Switcher

About: AVMatrix VS0605 - 6CH SDI/HDMI Multi-Format Video Switcher

Multiview Monitoring

Multiview output make it easy to monitor 6 channel sources as well as PVW and PGM simultaneously on one display. A real-time clock and menu list are located in the lower right corner of the multiview.

Multi-format & Scaler

6 different SD and HD format video sources can be detected and displayed at the same time. The PGM output can be up/down scaled including 108oi and 1080p.

PiP/PoP

To insert a second picture into/outside the main picture. Simply adjust its size and position, then push program.

Chroma/Luma Key

Support real-time background matting, user can use Chroma key to cutout PVW green or blue background. And use the Luma Key to cutout black background.

Transition Effects

Transition between PVW and PGM with WIPE/MIX/FADE effect through T-Bar & AUTO. There are 3 transition rates for AUTO transition.

Audio Mixer

A built-in audio mixer can mix 2 external XLR & RCA audio and 6 channels of embedded audio. It's easy to control 3 stereo channels individually through the faders ad corresponding buttons.

SD Card Recording

No external recorder needed, because the switcher has a built-in SD card slot for PGM recording. It's simple to have an immediate high quality (up to FHD 1080p 60 hz) recording of the event from this switcher.

USB Media Players

The channels 5 and 6 support different signals such as USB Media Player. USB Media Player supports Video and Images.

PTZ Camera Control

The switcher also has a PTZ control feature. Two cameras's pan, tilt, zoom funtion can be controlled by a joystick and buttons through a RS422/RS485 port. Setting the cameras's address and select VISCA & Pelco D/P protocols from menu. PTZ Cameras Not included

Widespread Applications

The all-in-one 6 channel video switcher can be widely used in various field events, such as live sports, virtual studio, education, internet, concert, and so on.

Features

• Multiformat input:SD, HD,FHD
• 6 channel inputs: 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player inputs
• 3×SDI/ HDMI PGM outputs, 1×SDI AUX output, 2×SDI/ HDMI multiview outputs
• T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
• T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
• Luma Key/ Chroma Key for virtual studio
• PIP/POP window size and position adjustable
• Record PGM video to SD card, up to 1080p60
• Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
• Tally port for multiple camera system
