AVMatrix PG4K - SDI /HDMI 2.0 4K/60 12G Signal Generator

About: AVMatrix PG4K - SDI /HDMI 2.0 4K/60 12G Signal Generator

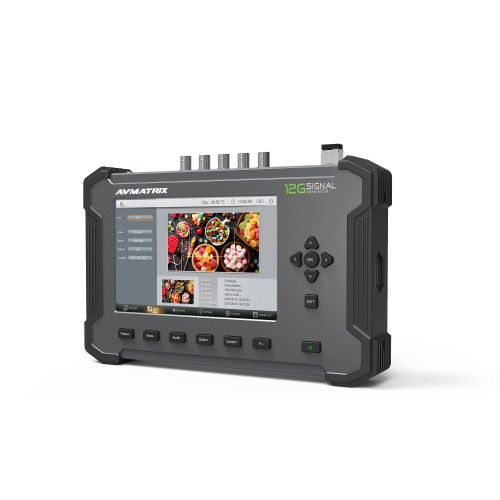

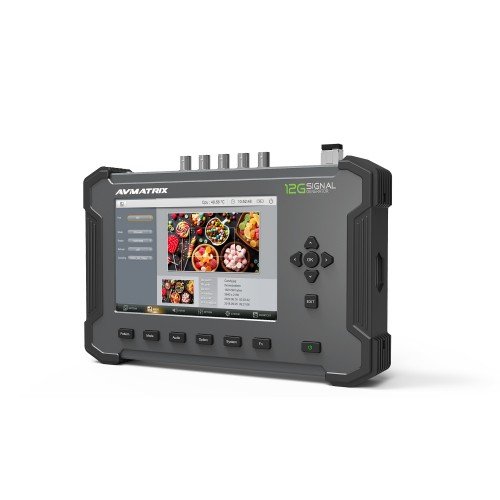

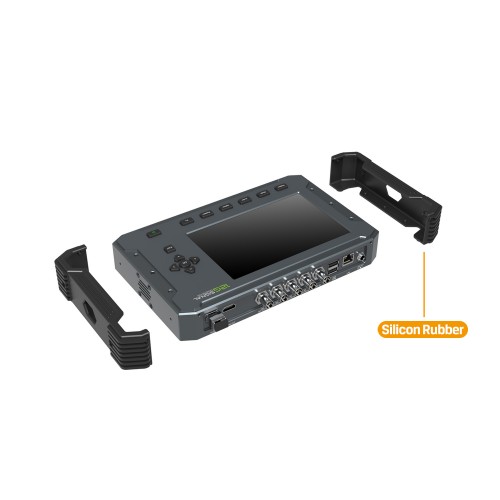

The AVMatrix PG4K Signal Generator is an HDMI 2.0 / SDI 4K signal generator designed for the testing of any video equipment which accepts up to a 4K signal over BNC SDI inputs.

A wide range of uses are applicable to this unit - the most common is in the setup of cameras and video villages, however it is also used for testing large video display walls, workflow systems for edit suites and a great deal of other A/V and Broadcast situations.
It has a comprehensive suite of tools - some highlights are listed below:-

Pattern Measurement

To test color temperature and gray scale of monitor with various types of patterns, such as color bar, monochrome display and customized pictures.

• Preset & importable patterns
  • Custom : Free to create any color picture, based on two different color space - RGB or YCbCr.
  • Picture :  Built-in a plenty of preset patterns, and user-definable pictures imported to the generator to meet various test requirements.

Signal Compatibility
Supports SD, HD, 3G, 6G and 12G-SDI signals; SDI and Fiber signals up to 4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.

• Mode Options : Selection among of 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SD-SDI signal formats.
• Raster Options : Different resolutions options corresponding to different Modes.
• Refresh Options : Different Raster rates corresponding to different Modes & Raster.
• Sampling Options : Different GBR & YCbCr sampling rates based on the above options.

Signal Output Types
Selectable from the internal menus and setup system, the SG-12G unit has a full compliment of output signals to test with. The table below details the 12G and 6G signals supported

Audio Monitoring
A comprehensive audio monitoring tool supports up to 16 channels embedded AES/EBU audio, with -60dB to 0dB range. And a 20 to 20000 frequency.

• Channel Options : 16-channel SDI audio ranges from CH0 to CH15 for optional.
• Switch Options : Off, On, All Off and All On are optional for 16-channel audio switch.
• Phase Options : Options among of 0, 90, 180 and 270 for phase.
• Frequency Options : Freq options can be customized from 20 to 20000 byusers.
• DB(-) Options : Freq options can be customized from -60bB to 0dB by users.

Specifications

• Display
  • Aspect Ratio 16:10
  • Brightness 400cdm²
  • Contrast Ratio 800:1
  • Display Screen 7" IPS
  • Resolution 1280 x 800
  • Viewing Angle 178°H / 178°V
• Input
  • Input Signal REF x1, USB x1
  • Output

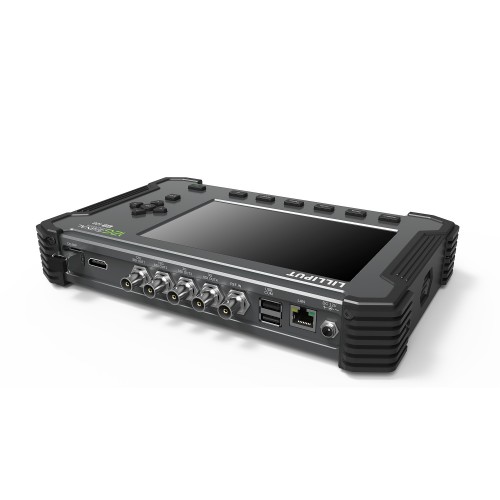

  • Video Output HDMI 2.0 x1 // 12GSDI x 2 // 3GSDI x2 // **Optional Fiber Output Module
• Size

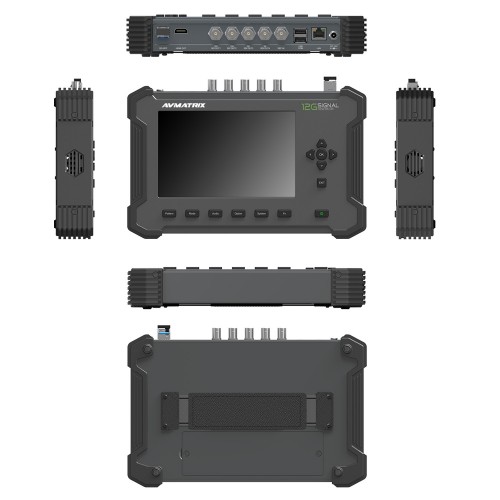

  • Dimensions 264 x 169 x 42mm
  • Weight 3KG
• Power
  • Battery Built in - 5000mAh
  • Current <=2.3 (12V)
  • Input Voltage DC10-15V
  • Power Consumption <= 27W
