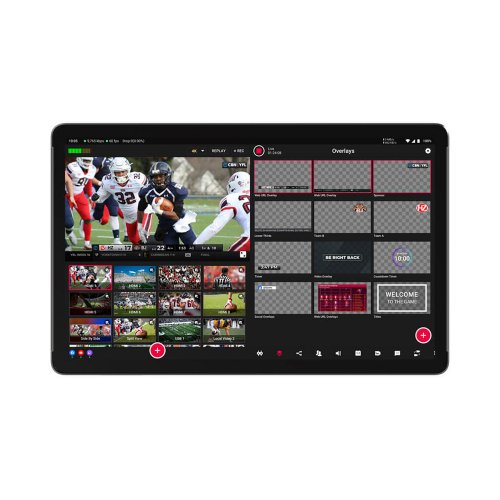

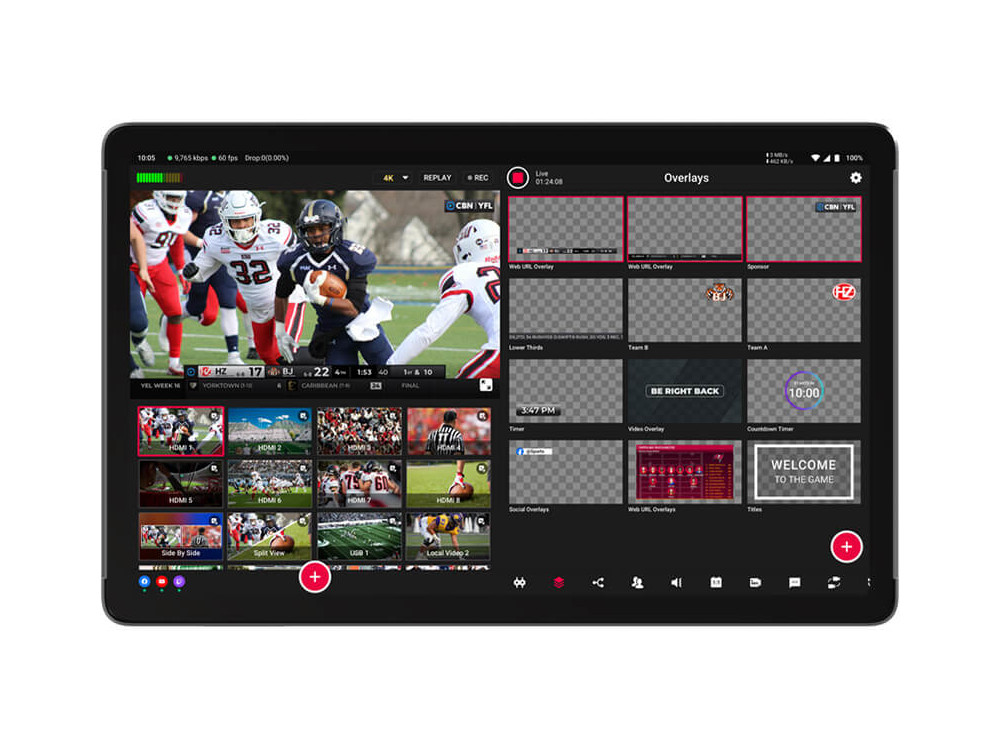

YoloLiv YoloBox Extreme Multi-Camera Live Streaming Device

About: YoloLiv YoloBox Extreme Multi-Camera Live Streaming Device

The YoloBox Extreme is a multi-camera live streaming device that combines an encoder, monitor, switcher, and recorder. It's designed to be portable and easy to use, with a compact size that fits in a backpack. It's also battery-powered, so it doesn't require a computer or professional crew to set up.

• 8 HDMI Inputs: Up to 4x 4K60 with Built-in Scaler
• 2 HDMI Outputs: Assignable Program/Multiview Out in 4K
• 11.2 Inch OLED Display: 2.5K Resolution, 1,000 Nits of Peak Brightness
• External Antenna: Up to 90m Wireless Range & Connectivity
• Real 4K Streaming: True Clarity in Every Pixel
• ISO Recording: Up to 4x 4K30
• Up to 10-Hour: Battery Life
• 6 NDI Inputs: Total Multicam Wireless Solution
• Remotely Control: from Phone or Computer
• QualComm Snapdragon 8Gen2: A CPU That's 1.8 Times Mightier Than Yolobox Ultra.
  • Android 13
  • Wi-Fi 7
  • Bluetooth 5.3

Tradition of Excellence. Perfect for On-Location & One-Man Crew.

No Computer Required. Set up in Minutes.

• All-In-One: Encoder, switcher, recorder, monitor, in One
• Android System: Users can benefit from regular updates while enjoying an intuitive and familiar interface that enhances usability.
• Minimum Setup: No computer/desk workstation/professional crew required
• Portability & Mobility: Compact size, fit into your backpack, live On the Go.
• Battery-Powered: 10 Hour Battery Life + Built-In 4G LTE, WiFi, Ethernet
• Touchscreen Control: Production at your fingertip, great ease to operate

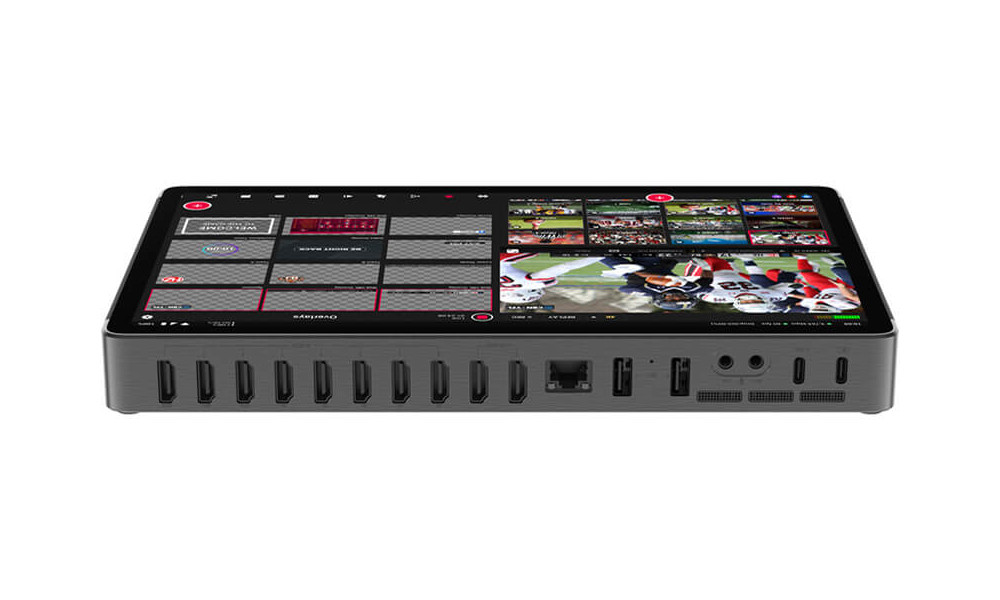

8 HDMI Input - More is Better

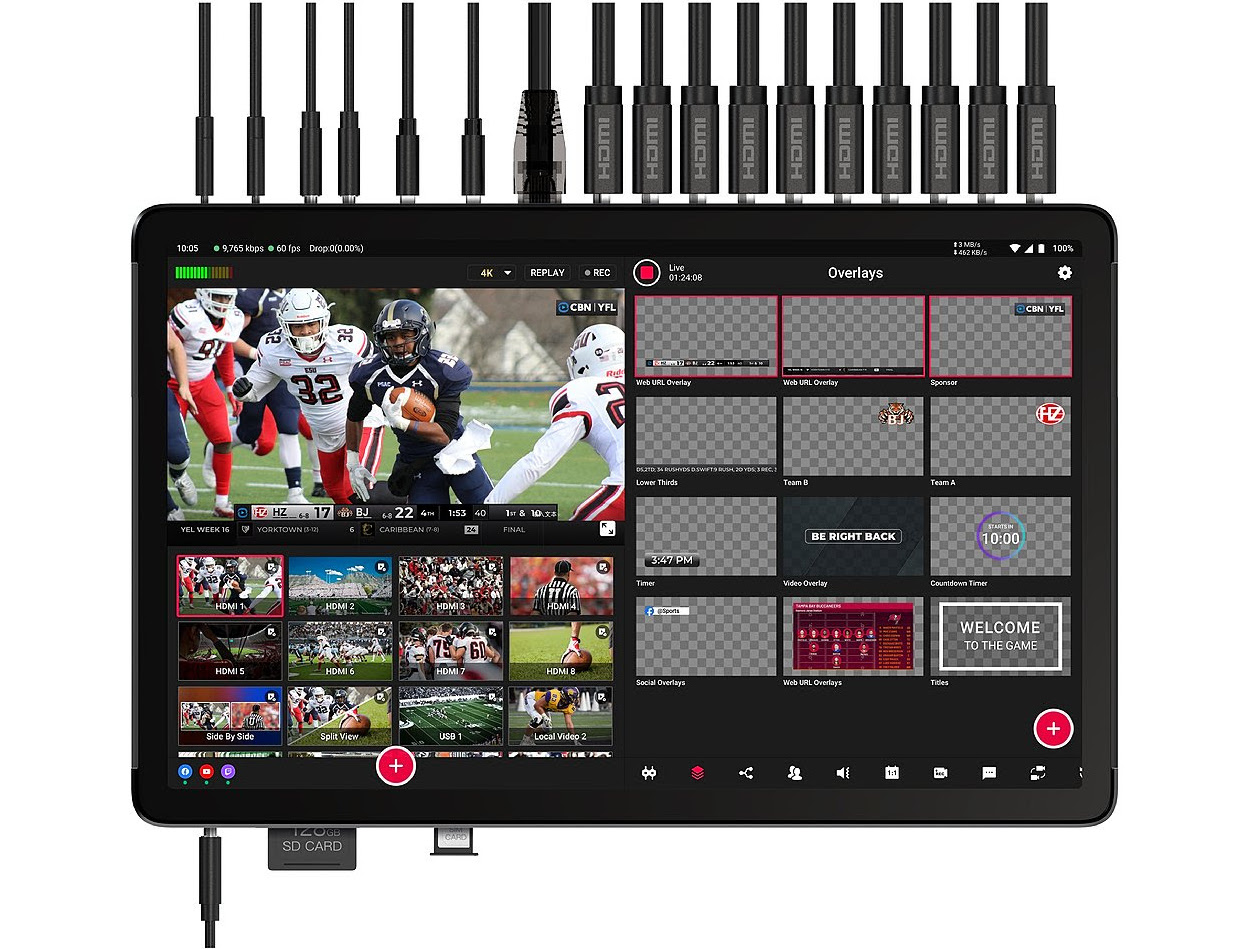

Connect Cameras, Laptops, Media Players, and More, Offering Unmatched Flexibility for Any Scenario. Future-Proof Your Setup Without Worrying About Running Out of Ports.

• HDMI Inputs (1-8): Up to 4x 4K60 with Built-in Scaler
• HDMI Outputs (1-2): Assignable Program/Multiview Out in 4K
• Ethernet Connection: Wired Stable internet connection
• USB Type-A 3.0 (1-2): For Webcams; Hard drives; USB dongles.
• Mic In (3.5mm): Mono, connect to wired microphone
• Line In (3.5mm): Stereo, connect to external audio mixer
• 2x USB Type-C
  • One is a fully functional interface supports input
  • One is only for Charging
• Audio Out (3.5mm): Connect to headphones for monitoring
• SD Card Holder: Save files; Load videos & graphics.
• Nano-SIM Card Holder: Insert SIM card for 4G network
• Standard ¼‘’mounting hole: Mount with other cameras & tripods
• Power Button: Turn on & off, Sleep Mode

Dual Assignable HDMI Outputs

Allowing You to Output Different Video Feeds( Preview, Multiview or Program) Simultaneously.

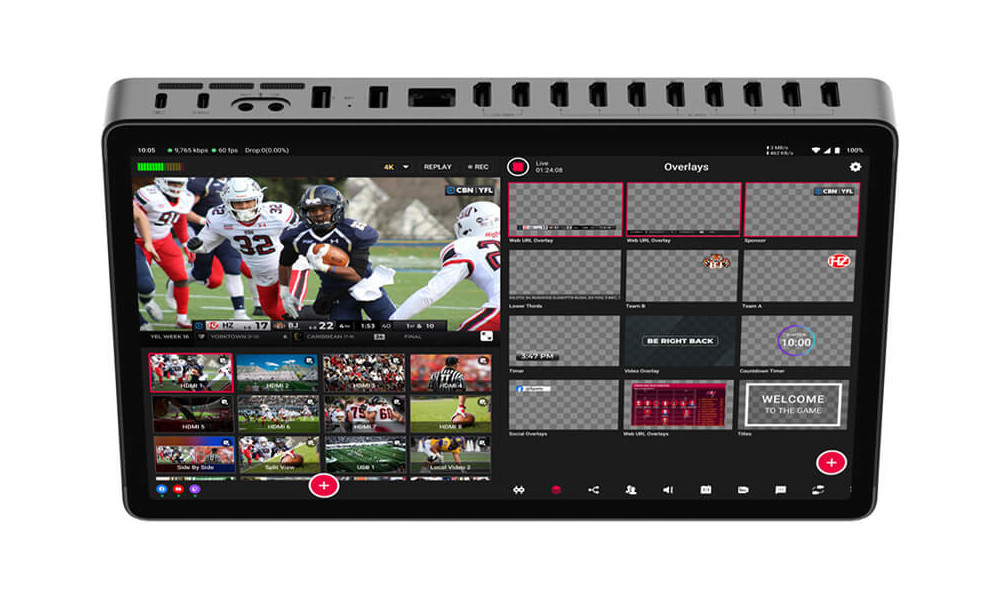

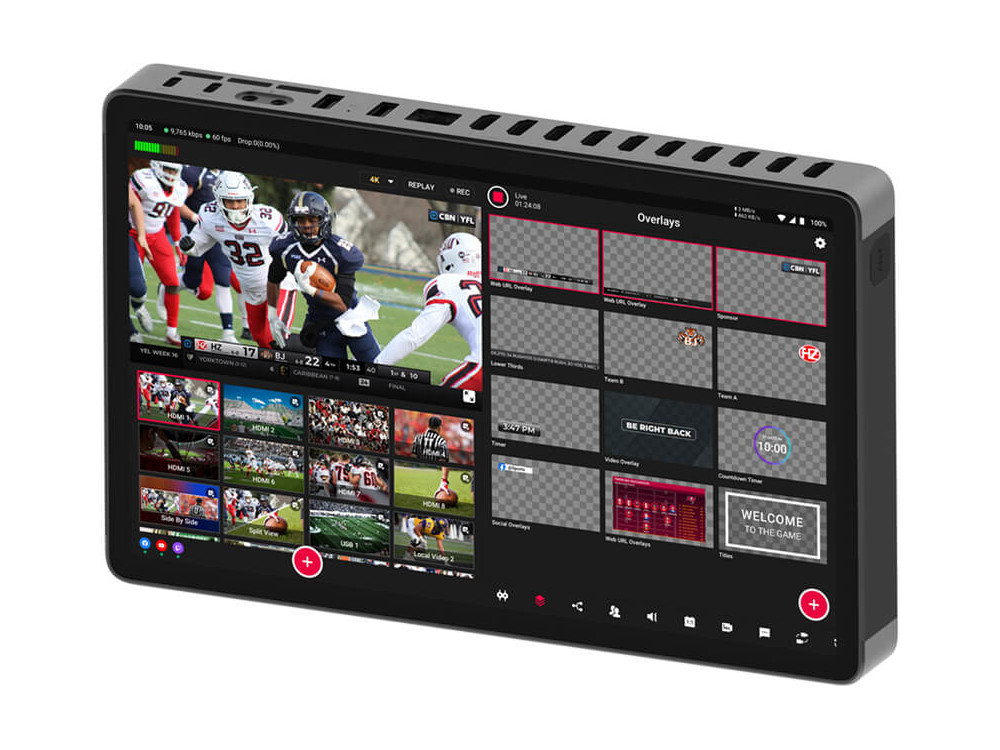

• More Space to Explore: The all-new 11.2-inch OLED screen brings a larger, more immersive display, redefining how you see and interact with content.
• Shine in Any Light: With a peak brightness of up to 800-1,000 nits, every detail remains vivid and clear, even under direct sunlight.
• Effortlessly Responsive: Enjoy ultra-fast touch feedback for a silky-smooth experience, making every interaction seamless and intuitive.

Configure Directly & Intuitively from YoloBox

The benchmark for performance, ease of use.

• Live Switch: Easily switch between multiple video sources or fully customized scenes with a touch.
• Audio Mixing: Built-in audio mixer with easy setup. Individual level control of multiple audio sources.
• ISO Recording: Capture all the video inputs as well as the program video and save them separately.
• Graphic Overlays: Add logos, lower thirds, titles, countdown timer and more to look professional.
• MultiViews: Customize live stream layout with built-in multiviews and level up production with ease.
• Scoreboard: YoloBox’s built-in scoreboards allow you to keep the score in real-time, display game progress, add game/team logos, and more.
• MultiCam Replay: Create highlight clips with preset video duration, intros, outro and more with a few clicks.
• Inviting Guests: Create a real-time conversation with remote guests from a web browser on mobile devices.
• PTZ Control: With PTZ control, you can preset up to 5 camera positions. This allows you to quickly switch between different angles and views.
• Crop Video: Video cropping serves various needs such as margin removal, game capture resizing, conferencing zooming, and close-up view creation.
• Chroma Key: Seamlessly add a different background of a design or a different location for your live productions with the magic of chroma key in a few taps.
• AutoSwitch: Seamless Transition between pre-set camera angles with defined order and duration. Frees you from manual camera control to focus on the video.

Create Multiview Layouts in Seconds, Not in Hours

Quickly add multiviews to enhance your workflow with the built-in templates like Side By Side, Picture in Picture, 3 Views, and customized Layout. Boost your productivity right at your fingertips!

Advanced Features as Standard, All Within the Brand NEW User Interface

• Various Overlays
• Free MultiStreaming
• Customized MultiView Out
• 4K Streaming
• Inviting Guests
• Web URL Overlay
• Video Follow Audio
• Chroma Key

Audio Investment Evolved.

• Assignable AFV: Each audio channel automatically switches as the video changes, ensuring perfect synchronization.
• Mix Minus: Easily solo monitor a specific audio channel or mute it entirely, giving you full control.
• Audio Delay: For any sync issues between audio and video, simply adjust the timing to ensure synchronization.

Specifications

• Input Power: 9V / 12V / 15V⎓3A
• Power Consumption: 45W
• Power Supply: USB Type-C
• USB Rated Output: USB-A:5V/1A
• Battery Capacity: 10000mAh
• Dimensions (LxWxD): 10.4 x 6.6 x 1.14 inch (264 x 167 x 29mm)
• Weight: 3.31 lbs (1500g)
• Power Consumption: ＜45W
• Monitor Screen Size
  • 11.2inch 2K OLED; Resolution: 2560x153;
  • Brightness: 450nits ( ≈ LCD 800-1000nits);
  • Frequency: Fre =120Hz; Contrast ratio (1500:1);
  • Viewing Angle (full viewing Angle); NTSC 108%
• Local Video Inputs: HDMI USB-A
• Video Over Ethernet: RTMP/RTMPS/SRT/NDI/RTSP
• Video Input Connectors: HDMI, USB-A, RJ-45, USB Type-C
• Video Input Aspect Ratios: 16:9, 4:3, 1:1
• Video Input Deinterlacing: No
• Live Broadcast Video Input Resolution: 480p/720p/1080p(up to 60fps)/4Kp60
• Video Encoded Format: H.264 H.265
• Video Processing Bitrate Control: CQ, VBR, CBR
• Hardware-accelerated Video Encoding: Optional
• Video Output Signal Types: FLV-RTMP, HDMI, UVC
• Video Output Connectors: HDMI OUT, USB-C
• Video Output Streaming Protocols: RTMP, RTMPS, MJPEG, SRT
• Live Broadcast Video Output Resolution: 480p/720p/1080p(Up to 60fps)/4Kp60
• Analog Audio Input Connectors: Line In; Mic In; 3.5mm
• Digital Audio Outputs
  • USB; HDMI; RTMP (From internet);
  • Local video (From SD card)
• Digital Audio Input Connectors: USB-A, HDMI, USB-C
• Audio Input Mute: Yes
• Audio Input Format: 32KHZ/44.1KHZ/48KHZ :16bit
• Audio Encoded Format: (AAC)44.1K/48KHZ 2Ch 16bit
• Analog Audio Output: 3.5mm Headphone Jack
• Digital Audio Outputs: HDMI Audio (Embedded); USB Audio (Embedded)
• Record Formats: MP4
• Wi-Fi: 2.4G/ 5G (Support WiFi6/WiFi7)
• USB Communication Standard: USB 2.0 and USB 3.0
• Ethernet Data Rate: 10/100/1000m, Half/full Duplex With Autodetect
• SIM Card Size: Nano-SIM Card
• 4G Network
  • 4G Network Countries & Frequency Band For
  • Users: [Variant for North Americao (US/Canada/Mexico)]
  • B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
    • Notes: Mexico B4 For Non-US/Canada/Mexico
  • Users: (EU：Variant for EMEA/India/Korea/Taiwan/South
  • Asia/Latin/America/Australia/New Zealand)
  • Users:B1//B3/B7/(B8) Notes：Thailand B1/B3
    • Please note that the certification of Yolobox Extreme is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.
• SD Card Format: FAT32(Under 128G); NTFS; EX-FAT
• Operating Temperature: 0℃-40℃
• Operating Humidity: 15%-85%; No Condensation
• YoloBox Extreme TH
  • WCDMA Network: B1/B8
  • 4G Network: B1/B3/B7/B8
  • USB Communication Standard: USB 2.0 and USB 3.0
  • Ethernet Data Rate: 10/100/1000M, half/full duplex with autodetect
  • SIM Card Size: Nano-SIM Card
  • SD Card Format: FAT32(Under 128G), NTFS, EX-FAT
  • Operating Temperature: 0℃-40℃
  • Operating Humidity: 15%-85%, No Condensation
