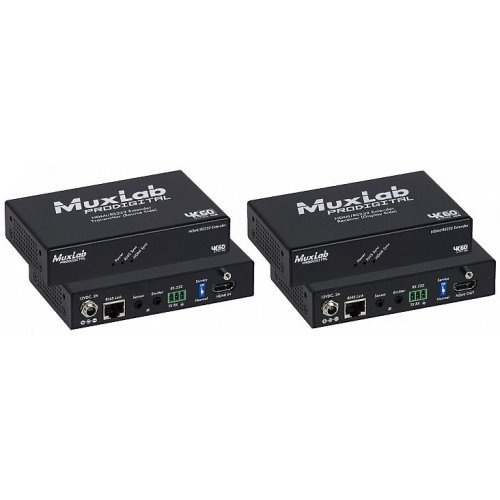

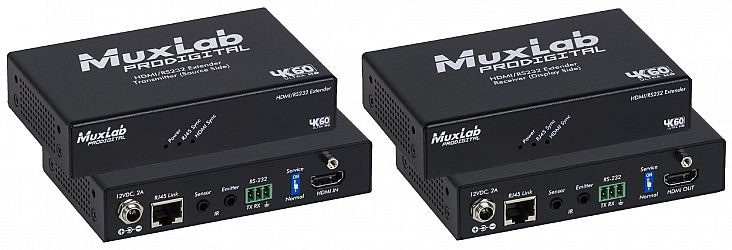

Muxlab HDBaseT 4K HDMI/RS232 Extender Kit
Model: 500459
About: Muxlab HDBaseT 4K HDMI/RS232 Extender Kit
The HDMI/RS232 Extender Kit, HDBT, 4K/60 allows HDMI equipment to be connected up to 131ft (40m) at 4K/60 (4:4:4) resolution, or 230ft (70m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. The unit is HDCP 2.2 compliant and supports HDR, as well as RS232 and bidirectional IR pass through transmission for end device remote control. This HDMI extender 4K 60 supports PoC, allowing the transmitter to power the receiver, or the receiver to power the transmitter. The kit includes one (1) transmitter, one (1) receiver, one (1) IR Emitter, one (1) IR sensor and one (1) power supply.
Applications
- Digital signage
- Commercial AV systems
- Classroom projector systems
- Boardroom systems
- Collaborative PC systems
- Medical information systems
Features
- Supports 4K @ 24/25/30/60Hz (4:4:4) to distances of up to 131ft (40m) over single Cat5e/6
- Supports 1080p and full 3D to distances of up to 230ft (70m) over single Cat5e/6
- Uses visually lossless light compression at 4K/60 (4:4:4)
- HDCP 2.2 Compliant
- Supports HDR
- Supports RS232 and Bi-directional IR pass through
- Supports all digital audio modes
- Includes IR emitter and IR sensor (carrier-wave)
- Supports PoC
UPC: 627699004593
