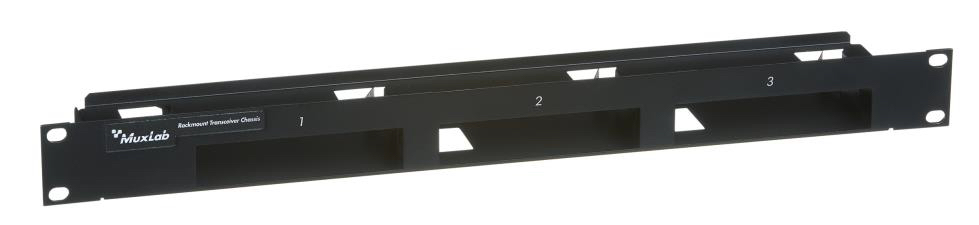

Muxlab 1U 3-Port Rackmount Transceiver Chassis

Model: 500905

Muxlab 1U 3-Port Rackmount Transceiver Chassis
Muxlab 1U 3-Port Rackmount Transceiver Chassis
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed



About: Muxlab 1U 3-Port Rackmount Transceiver Chassis

Designed for small commercial and residential applications, the Rackmount Transceiver Chassis allows several MuxLab desktop transceivers to be mounted in a 1U 19″?? relay rack for custom audio-video applications where the source equipment is installed in a central wiring room.

  • Space efficient – 1U height
  • One-piece design
  • Latching mechanism for secure installation
  • Supports up to three (3) transceivers
  • Snap-in design for ease of installation
  • Includes four (4) rackmount screws and washers
  • Slot number silkscreen on front and rear

Supports the line of LongReach CCTV IP PoE extenders & the shorter distance CCTV IP PoE Extenders both over Coax cable. MuxLab’s line of CCTV IP Extenders over Cat5e/6 cable are also designed to fit in the chassis.

The 3-Port Rackmount Transceiver Chassis fits most MuxLab Extenders including:

500112, 500114, 500451, 500451-PoE, 500453, 500454, 500454-PoE, 500456, 500753, 500754, 500755 and 500756.

Specifications

  • Environment - Custom audio-video systems in a structured cabling environment.
  • Application - Head-end installations, audio-video rooms, telecom rooms
  • Capacity - Three (3) positions
  • Compatible products - MuxLab transceivers measuring 4x4” x 2.95” x 1” (11.1 x 7.5 x 2.5 cm)
  • Snap-in mechanism - Baluns lock into position via spring latch mechanism.
  • Rack height - 1U (1.75”), 19” rack
  • Enclosure - Black painted aluminium
  • Mounting holes - Four (4) rack-mounting holes
  • Mounting hardware - Four (4) rack-mounting 10-32 screws and washers are included
  • Slot Id - Silkscreen on front and rear. Slots numbered
  • Dimensions (WxHxD) - 19 x 1.75 x 3.8 inch (48.3 × 4.5 × 7.2 cm)
  • Weight - 1.9 lbs (0.86 kg)

UPC: 627699009055

Reviews: Muxlab 1U 3-Port Rackmount Transceiver Chassis

There are currently no product reviews.


Warranty: Muxlab 1U 3-Port Rackmount Transceiver Chassis

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

PASSIVE PRODUCTS: LIFETIME WARRANTY*

ACTIVE PRODUCTS: 2 YEAR LIMITED WARRANTY

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
