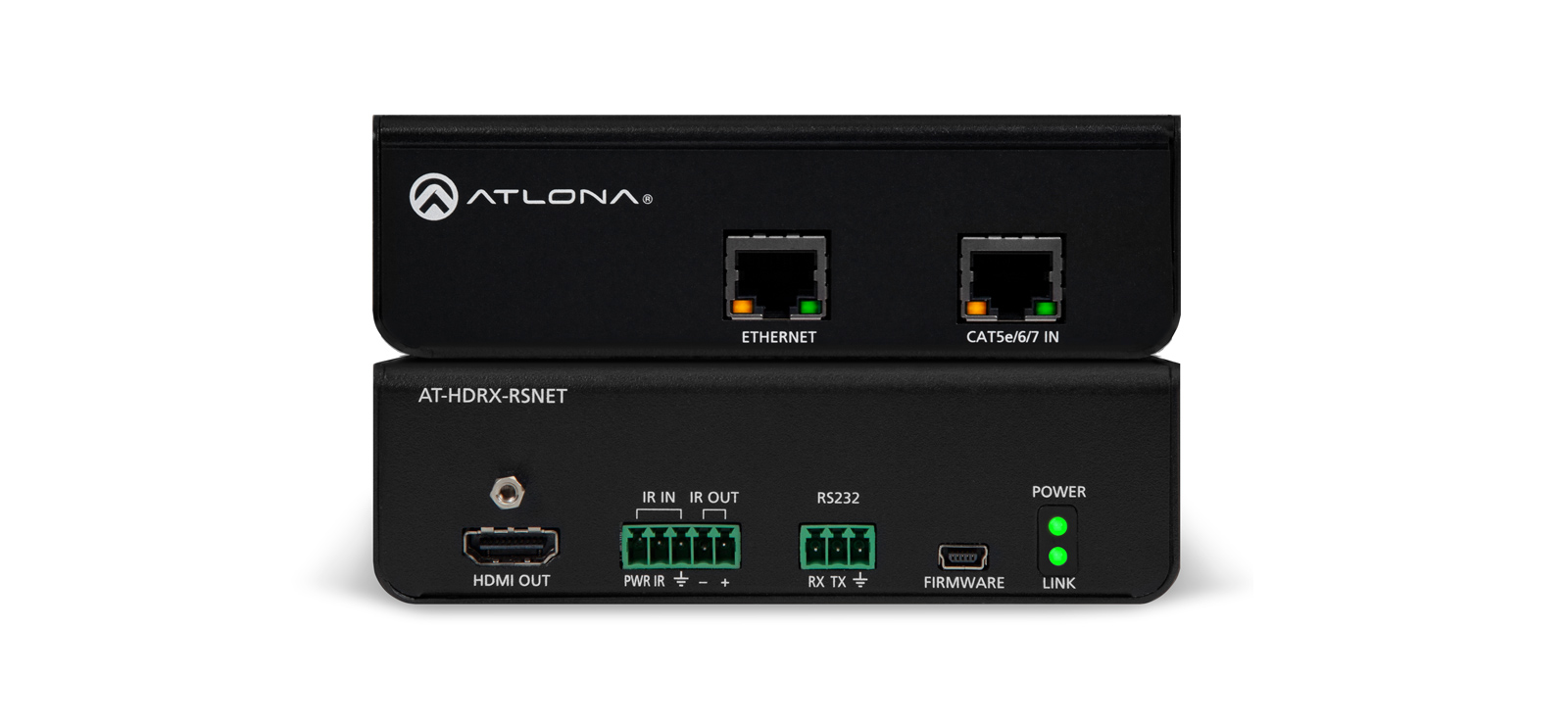

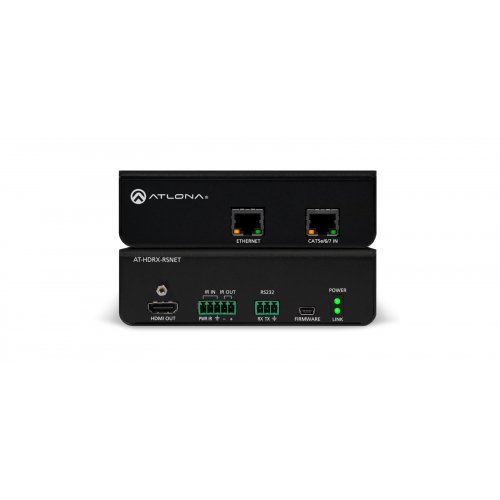

Atlona AT-HDRX-RSNET HDBaseT Receiver

About: Atlona AT-HDRX-RSNET HDBaseT Receiver

The Atlona AT-HDRX-RSNET is an HDBaseTTM receiver for HDMI transmission over category cable with Ethernet, RS-232, and bi-directional IR control. It extends 1080p/60Hz and 4K/UHD video with embedded multi-channel audio and control signals up to 328 feet (100 meters). Built-in Ethernet extension allows streaming media on your TV. The receiver is remotely powered from compatible Atlona transmitters using Power over Category cable (PoCc) to clean up the installation behind displays. AT-HDRX-RSNET is ideal for larger meeting rooms, educational settings, and residential environments that need complete control over HDBaseT.

Extended distance HDMI extension

• Receives HDMI and control signals up to 328 ft (100m) @ 1080P with CAT5e/6 or 4K/UHD using CAT6a/7 cable
• Supports HDCP 2.2
• Uses easy-to-integrate category cable for low-cost, reliable system installation

AV, Ethernet, power, and control over HDBaseT

• Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
• Eliminates multiple cable runs between source, control system, and display

Power over Category cable for remote-powering from HDBaseT transmitter

• Receives remote power from Atlona HDTX Series transmitters over the same category cable used for AV and control signals
• Eliminates local AC outlet required at receiver, cleans up the installation behind displays, plus saves time and integration costs

Field updatable firmware

• Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment

Front panel power and status LEDs

• LED indicators provide Power and Link status information
• Provides easy setup and troubleshooting

Multi-channel audio compliant

• Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, and DTS-HD Master Audio™
• Allows any multi-channel audio stream to be used within a professional audio system

CEC pass-through

• Allows Consumer Electronics Control commands – if implemented – to pass between devices
• Simplified user control of entire system with one remote

Compatible with Atlona HDTX Series transmitters, PRO3HD Series matrix switchers, and HDCAT Series distribution amplifiers

• Suitable for a wide variety of signal distribution applications

Recommended accessories:

• AT-HDTX-RSNET – Transmitter with RS-232, Ethernet, IR, PoCc, audio, and video
• PRO3HD Series– HDMI to HDBaseT Matrix Switcher Series
• AT-LC-CS-IR-2M – LinkConnect Captive Screw-Ready 3.5mm IR Cable

1.5 in (38 mm) high and 4 in (103 mm) wide enclosure

• Easy installation into confined spaces; ensures displays can be flush to the wall
• Maintains attractive installations provided by ultra-thin panel displays

Mounting hardware included
