Muxlab Dante 4-Channel Audio DSP

Model: 500556

Muxlab Dante 4-Channel Audio DSP
Muxlab Dante 4-Channel Audio DSP
Muxlab Dante 4-Channel Audio DSP
Muxlab Dante 4-Channel Audio DSP
Muxlab Dante 4-Channel Audio DSP
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

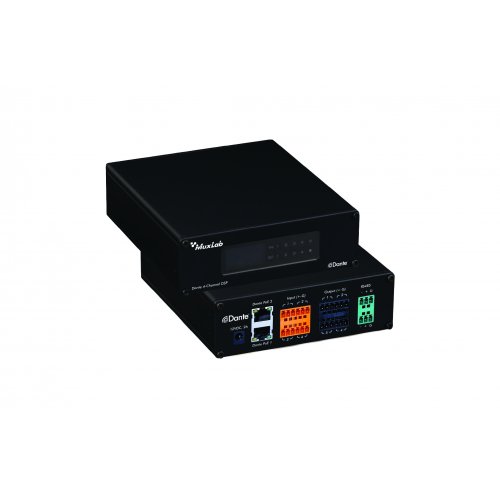

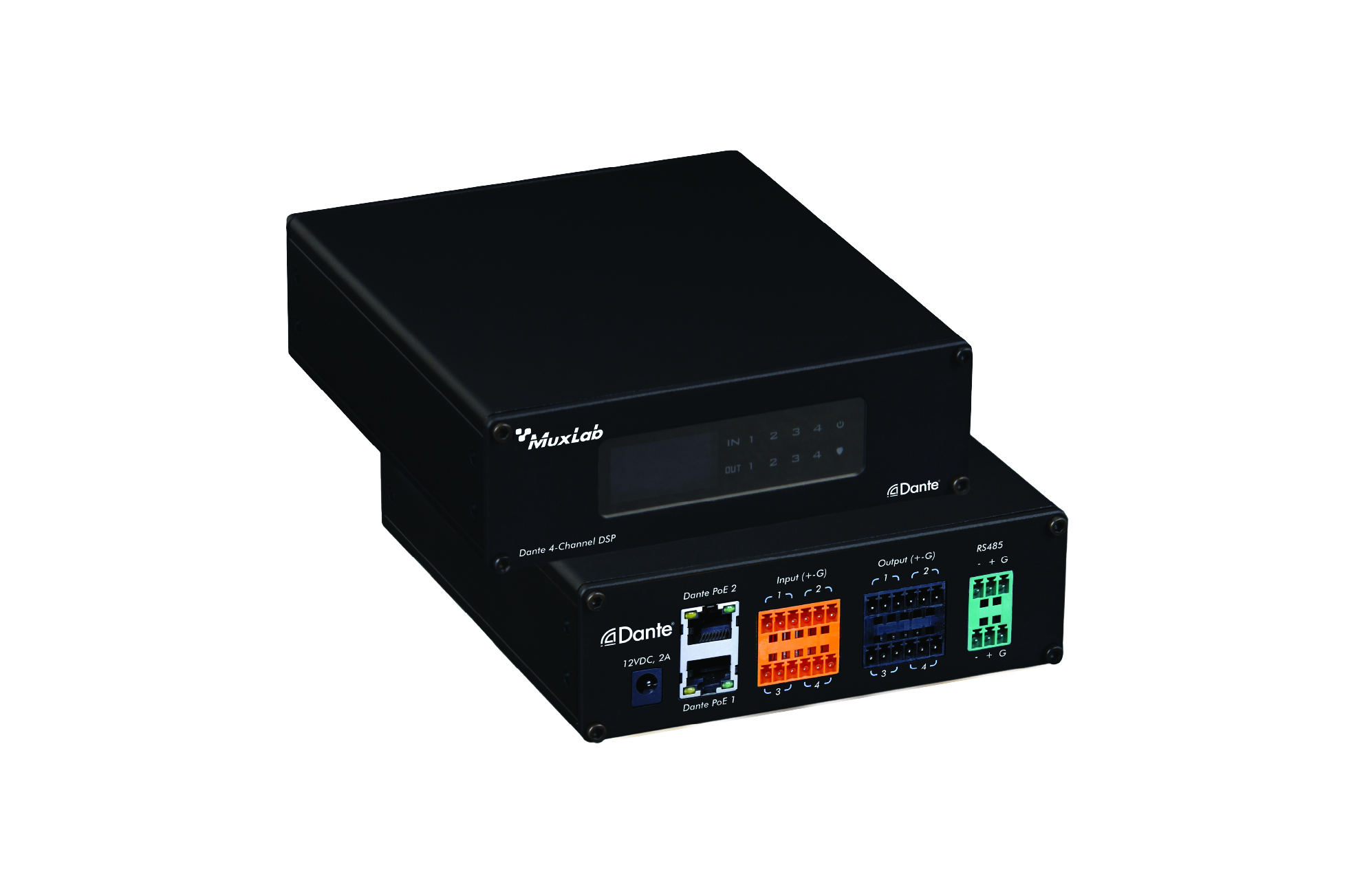

About: Muxlab Dante 4-Channel Audio DSP

The Dante 4-Channel Audio DSP is a product developed for the transmission, routing, and processing of audio signals in Dante networks. It can perform high-quality, low-delay audio transmission, supports 4-way input and output balanced analog channels, and can be powered via PoE from any PoE network switch or via a 12V DC power supply. The device has one of the best DSP algorithms in the industry that includes options such as AEC, AFC, ANC, Compressor, Limiter, Mixer and Graphic Equalization among others; In addition, the product provides PC version control software to monitor and operate all the functions on the DSP in an easy and intuitive way.

  • Built-in Dante module
  • Supports PoE power from PoE network switches or via a 12V DC power supply
  • Features 4 balanced inputs and 4 balanced outputs
  • The input supports 48VDC phantom power supply
  • DSP processing functions include gain adjustment, stage parameter equalization, compressor, mixer, graphic equalization, limiter, setting, etc.
  • Provides software for the Windows platform to manage all audio operations
  • API provided for RS485 and TCP/IP control

Specification

  • Dante Interface - 4
  • Simulated maximum gain - -6 36dB
  • Digitalizing bit - 24bit
  • Sampling Rate - 48k
  • Frequency Response - 20~20KHz (±0.2dB)
  • Phantom power (per input) - 48V
  • Maximum level (input/output) - +10dBu /+14dBu balance
  • Total harmonic distortion - 0.005% @4dBu
  • Noise floor (A- weight) - -88dBu
  • Input impedance - 100Ω
  • System delay - 1ms
  • Channel isolation @1kHz - 100dB
  • Working Power Supply - DC 12V & PoE
  • Working Temperature - 0-50°C
  • Dimensions - 142 X 157 X 46mm

UPC: 627699005569

Reviews: Muxlab Dante 4-Channel Audio DSP

There are currently no product reviews.


Warranty: Muxlab Dante 4-Channel Audio DSP

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

PASSIVE PRODUCTS: LIFETIME WARRANTY*

ACTIVE PRODUCTS: 2 YEAR LIMITED WARRANTY

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
