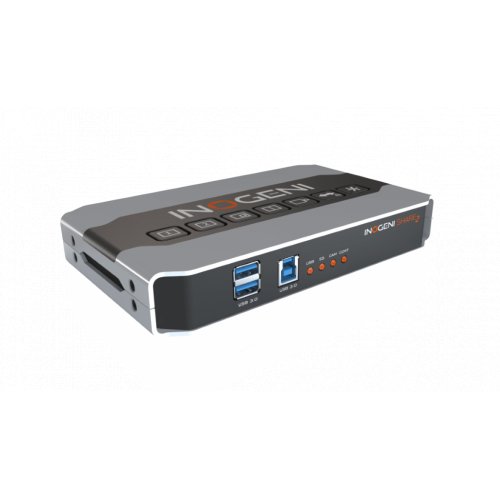

Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture

Model: SHARE2

Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture
Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture
Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture
Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture
Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture
  • Free Shipping!
  •  In Stock - Ship or Pick-up
  • Not yet reviewed

More models to choose from:

SHARE2$1,749.00
SHARE2U$2,699.00



About: Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture

The INOGENI SHARE2 features a mixer to embed two video sources into one single stream. This is an important asset if your application only supports one video interface, like Skype®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.

The device can be controlled by an application on the host side using our USB HID interface or with RS-232. You can also use the keypad on top of the device to control it manually.

  • Mixer feature : Hardware mixer into a single USB 3.0 interface.
  • Control interface : LAN, RS-232, USB
  • Local and remote keypad.
  • HDMI, DVI, VGA or CVBS video input connectors. [VGA and CVBS are available using an adapter]
  • Line level stereo audio support.
  • Digital Fluid technology: Internal frame buffers maximize frame rate with any host.
  • Hardware-based color space and sampling conversion.
  • Automatic scaling and frame rate conversion.
  • Customizable video processing functions.
  • Image controls: Brightness, contrast, saturation and hue settings.
  • Supports multiple devices on the same host.
  • Compatible with Windows, OSX and Linux.

OEM and system developers friendly

The device may be controlled by the Control App or via an included API so you can design your own. You can read the sources status, presence, format, modify the EDID, update the firmware, etc. and ask for custom functionalities.

You can also get Crestron modules in order to control the device using the LAN or serial interface. You can get a look at the interface of the Crestron module below.

Control App

The device has its own application in order to control the Mixer configuration using the USB HID or the LAN interfaces. You can also monitor the firmware versions installed on the device and the status of the Camera and Content inputs. You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand. Visit the Software Upgrade page under the INOGENI SHARE2 section for more details.

Specifications:

  • Video Input 1:
    • 1 x HDMI: 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
  • Video Input 2:
    • 1 x DVI-I (Digital + Analog): DVI: 1080p, 1080i, 720p, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
    • VGA: 1080p, 720p, 480p, 576p, 1920x1200, 1680x1050, 1400x1050, 1600x1200, 1280x1024, 1360x768, 1280x768, 1280x800, 1024x768, 800x600, 640x480
    • Component: 1080p, 1080i, 720p, 480p, 480i, 576p and 576i
    • 1 x CVBS - 480i, 576iHDMI Note: You may use a HDMI to DVI adapter and have two HDMI inputs.
  • Frame Rates: Up to 60 Hz, all formats
  • Color Space: RGB, YCbCr, 4:4:4, and 4:2:2
  • Analog Audio I/O: Analog stereo, line level, 3.5mm jack.
  • Audio Input: 2-channel LPCM 48kHz audio from line input or embedded in HDMI
  • HDCP Copy Protection: The device will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
  • Camera Control: RS-232 port on RJ-45 connector for RS-232 or VISCA control. Requires installation of COM port driver.
  • Mixer Control: The Mixer feature can be controlled by the following interfaces: HID, RS-232, keypad and INOGENI REMOTE
  • Connector: 1 x USB 3.0
  • Color Space: YCbCr (YUY2) 4:2:2 8-bit
  • Video Scaler, Color Space Conversion, Sampling & Frame Rate Conversion: Automatic hardware based
  • USB Expansion: Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

Minimal Host Requirements

  • Windows 7 and above (32/64-bit)
  • Linux (kernel v2.6.38) and above
  • Android
  • OSX
  • USB 3.0 port
  • 4GB RAM
  • Intel Core i5 or equivalent
  • Graphic card with dedicated memory
  • Compatible with all motherboards. Intel, Renesas, ASMedia and Fresco Logic

Adapters/Cables included

  • Power supply
  • USB 3.0 Type-C cable
  • RS-232 terminal bock adapter

UPC: 040232461736

Reviews: Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture

There are currently no product reviews.


Warranty: Inogeni SHARE2 Dual Video to USB 3.0 Multi I/O Capture

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

2 Year Warranty
