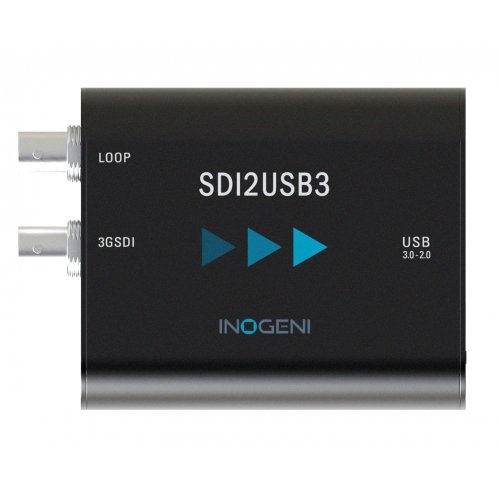

Inogeni SDI to USB 3.0 Capture Device

Model: SDI2USB3

Inogeni SDI to USB 3.0 Capture Device
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

DVI Input$475.00
HDMI Input$439.00
SDI Input$575.00
VGA Input$535.00
HDMI 4K Input$535.00

About: Inogeni SDI to USB 3.0 Capture Device

The INOGENI SDI2USB3 Converter is the most easy and reliable tool to capture uncompressed 3GSDI video with embedded audio for your PC for recording, editing, videoconferencing and streaming applications. No driver installation is necessary and it will work on all motherboards and USB 3.0 chipsets. It features a 3GSDI input with active loop output and supports SD and HDTV video formats, up to 1080p60. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software.

The converter supports 1080p resolutions up to 60 fps.

  • 3GSDI capture to USB 3.0.
  • Active loop output connector.
  • Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps.
  • All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0.
  • Embedded audio extraction and output as two-channel LPCM.
  • Digital Fluid technology - Internal frame buffers maximize frame rate with any PC.
  • Hardware-based color space and sampling conversion.
  • Automatic scaling and frame rate conversion.
  • Customizable video processing functions.
  • Supports multiple devices on the same PC.
  • Powered from a USB 3.0 port.
  • Compatible with Compatible with Windows, OSX, Linux and Android.
  • A USB 3.0 cable is included.
  • YUY2 4:2:2 8-bit for USB 3.0
    MJPEG for USB 2.0*

    * Devices having serial numbers >= SD2036XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.

UPC: 040232250538

Reviews: Inogeni SDI to USB 3.0 Capture Device

There are currently no product reviews.

Warranty: Inogeni SDI to USB 3.0 Capture Device Warranty:

30 Days

Manufacturer's Warranty:

2 Year Warranty
