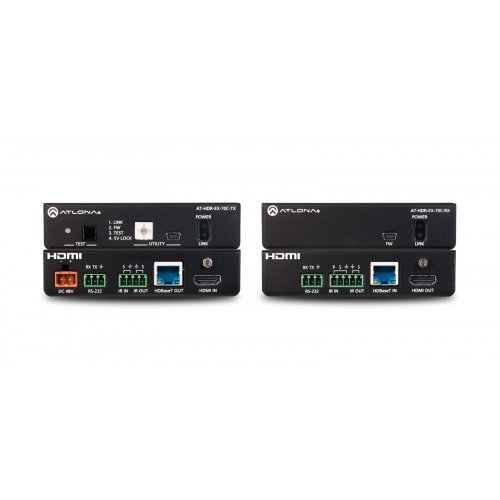

Atlona AT-HDR-EX-70C-KIT 4K HDR HDMI Over HDBaseT TX/RX with Control and PoE

About: Atlona AT-HDR-EX-70C-KIT 4K HDR HDMI Over HDBaseT TX/RX with Control and PoE

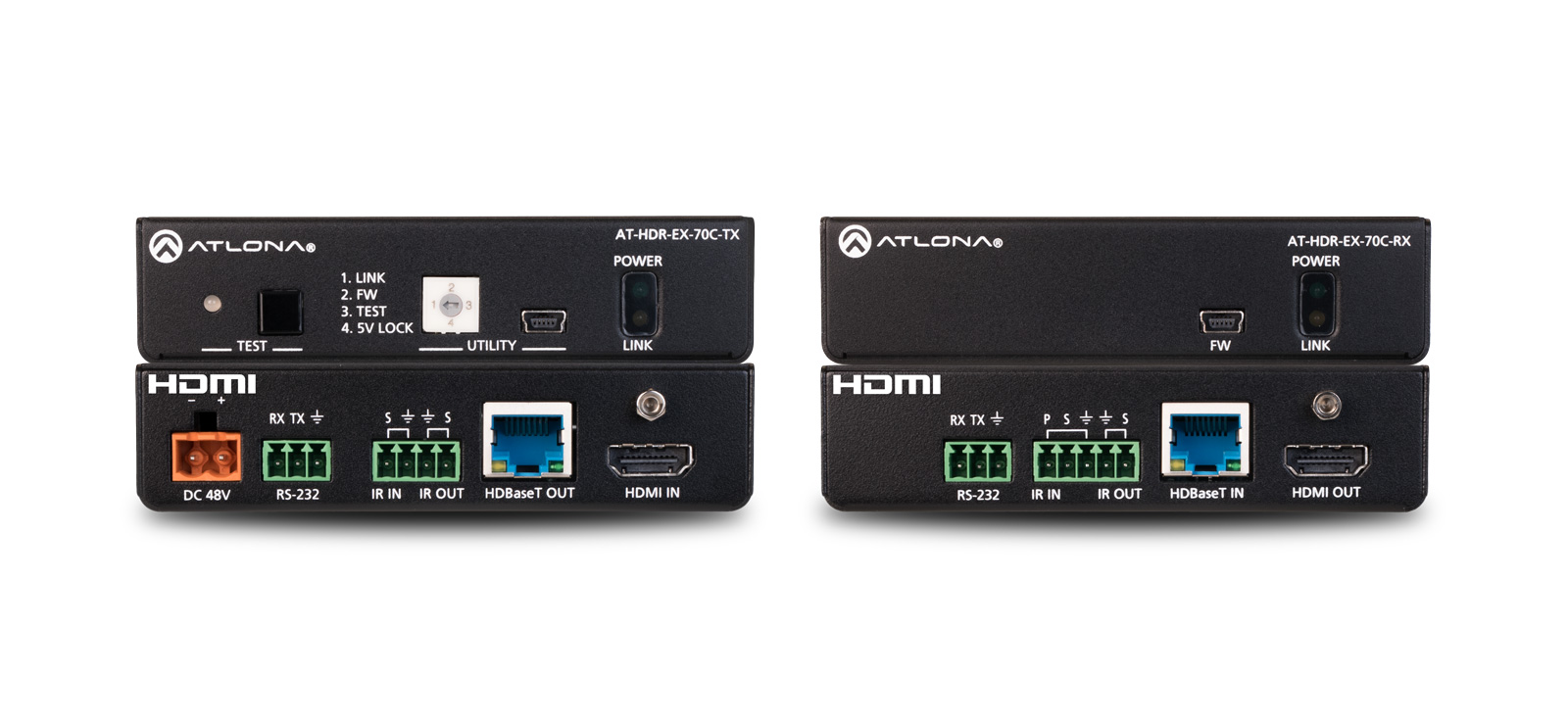

The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, the kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides transmission of HDMI, plus IR and RS-232 control pass-through up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-KIT delivers a cost-effective solution for HDMI and control signal extension, and includes surface mounting hardware for discreet installation.

The HDR-EX-70C-KIT is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Applications

Residential installations – The HDR-EX-70C-KIT is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
TV showrooms – The HDR-EX-70C-KIT can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.
Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.

Features

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

• Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
• Compatible with 4K HDR10 @ 60 Hz and Dolby® Vision™ @ 30 Hz

HDCP 2.2 compliant

• Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between authenticated devices

HDBaseT extender kit for HDMI, power, and control up to 230 feet (70 meters)

• Extends HDMI up to 230 feet (70 meters) @ 1080p and 130 feet (40 meters) @ 4K HDR using CAT6a/7 cable*
• Uses easy-to-integrate category cable for low-cost, reliable system installation
  • * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.

Receiver powered by transmitter via PoE (Power over Ethernet)

• Power for receiver is supplied by transmitter over HDBaseT
• Allows convenient receiver installation at a display or projector without the need for local AC power

Extends RS-232, IR, and CEC control signals over HDBaseT

• Bidirectional extension of RS-232 and IR control signals
• Eliminates multiple cable runs between source, control system, and display

Visually lossless compression

• Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression with no latency
• Innovative signal extension solution delivers very high, pristine image quality

Multi-channel audio compliant

• Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
• Allows any multi-channel audio stream to be used within a professional audio system

5 Volt and Hot Plug Detect emulation for HDMI source and sink communications

• Restores +5 volt and HPD signals lost due to issues at the source or display, as well as faulty or long cables
• Enables the essential signal handshaking necessary for the source to deliver video content

Provides HDMI signal regeneration for source devices

• Allows legacy HDMI sources such as cable television set-top boxes to be used in newer systems
• Addresses the lack of support for the HDMI clock stretching protocol required in HDBaseT extenders

HDBaseT link status testing

• Free software utility available for testing integrity of the HDBaseT cable link between the transmitter and the receiver
• Provides real-time link status, plus detailed HDBaseT and HDMI signal information
• Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality
• Test button and LED also available on the transmitter for checking HDBaseT link integrity

Power chaining

• Included power supply provides ample power for up to three Atlona HDBaseT extenders
• Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply
• Reduces clutter from multiple power supplies in equipment racks

Rear panel I/O connectors

• Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter

Field-updatable firmware

• Front panel USB port provides an easy means for device updates
• Ensures long-term system return on investment

Front panel Power and Link status LEDs

• LED indicators provide power and HDBaseT link status information
• Provides easy setup and troubleshooting

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

• Easy installation into racks and confined spaces
• Keeps devices out-of-sight when placed in public spaces

Included accessories

• Installation guide, surface mounting brackets, IR emitter, and external universal power supply
• Optional AT-IR-CS-RX IR receiver available
