AJA 3G-AM-BNC 3G-SDI 8-Channel AES Embedder/Disembedder
Model: 3G-AM-BNC
About: AJA 3G-AM-BNC 3G-SDI 8-Channel AES Embedder/Disembedder
The AJA 3G-AM-BNC is an 8-Channel AES audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable. AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The 3G-AM automatically detects and configures to the input video standard.
Features
- 3G-SDI Embedder/Disembedder
- 8-Channel AES I/O

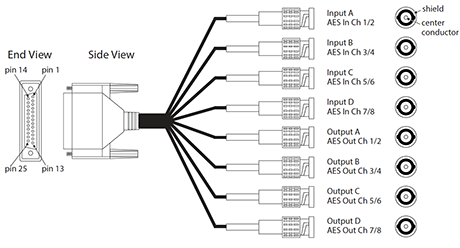

- Supplied breakout cables for balanced AES - XLR connectors
- USB connectivity via AJA MiniConfig software
- Dipswitch configuration
- 5-20VDC Power
- BNC breakout cable
UPC: 812321030457
Reviews: AJA 3G-AM-BNC 3G-SDI 8-Channel AES Embedder/Disembedder
Warranty: AJA 3G-AM-BNC 3G-SDI 8-Channel AES Embedder/Disembedder
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
