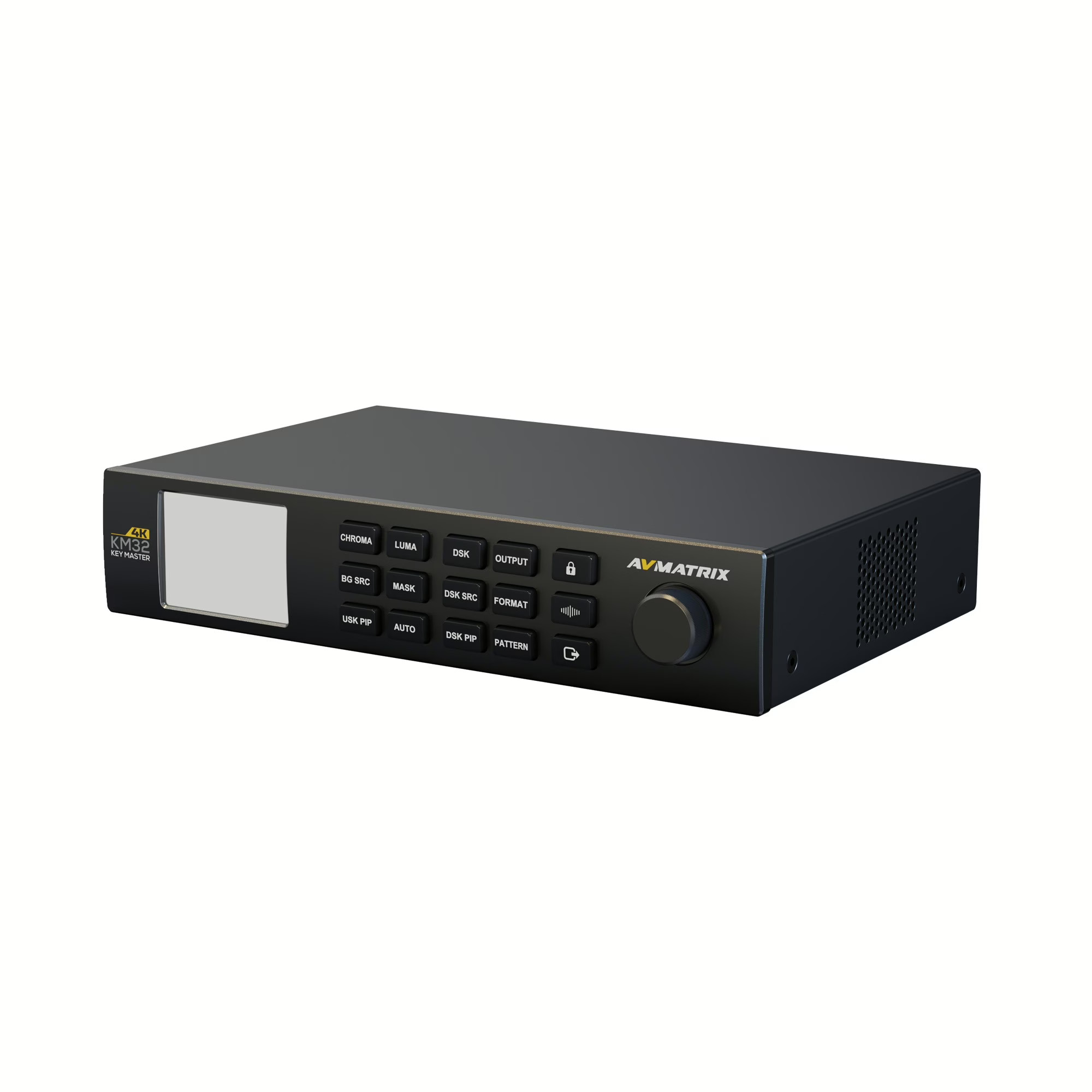

AVMatrix KM32-4K HDMI Chroma Key Master

About: AVMatrix KM32-4K HDMI Chroma Key Master

The AVMatrix KM32-4K is your complete I/O keying solution. This advanced chroma keyer features three 4K HDMI inputs, supporting Foreground (FG), Background (BG), and DSK for flexible and precise chroma key setup. It delivers high-quality 4K HDMI Program Output (PGM), along with Matte Out, Clean Out, and Auxiliary (AUX) outputs, ensuring seamless signal switching to meet diverse production needs.

• 3x 4K HDMI Inputs: Support Foreground, Background, and DSK key source.
• 4x 4K HDMI Outputs: Flexible outputs for PGM, Clean PGM, Matte, and AUX.
• One-Touch Smart Keying: Fast and accurate, ideal for complex backgrounds.
• Green/Blue Screen Support: Suitable for multiple scenarios with professional results.
• DSK & PIP Overlay

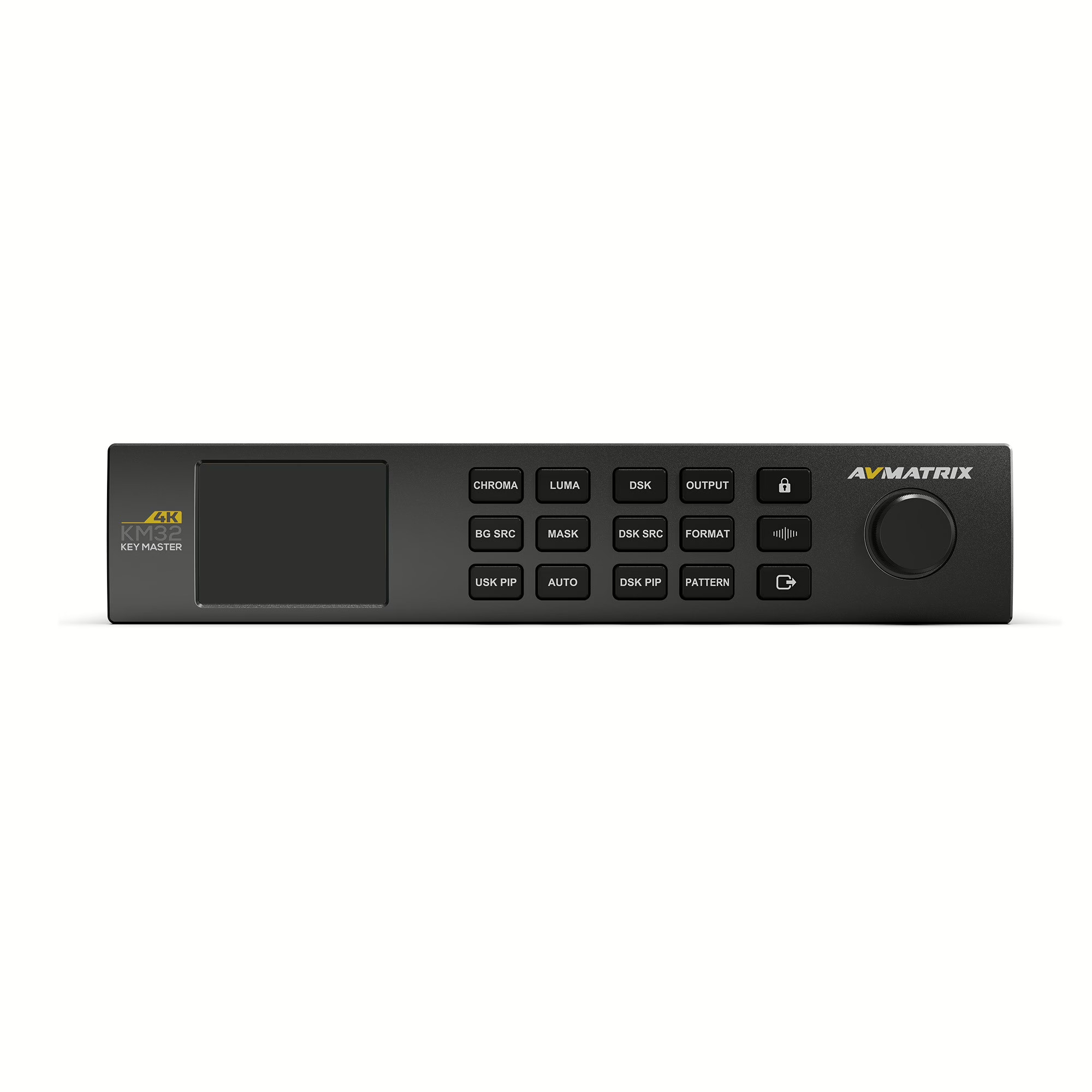

• Dual-Platform Control: Front panel + PC software for easy operation.
• External Audio & Tally Input: Ideal for multi-camera coordination.

Specifications

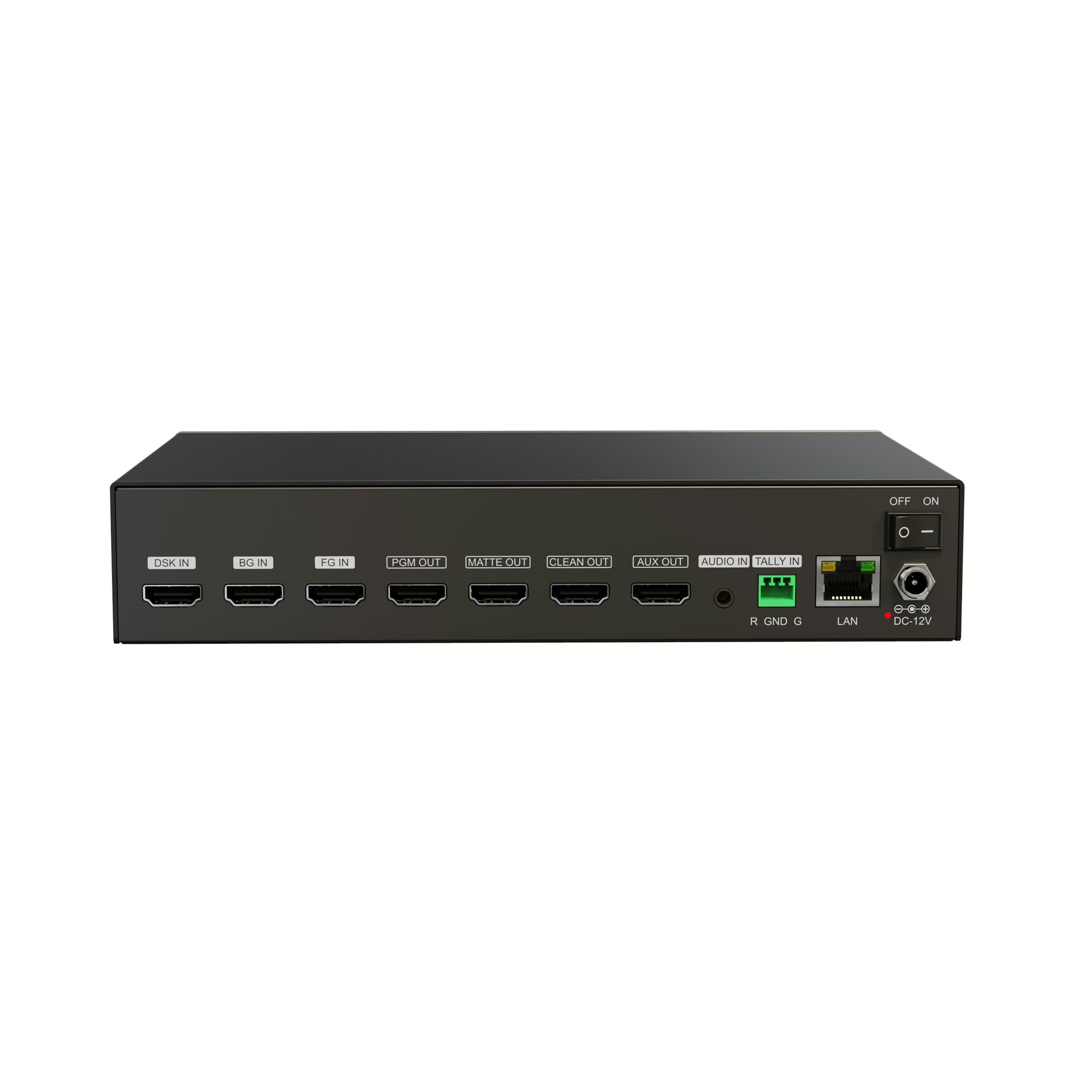

• CONNECT
  • Video Input: 3x HDMI Type A (DSK In, BG In, FG In)
  • Video Output: 4x HDMI Type A (PGM Out, Mask Out, Clean Out, AUX Out)
  • Audio Input: 1x 3.5mm Line In
  • Tally Input: 1x 3 PIN Tally
  • LAN: 1x LAN (Control Software, PoE Power Supply, Firmware Upgrade)
  • Power Supply: 1x DC 12V
  • Display: Built-in 2.2-inch display
• STANDARD
  • HDMI Input Formats
    • (4K) 4096x2160p 60/59.94/50/30/29.97/25/24/23.98
    • (4K) 3840x2160p 60/59.94/50/30/29.97/25/24/23.98
    • (HD) 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
    • (HD) 1920x1080i 60/59.94/50
    • (HD) 1280x720p 60/59.94/50/30/29.97/25/24/23.98
  • HDMI Output Formats
    • (4K)4960x2160p60/59.94/50/30/29.97/25/24/23.98
    • (4K)3840x2160p60/59.94/50/30/29.97/25/24/23.98
    • (HD)1920x1080p60/59.94/50/30/29.97/25/24/23.98
    • (HD)1920x1080i60/50
    • (HD)1280x720p60/50
  • Color Space: REC601, REC709, REC2020
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit
• FUNCTION
  • Key
    • Upstream Key: Luma Key x1 / Chroma Key x1 / USK PIP x1
    • Downstream Key: DSK x1 / DSK PIP x1
  • Audio
    • 1x FG HDMI in
    • 1x Line
  • Media Library: Pattern Key, PATTEN x1
  • Power: Power Wide Voltage: 7-24V; Power: 16.8W (12V 1.4A)
• OTHER
  • Temperature
    • Operating: -20~60℃
    • Storage: -30~70℃
  • Dimension (LxWxD): 8.66 x 5.56 x 1.73 inch (220 x 141.3 x 44mm)
  • Weight: 2.46 lbs (1115g)
  • Warranty: 2 years
