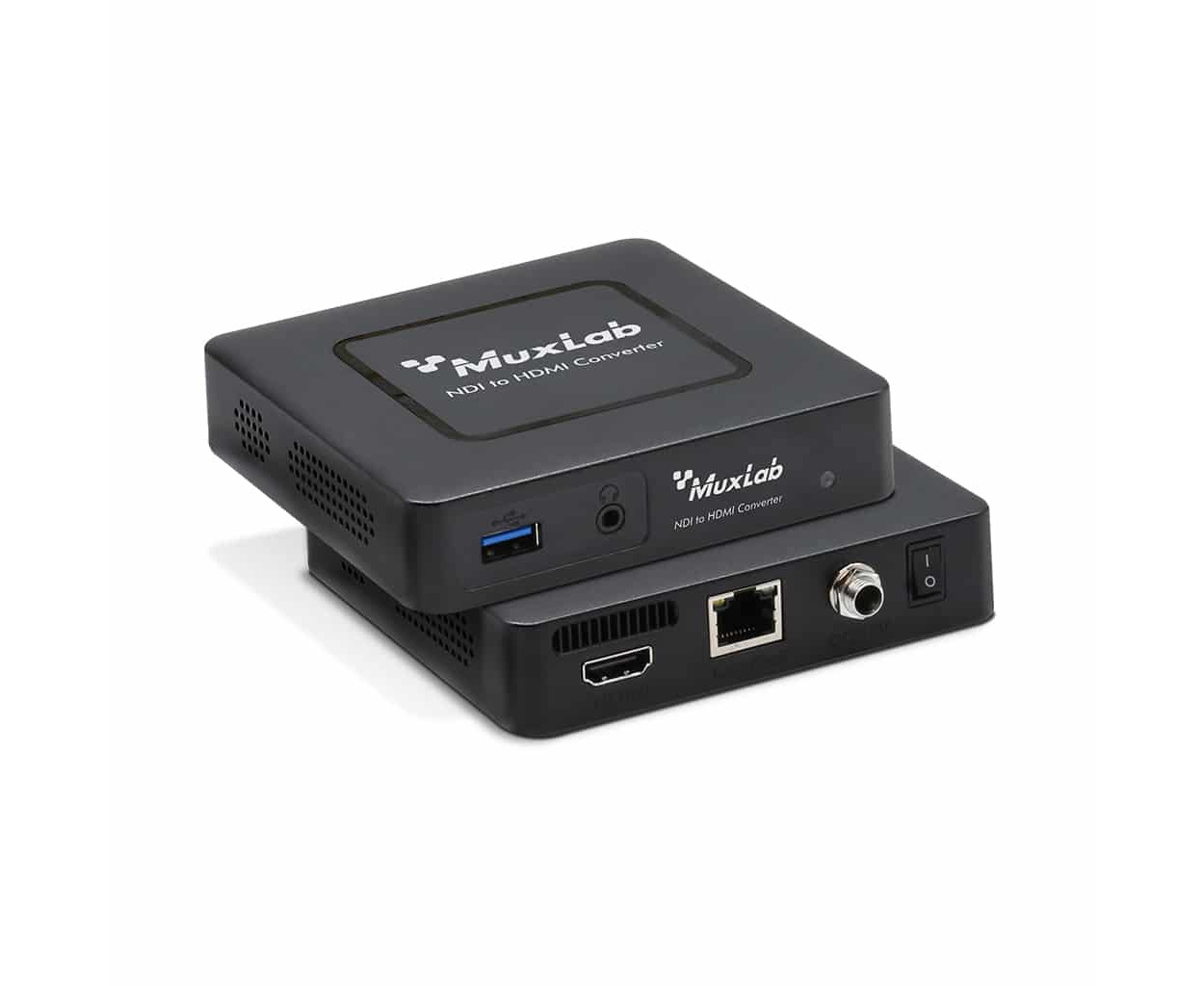

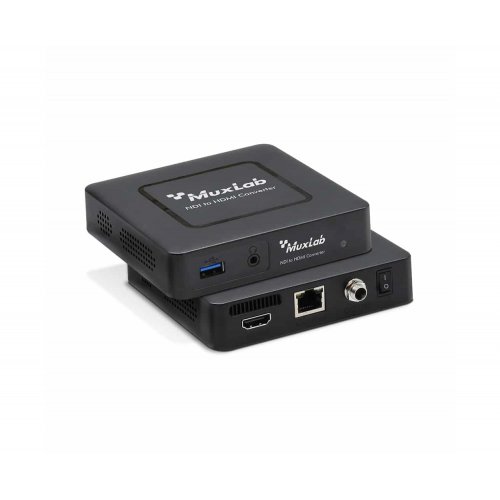

Muxlab NDI to HDMI Converter

About: Muxlab NDI to HDMI Converter

The NDI to HDMI Converter allows the decoding of a NDI High Bandwidth, NDI HX2 or NDI HX3, supporting resolution up to 3840x2160/60Hz, the NDI to HDMI Converter is build for professional audio and video processing needs, it achieved perfect balance between functionality, performance and affordability. With a compact and lightweight design and supporting PoE, it is portable and easy to use.

Providing one HDMI output ports, Gigabit Ethernet ports for video, audio and control. Audio extraction is provided using a 3.5mm stereo jack. The product can be powered using power over the Ethernet (PoE) or external power supply.

• Supports decoding of NDI High Bandwidth, NDI HX2 and NDI HX3
• Supports video resolution up to 3840x2160/60Hz
• Supports 3.5mm stereo analog line output
• Supports PTZ control over IP for PTZ camera connected to the network
• PoE powered, via PoE (PSE) Ethernet Switch
• Supports audio intercom

Specification

• Technical
  • Environment: HDMI 2.0
  • Devices: Projectors, monitors, TVs.
  • Signal Protocol/Standard: HDMI 2.0
  • Video Resolution: Up to 3840x2160/60Hz
  • NDI HX encoding type: H.264/H.265
  • Video decoding: NDI HX 2/3, NDI High Bandwidth
• Front Panel
  • Indicators: Power On or decoding status
  • Intercom: USB Type A
  • Audio: 3.5mm stereo analog output
• Rear Panel
  • Video: 1x HDMI Type-A
  • LAN: 1x RJ45 supports power over Ethernet (PoE)
  • Power: 12VDC, 2A
• General
  • Management: Muximus Network Controller, Webpage, Muxlab Manager (Linux)
  • Power Source: This device supports PoE (PD), an external 12VDC power supply.
  • Power Consumption: <9W
  • Installation: Mounting Plate
  • Temperature
    • Operating: 0° to 60℃
    • Storage: -20° to 85C
    • Humidity: Up to 90% non-condensing
  • Compliance
    • Regulatory: FCC, CE, RoHS
    • Flammability: 94V0
  • Dimensions (LxWxH): 3.94 x 3.94 x 0.98 in (100 x 100 x 25mm)
  • Weight: 0.51 lbs (0.23kg)
