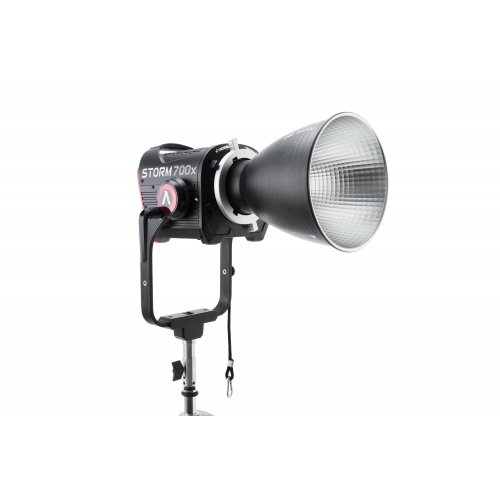

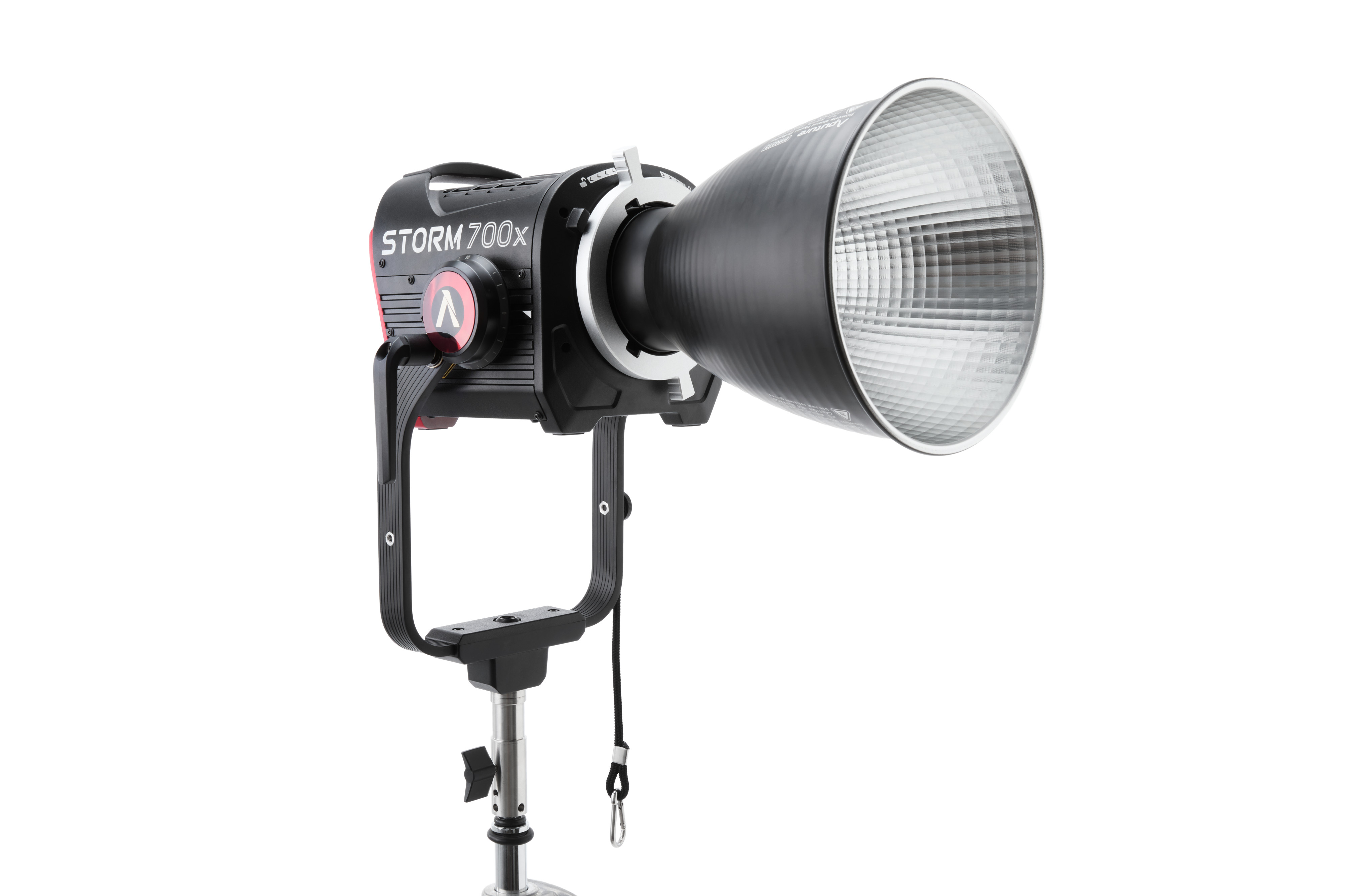

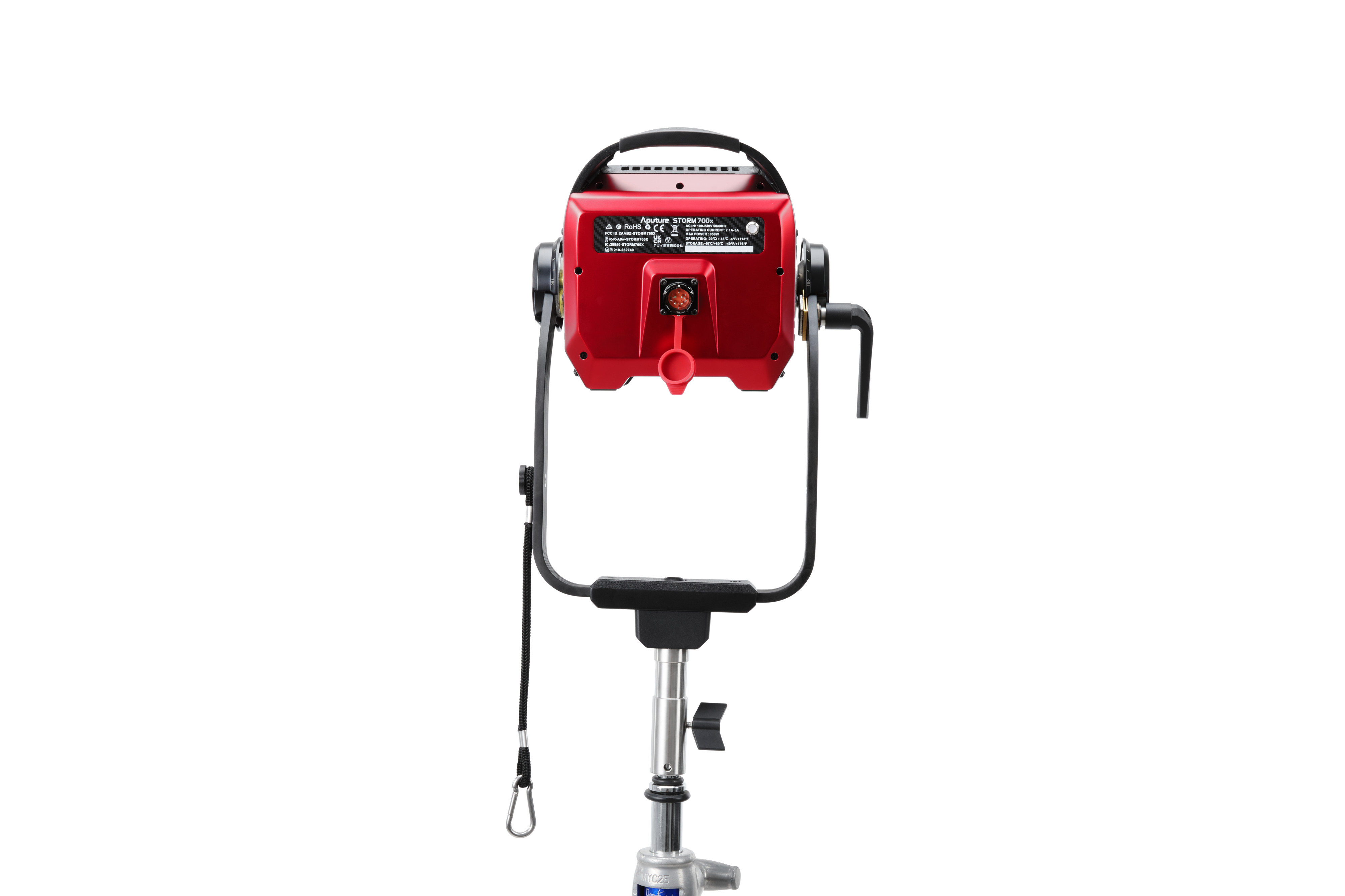

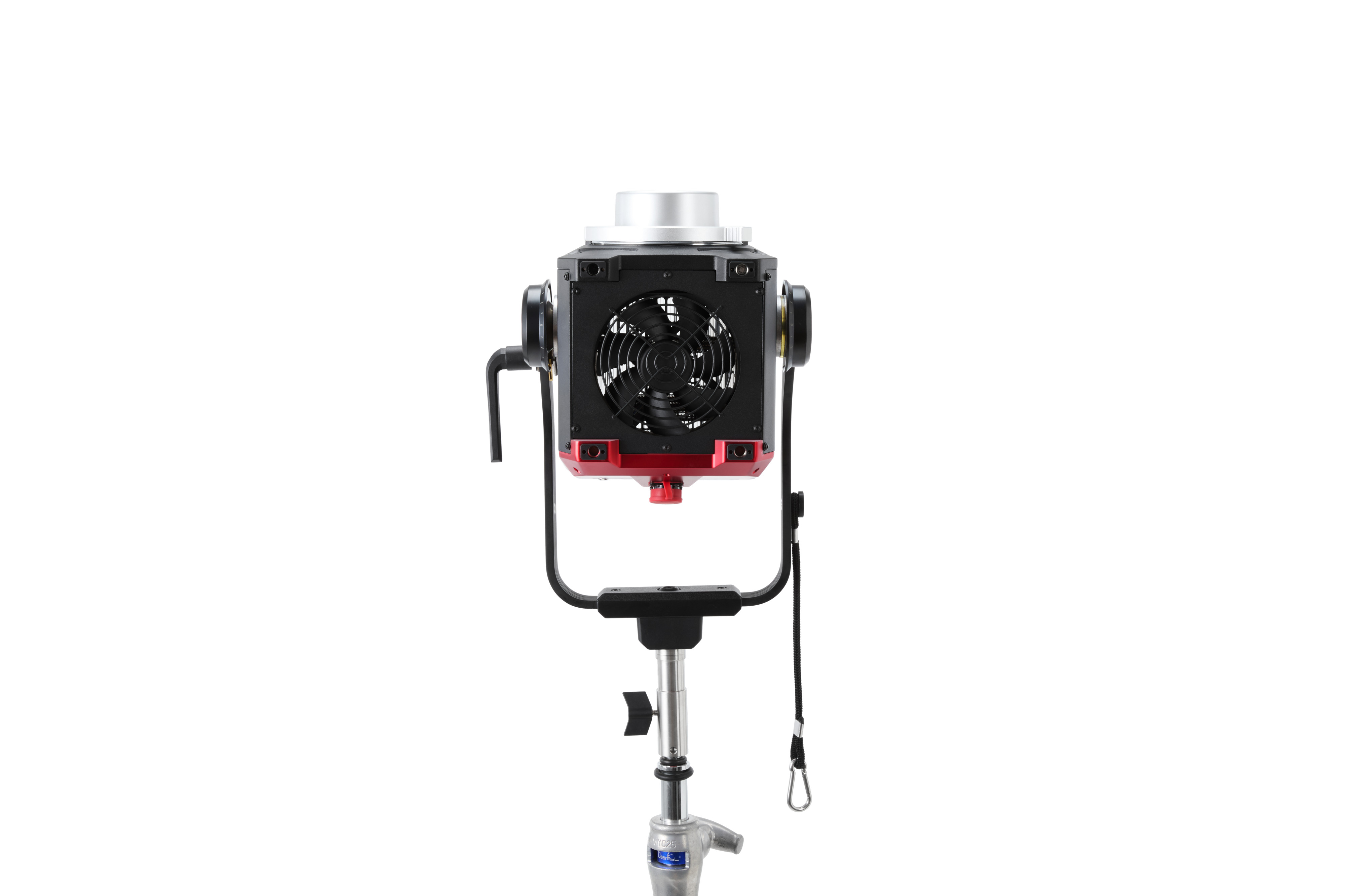

Aputure STORM 700x Tunable-White Compact Point Source LED Fixture

About: Aputure STORM 700x Tunable-White Compact Point Source LED Fixture

Introducing the Aputure STORM 700x, a high-output point-source LED lighting fixture that redefines what a compact, tunable-white engine can deliver on set. Building upon the same innovative foundation as the STORM 1200x, STORM XT52, and STORM 400x, the STORM 700x harnesses Aputure’s proprietary BLAIR LED chipset: an advanced five-diode architecture featuring Blue, Lime, Amber, Indigo, and Red emitters. This groundbreaking chipset enables exceptional spectral quality, unlocking more efficient utilization of each diode’s output and unparalleled accuracy in white light reproduction.

• 700W tunable-white compact point source fixture
• Advanced white point control with green/magenta color correction (±G 100% full ASC MITC range)
• CCT range of 2,500K-10,000K
• Groundbreaking proprietary LED chipset: Blue, Lime, Amber, Indigo, Red (BLAIR)
• Advanced diode color mixing allows fixture to more effectively utilize each diode’s light output
• 18,670 lux @3m (5600K) when using included 35º reflector
• Ultra-high color accuracy: CRI≥95, TLCI≥95,, SSI [P3200]: 87, SSI [CIE D5600]: 87, TM-30 Rf (average) 95, TM-30 Rg (average) 100
• 70%+ coverage of Rec. 2020 color gamut
• Robust ProLock Locking Bowens Mount design allows for more secure and optically aligned modifier accessory connection
• IP65 weather resistance
• Smooth 0.1-100% stepless dimming
• Multiple control methods: Sidus Link and Sidus Link Pro App, LumenRadio CRMX, 16-bit 5-Pin DMX512 in & out
• Supports firmware batch-updates via Sidus Link, Sidus Link Pro, and USB-A
• Dual output modes: Max and Constant
• High-Speed Photography, Lead-Follow, and Studio Modes
• 4 fan modes: Smart, High, Medium, Silent
• 12 DMX control profiles with multiple DMX dimming modes and customizable DMX signal loss behaviors
• 4 dimming curves: Linear, Exponential, Logarithmic, S-Shaped
• 9 light effects: Paparazzi, Fireworks, Flickering Bulb, Cannon, Lightning, TV, Pulse, Flash, Explosion, Flame
• 10 savable presets

With a powerful 700W COB in a compact form factor, the STORM 700x is the perfect tool for professionals demanding both high output intensity and precision. Offering a wide CCT range of 2,500K to 10,000K and full ±G ASC MITC green-magenta correction, the STORM 700x empowers users to fine-tune their white point with unmatched flexibility.

Leveraging its advanced optical system, the STORM 700x produces an impressive 18,670 lux at 3 meters (5600K) when paired with its included 35º reflector. Its performance is matched by industry-leading color fidelity: SSI [P3200] 87 and SSI [D5600] 87. With over 70% coverage of the Rec. 2020 color gamut and smooth stepless dimming from 0.1–100%, the STORM 700x provides the precision and reliability required for color-critical productions.

Engineered for the rigors of professional workflows, the STORM 700x features an IP65 weather-resistant construction and Aputure’s robust ProLock Bowens Mount for enhanced modifier security and optical alignment, even with heavier and optical accessories. Its intelligent cooling system offers four fan modes: Smart, High, Medium, and Silent.

Equipped with comprehensive control options, including Sidus Link and Sidus Link Pro app integration, LumenRadio CRMX, 16-bit 5-Pin DMX512 in/out, and support for batch firmware updates, the STORM 700x integrates seamlessly into modern lighting networks and workflows. Additional modes, including Max Output, Constant Output, High-Speed, Lead-Follow, and Studio Modes, expand its versatility for a wide range of production needs.

Designed for filmmakers, cinematographers, and lighting professionals who demand uncompromising output and color performance in a weather-resistant, and network-ready body, the STORM 700x sets a new standard for high-output, precision white light in a compact point-source fixture.

Specifications

• LED Chipset: BLAIR
• CCT: 2,500K – 10,000K
• Green-Magenta Adjustment Range: ±G 100% (Full ASC MITC Range)
• CRI: ≥95
• TLCI: ≥95
• SSI (Tungsten): 87
• SSI (D56): 87
• TM-30 RF (Average): 95
• TM-30 RG (Average): 100
• Max Power Consumption: 880W
• Max Power Output: 700W
• Operating Voltage: 100V ~ 240V / 50-60 Hz
• USB-A Power Port Specifications: Out 5V/0.5A
• Weather Resistance Rating: IP65
• Native COB Beam Angle: 58º
• Included Reflector Beam Angle: 25º
• Data Ports: 1x 5-Pin DMX In, 1x 5-Pin DMX Out
• CRMX Chip: Built-in TimoTwo module
• Operating Temperature: -20°C ~ 45°C / -4°F ~ 113°F
• Storage Temperature: -40°C ~ 80°C / -40°F ~ 176°F
• Control Methods: On-board, Sidus Link App, Sidus Link Pro App, DMX, RDM, CRMX
• Firmware Upgradeable: Sidus Link, Sidus Link Pro, USB-A Drive
• Cooling Method: Active air cooling
• Wireless Range
  • Sidus Bluetooth: ≤100m / ≤262.5ft
  • CRMX (TimoTwo): ≤100m / ≤262.5ft
• Lamp Head Fan Noise Levels (at 1m)
  • Smart Mode: 32 dBA
  • High Mode: 36.9 dBA
  • Medium Mode: 31.8 dBA
  • Silent Mode: 0 dBA
• Dimensions
  • Lamp Head (With Yoke): 10.8 x 10.7 x 19.8 inch (27.4 x 27.2 x 50.3 cm)
  • Control Box: 4.8 x 6.1 x 12.4 in (12.3 x 15.4 x 31.4 cm)
• Weight
  • Lamp Head with Yoke: 11.35 lbs (5.15 kg)
  • Control Box: 9.04 lbs (4.10 kg)
  • AC Power Cable: 1.32 lbs (0.60 kg)
  • Head Cable: 2.34 lbs (1.06 kg)
  • BM6835 35º Reflector: 0.77 lbs (0.35 kg)
  • Lightning Clamp: 1.32 lbs (0.65 kg)

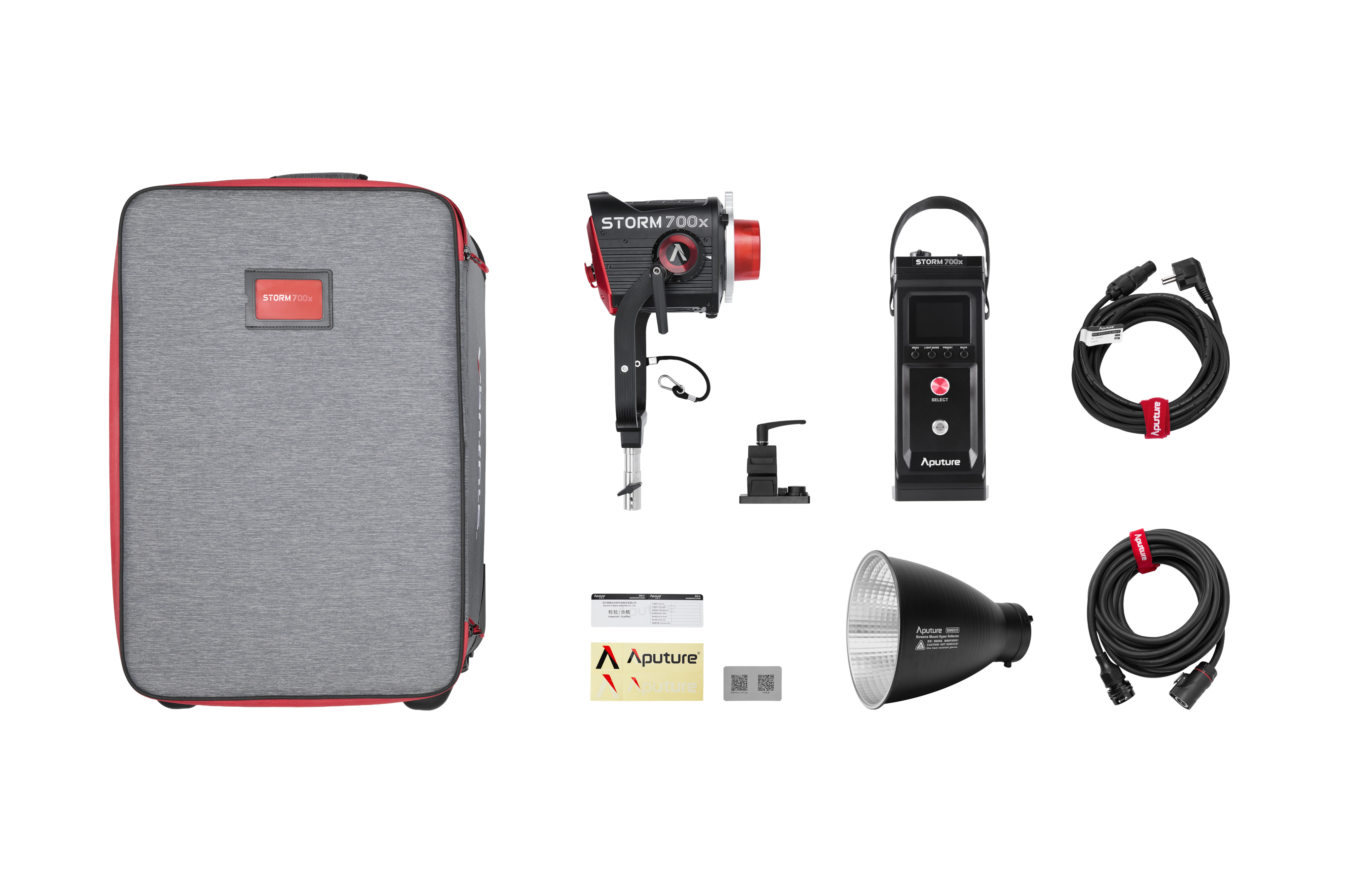

What's in the Box

• 1x STORM 700x Lamp Head
• 1x STORM 700x Control Box
• 1x Lightning Clamp
• 1x BM6825 25º Angle Hyper Reflector
• 1x STORM 700x Head Cable (3m)
• 1x AC Power Cable (6m)
• 1x Bowens Mount Protection Cover
• 1x Soft Rolling Case
