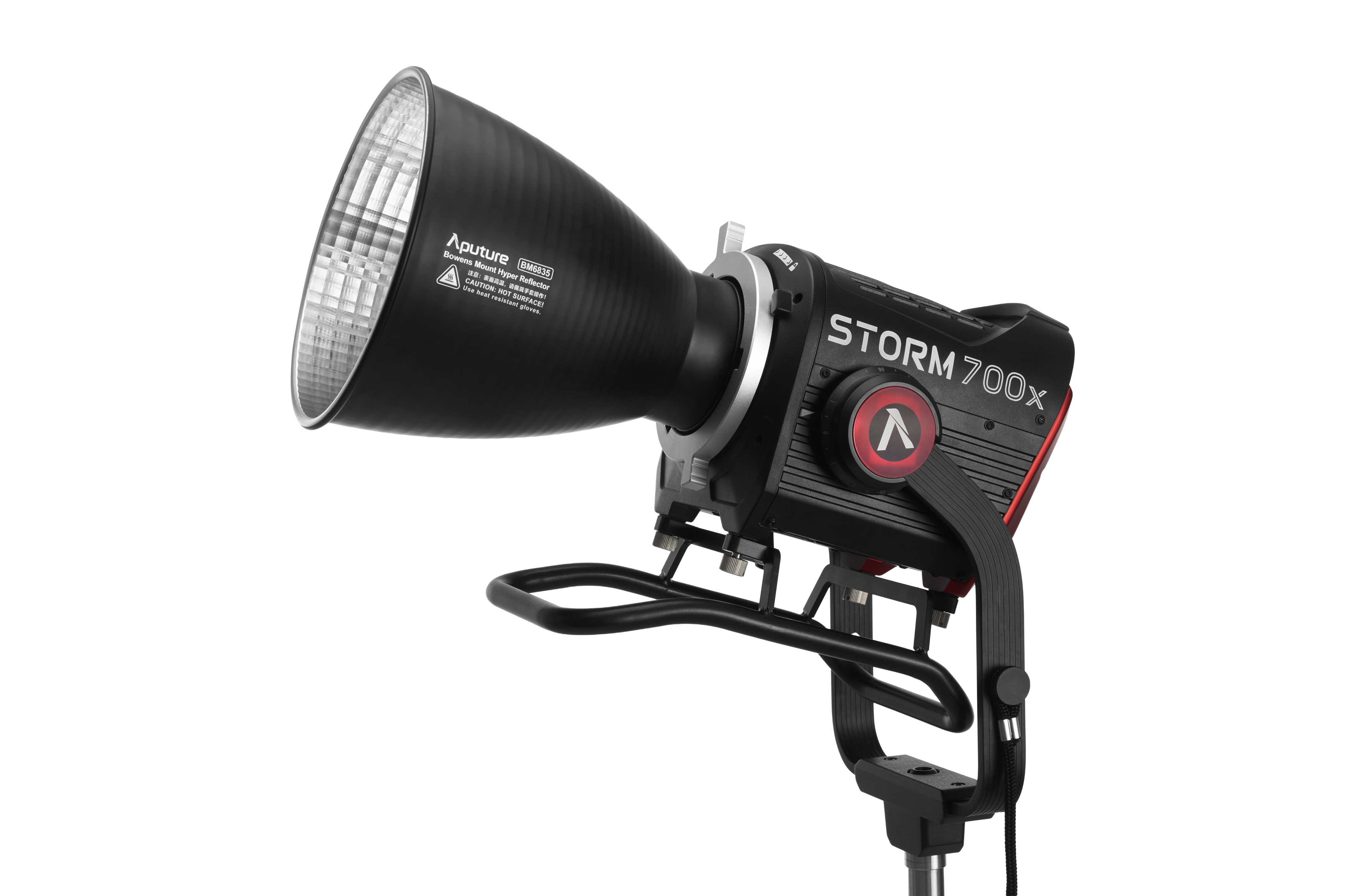

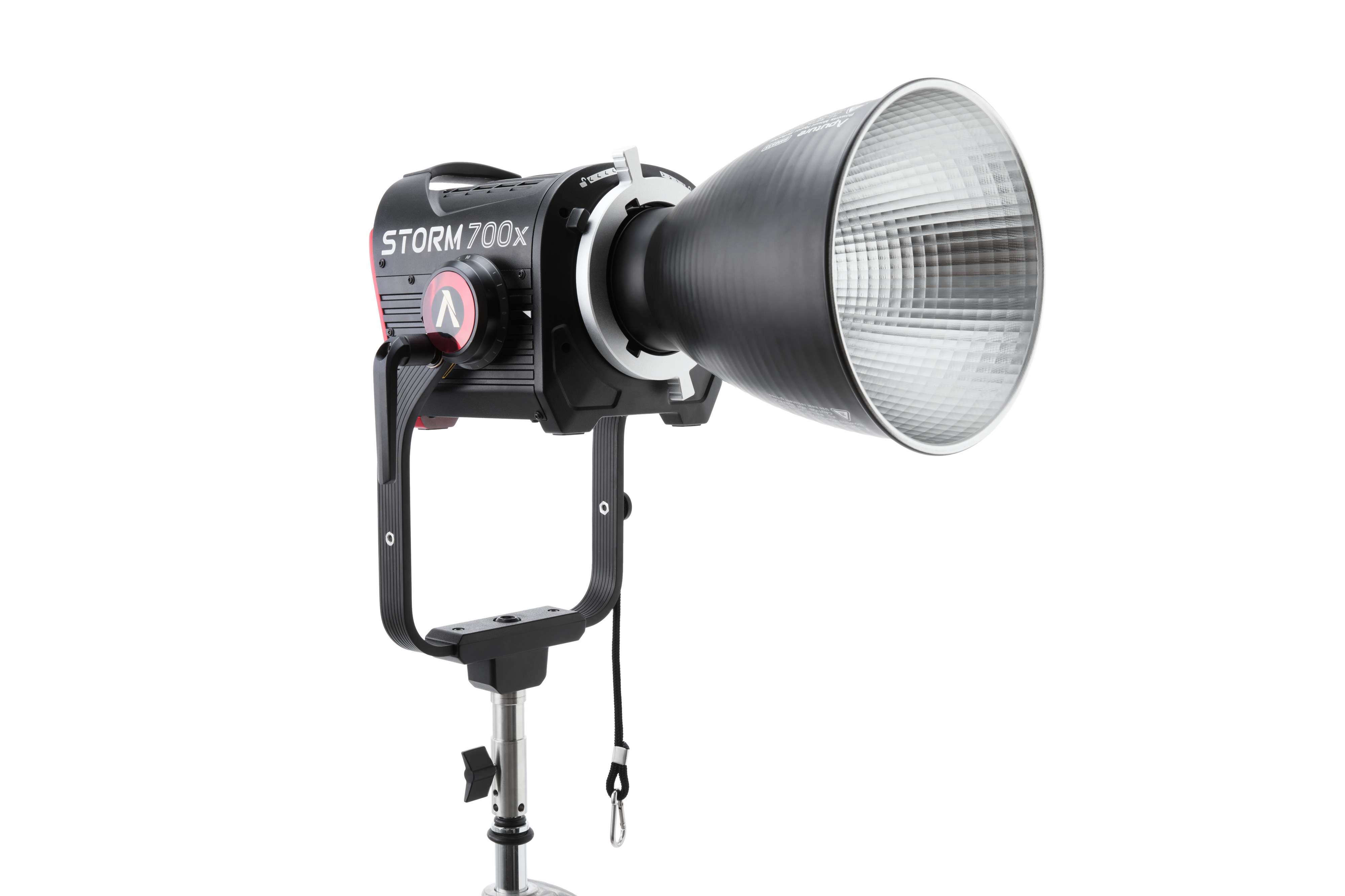

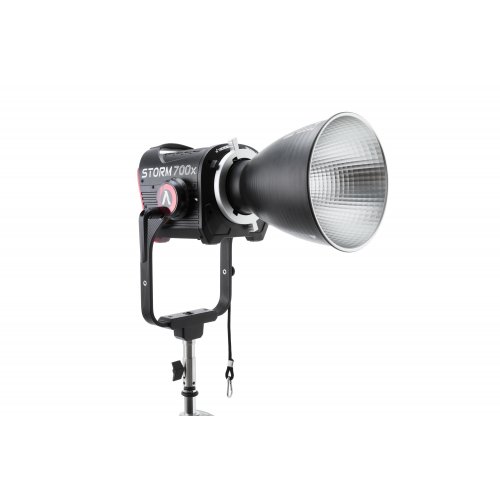

Aputure STORM 700x Tunable-White Compact LED Cine Kit

Name: Aputure STORM 700x Tunable-White Compact LED Cine Kit
Brand: Aputure
SKU: 62750
Price: 3050.00 CAD
Availability: InStock

Model: AG0700047X

$3,050.00 CAD

Find it for Less? Let us Know.

Shipping Charges Apply
In Stock - Ship or Pick-up
Not yet reviewed

More models to choose from:

Cine Kit$3,050.00

Fixture$2,420.00

Description
Reviews

About: Aputure STORM 700x Tunable-White Compact LED Cine Kit

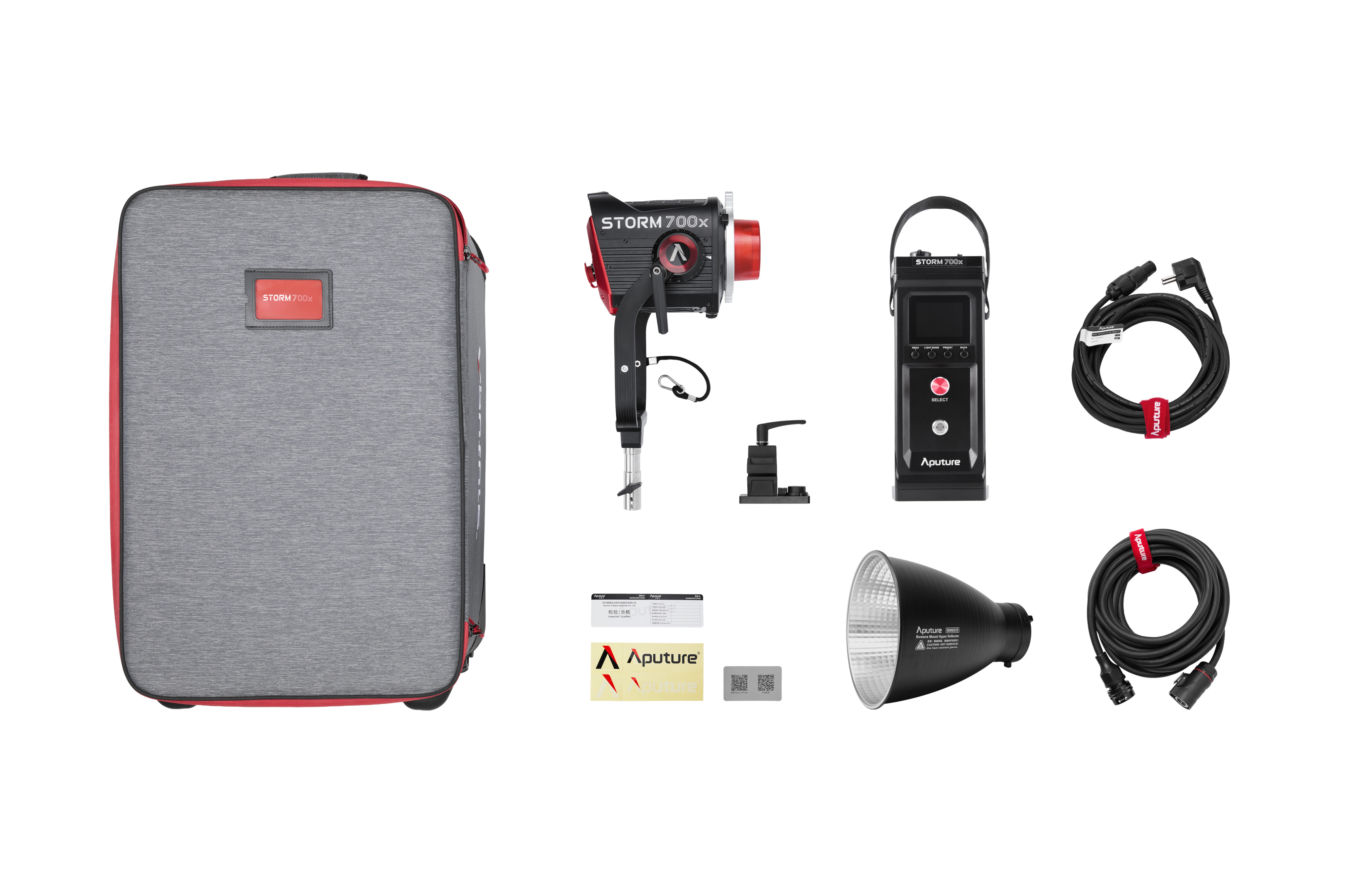

The STORM 700x Cine Kit is a point-source fixture kit designed for professional cinematographers, gaffers, studios, and rental houses as a standard way to deploy the STORM 700x. This kit is based on the STORM 700x, a 700W tunable-white point source fixture featuring Aputure’s groundbreaking BLAIR LED chipset and robust ProLock mount. With all the components of the STORM 700x Cine Kit built together, the result is a fully integrated fixture unit that is easy to handle, quick to deploy, and efficient to store and transport.

STORM 700x with CF10 Fresnel, CF10 Barn Doors, and STORM 700x Skid
Designed to minimize fixture footprint, allowing users to efficiently store fully built fixture on truck shelving, head carts, and equipment racks
Fully integrated design; individual components engineered to work together perfectly
Included 10-Inch compact Bowens mount fresnel & barn doors optimized for the STORM 700x with a 15º to 40º spot-flood range
Included stainless steel skid allows entire kit to sit flat on surfaces even with head cable attached to lamp head
Includes 700W tunable-white compact point source fixture
Advanced white point control with green/magenta color correction (±G 100% full ASC MITC range)
CCT range of 2,500K-10,000K
Groundbreaking proprietary LED chipset: Blue, Lime, Amber, Indigo, Red (BLAIR)
Advanced diode color mixing allows fixture to more effectively utilize each diode’s light output
Ultra-high color accuracy: CRI≥95, TLCI≥95,, SSI [P3200]: 87, SSI [CIE D5600]: 87, TM-30 Rf (average) 95, TM-30 Rg (average) 100
70%+ coverage of Rec. 2020 color gamut
Robust ProLock Locking Bowens Mount design allows for more secure and optically aligned modifier accessory connection
IP65 weather resistance
Smooth 0.1-100% stepless dimming
Multiple control methods: Sidus Link and Sidus Link Pro App, LumenRadio CRMX, 16-bit 5-Pin DMX512 in & out
Supports firmware batch-updates via Sidus Link, Sidus Link Pro, and USB-A

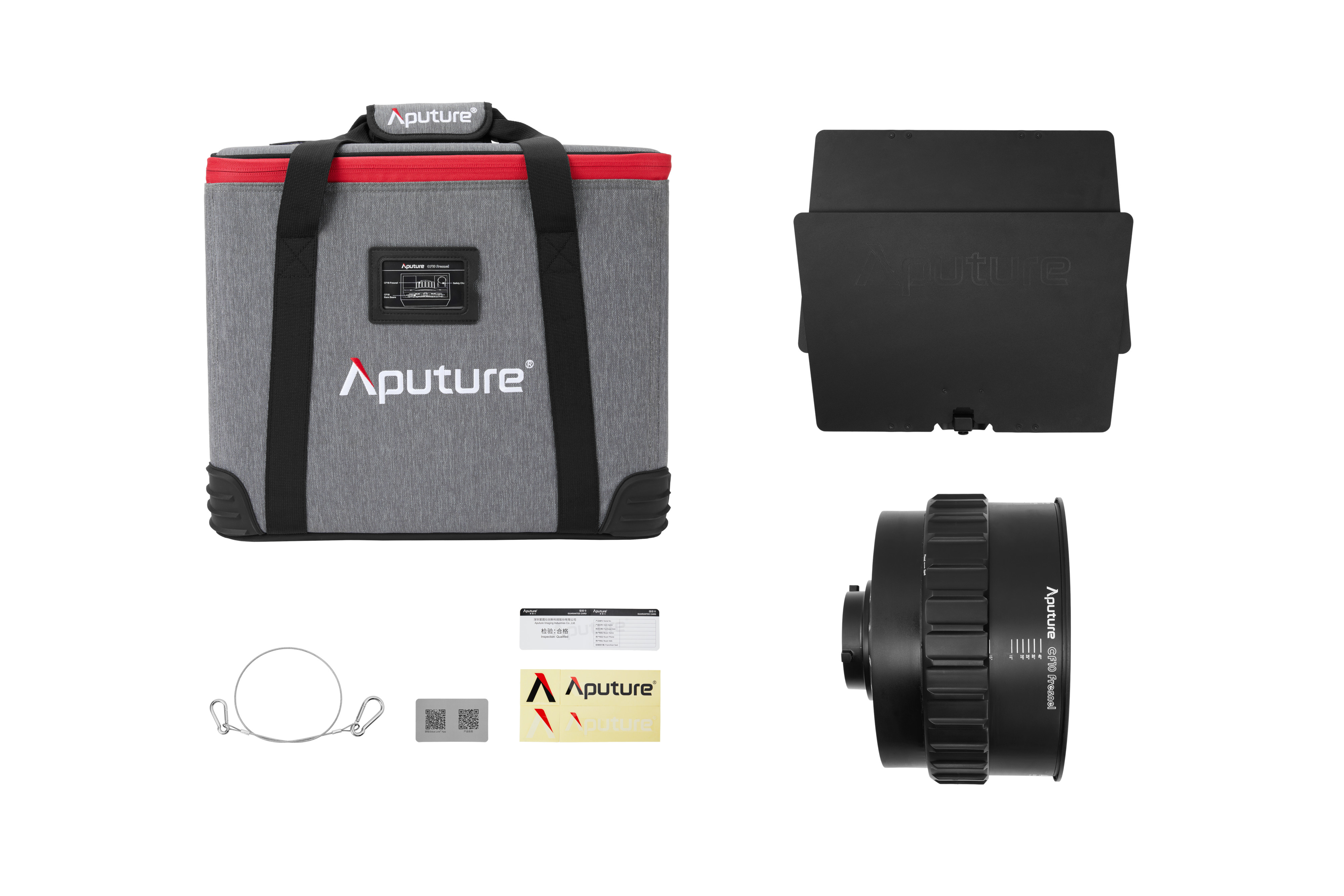

This Cine Kit includes the CF10 Fresnel, a 10-inch diameter compact Bowens mount fresnel engineered specifically for the STORM 700x’s light engine. With a spot-flood range of 15º–40º, the CF10 amplifies the fixture’s output while maintaining a smooth falloff from center to edge, offering precise control over beam spread in a lightweight, compact form factor. The CF10 Fresnel comes paired with its dedicated CF10 Barn Doors, allowing users to shape, cut, and control the beam with accuracy. Together, the CF10 Fresnel and Barn Doors unlock the full potential of the STORM 700x, making it a versatile and powerful lighting tool straight out of the box.

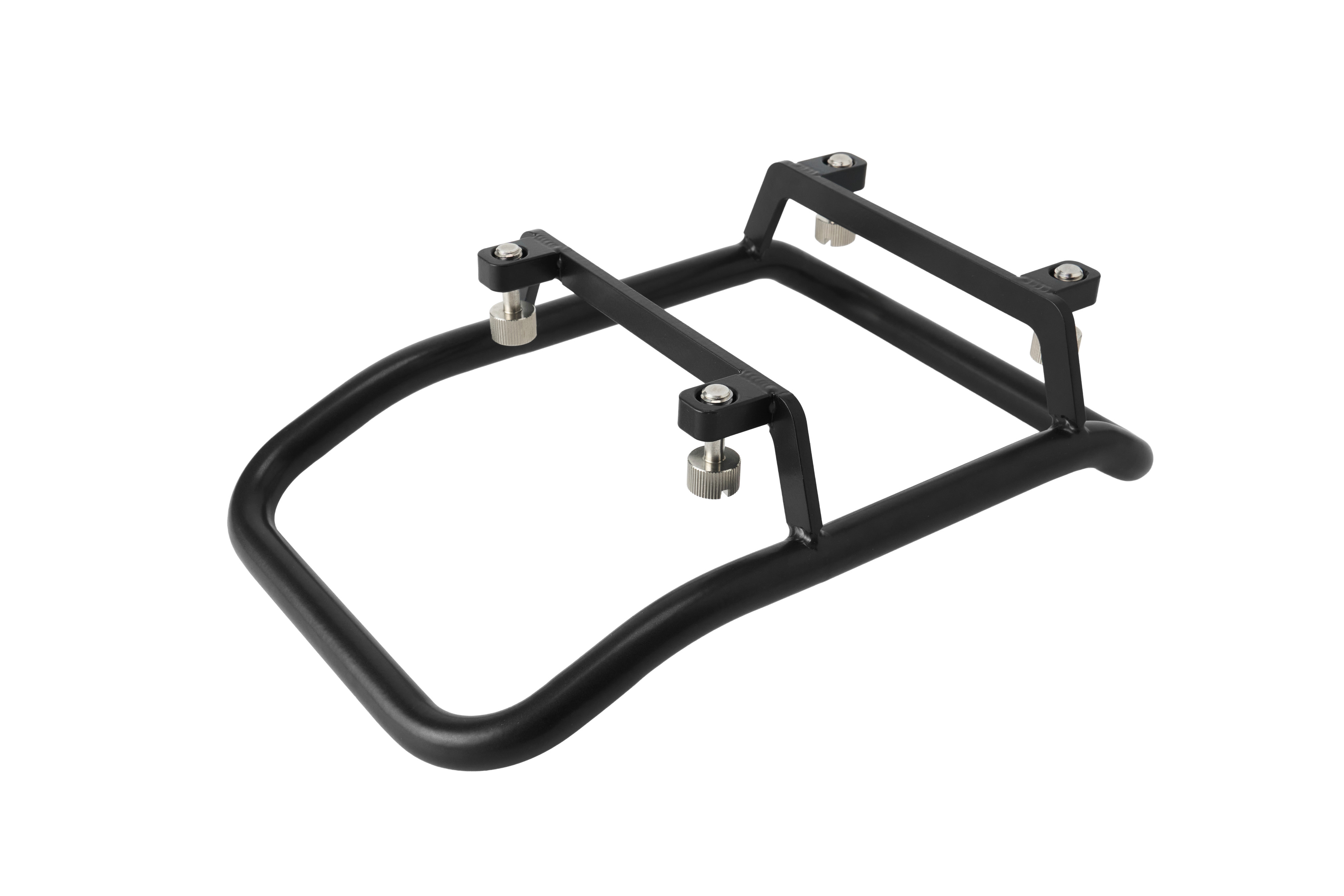

In addition to the CF10 Fresnel and Barn Doors, the STORM 700x Cine Kit also includes the STORM 700x Skid, a stainless-steel support accessory that secures to the base of the fixture. The skid enables operators to safely place the unit flat on the ground without risk of tipping, even with the CF10 Fresnel mounted to the front. Its rear cutout provides clearance for the fixture’s head cable when tilting, ensuring safe and practical operation. With the Skid mounted, the complete fixture system including the STORM 700x, CF10 Fresnel, and CF10 Barn Doors can sit securely on a head cart, equipment rack, storage shelf, or even the ground, streamlining transport and setup on set.

When output, handling efficiency, and precision color performance are essential, the Aputure STORM 700x Cine Kit delivers. Whether you’re lighting controlled studio environments or rugged location shoots, the STORM 700x Cine Kit ensures exceptional results and professional efficiency every time

Specifications

LED Chipset: BLAIR
CCT: 2,500K – 10,000K
Green-Magenta Adjustment Range: ±G 100% (Full ASC MITC Range)
CRI: ≥95
TLCI: ≥95
SSI (Tungsten): 87
SSI (D56): 87
TM-30 RF (Average): 95
TM-30 RG (Average): 100
Max Power Consumption: 880W
Max Power Output: 700W
Operating Voltage: 100V ~ 240V / 50-60 Hz
USB-A Power Port Specifications: Out 5V/0.5A
Weather Resistance Rating: IP65
Native COB Beam Angle: 58º
BM6825 25º Reflector Beam Angle: 25º
CF10 Fresnel and Barn Doors Beam Angle
- Full Spot: 15º
- Full Flood: 40º
Included Reflector Beam Angle: 35º
Data Ports: 1x 5-Pin DMX In, 1x 5-Pin DMX Out
CRMX Chip: Built-in TimoTwo module
Operating Temperature: -20°C ~ 45°C / -4°F ~ 113°F
Storage Temperature: -40°C ~ 80°C / -40°F ~ 176°F
Control Methods: On-board, Sidus Link App, Sidus Link Pro App, DMX, RDM, CRMX
Firmware Upgradeable: Sidus Link, Sidus Link Pro, USB-A Drive
Cooling Method: Active air cooling
Wireless Range
- Sidus Bluetooth: ≤100m / ≤262.5ft
- CRMX (TimoTwo): ≤100m / ≤262.5ft
Lamp Head Fan Noise Levels (at 1m)
- Smart Mode: 32 dBA
- High Mode: 36.9 dBA
- Medium Mode: 31.8 dBA
- Silent Mode: 0 dBA
Dimensions
- Fully Built Lamp Head (Lamp Head, CF10, CF10 Barndoors, Skid): 24.0 x 14.1 x 13.8 in (60.9 x 35.9 x 35.1 cm)
- Control Box: 4.8 x 6.1 x 12.4 in (12.3 x 15.4 x 31.4 cm)
- CF10 Fresnel: ⌀11.7 x 4.8 in (⌀29.8 x 12.1 cm)
- CF10 Barn Doors: 12.8 x 14.1 x 17.9 in (32.5 x 35.9 x 45.5 cm)
- CF10 Carrying Case: 18.1 x 9.8 x 15.8 in (46.0 x 25.0 x 40.0 cm)
- BM6825 25º Reflector: 10.0 x 10.2 in (⌀25.5 x 25.9 cm)
Weight
- Fully Built Lamp Head (Lamp Head, CF10, CF10 Barndoors, Skid): 20.83 lbs (9.45 kg)
- Lamp Head with Yoke: 11.35 lbs (5.15 kg)
- CF10 Fresnel: 5.4 lbs (2.45 kg)
- CF10 Barn Doors: 3.09 lbs (1.40 kg)
- STORM 700x Skid: 1.76 lbs (0.80 kg)
- Control Box: 9.04 lbs (4.10 kg)
- AC Power Cable: 1.32 lbs (0.60 kg)
- Head Cable: 2.34 lbs (1.06 kg)
- BM6825 35º Reflector: 0.77 lbs (0.35 kg)
- Lightning Clamp: 1.32 lbs (0.65 kg)
