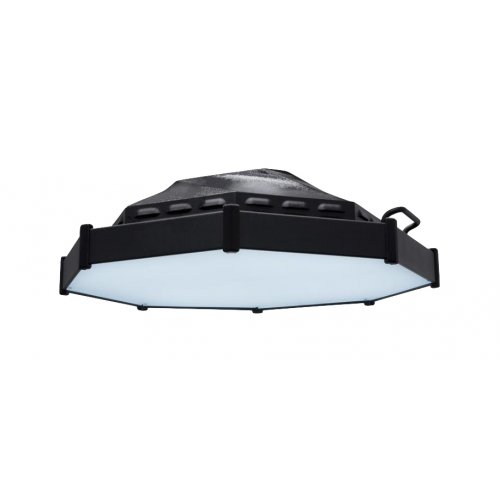

Chroma-Q Space Force octo LED Fixture - White

About: Chroma-Q Space Force octo LED Fixture - White

Introducing the new Chroma-Q Space Force octo LED fixture - the next frontier in space lighting. The Space Force octo is a cutting-edge variable white LED Space Light that is a modern replacement for conventional space lights or soft light sources commonly used in film and TV studios around the world. The Space Force benefits from cool running, energy efficiency, lightweight design, and minimum maintenance. CCT tuneable between 2,800K and 6,000K, and natively single source, the diffuse nature of its output negates the need for silks or skirts. Extensive RDM functionality is provided through wired, or the optional LumenRadio CRMX, connections.

Hanging options include a standard bridle (included), optional yoke, or a low-profile hanging bracket.

Features

• Comparable to a traditional 6kW fixture
• Up to 26,700 lumens
• Variable white – 2,800K to 6,000K
• Only 8kg / 17.6lb
• No fans, no noise
• Smooth, soft uniform beam
• Variable PWM flicker-free operation
• Multiple hanging options
• Wireless DMX / RDM
• Superior unit-to-unit consistency
• Chroma-Q's proven LED performance

Smooth, Soft Output

The Space Force octo is a highly efficient and natively single source, removing the need for skirts or silks to diffuse the light.

Easy Setup

As a result of its low profile, lightweight (only 8 kg / 17.6 lbs), and skirt-free design, the Space Force octo is quick and easy to set up at any height.

A Variable White Light for Every Application

The Space Force octo is available as a variable white 2,800K – 6,000K. Every unit is factory calibrated, to ensure consistent output and colour temperature.

Energy-Efficient

The Space Force octo uses a fraction of the power required by conventional fixtures while delivering all of the performance you require - providing an output of up to 26,700 lumens, which is comparable to a traditional 6kW fixture. Not only is the power consumption lower, but so too is the heat produced - ensuring a cooler environment and lower air conditioning costs.

Convection Cooled

Using the same proven convection cooling technology found in other Chroma-Q LED models - which eliminates the need for noisy cooling fans - the Space Force octo provides totally silent running in operation.

Long Life

The Space Force octo utilises LED technology to ensure consistent long-life performance - removing the need for costly regular maintenance associated with conventional fixtures.

High Colour Rendering Indexes

The Space Force octo provides high color rendering indexes, which are requirements for light sources used in the film and TV industry to ensure accurate colour rendering.

Theatrical Grade Dimming

All Chroma-Q products come with theatrical grade dimming, and the Space Force octo is no exception. This technique emulates the extremely smooth dimming curve of a tungsten fixture, ensuring there is no stepping on the output. This allows the output to be smoothly controlled even at the low end of the dimming curve.

Built to Last

Built to last, the Space Force requires minimal maintenance and retains colour consistency between units owing to our LED emitter inspection and proprietary ColorSure LED calibration system.

Flicker-Free Operation

The Space Force octo features adjustable PWM frequencies to provide flicker-free operation on even the most demanding shoots.

Complete Control

Unlike conventional fixtures, the Space Force octo has onboard power and control electronics - eliminating costly power cables and the need for dimmer racks. Control of colour temperature and intensity is available via DMX wired, the optional LumenRadio CRMX wireless, or locally via the onboard encoders.

Versatile Mounting Options

The Space Force octo features multiple mounting options. In addition to a built-in standard bridle and suspension hanger brackets for stacking multiple units together, optional accessories include a manual yoke and a low-profile hanging bracket.

Full Range Of Accessories

For real versatility, the Space Force octo is available with a range of optional accessories, including a black mini skirt, soft egg crate, cyc skirt/silk, soft target kit, and a soft lantern. In addition, the optional LumenRadio connectivity is also available as a user-installed accessory, for retro-fitting if required at a later date.

Specifications

• Power Supply -  Built-in
• Power Input Rating -  100-240V AC 50-60Hz 400VA
• Typical Power & Current -  Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%
• Power Factor -  0.97
• Power Consumption
  • 333W @ 120V AC
  • 331W @ 230V AC
• Inrush Current
  • 56A @ 120V AC
  • 82A @ 230V AC
• Idle Power Consumption -  18W @ 120/230V AC
• Residual Current (max.) -  0.4 mA
• Power Connectors In/Out - powerCON TRUE1
• Data Connectors In/Out -  XLR 5-pin
• Control Protocol -  ANSI E1.20 RDM over ANSI E1.11 USITT DMX 512-A
• Cooling System -  Convection
• Operating Temperature -  0°C to 40°C
• Construction -  Powder Coated Aluminium
• Colour -  White
• Built-In Hardware -  Suspension Hanger Brackets
• IP Rating -  IP20
• Control Modes
  • Manual Intensity / Colour Temperature
  • 2 Channel Intensity / Colour Temperature
  • Focus
  • Link
  • Memory 1 / 2
  • Addressing
• Dimming Curve -  Theatrical
• LEDs per Engine
  • 120 x Warm White + 120 x Cold White
  • Total 240 LEDs
• LED Engine Number -  4
• Total LED -  960
• Hot Lumen Output (Combined) -  Up to 26,700 lm
• Optics -  High Efficiency Diffuser
• Beam Angle -  60°
• Beam Distribution -  Symmetrical Direct Illumination
• CCT -  2,800 - 6,000K (+/- 200K)
• CRI & TLCI -  Up to 97
• TM-30-18 -  Up to Rf 94, Rg100
• SSI -  Up to 87
• Sound Level -  24.6 dB
• Lamp Life -  L70 at 50,000 hours
• Dimensions (WxHxD)-  655mm x 203mm x 655mm / 25.8” x 8” x 25.8”
• Weight -  8kg / 17.6lb

What's Included

• 1 Space Force octo Fixture (White)
• 1x Power Connector
• 1x Bridle
• 1x Quick Start Guide

NOTE: Yoke and Power Cable not included. Displayed image is for Black model.
