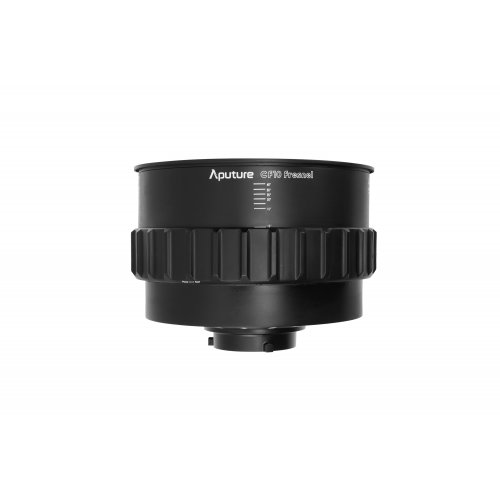

Aputure CF10 Fresnel and Barn Doors Kit
Model: AA0706039T
About: Aputure CF10 Fresnel and Barn Doors Kit

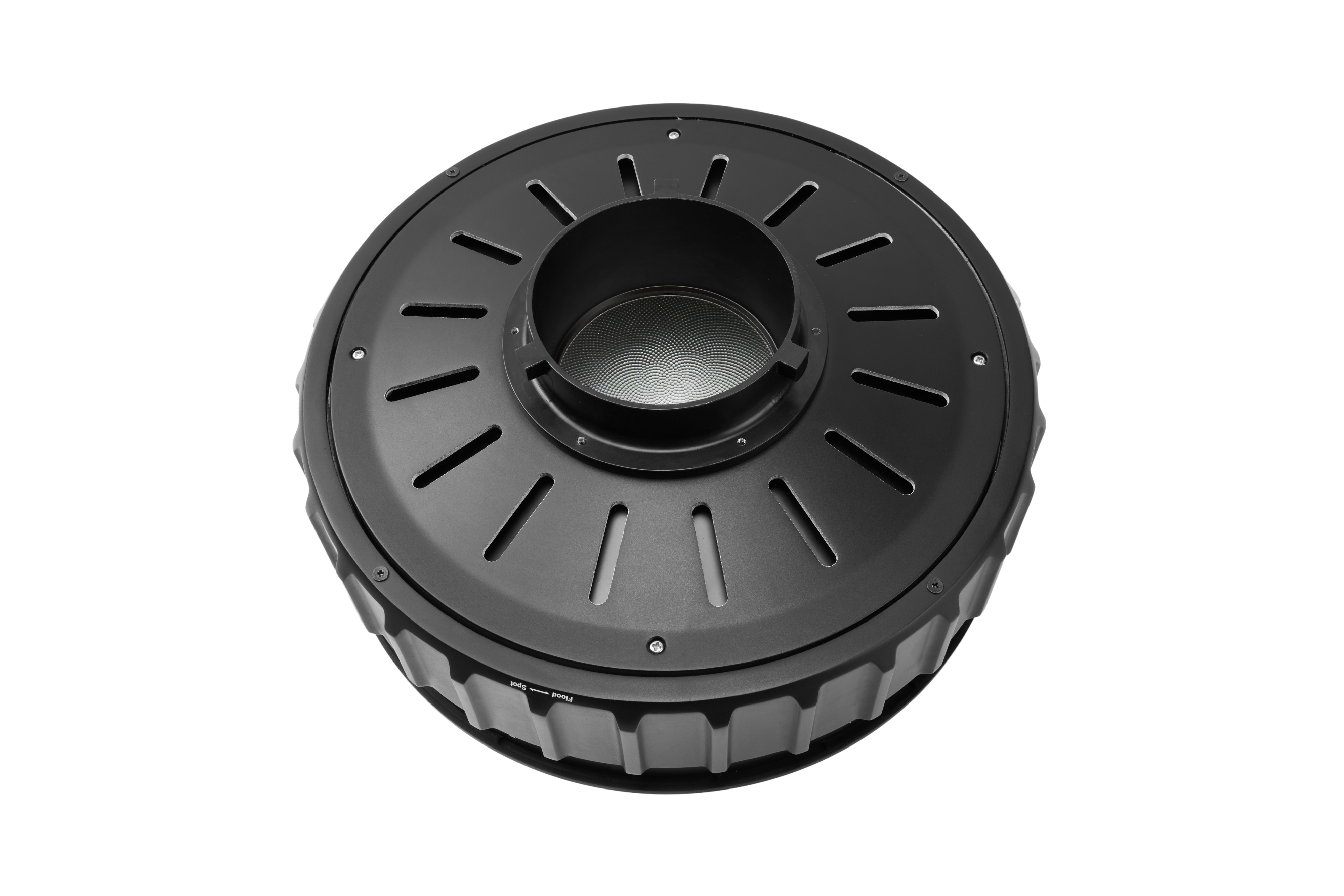

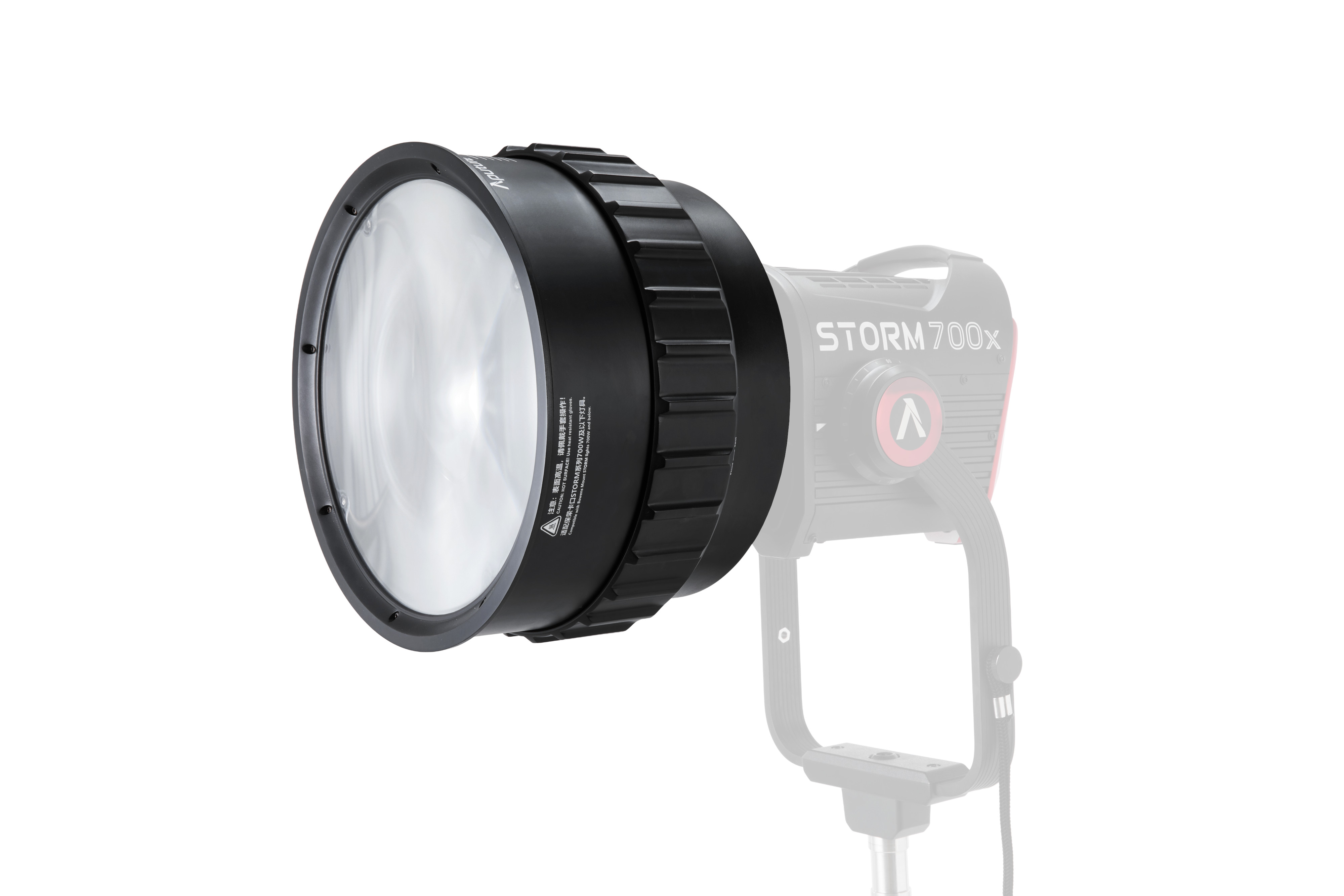

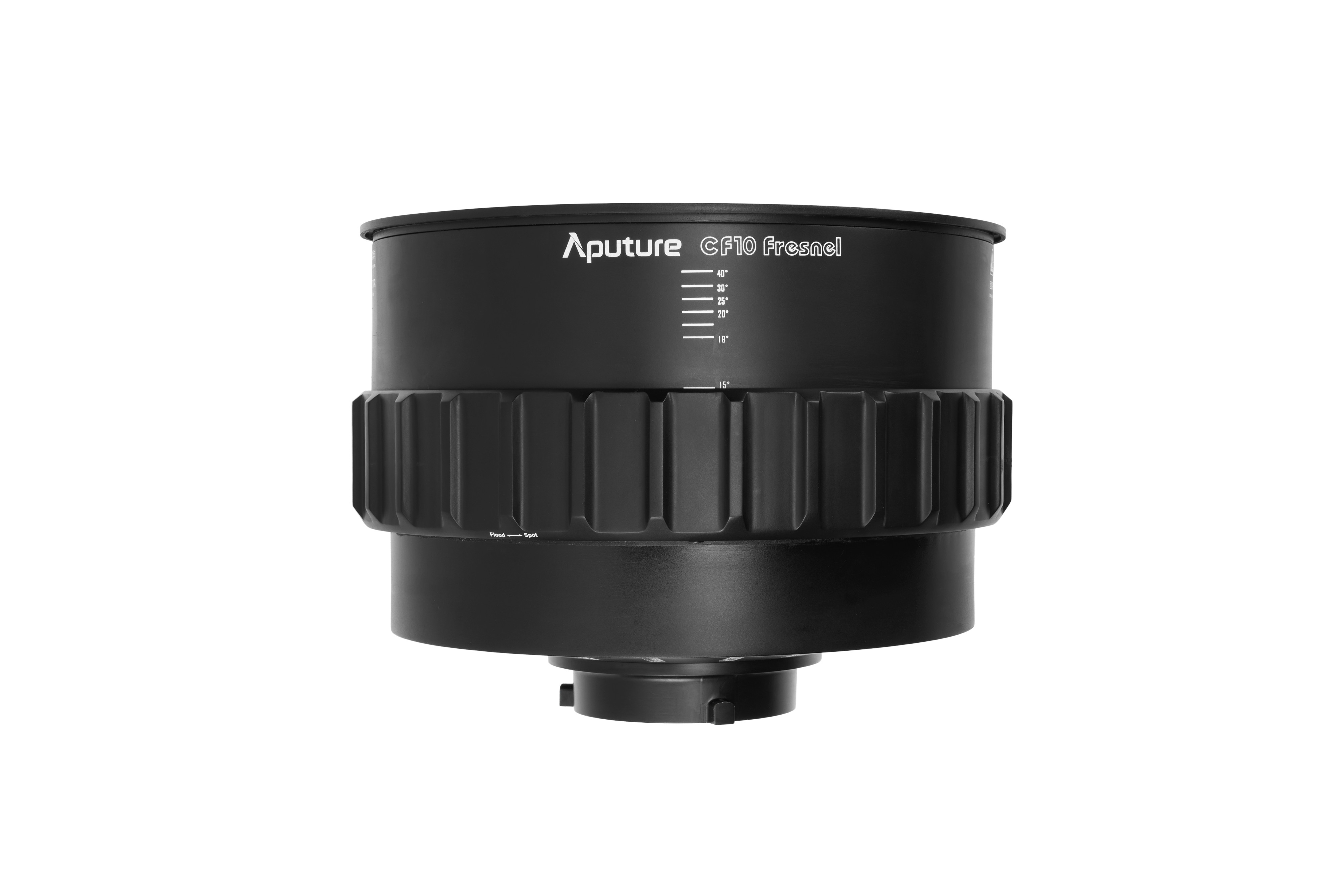

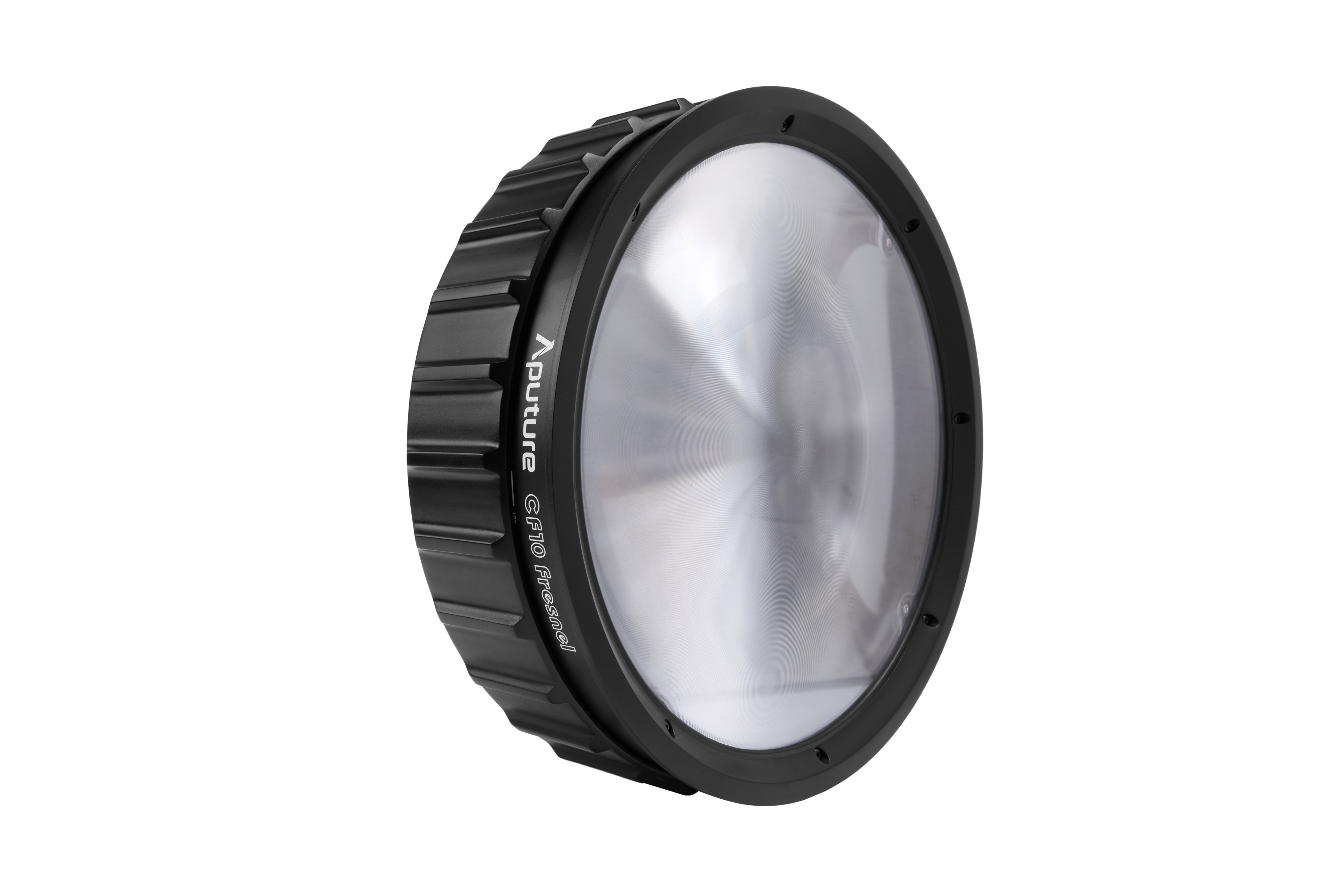

The CF10 Fresnel and Barn Doors Kit is a compact Bowens mount fresnel kit that includes the fresnel’s barn doors. The CF10 Fresnel is a 10-inch diameter lens optimized for use with the STORM 700x. The CF10 optimizes and amplifies the light output of the STORM 700x with a 15º to 40º spot-flood range, providing smooth falloff from center to edge, all with a compact form factor. Coming as a kit with the CF10 Barn Doors, the CF10 Fresnel and Barn Doors Kit is a compact solution for users to achieve greater versatility and control of their STORM 700x’s output. The kit’s carrying case comfortably fits the Fresnel and its Barn Doors within.

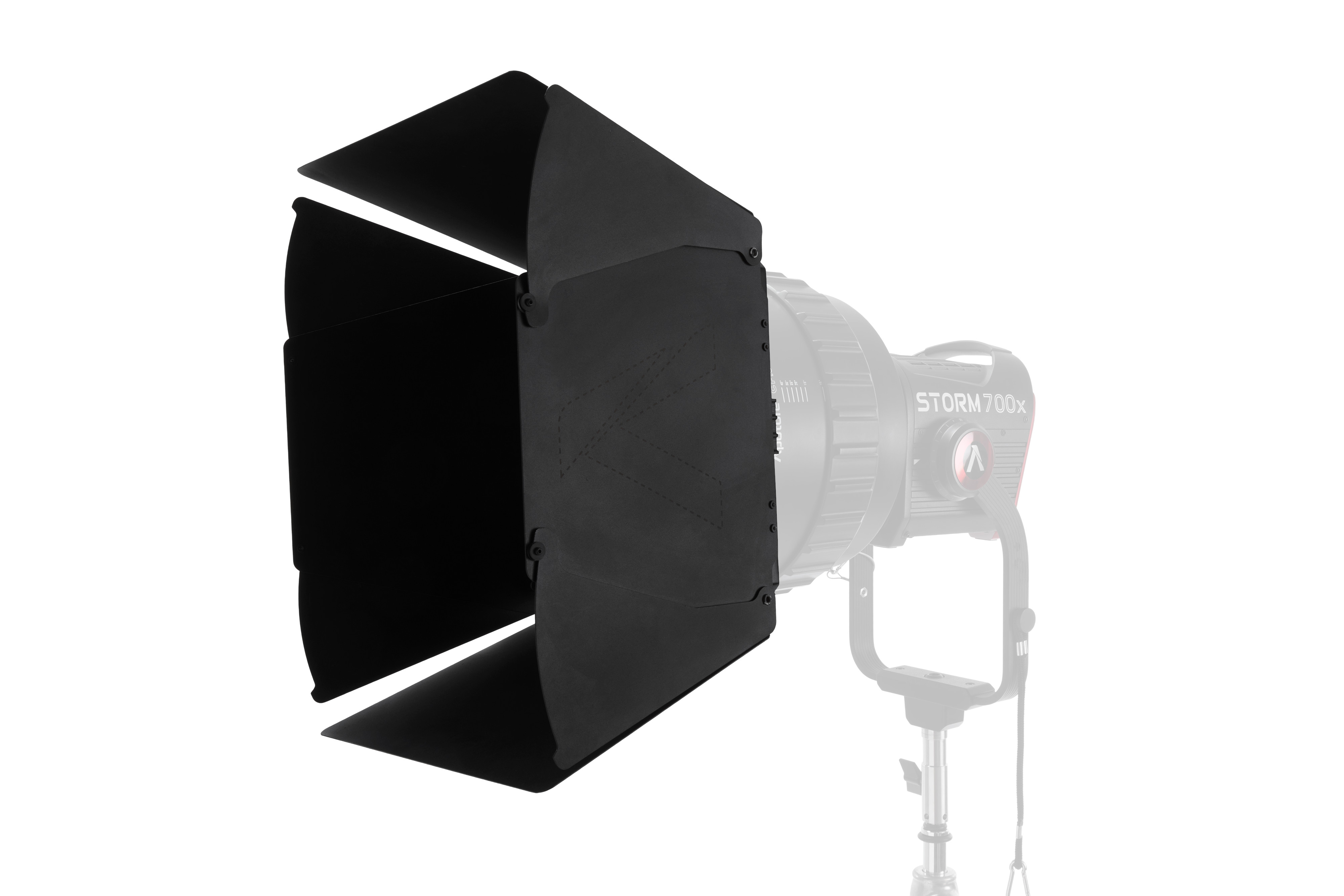

- 10-inch compact fresnel with Bowens mount designed for the STORM 700x with included 8-leaf CF10 Barn Doors
- Intensifies STORM 700x daylight (5600K) output by 2 times to 56,200 lux at 3 meters
- 15º to 40º spot-flood range

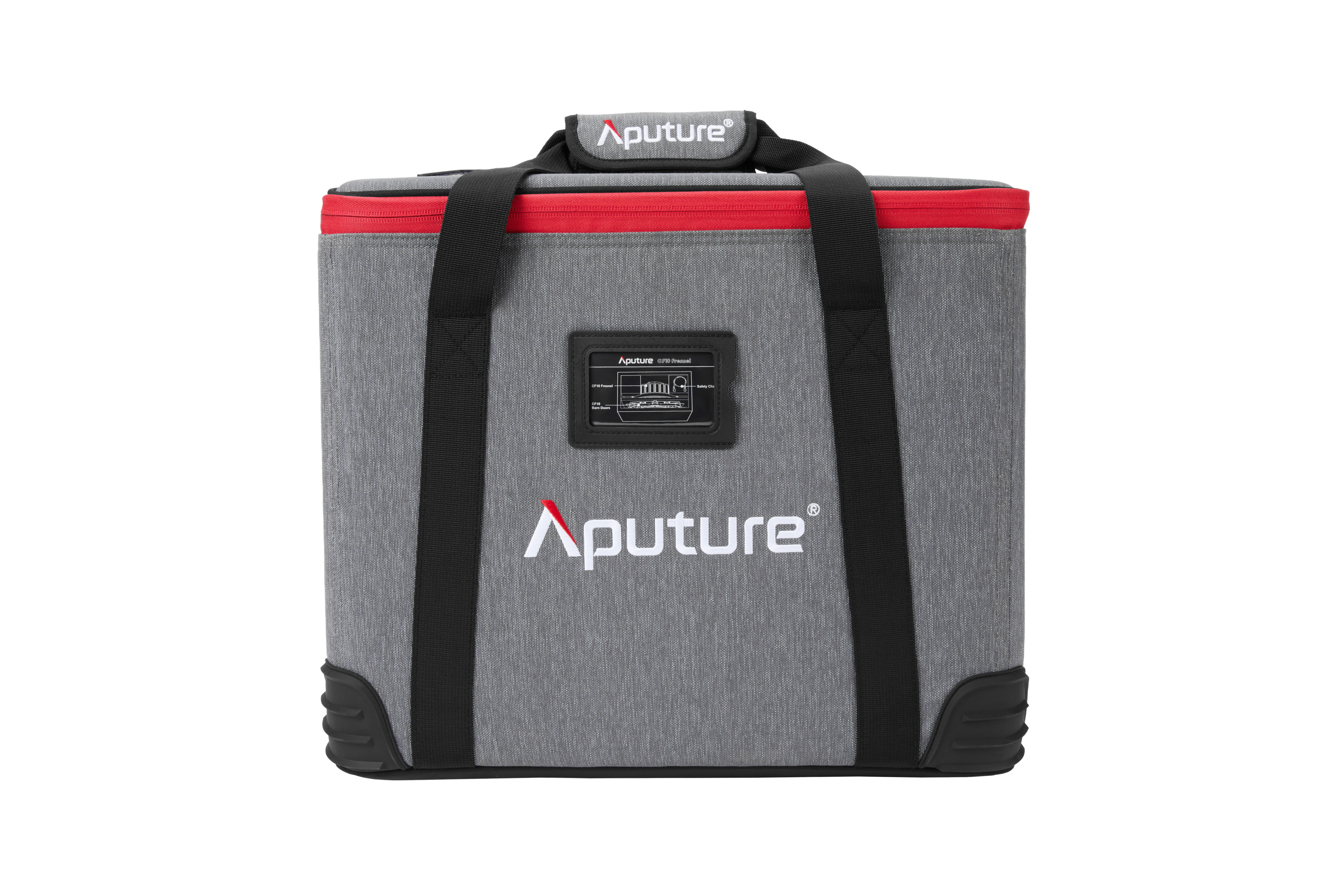

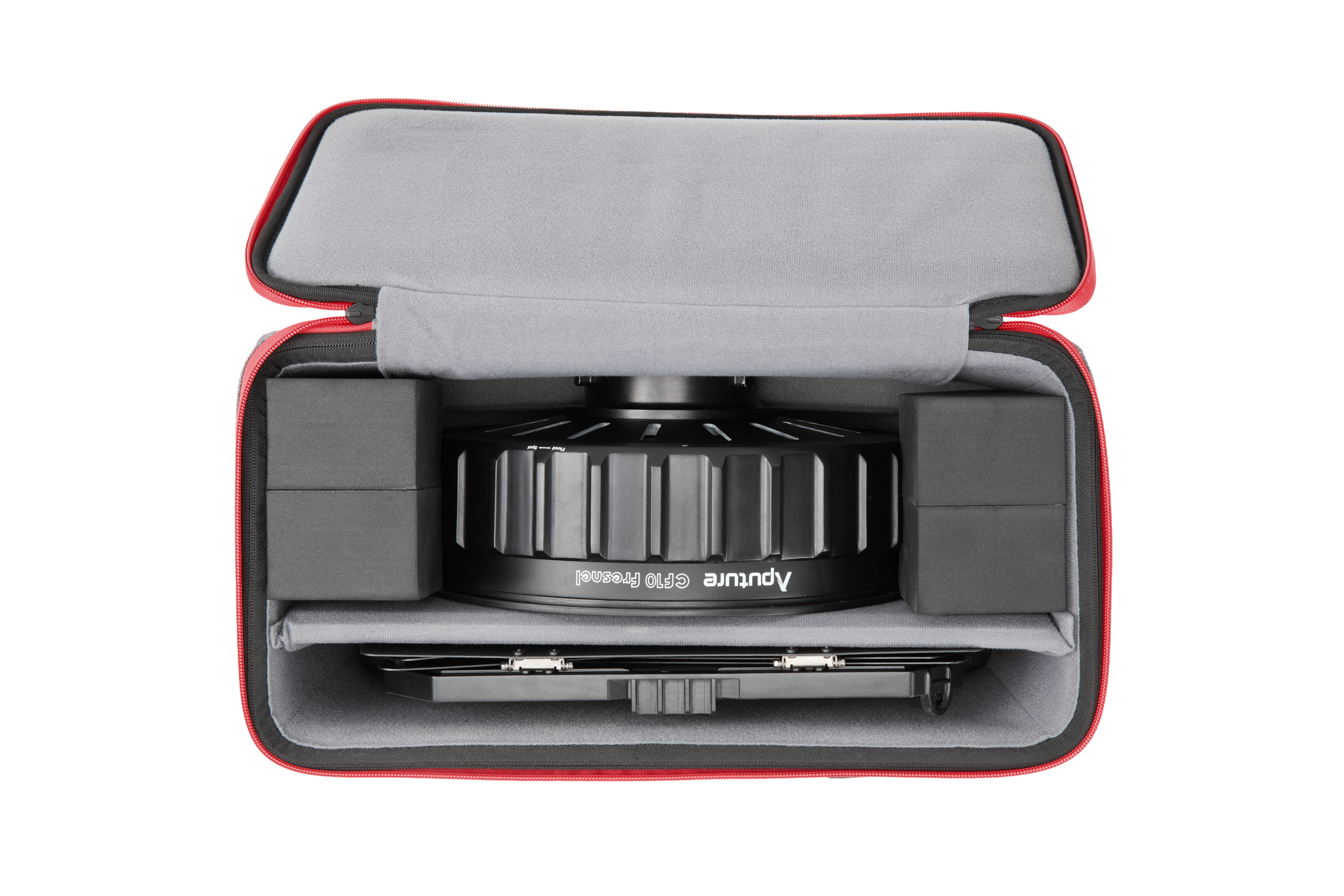

- Included protective carrying case for storing and transporting CF10 Fresnel & included CF10 Barn Doors
- Smooth falloff from center to edge of output
Compatibility
Optimized for the STORM 700x
- Compatible with:
- LS 600c Pro II
- LS 600c Pro
- STORM 400x
Specifications
- Beam Angle
- Full Spot: 15º
- Full Flood: 40º
- Dimensions
- CF10 Fresnel: ⌀11.7 x 4.8 in (⌀29.8 x 12.1 cm)
- CF10 Barn Doors: 12.8 x 14.1 x 17.9 in (32.5 x 35.9 x 45.5 cm)
- Carrying Case: 18.1 x 9.8 x 15.8 in (46.0 x 25.0 x 40.0 cm)
- Weight
- CF10 Fresnel: 4.63 lbs (2.10 kg)
- CF10 Barn Doors: 3.09 lbs (1.40 kg)
- Carrying Case: 6.61 lbs (3.00kg)

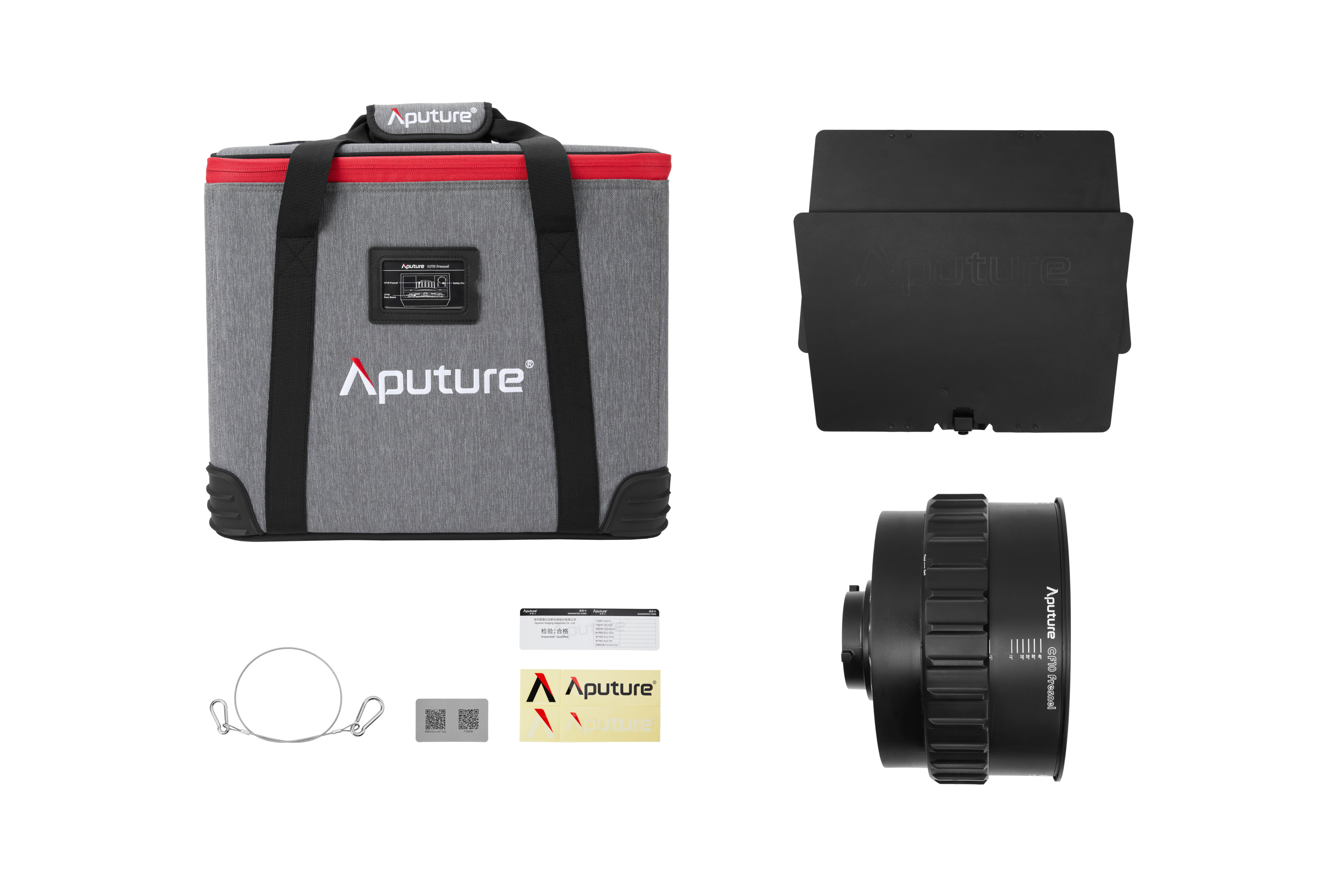

What’s in the Box
- 1x CF10 Fresnel

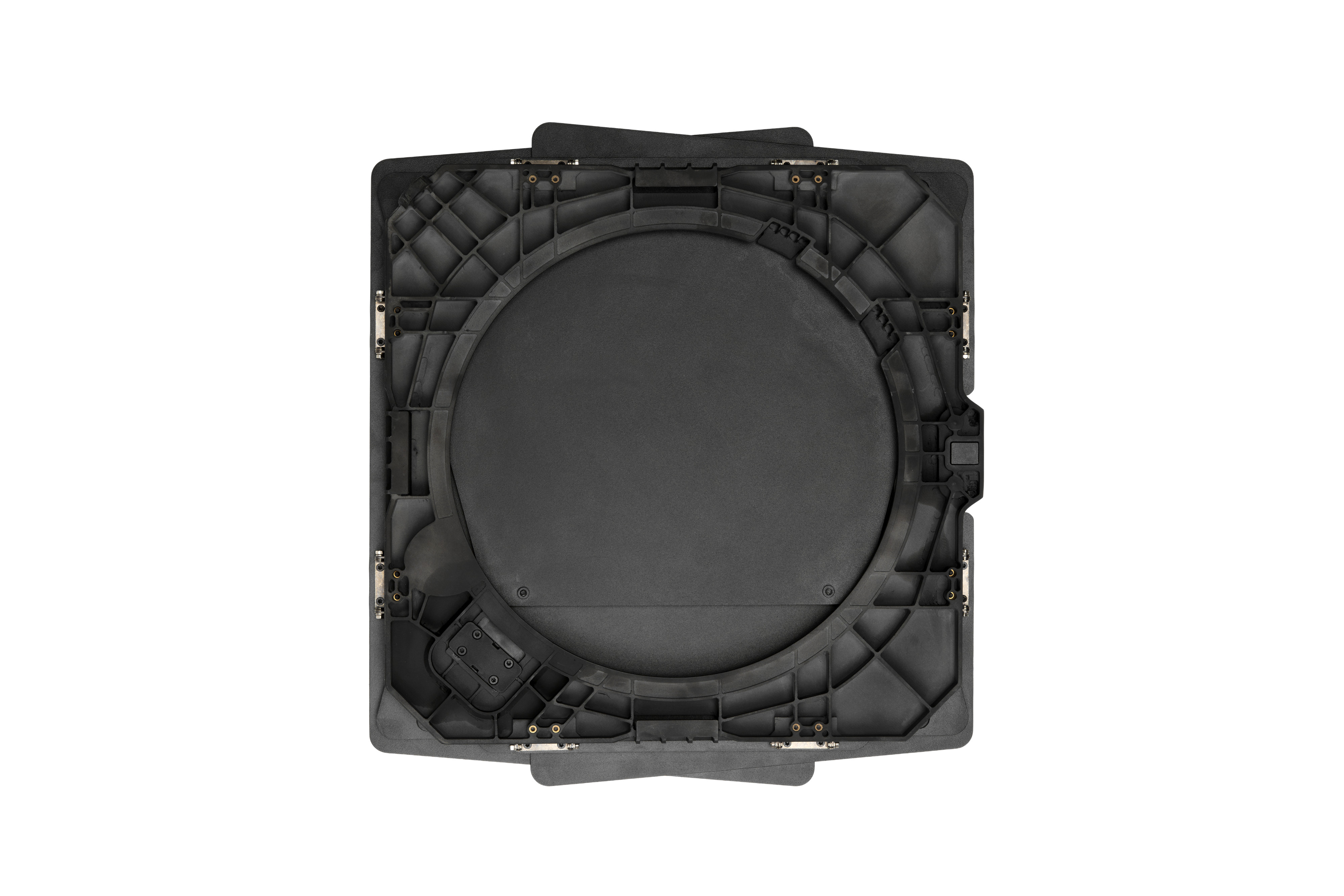

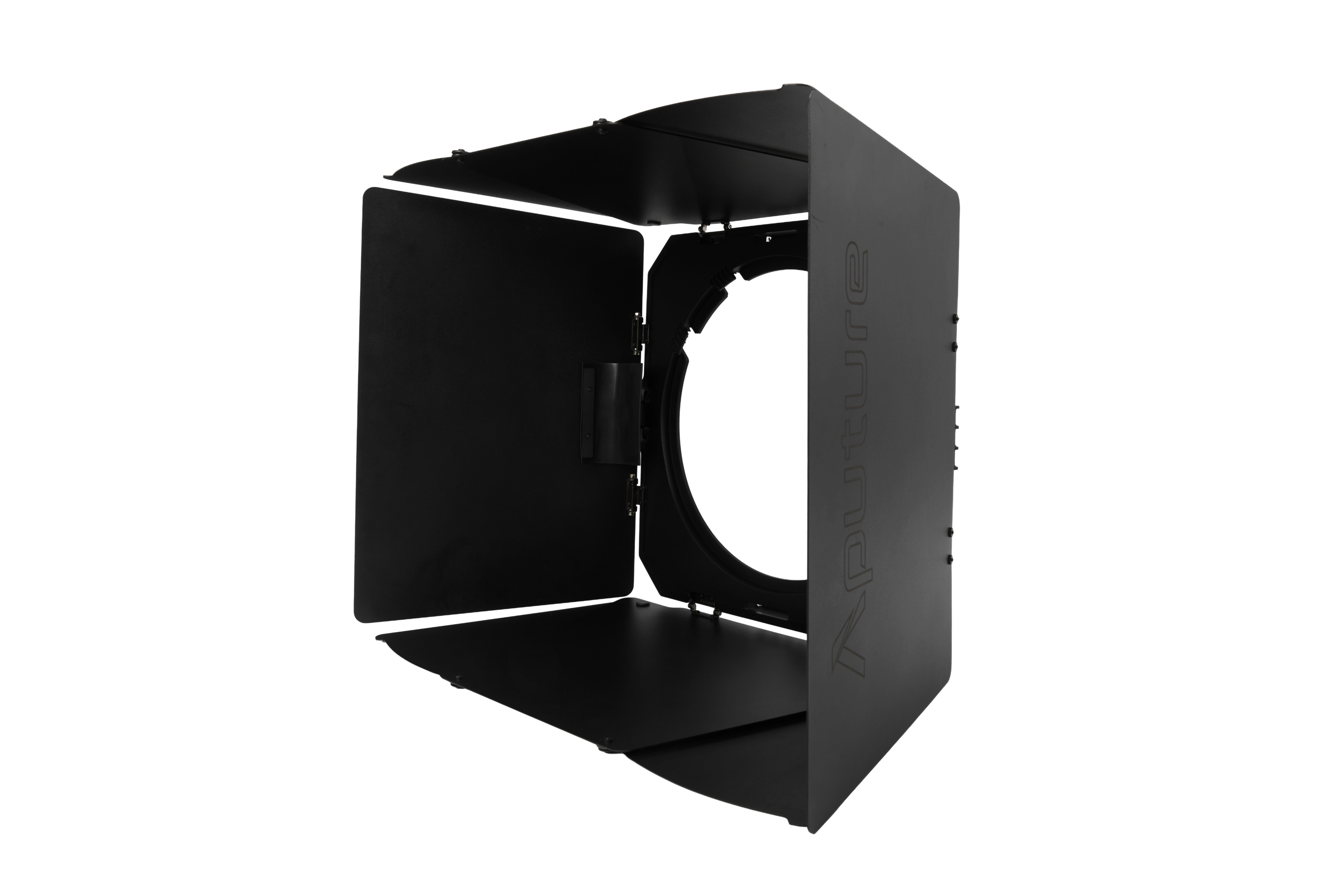

- 1x CF10 Barn Doors
- 1x Safety Chain
- 1x Soft Carrying Case
UPC: 6977162456416
