Chroma-Q Studio Force II 72 LED Studio Light with LumenRadio - White

About: Chroma-Q Studio Force II 72 LED Studio Light with LumenRadio - White

Using a homogenised LED source capable of delivering variable colour temperature, plus/minus green shift control and the ability to produce deep saturated colours when needed, the Studio Force II is specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tuneable white light such as touring key lights, exhibitions, corporate events and theatre lighting.

The Studio Force II uses the same ColorSure technologies found in other innovative Chroma-Q fixtures to deliver consistent colour across fixtures.

With an extreme output of up to 36,000 lumens, the Studio Force II 72 battens evenly wash large areas, complemented by smooth, theatrical grade dimming.

The Studio Force II is available in three sizes:

• Studio Force II 12
• Studio Force II 48
• Studio Force II 72

Features

• Full spectrum tuneable white light engine
• High intensity homogenized output
• Extremely smooth uniform wash
• 2,800K - 6,500 K CCT Variable white
• Variable mired shift (green shift)
• Extreme output - 36,000 lumens
• Superb smooth dimming
• Ideal for TV Broadcast and film
• PowerCON TRUE1 input and output for easy daisy chaining of fixtures
• Hidden quick release lever for tilt adjustment

Plus / Minus Green Shift

Tuneable white LED fixtures produce light typically ranging from cool white (~6,500K CCT) to warm white (~2,800K CCT) by following the black body locus.

Chroma-Q's plus/minus green shift control allows designers to vary hue by moving along the green–magenta axis orthogonal to the colour temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.

Chroma-Q ColorSure

The inherent variation between individual LED emitters means colour can vary from fixture to fixture. Chroma-Q's ColorSure is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured.

A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.

Features

Studio Force II has a coloured touch display for easy navigation through the addressing, modes, and settings. Power and DMX / RDM data through connections, or wireless LumenRadio CRMX connection. Tool-less tilt adjustment allowing side-by-side fixture placement without any gap.

Accessories

Chroma-Q offers a range of optional accessories for Studio Force II to tailor for any lighting situation. Accessories simply slide through the mounting slots. Cyc/border lenses can be used with other accessories.

Specifications

• Power Supply -  Built-in
• Power Input Rating -  100-240V AC 50-60Hz 800VA
• Power Factor
  • 0.97 @ 120V AC
  • 0.92 @ 240V AC
• Power Consumption
  • 800W @ 120V AC
  • 800W @ 240V AC
• Inrush Current -  80A @ 120V AC
• Idle Power Consumption
  • 44W @ 120V AC
  • 46W @ 240V AC
• Typical Power & Current -  Measurements done with all LEDs at maxi- mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%
• Power Connectors In/Out -  Neutrik powerCON TRUE1
• Data Connectors In/Out -  Neutrik XLR 5-pin
• Max Fixtures in Series -  2 x fixtures @110V, 4 x Fixtures @240V
• Control Protocol -  ANSI E1.11 USITT DMX 512-A
• Cooling System -  Combined convection and forced air - 2 fan
• Operating Temperature -  0°C to 40°C
• Construction -  Anodised aluminium extrusion
• Colour -  White
• Built-In Hardware -  Quick release lever for tilt adjustment
• IP Rating -  IP20
• Control Modes -  RGBW, RGB, KHi, HSi, Cine-Q. Grouping x1, X4, Odd/Even
• Dimming Curve -  Linear
• Hot Lumen Output (Combined) -  36,000 lm
• Optics -  Fully homogenised lenses
• Beam Angle -  22° (approx.)
• Beam Distribution -  Symmetrical direct illumination
• CCT -  Adjustable 2800 - 6500K
• Colour Gamut -  Performance enhanced
• CRI
  • 92 @ 3200K
  • 94 @ 4400K
  • 94 @ 5600K
• TM-30 Rf (Fidelity Index)
  • 92 @ 3200K
  • 94 @ 4400K
  • 90 @ 5600K
• Lamp Life -  L70 at 50,000 hours
• Dimensions (LxHxD) -  1759mm x 191mm x 165mm / 69.25" x 7.5" x 6.5"
• Weight -  24kg / 53lbs

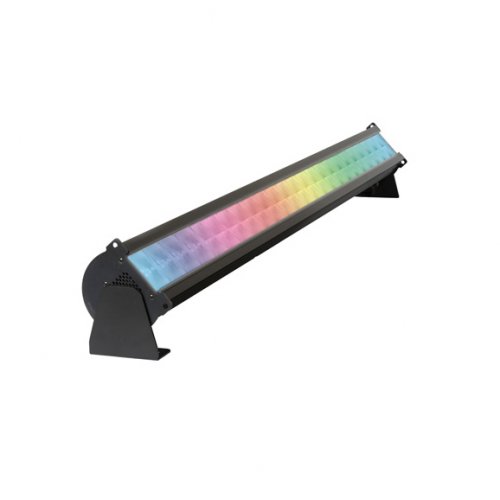

NOTE: Displayed image is for Studio Force II 72, Black.
