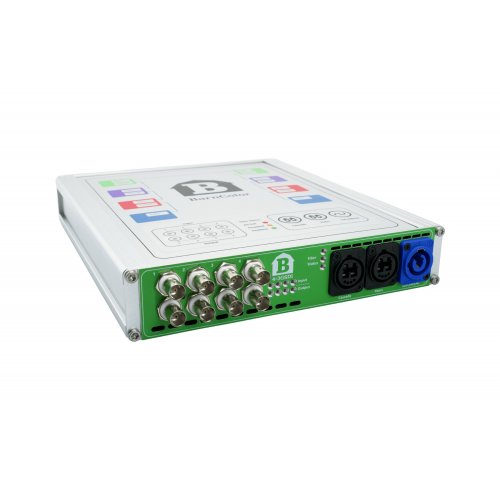

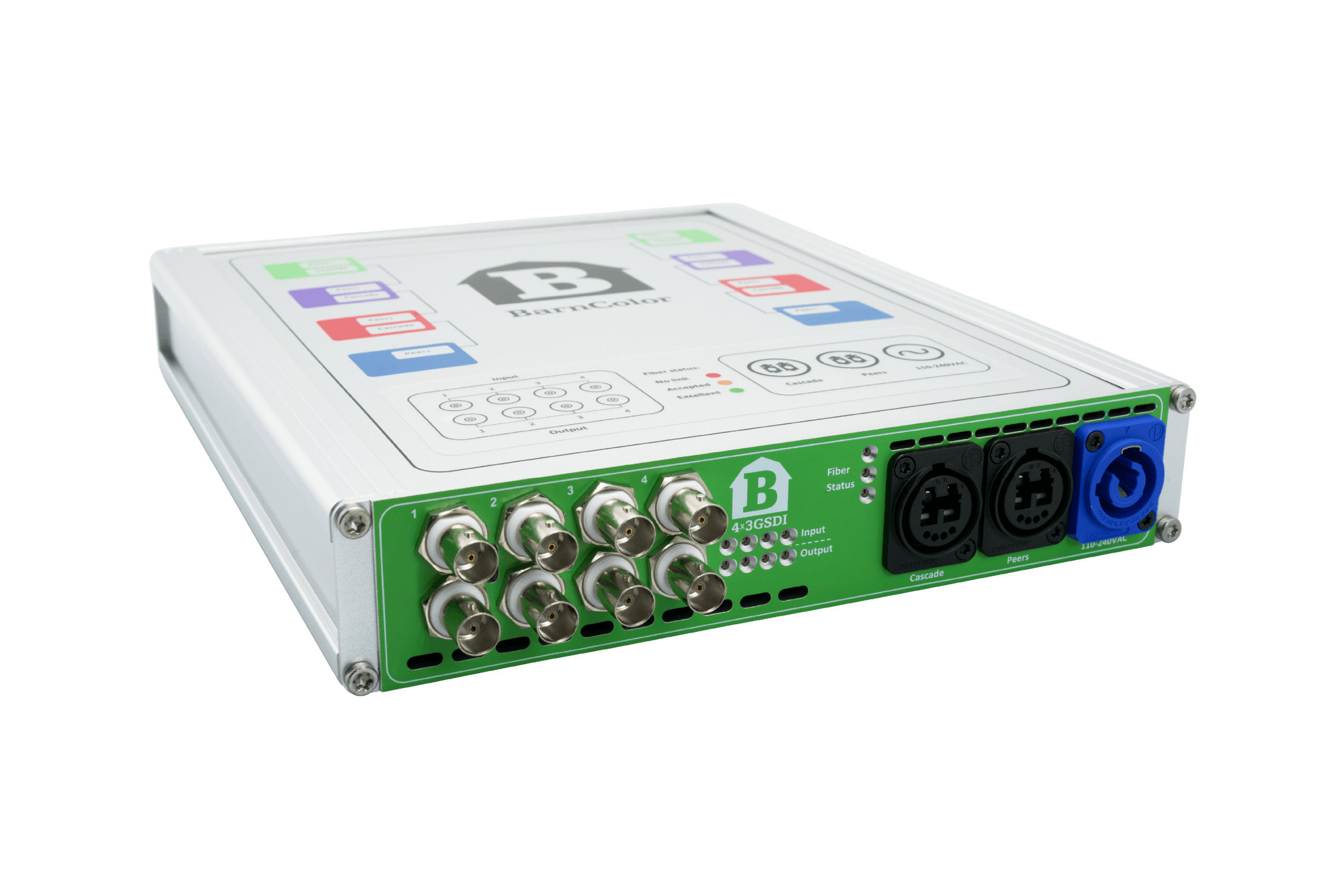

Barnfind BarnColor 4x3G-SDI Video Transmitter - Green

About: Barnfind BarnColor 4x3G-SDI Video Transmitter - Green

Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple video signals both directions on a single fiber cable up to 10km distance. BarnColor allows you to handle up to 32 x 3G-SDI signals (16 forward and 16 returns). Each BarnColor device handles up to 8 signals (4 forward and 4 returns) and up to 4 different colors can be daisy chained. This flexible system is simple to use and easy to set up, we have taken all the complication away from fiber transport setup. – no technical knowledge or experience required.. It is well suited for both fixed and temporary installations.

• Cost effective solution
• Upgradable
• Easy to use
• Small form
• Plug and play - Save time and money for on-site rigging
• No Latency
• No Compression

The Concept

Each BarnColor unit is available as SDI or Ethernet version and can cascade maximum 4 boxes (colors) on each side. The boxes can be combined in any variation as long as color is different. Maximum transmission distance – medium range. Equipped with rugged connectors.

Compatibility

The BarnColor devices can be installed in colored pairs or used as satellites together with a BarnOne system. If building a pure BarnColor system you can start with any color-matching pair and extend the system later as your need expands. You can combine different models of BarnColors or use multiple of the same model in the same system as long as the colors are different.

We recommend using single mode fibers when linking the BarnColor devices.

Specifications

• BNC-Ports
  • SMPTE 259M, 292M, 372M, 424M, DVB-ASI
  • Multirate reclocking of outputs 270Mbps – 3Gbps
• Fiber Port
  • Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
  • SMPTE 297M
• Power Plug
  • Neutrik powerCON or TRUE1
  • AC 100V～240VR
  • 15Watt
• Physical
  • Dimensions: 8.8 x 10.9 x 1.7 in (223 x 277 x 44mm)
  • Weight: 3.09 lbs (1.4 kg)

NOTE: Power cable not included.
