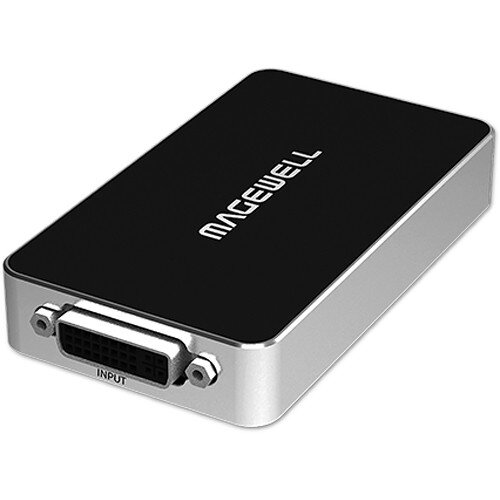

Magewell 32080 USB Capture DVI Plus

Model: 32080

Magewell 32080 USB Capture DVI Plus
Magewell 32080 USB Capture DVI Plus
Magewell 32080 USB Capture DVI Plus
Magewell 32080 USB Capture DVI Plus
Magewell 32080 USB Capture DVI Plus
  • Free Shipping!
  • Not in-Stock: Estimated Lead Time 7-10 Days
  • Not yet reviewed




About: Magewell 32080 USB Capture DVI Plus

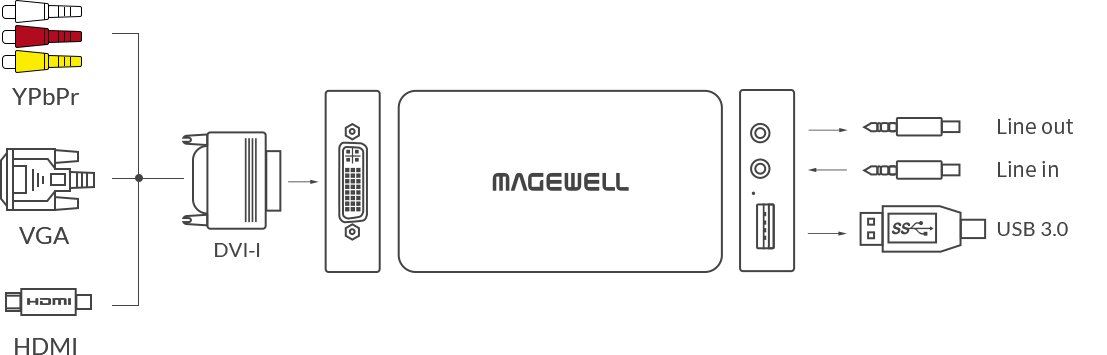

Captures one of the following

  • DVI + audio
  • VGA + audio
  • Component + audio
  • HDMI + embedded audio
  • Audio input via Line in
  • Extract HDMI embedded audio output via Line out

Supported OS

  • Windows, Linux, Mac, Chrome OS

Supported APIs

  • Windows
    • DirectShow
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA
  • OS X/macOS
    • QuickTime
    • AV Foundation

Supported Software

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow, V4L2, QuickTime, AV Foundation bbased encoding or streaming software

Input Interfaces

  • DVI x 1
  • 3.5 mm audio jack for Line In

Output Interfaces

  • USB 3.0
    • compatible with USB 2.0
    • compatible with USB 3.1 Gen 1
  • 3.5mm audio jack
    • headphones interface

Input Features

  • Support input resolution up to 2048×2160 pixels

Analog Audio Features

  • Capture analog audio via 3.5 mm microphone interface
  • Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.

Multiple Devices on one computer

  • Support for connecting multiple USB devices in one system
  • Set the device serial number as the device name shown in the system using USB Capture Utility

SDK

  • USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

Firmware Upgrade

  • Multiple devices in one system can be upgraded simultaneously

Accessories

  • USB 3.0 cable
  • DVI to VGA connector
  • DVI-I to HDMI + Component breakout
  • DB9 to YC + Composite + Analog Audio + Component breakout

UPC: 8143950200884

Reviews: Magewell 32080 USB Capture DVI Plus

There are currently no product reviews.


Warranty: Magewell 32080 USB Capture DVI Plus

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

  • The period of limited warranty for capture cards, compression cards, video recording machines, cyber video servers is one year.
  • The period of limited warranty for the accessory switching cable, adapter is one year.
  • The accessory Low-Profile baffle plate does not qualify for warranty.
