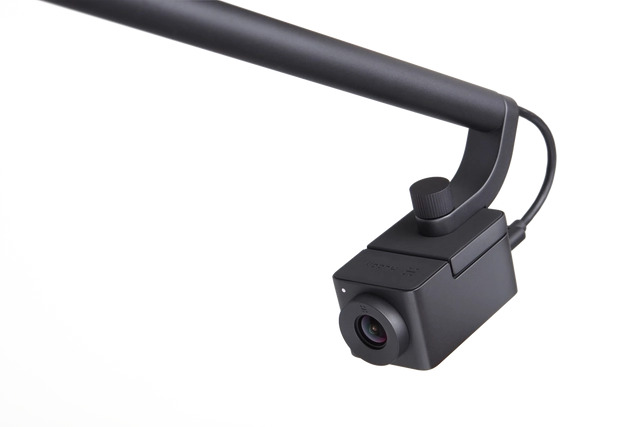

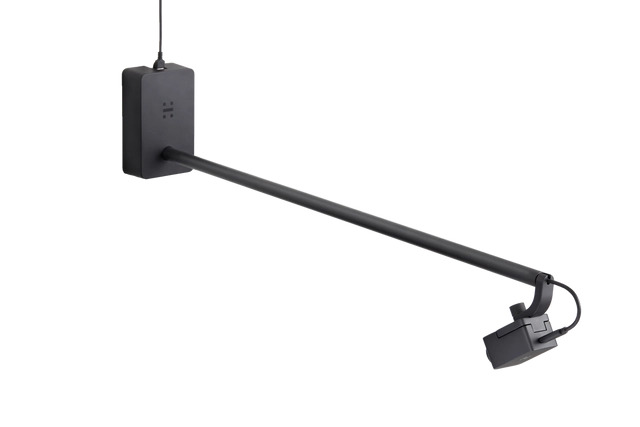

Huddly Canvas Whiteboard Camera Kit

About: Huddly Canvas Whiteboard Camera Kit

Huddly Canvas makes it easy to bring whiteboards into video meetings. With a single click, you can share a real-time stream of the board. Canvas intelligently enhances the content so it can be read with ease.

4K image sensor

Huddly Canvas captures whiteboard content with a 4K sensor and then uses AI to further enhance the image so that remote participants can easily read along and participate.

Secure installation

Huddly Canvas can be installed above whiteboards up to 2 x 1.2 m/6′ x 4′. An integrated Ethernet extender makes it easy to install the camera and connect it to the room device through USB.

High-quality materials

Huddly Canvas is made from high-end, long-lasting mechanical and electronic components. The aluminium housing protects the camera from damage and gives it a sleek, sophisticated look.

Features

• Image Processing Pipeline
• Efficient and flexible image scaling
• Balanced optical aberration correction
• Automatic white balance
• Color correction
• Well-tuned sharpening filters
• Noise reduction with spatial noise filter
• Whiteboard perspective correction

AI Whiteboard Enhancement

• Enhances text visibility and readability
• Boosts marker colors
• Removes shadows, gloss, and visual noise
• Hides people standing in front of the whiteboard

Connectivity

Huddly Canvas connects to meeting room devices via a USB-A port. It includes a USB to Ethernet extender, which allows the product to be installed in any size room.

Specifications


• 12 Megapixels 1/2.3” CMOS Sensor
• 1080p Full HD
• 720p HD
• 16:9 aspect ratio output

Installation

• Supports whiteboards up to 2 x 1.2 m/6’ x 4’
• Mount 14 cm/5’’ above any whiteboard
• Requires four screws suitable for your wall type, 5 mm diameter, or #10 screw (not included)

Optics

• Ultra-wide angle glass optics
• f/2.8 aperture
• Horizontal field of view 120 ̊

Hardware

• Supports whiteboards up to 2 x 1.2 m/6’ x 4’
• Mount 14 cm/5’’ above any whiteboard
• Requires four screws suitable for your wall type, 5 mm diameter, or #10 screw (not included)

Connection

• USB Type-A connector
• MJPEG support over USB 2 and USB 3

Color

• Matte Black

Packaging Dimensions

• L: 780 mm x W: 230 mm x H: 100 mm
