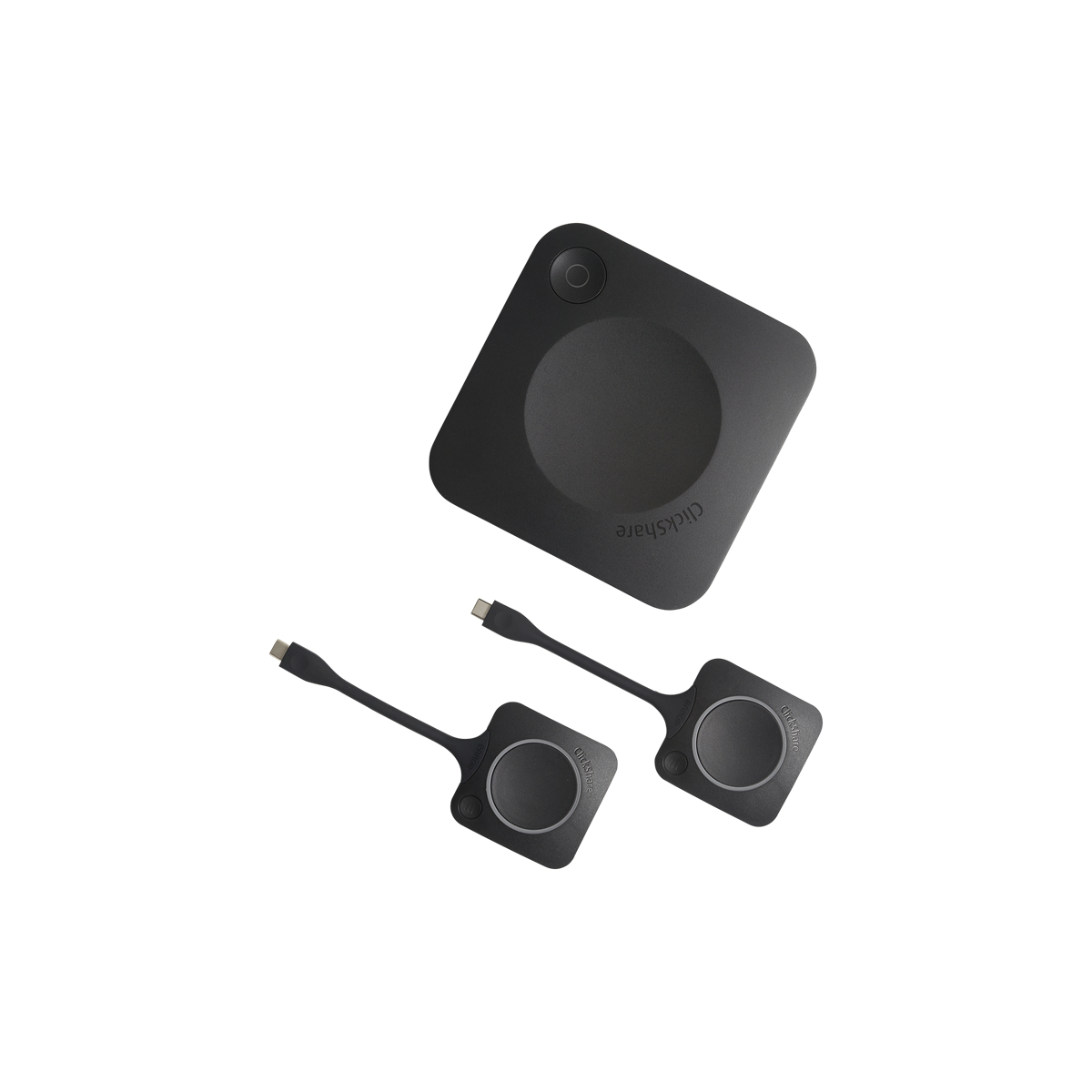

Barco ClickShare CX-30 Gen 2 Wireless Conferencing System for Medium Size Rooms

About: Barco ClickShare CX-30 Gen 2 Wireless Conferencing System for Medium Size Rooms

ClickShare CX-30 Gen 2 enables wireless conferencing in medium-sized meeting spaces. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.

Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.

• Interactive features: touchback, annotation and blackboarding
• Increased collaboration with 2 sources on screen
• Run video meetings from your laptop with Button or App
• 100% secure, encrypted and cloud-managed

More engaging video collaboration

• Allows up to 2 users, including guests, to share content simultaneously to the room display
• Interactive features like annotation, blackboarding and touchback function on a 4K canvas
• Automated start and advanced sharing options for more intuitive meetings

A user-friendly experience and enhanced security

• Designed for enterprise rollouts, it offers enhanced security and the widest range of network and AV integrations
• Works seamlessly with a large selection of peripherals and digital signage solutions
• Use it as a standalone product or integrated into any  meeting room, including Microsoft Teams Room or Zoom Room

Make the most out of ClickShare

• Efficient management platform to maintain, manage and monitor your ClickShare fleet
• The right tool to increase your meeting rooms´ ROI
• Easy to stay up to date and act upon notifications
• Secure environment that keeps your data safe

SmartCare so you can be carefree

• Service package included with all ClickShare devices
• Reliable service with direct vendor support
• 5-year warranty upon registering your ClickShare devices
• 5 years of analytics and insights via XMS Cloud to optimize working spaces and increase ROI

Designed with people and planet in mind

• Made with non-paint plastics & halogen-free PCB
• Lighter, ecological packaging choices and designed for recycling
• Energy efficient to reduce your power consumption
• Carbon neutral or with a Barco ECO label: A++

Specifications

• ClickShare Base Unit dimensions
  • Dimensions (HxWxD) - 34 mm x 135 mm x 135 mm
  • Power supply - Standard 110/220 V AC plug or USB-C (only Gen2)
  • Power consumption - Operational: 5-10W, 24W Max
  • Weight - 900 gr
• General
  • Operating system
    • Windows 10 and higher macOS 11 (BigSur) and higher
    • Android v11 and higher (ClickShare App)
    • iOS 14 and higher (ClickShare App)
  • System requirements
    • For a smooth experience with Microsoft Teams or Zoom
    • Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mojave latest build
    • Recommended: Intel i5 4-core processor / 8GB RAM / OS:Windows 10 latest build or Mac OS latest build
  • Video outputs - 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
  • Audio output - USB, HDMI
  • USB - 1 X USB-A, 1 X USB-C
  • ClickShare Buttons - 2
  • ClickShare App - Desktop & Mobile
  • Native protocols - Airplay, Google Cast, Miracast
  • Maximum number of simultaneous connections (with Buttons and/or App) - 32
  • Noise Level
    • Max. 25dBA @ 0-30°C
    • Max. 30dBA @ 30-40°C
  • Authentication protocol
    • WPA2-PSK in stand alone mode
    • WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
  • Wireless transmission protocol - IEEE 802.11 a/g/n/ac and IEEE 802.15.1
  • Reach
    • Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
    • Frequency band 2.4 GHZ and 5 GHz (DFS)
  • Frequency band - 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
  • Connections
    • 1x Ethernet LAN 1Gbit
    • 1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
  • Temperature range
    • Operating: 0°C to +40°C (+32°F to +104°F)
    • Max: 35°C (95°F) at 3000m
    • Storage: -20°C to +60°C (-4°F to +140°F)
  • Humidity
    • Storage: 0 to 90% relative humidity, non-condensing
    • Operation: 0 to 85% relative humidity, non-condensing
  • Anti-theft system - Kensington lock
  • Certifications - FCC/CE
  • Touch screen support & Interactivity - Yes
  • Wireless conferencing - via App or Button
  • Local view - Yes
  • Network connection - LAN & WiFi
  • Management and reporting - Yes
  • Warranty - 1 year standard. 5 years coverage via SmartCare
