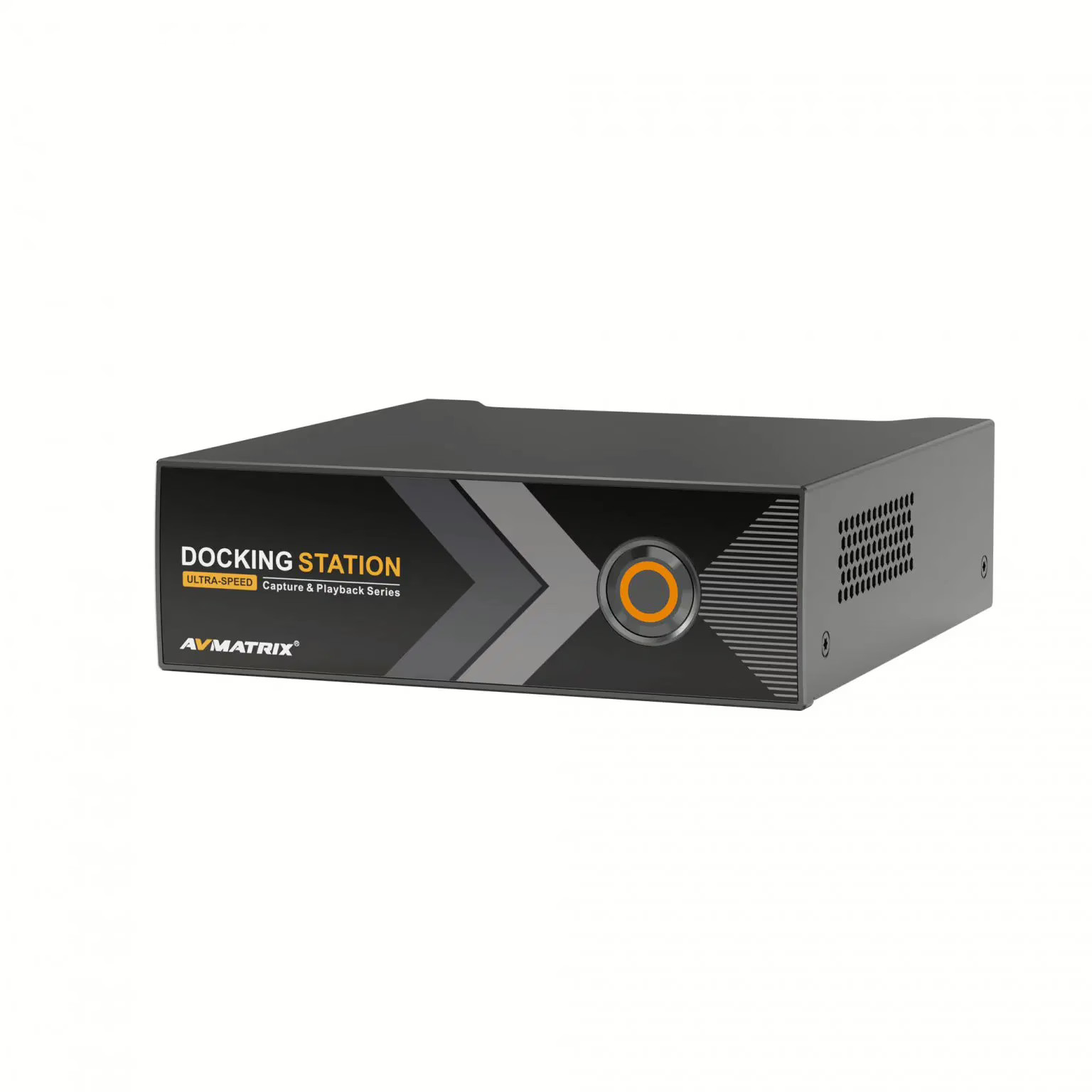

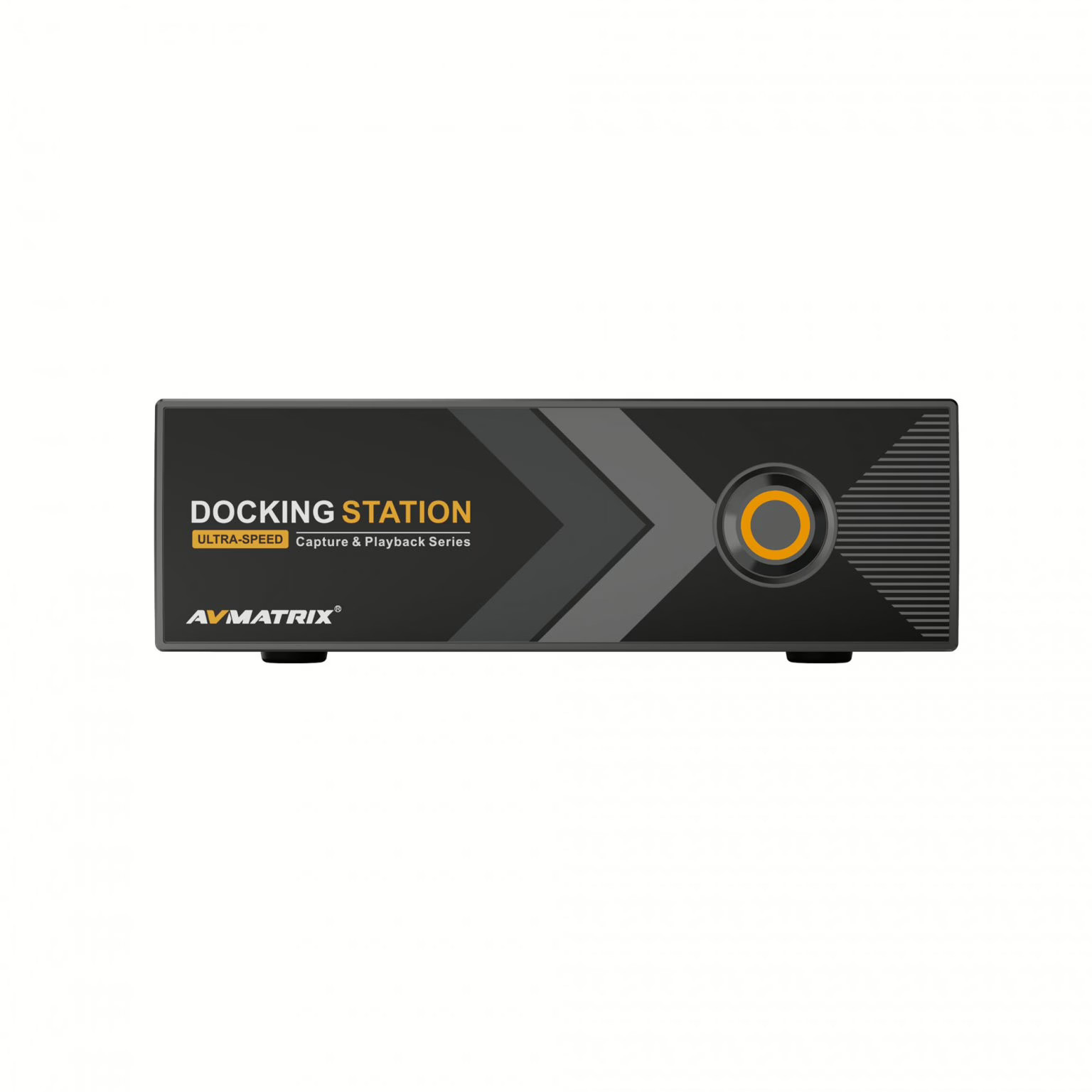

AVMatrix Thunderbolt Series Capture Docking Station - HDMI 2.0

About: AVMatrix Thunderbolt Series Capture Docking Station - HDMI 2.0

• Dual Thunderbolt ultra-speed port, the highest rate up to 40Gbps, support for daisy-chaining
• A variety of video input and output interfaces version optional interchangeable, up to support 4K60
• Support YUY2, RGB and other lossless capture formats
• Extended computer interface, interface USB3.1 Gen2 10Gbps, DP1.4 interface 4
  • * 8Gbps (support windows platform DP MST daisy chain display)
• Through the PD protocol to provide up to support 60W USB Type-C external power supply (optional)
• Widely compatible with the operating system, SDK support secondary development (vp51 and vp30)
• Active cooling 7
  • *Stable operation for 24 hours

Specifications

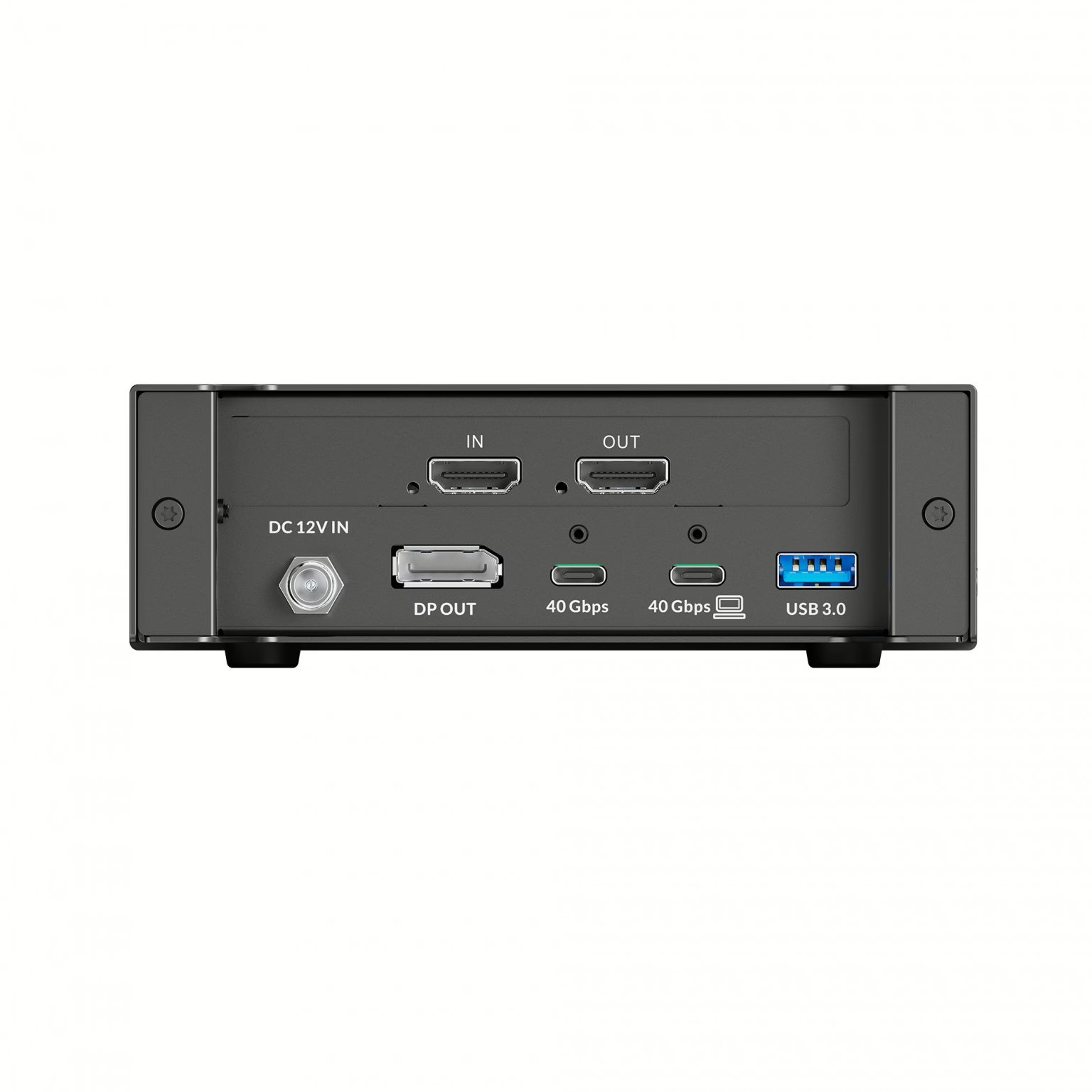

• INTERFACE
  • Video Interface
    • 1x HDMI 2.0 Input
    • 1x HDMI 2.0 Loopout
  • Data Interface
    • 1x DC 12V Input
    • 1x DP Video Output
    • 2x High-speed ports (support data, video, power supply, daisy chaining; compatible with USB4 & Thunderbolt 3/4/5-like protocols, up to 40Gbps)
    • 1x USB3.1 Gen 2
• FORMAT
  • Video Format: Up to 4K60
  • Audio Sampling: 48kHz 24bit
  • SDI Color Precision: YUV 4:2:2 8bit
  • Color Space: REC 601, REC 709
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU‑R BT.656, ITU‑R BT.601
  • Device Support: Supports XBOX, PS4, SWITCH, video players, TV boxes, and media boxes, etc.
• SUPPORT
  • Supports OS: Windows 7/8/10/11, (64‑bit), Linux (Note: Windows 7/8 requires system digital signatures to be turned off)
  • Software Compatibility: OBS, XSplit, VLC, VirtualDub, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2
• OTHERS
  • DC Power Range: 12V–21V
  • Thunderbolt 3 Port Speed: 40Gb/s
  • PD Power Output: 60W / 45W / 27W / 15W
  • Power Consumption: 12W
  • Operating Temperature: 0–40°C
  • Relative Humidity: 0%–90% non‑condensing

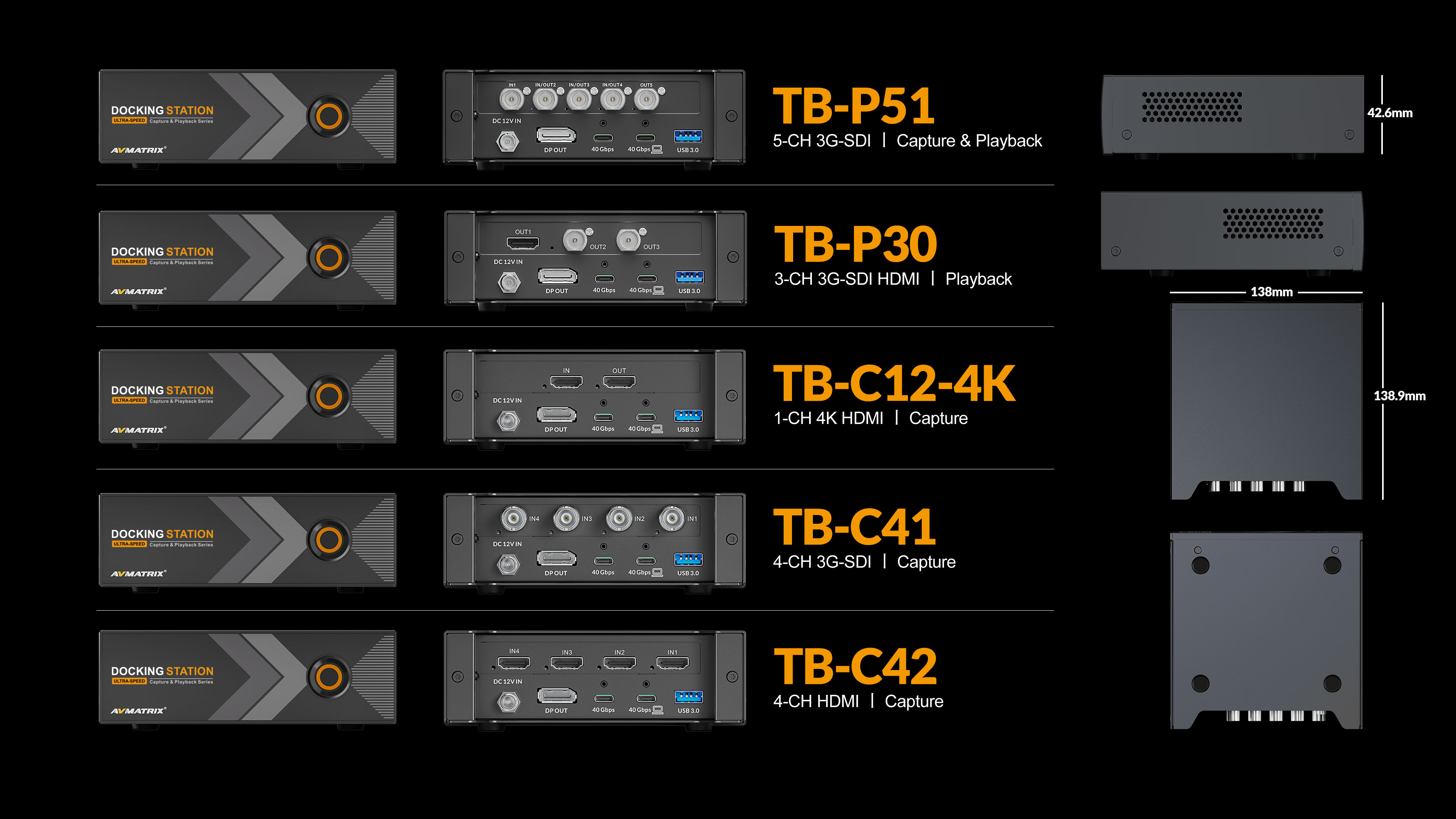

  • Dimensions: 139.8 x 138 x 42.6 mm
  • Warranty: 2 years
