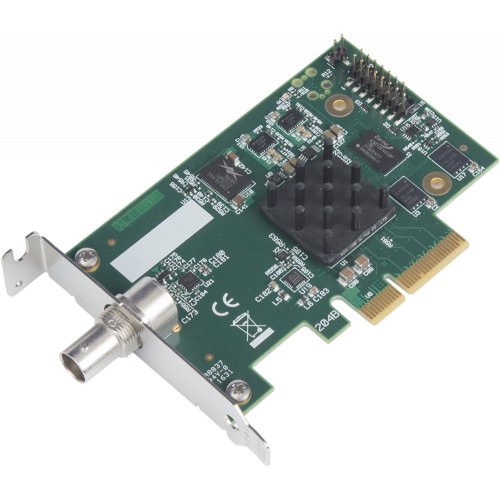

Datapath VisionLC-SDI PCIe SDI Capture Card
Model: VisionLC-SDI
About: Datapath VisionLC-SDI PCIe SDI Capture Card
Discreet video capture is now the mainstay of many small form factor appliances being used in markets such as lecture capture, distance learning and medical environments. Datapath's VisionLC-SDI provides tri-band SDI capture for use within such applications. Datapath's LiveStream:Capture architecture allows captures video to be processed and delivered in real time to a processor or graphics card.
This VisionLC-SDI supports on board colour space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications. The VisionLC-SDI natively supports 32, 24, 16 and 12 bit YUV and RGB formats.
Features:
- Single SDI capture channel
- SD/ HD/ 3G at 60 fps
- 800 MB/s DMA bandwidth
- High performance up and down scaling
- Colour space conversion to any output formats
- PCI Express Gen 1x4 low profile
- Datapath unified Windows® and Linux® driver support
Video streaming
Built upon the Microsoft AV stream model, VisionLC-HD inputs can be accessed and enumerated in any DirectShow or Media Foundation supported application. A video for Linux (V4L) driver package is also available to download.
Tested applications includes:
- Microsoft Media Encoder
- VLC
- Telestream WireCast
- vMix
- Opencast Matterhorn
- VidBlaster
- OBS Project
- Adobe Flash Media Encoder
- Dataton Watchout
