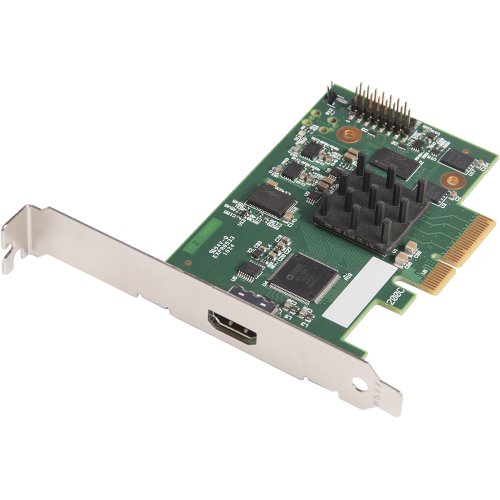

Datapath VisionLC-HD PCIe HDMI Capture Card
Model: VisionLC-HD
About: Datapath VisionLC-HD PCIe HDMI Capture Card
Discreet video capture is now the mainstay of many small form factor appliances being uses in markets such as lecture capture, distance learning and medical environments. Datapath's VisionLC-HD provides HDMI capture for use within such applications.
Datapath's LiveStream:Capture architecture allows captured video to be processed and delivered in real time to a processor or graphics card. The VisionLC-HD supports on board colour space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications. The VisionLC-HD natively supports 32, 24, 16 and 12 bit YUV and RGB formats.
Features:
- Single HDMI capture channel
- Up to 297 Mpixel/s clock capturing up to 4096x2160p @ 30fps
- 800 MB/s DMA bandwidth
- High performance up and down scaling
- Colour space conversion to support output formats
- PCI Express Gen 1 x 4 low profile
- Media Foundation supported
- Datapath unified Windows® and Linux® driver support
Video streaming
Built upon the Microsoft AV stream model, VisionLC-HD inputs can be accessed and enumerated in any DirectShow or Media Foundation supported application. A video for Linux (V4L) driver package is also available to download.
Tested applications includes:
- Microsoft Media Encoder
- VLC
- Telestream WireCast
- vMix
- Opencast Matterhorn
- VidBlaster
- OBS Project
- Adobe Flash Media Encoder
- Dataton Watchout
