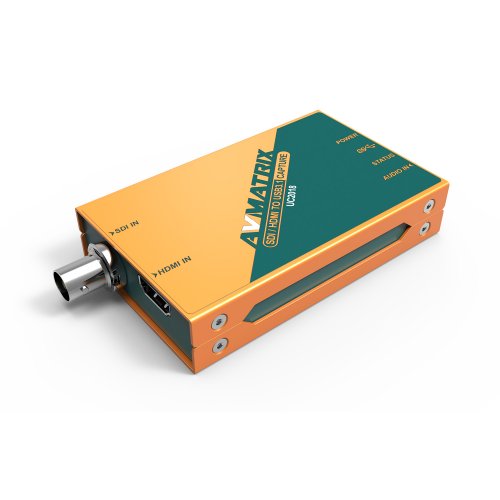

AVMatrix UC2018 - HDMI/SDI to USB 3.1 TYPE-C Video Capture

About: AVMatrix UC2018 - HDMI/SDI to USB 3.1 TYPE-C Video Capture

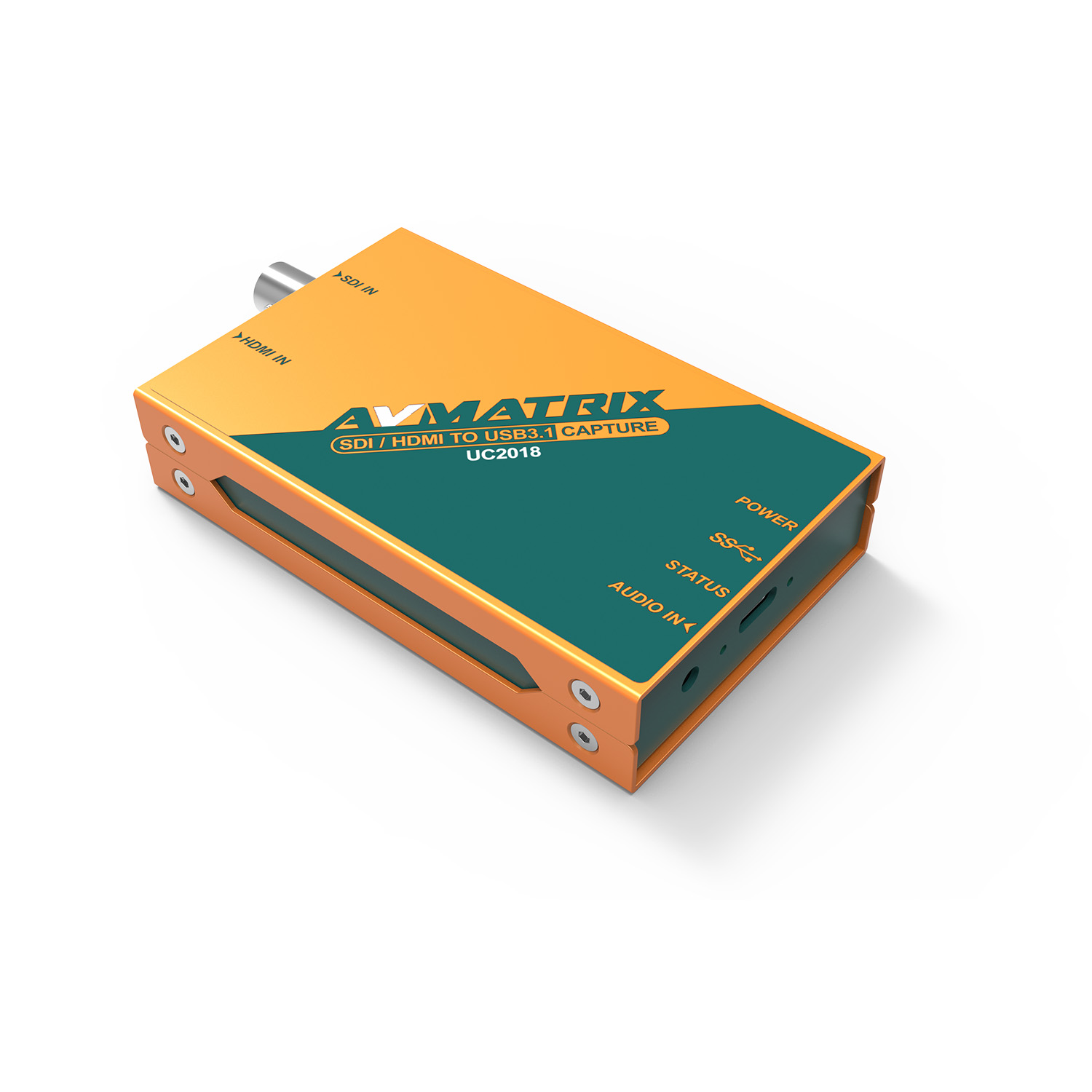

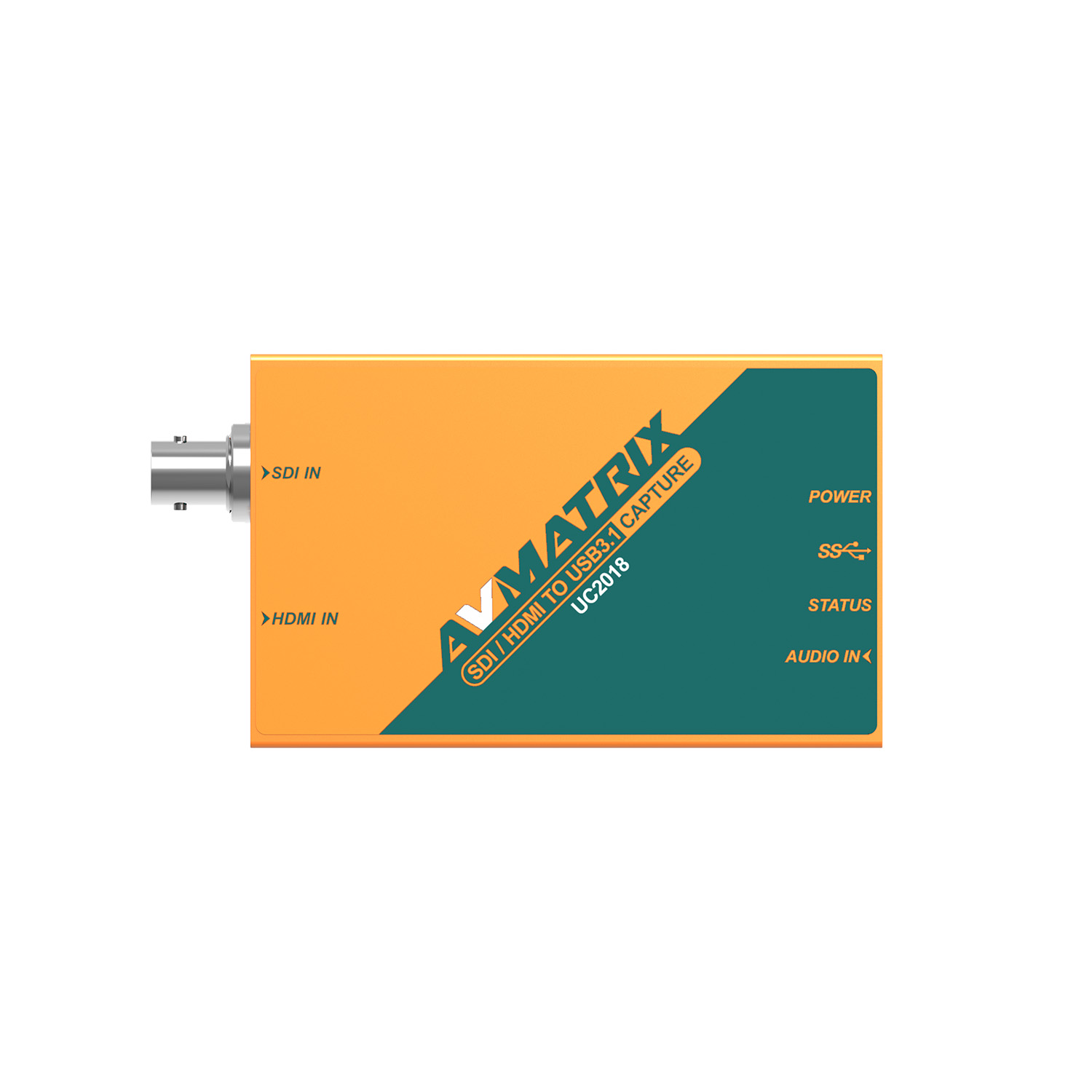

The AVMatrix UC2018 is a video capture and conversion system which allows for the transformation of an HDMI or  3G-SDI video input across to a USB 3.1 compatible video signal. It's useful if you are using an HDMI or SDI camera to capture video streams and need to have them available for USB transport into a piece of software - such as a capture program, or a live stream.

Features

• Plug-and-Play, driver free & power free
• HDMI or SDI in, and USB 3.1 Gen1(USB3.0) out
• Automatic input signal detection, up to 1080p60
• Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
• Comply with UVC video capture and YUY2 video output
• Comply with UAC audio out from SDI/HDMI embedded audio or line in
• Compatible with Windows, Linux, macOS
• Compatible with OBS, ZOOM, Teams & Twitch, etc.

Specifications

• Connection

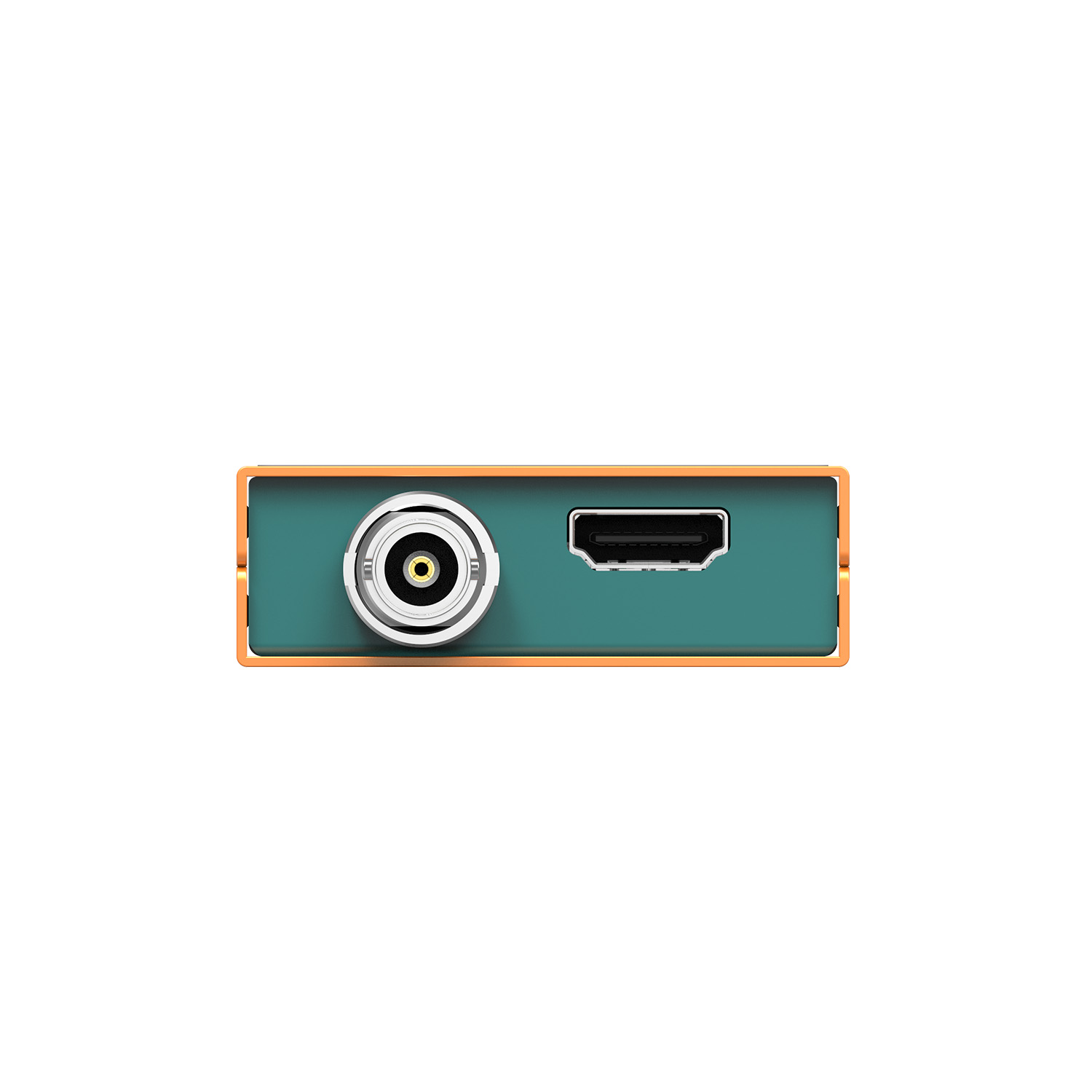

  • Input Interface: 1x HDMI 1.4a, 1x SD/HD/3G-SDI, 1x 3.5mm stereo audio (line in)

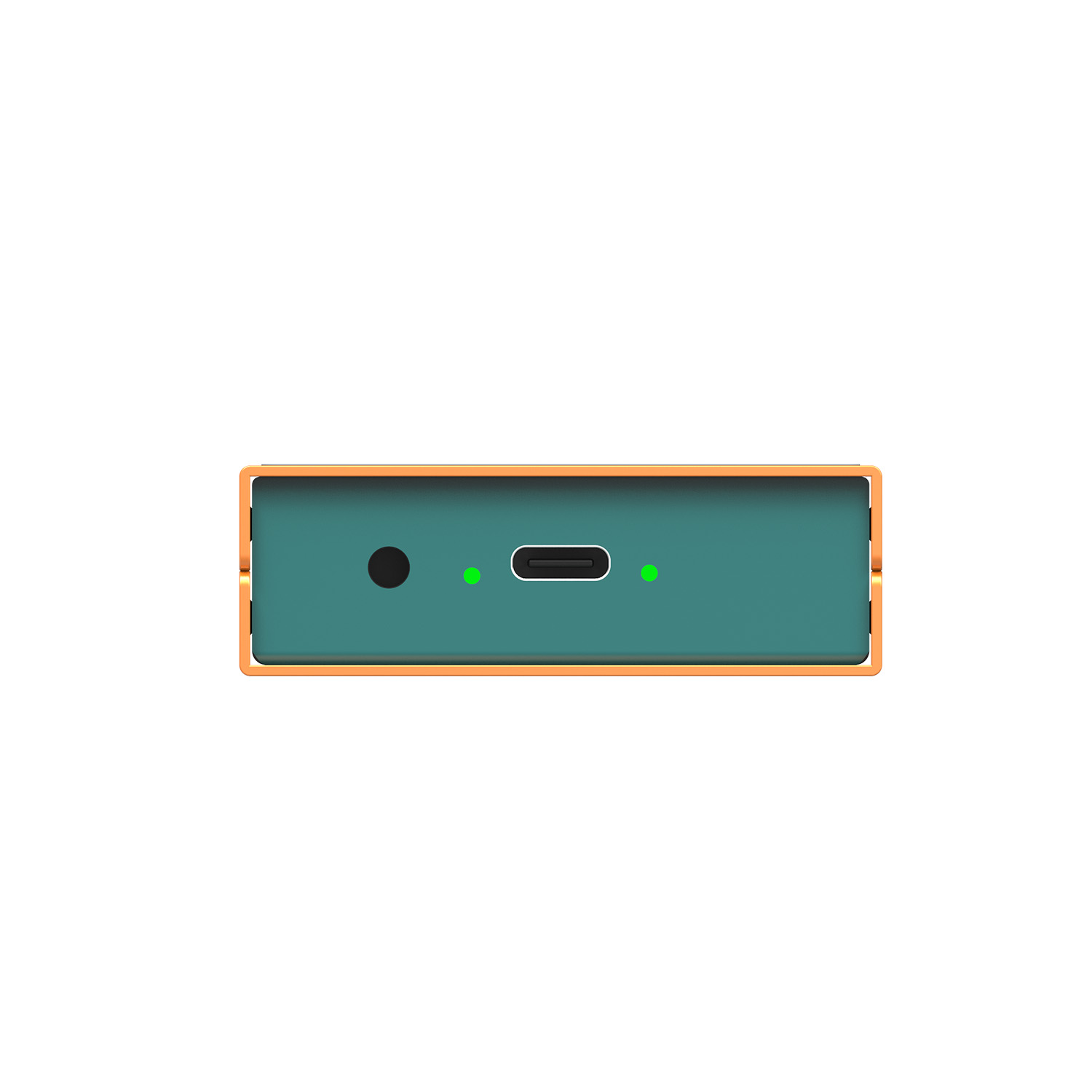

  • Output Interface: 1x USB-C 3.1 GEN1(up to 200MB/s)
• Format
  • SDI Input Format: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080PsF 30/29.97/25/24/23.98, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50/525i 59.94
  • HDMI Input: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50/576i50, 480i 59.94/60, 480p 59.94/60
  • USB Output Format: 1920x1200, 19201080, 1680x1050 1600x1200, 1440x900, 1368x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 1024x576, 960x540, 856x480, 768x576, 720x576, 720x840, 640x480, 640x360
  • Video & Audio Capture: UVC (USB Video Class) & UAC (USB Audio Class) Standard
  • Audio Codec: 2-Channel - 16 bit PCM, 48kHz, 1536kbps
  • Video Color Space
• Others
  • Supported OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 & above)
  • Software Compatibility: OBS (Windows), Skype, ZOOM, Teams Google Meet, Youtube Live, QuickTime Player, FaceTime, Wirecast, CAMTASIA, Ecamm.Live, Twitch.TV, etc.
  • Compatible SDK: DirectShow (Windows), DirectSound (Windows)
  • Dimensions: 3.62 x 2.28 x 0.74" (92 x 58 x 19mm)
  • Weight:0.66Lbs (300g)
  • Power Consumption: 3.5W
  • Operating Temperature: -4° to 140°F (-20° to 60°C)
  • Storage Temperature: -22° to 158°F (-30° to 70°C)
  • Relative Humidity: 20 to 90% RH, non-condensing

Item Includes

• 1x USB 3.0 A-C Cable
