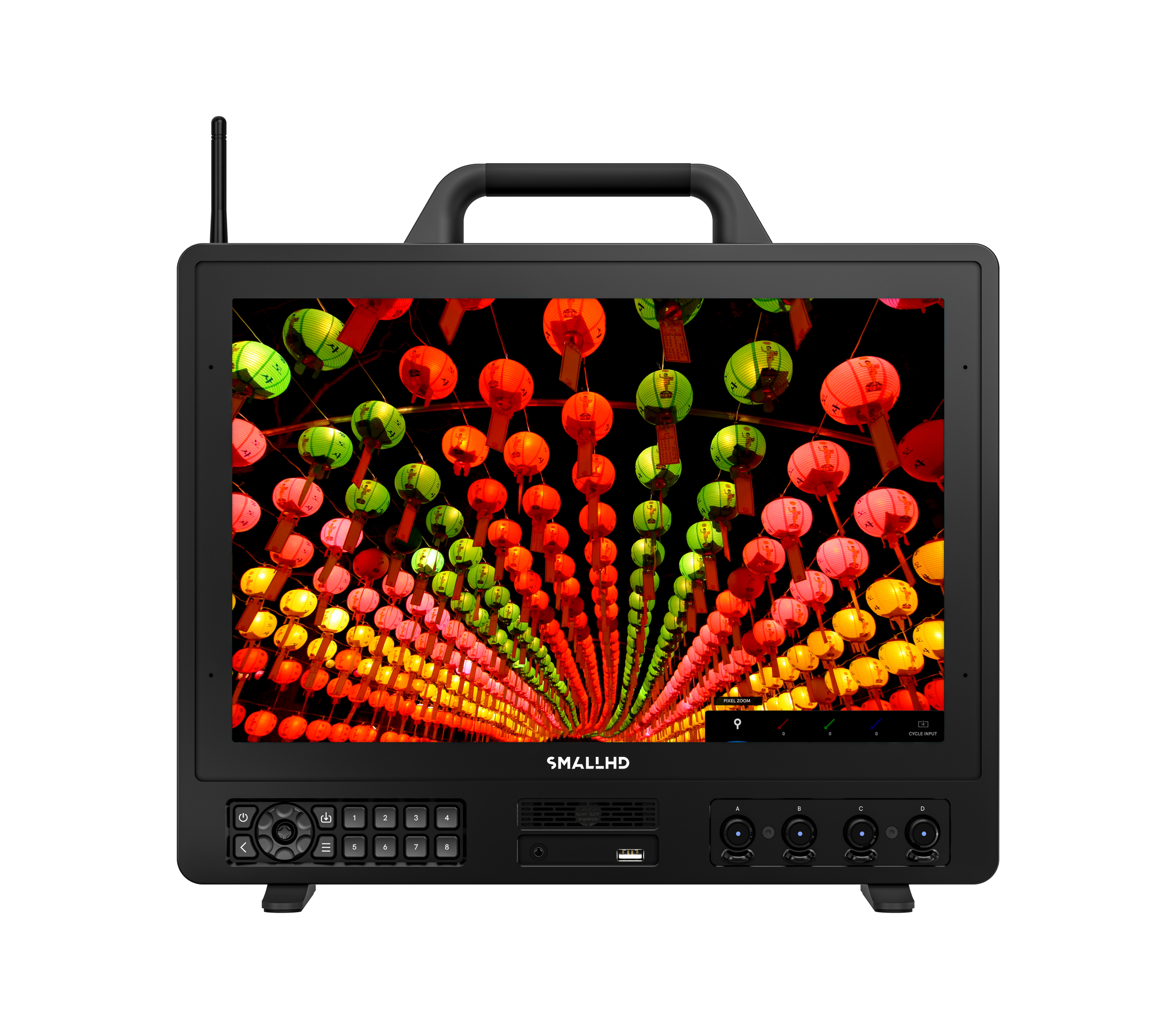

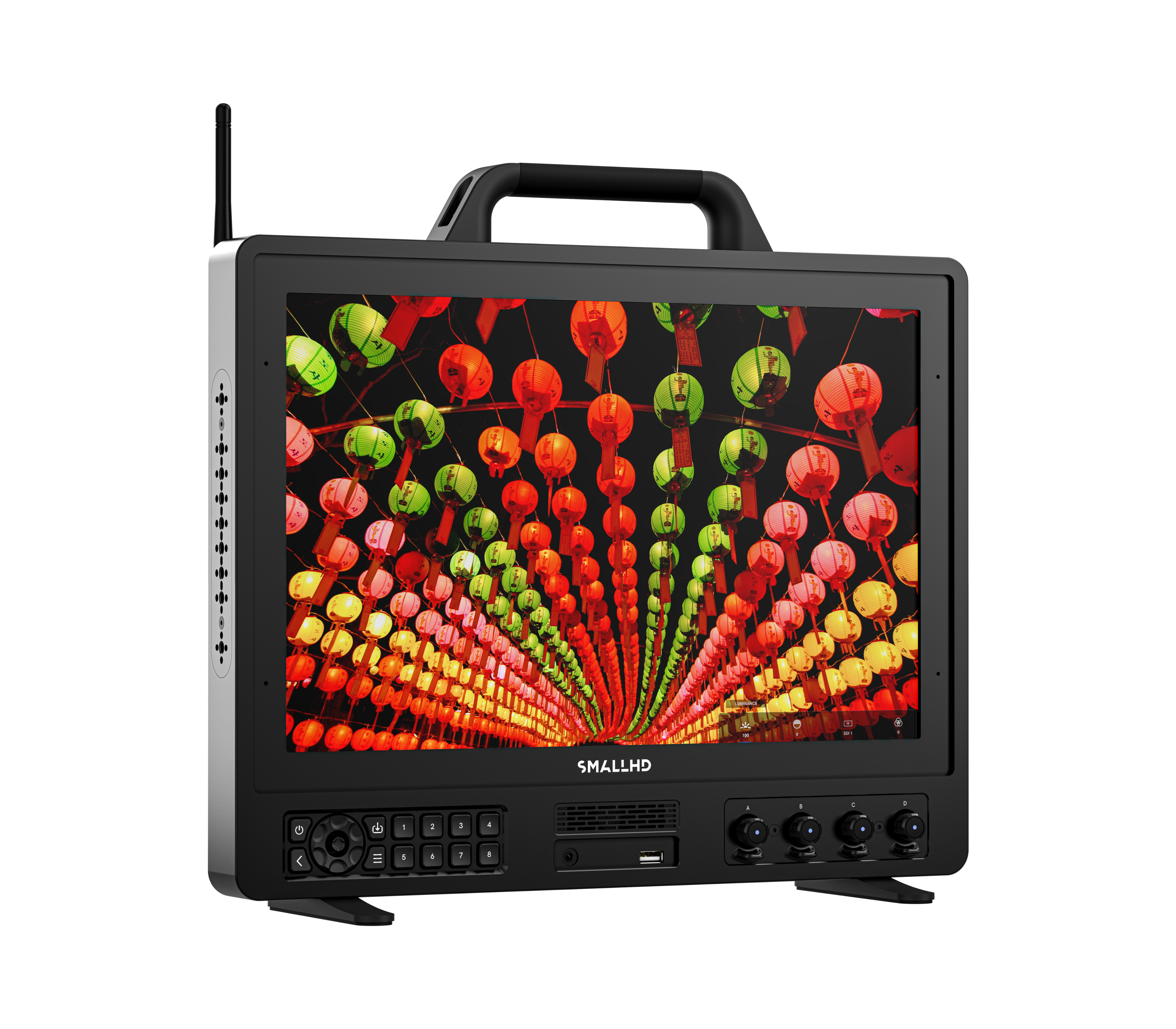

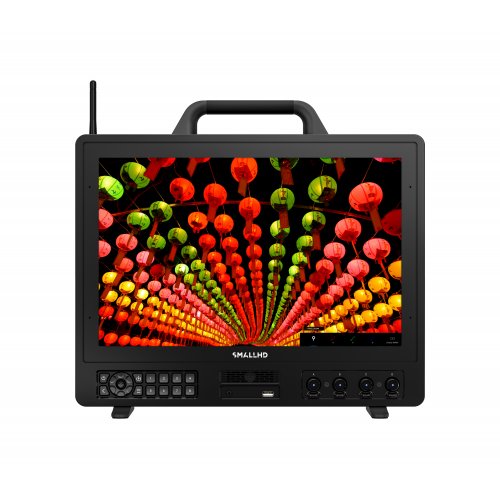

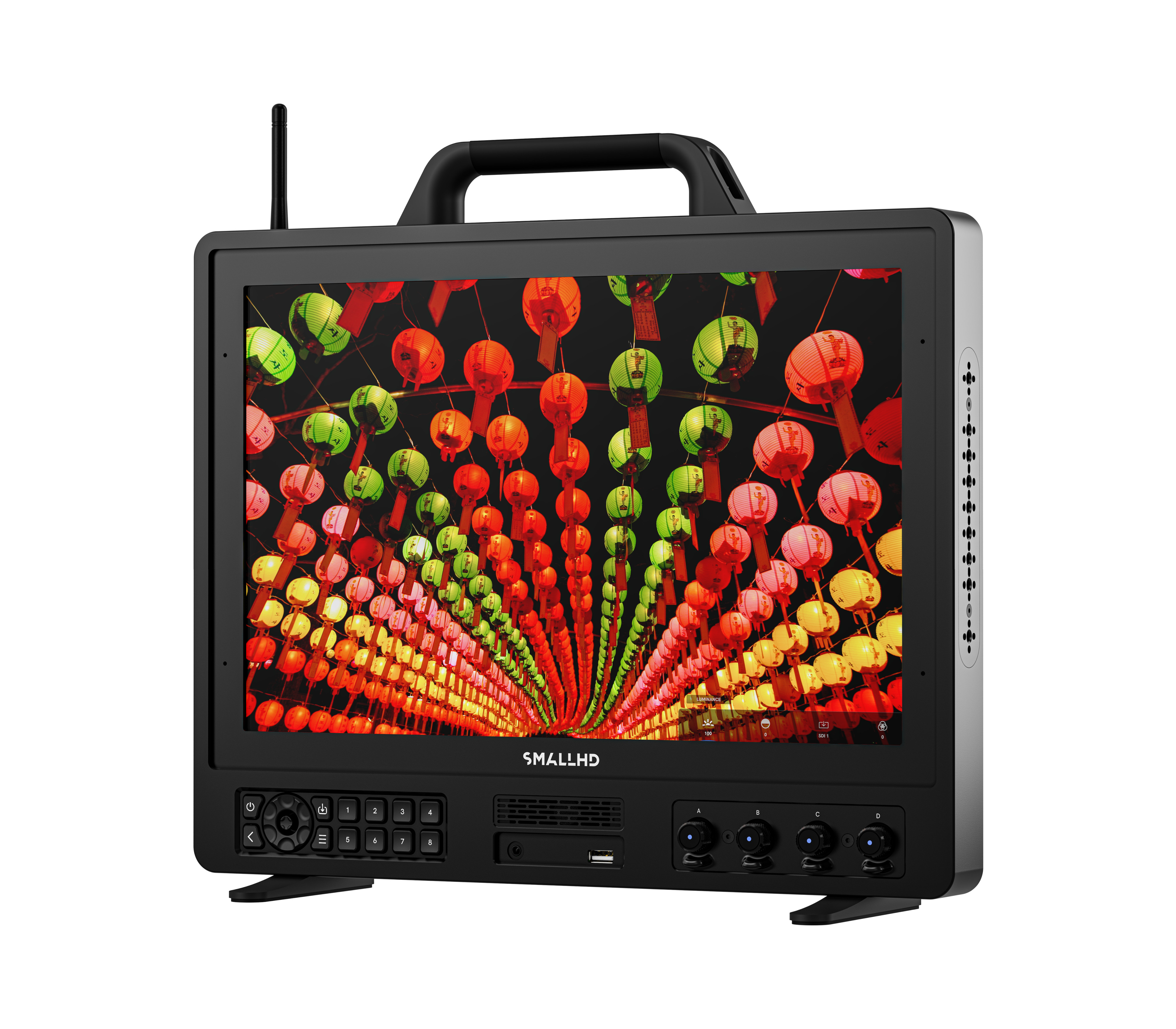

SmallHD OLED 16-inch Production Monitor

About: SmallHD OLED 16-inch Production Monitor

Lightweight, rugged, and perfectly sized for streamlined DIT and DP workflows, OLED 16 gives you infinite contrast, true blacks, and precise color reproduction with zero haloing. It comes equipped with professional-grade I/O, versatile mounting points, integrated WiFi, and four new multi-function dials to customize your PageOS workflow.

• 1,000,000:1 Contrast Ratio
• 3840 x 2160 Resolution
• Up to 400nits Max Brightness
• DCI-P3 Color Gamut
• True 10-bit Bit Depth
• 4x Dials Multi-Function Tactile Control

PageOS - The Ultimate Monitoring Toolkit

OLED 16 comes loaded with PageOS, an award-winning, one-of-a-kind, page-based, software toolkit with a streamlined interface, intuitive customization options for color, exposure, LUTs, and more.

• A More Intuitive Color Pipe: Easily configure each of the five independent video inputs on 4K production monitors with a new output display configuration.
• Downstream LUTs: Instantly send graded looks to downstream devices without extra boxes or additional gear, ensuring a consistent look across every display on set.
• Fleet Control: Control all on-set SmallHD monitors from one app via Ethernet or WiFi. Match settings, manage signals and feeds, adjust LUTs, Color Pipes, and more.
• Updated EL Zone: Developed by Ed Lachman, ASC, this intuitive stop-based exposure tool works like a virtual spot meter, replacing IRE exposure values with stops.
• Pomfort Livegrade Integration: Pomfort Livegrade is now an integrated plug-in, enabling colorists and DITs to transform their reference monitor into a dual-purpose color grading tool.
• Integrated Calibration: SmallHD monitors integrate directly with Calman™ to deliver precise color accuracy across production and post workflows.

OLED Technology

OLED 16 delivers up to 400nits of brightness, a 1,000,000:1 contrast ratio with an absolute black point, 10-bit color depth, and 99% DCI-P3 / 97% Rec 2020 color gamuts for exceptional color accuracy

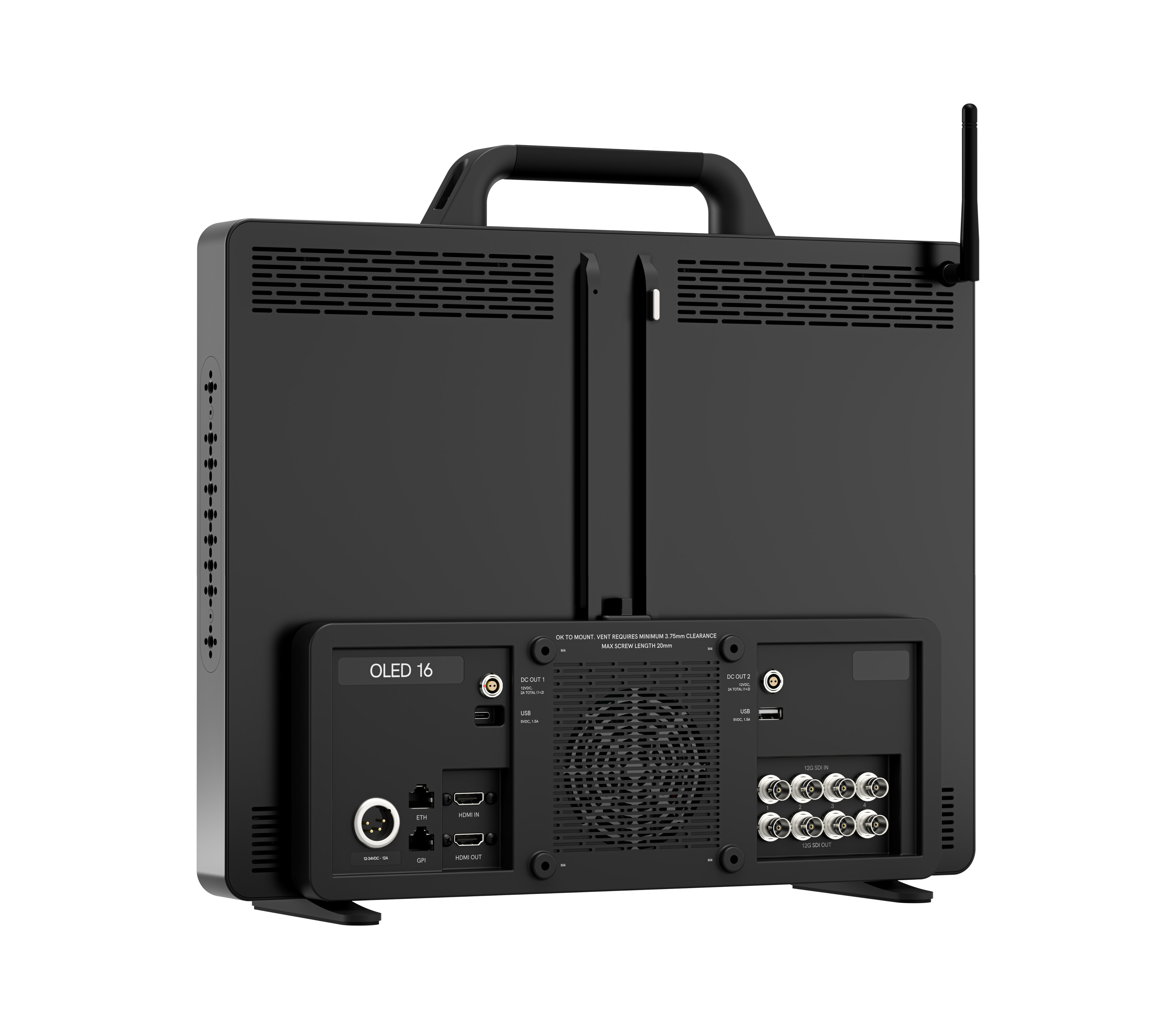

OLED 16 - Production-Ready Hardware

The OLED Series features a lightweight Unibody Smart Chassis with field-tested durability, professional-grade I/O options, customizable multi-function dials, and integrated mounting points for versatile accessory configurations.

Specifications

• Resolution: 3840 x 2160 (UHD) Resolution
• Color Space: 100% DCI-P3 / 80% Rec.2020
• Bit Depth: 10-bit (1.073 billion colors)
• Brightness: 400nits

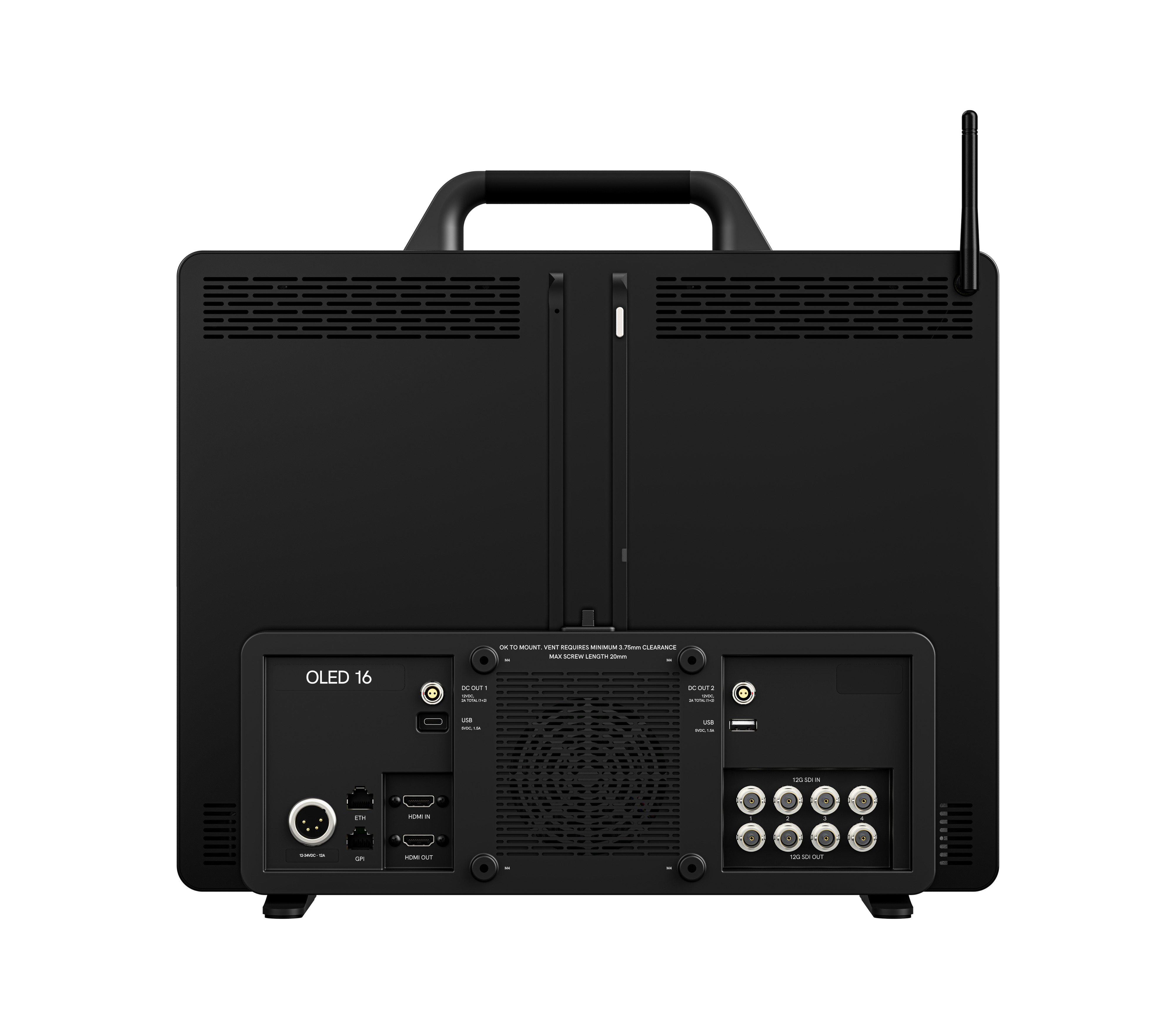

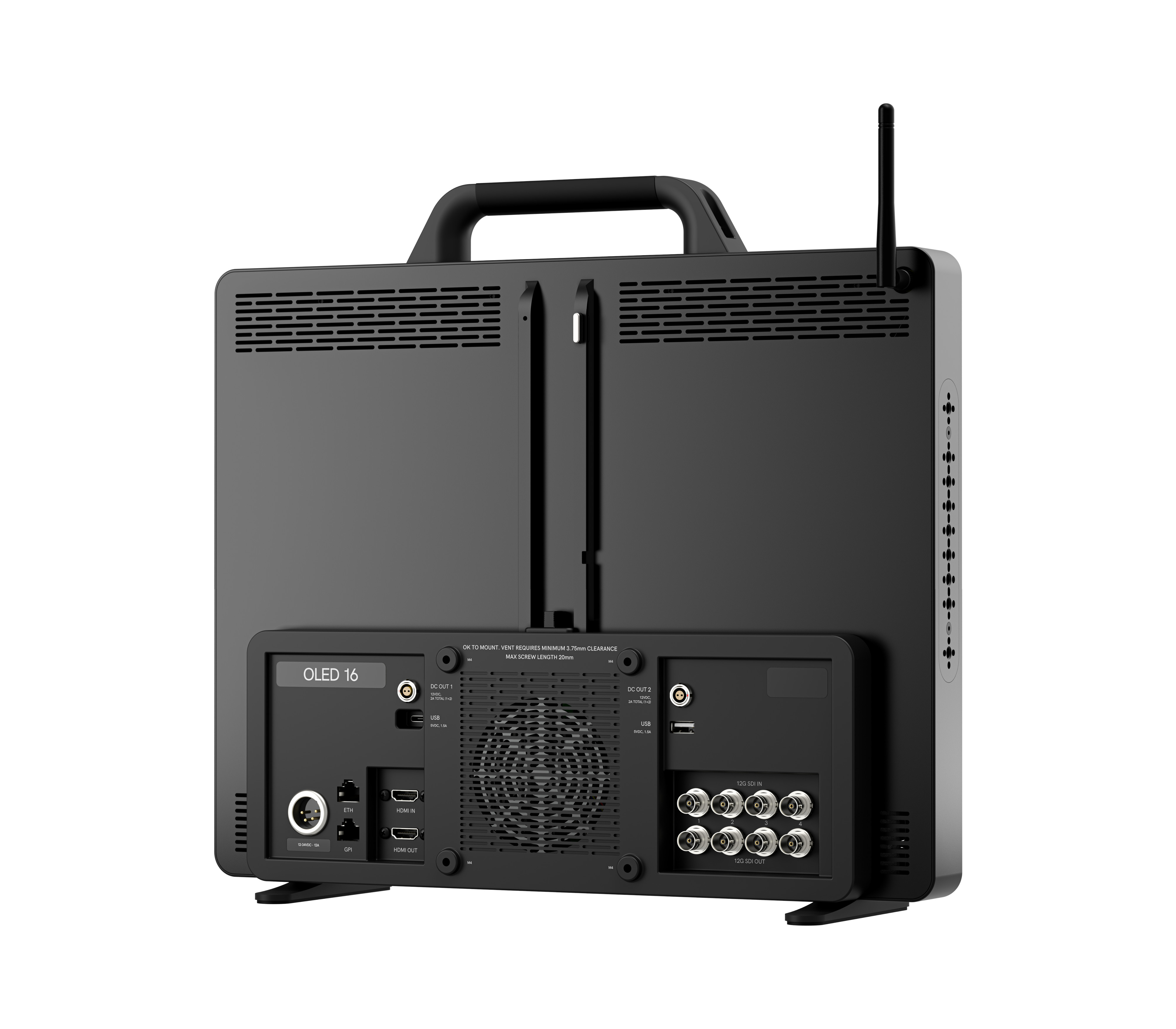

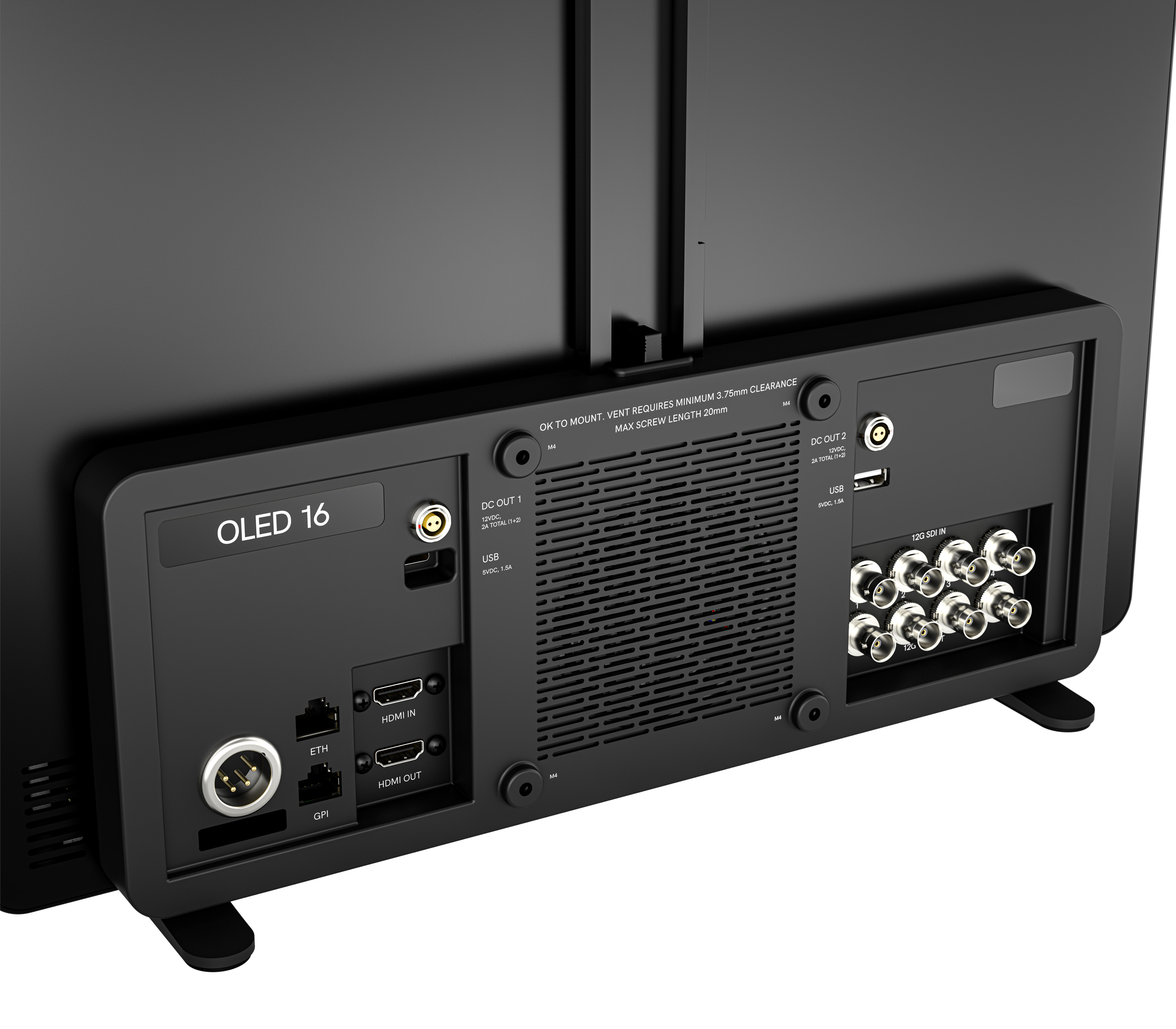

• Input/Output
  • 4x 12G-SDI In
  • 4x 12G-SDI Out
  • 1x HMDI 2.0
• Construction: Aluminum Unibody Chassis
• Power: 1x 4-Pin XLR

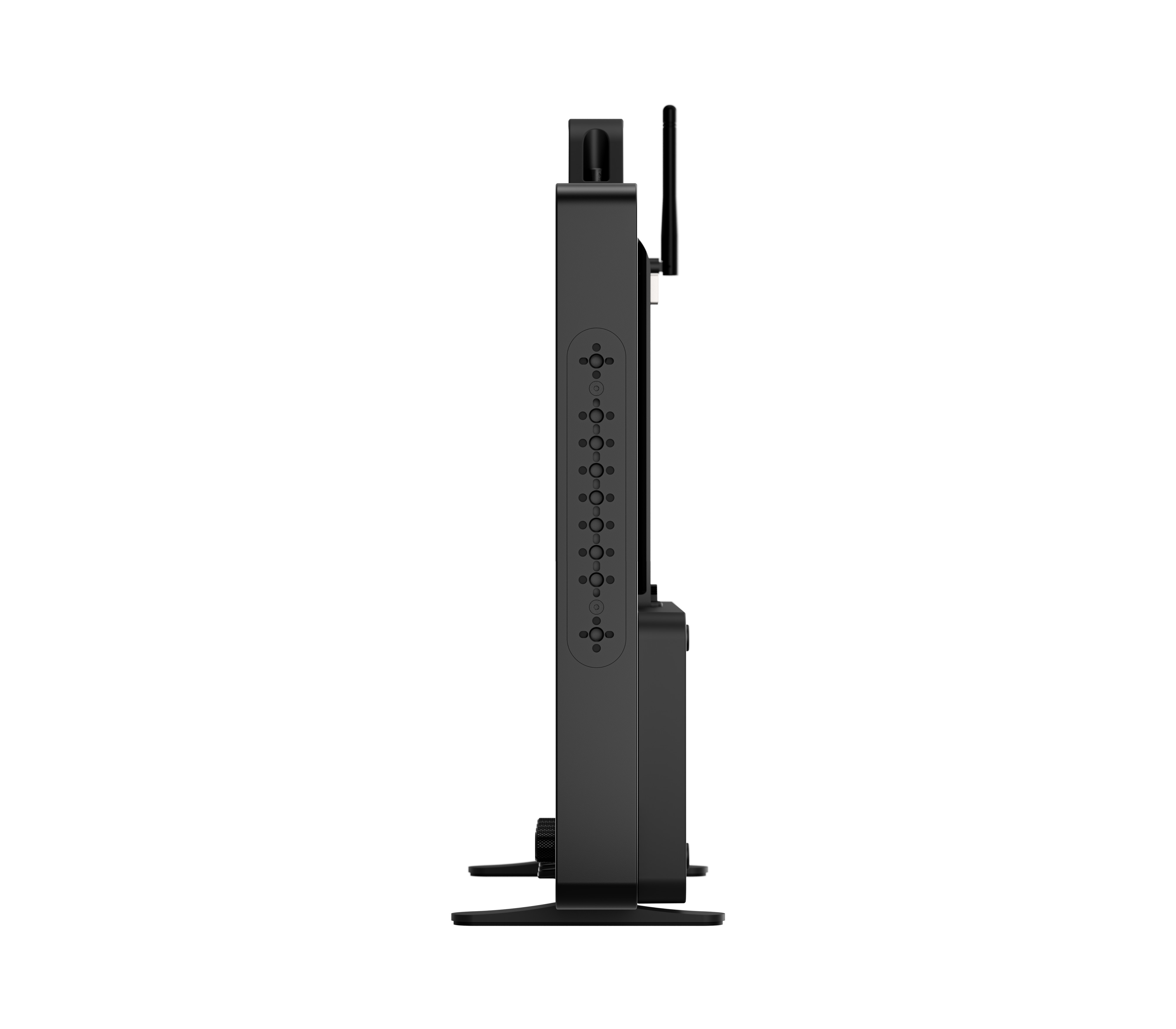

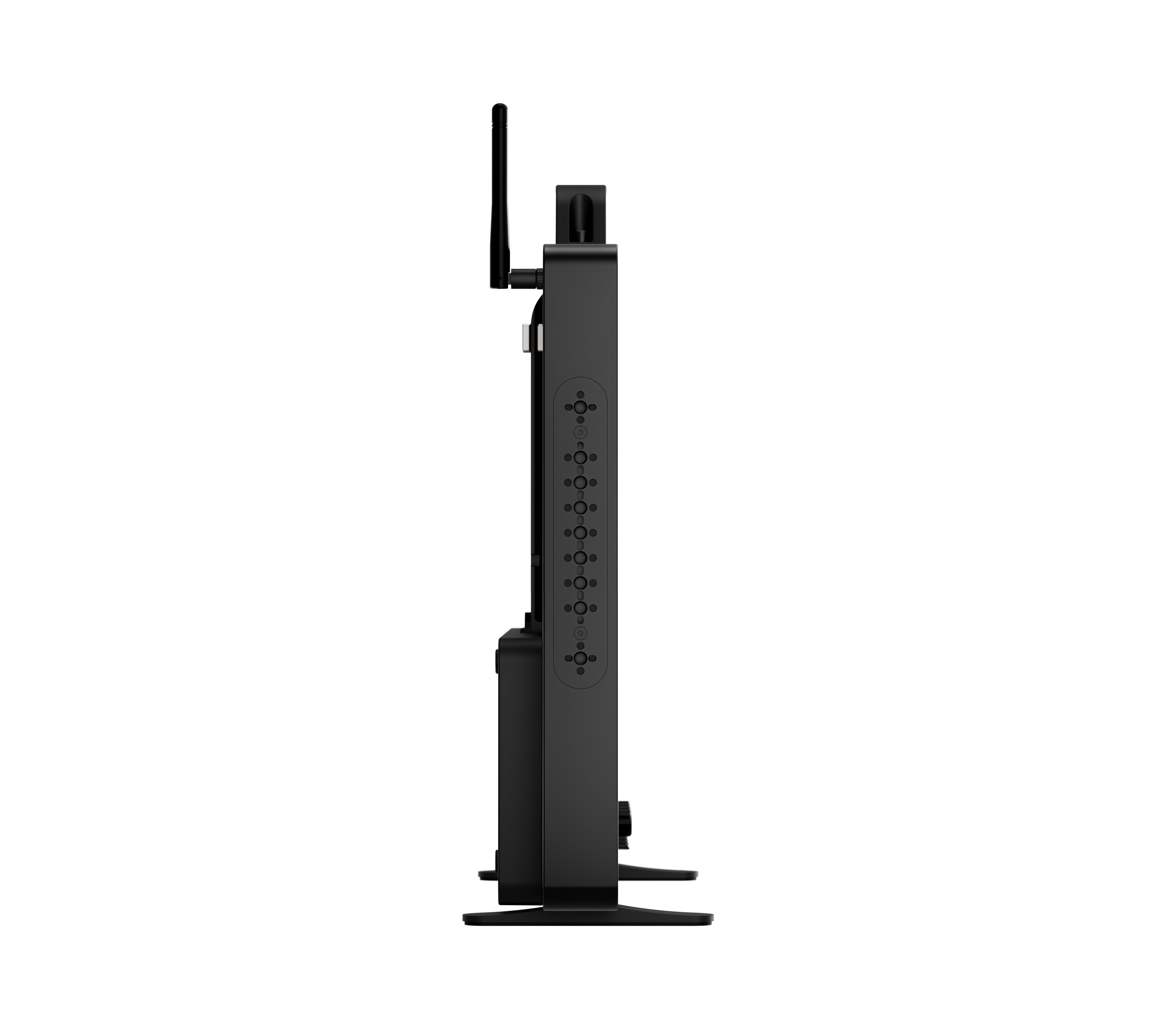

• Mounting
  • Smart Rail Connector
  • 100mm VESA-Compatible Mount
• Dimensions (WxHxD): 15.8 x 12.3 x 2.73 inch
  • w/ feet & handle: 15.8 x 14.2 x 4.7 inch
• Weight: 10.4 lbs (4.72kg)

What's in the Box

• 1x OLED 16
• 1x 24V Power Supply
• 1x Transport screen protector
• 1x Microfiber Cleaning Cloth
