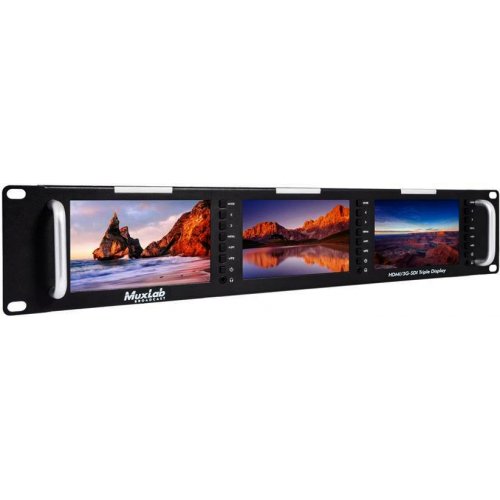

Muxlab HDMI / 3G-SDI Triple Display
Model: 500840
About: Muxlab HDMI / 3G-SDI Triple Display

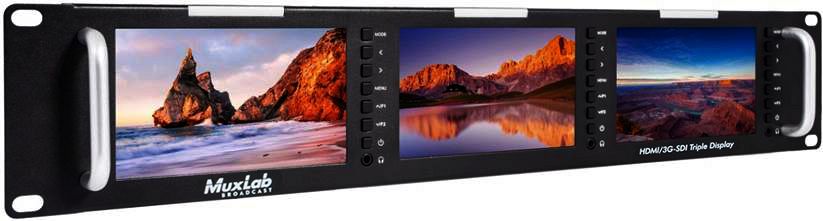

The HDMI/3G-SDI Triple Display supports three independent 5 inch TFT LCD displays mounted conveniently and securely on a 2RU 19” rack. These devices save a significant amount of space in multi-display Pro AV and Broadcast applications.
The unit supports input and loop-out of HDMI signals up to 1080p/60, SDI signals up to 3G-SDI, and CVBS signals with Audio. The unit supports a tri-color Tally light indicator per display, customizable buttons allowing customers to tailor them to their needs, and advanced functions such as Center Marker, Safe Frames, Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P, and Image Freeze.
- Triple 5-inch TFT LCD displays
- Supports HDMI (1080p), 3G-SDI and CVBS with Audio
- Fits 19-inch rackmount @ 2 RU
- Tri-color Tally light indicator per display
- Supports Center Marker, Safe Frames, Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P & Image Freeze
- Customizable buttons tailored to customer needs
- Supports firmware update via mini USB
Connectors
- Three (3) pairs of HDMI connectors (1 pair per monitor) for HDMI video-in and HDMI video-out.
- Three (3) pairs of SDI (BNC) connectors (1 pair per monitor) for SDI video-in and SDI video-out.
- Three (3) pairs of BNC connectors (1 pair per monitor) for CVBS-in and CVBS-out.
- Three (3) pairs of RCA connectors (1 pair per monitor) for Audio-in Left and Right channels.
- Three (3) 3.5mm jacks (1 per monitor) for Audio Headphone-out Left and Right channels.
- Three (3) mini USB connectors (1 per monitor) for firmware updates.
- One (1) DB15 connector for Tally light indicators.
- One (1) 2.1mm power connector.
- One (1) 4-Pin XLR connector for power connector (alternate power connector option).
