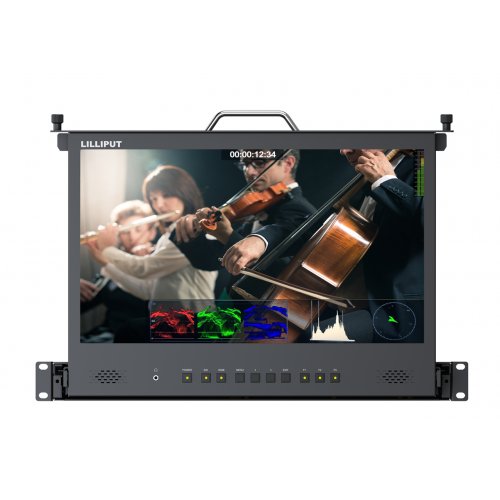

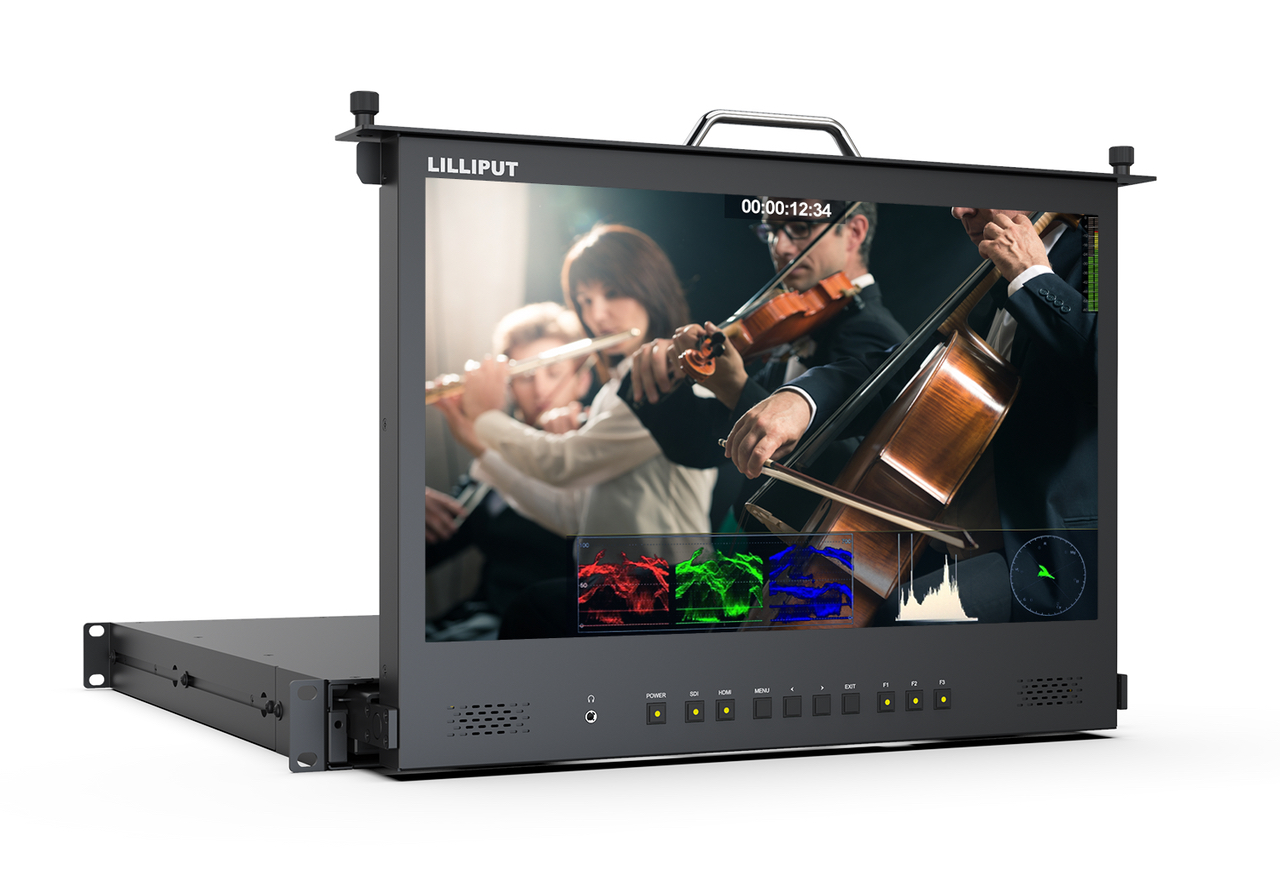

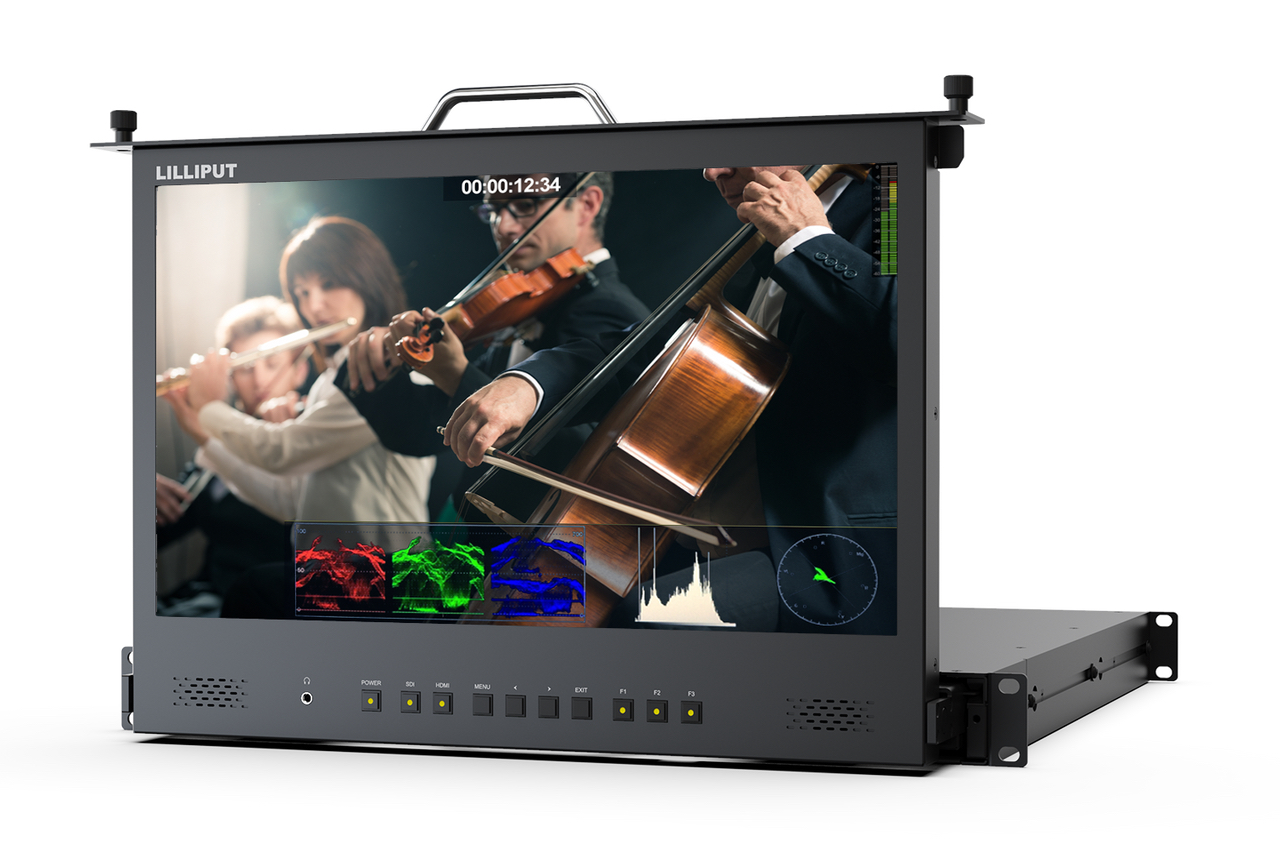

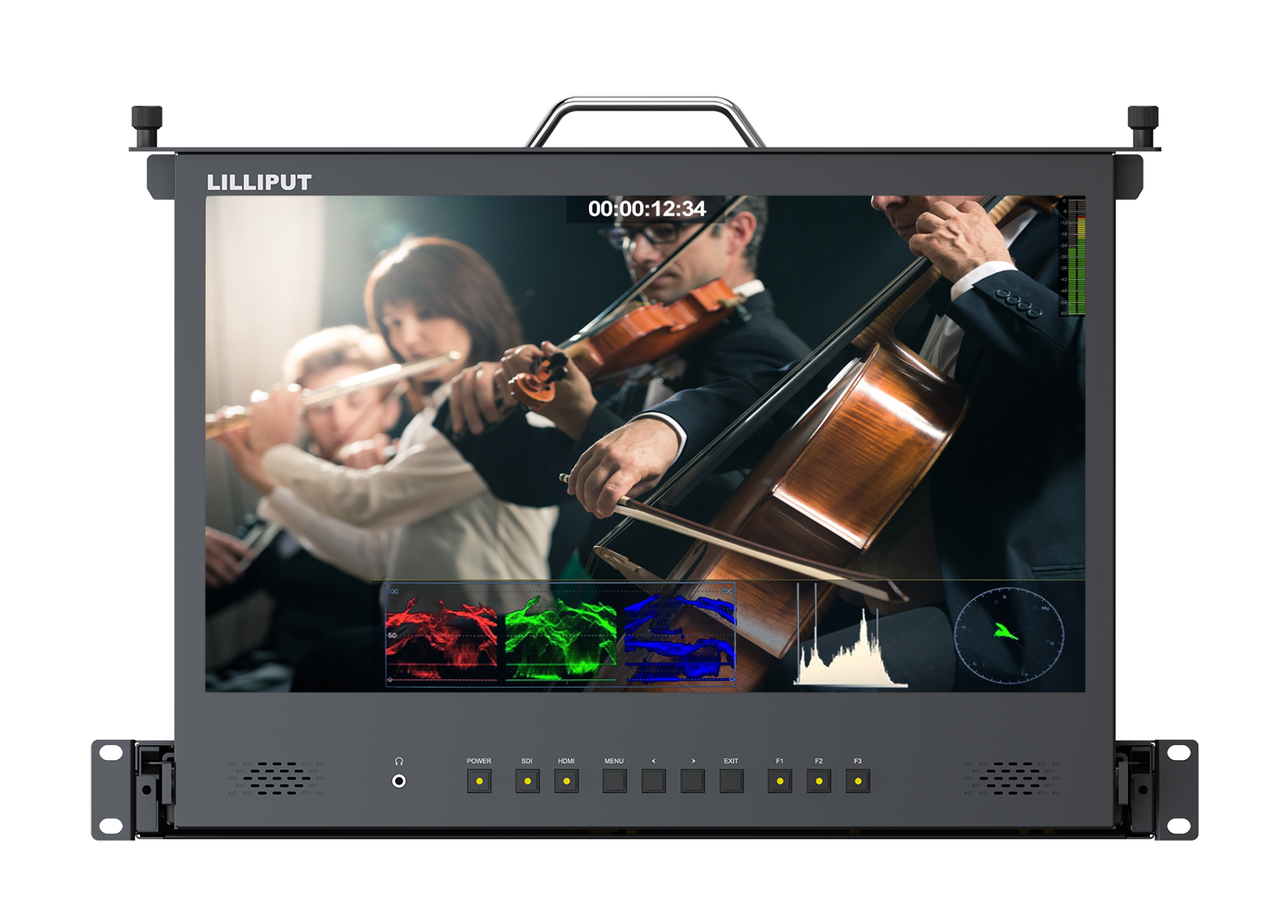

Lilliput RM-1731 17.3 inch 3G-SDI 1RU Pull-Out Rackmount Monitor
Model: RM-1731S
About: Lilliput RM-1731 17.3 inch 3G-SDI 1RU Pull-Out Rackmount Monitor
The RM-1731/S is a high quality rack / drawer mount monitor solution, and is ideal for streaming workflows, live events and installation into space-conscious rack systems. The 17.3 inch full HD IPS screen panel features HDR as well gives crisp pictures and sharp colour contrast, giving excellent picture quality for text and video alike.
An Upgrade from the original RM1730/S, this model features HDMI 2.0, HDR and 3D Luts. It also has the advantage of being able to accept a 4K 30Hz input signal.
Specifications
- Display
- Size - 17.3”
- Resolution - 1920×1080
- Brightness - 300cd/m²
- Aspect ratio - 16:9
- Contrast - 800:1
- Viewing Angle - 170°/170°(H/V)
- Video Input
- SDI - 1×3G
- HDMI - 1×HDMI 2.0
- LAN - 1
- Video Loop Output
- SDI - 1×3G
- HDMI - 1×HDMI 2.0
- Supported In / Out Formats
- SDI - 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
- HDMI - 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60
- Audio In/Out
- SDI - 12ch 48kHz 24-bit
- HDMI - 8ch 24-bit
- Ear Jack - 3.5mm – 2ch 48kHz 24-bit
- Built-in Speakers - 2
- Power
- Operating power - ≤14W(12V)
- DC In - DC 10-24V
- Environment
- Operating Temperature - 0℃~50℃
- Storage Temperature - -20℃~60℃
- Dimension (LxWxD) - 19 x 1.73 x 19.98 inch (482.5 × 44 × 507.5mm)
- Weight - 19.62 lbs (8.9kg)
UPC: 6950821602584
Reviews: Lilliput RM-1731 17.3 inch 3G-SDI 1RU Pull-Out Rackmount Monitor
Warranty: Lilliput RM-1731 17.3 inch 3G-SDI 1RU Pull-Out Rackmount Monitor
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Lilliput do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
