Lilliput H7 7in 4K Ultra Brightness On-Camera Monitor

About: Lilliput H7 7in 4K Ultra Brightness On-Camera Monitor

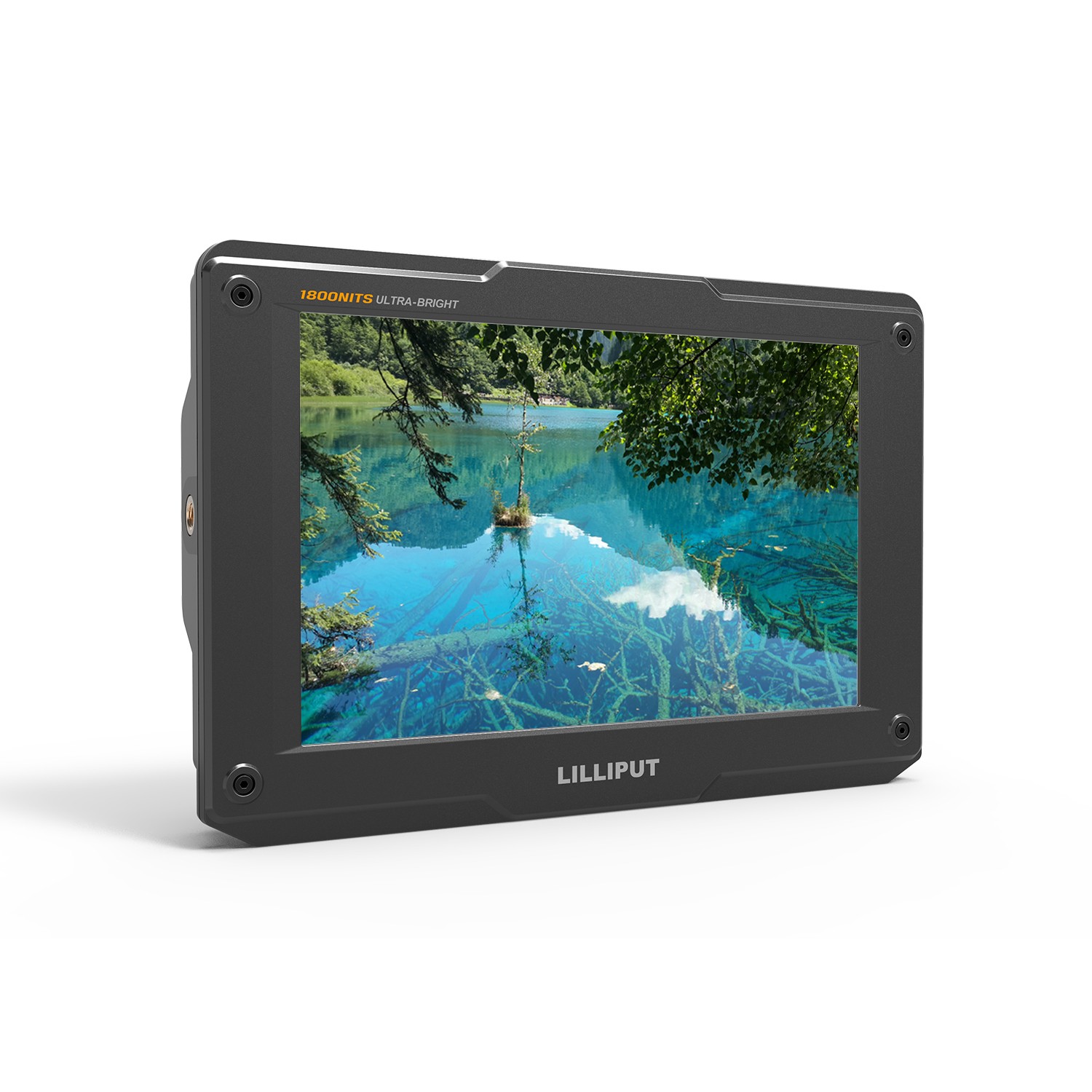

The Lilliput H7 is designed specifically for use outdoors or in high brightness environments. Boasting 4K HDMI 1.4 input and pass through options, and featuring an 1800 nit (cdm²) panel, the Lilliput H7 is designed for situations when a normal monitor screen just won't cut it.

The 4K HDMI 1.4 compatible input supports up to 4096 x 2160p @ 24p and 3840 x 2160p, and can loop out through to another HDMi input monitor / device.

HDR is a technology that improves the range of color and contrast in a digital image. When activated, the monitor will reproduce a much greater dynamic range of luminosity, allowing for lighter and darker details to be displayed more easily. The Lilliput H7 suupports ST2084 - 300, ST2084 - 1000, ST2084 - 10000, and HLG (Hybrid Log Gamma)

3D LUT (Look Up Table) is a system for ensuring accurate colour representation across all connected devices in a work flow. The Lilliput H7 has 3D LUT capabilities, loaded into the device using a USB port on the ower edge of the monitor. The LUT specification is a 17 x 17 x 17 BGR .cube file.

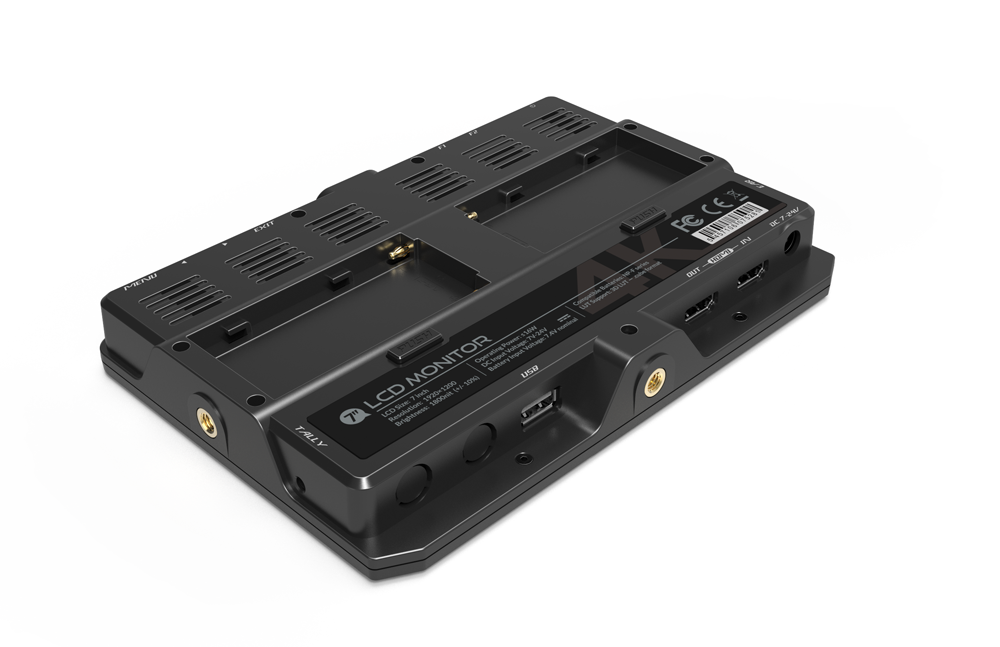

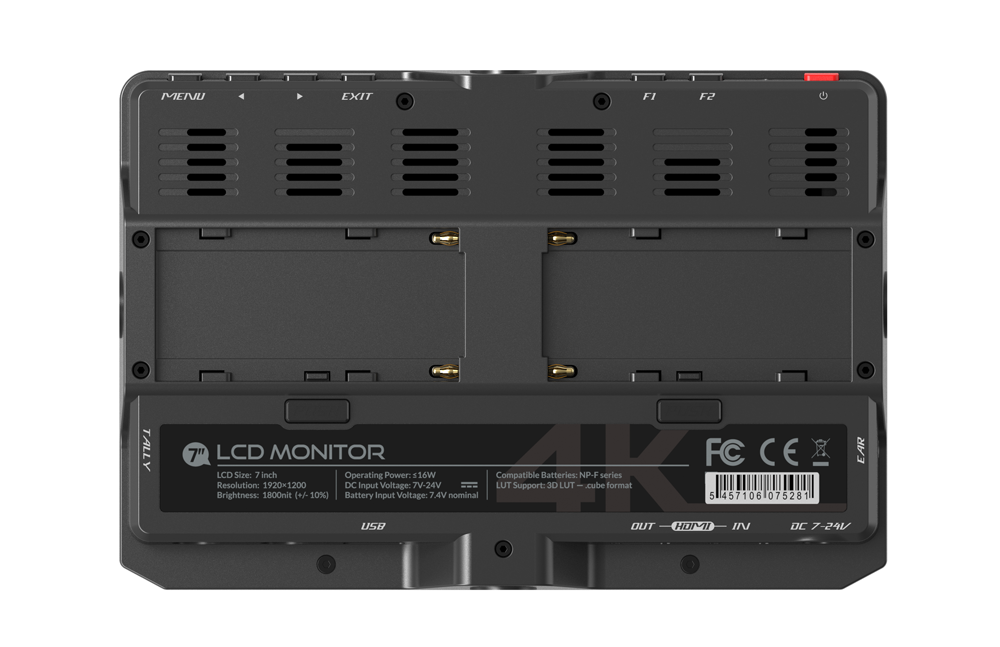

Ultra high brightness displays are power-hungry beasts, so the need for as much power to be available is paramount. The Lilliput H7 has the capability to use two SONY NP-F970 (or compatible) batteries to allow for the maximum operating time.

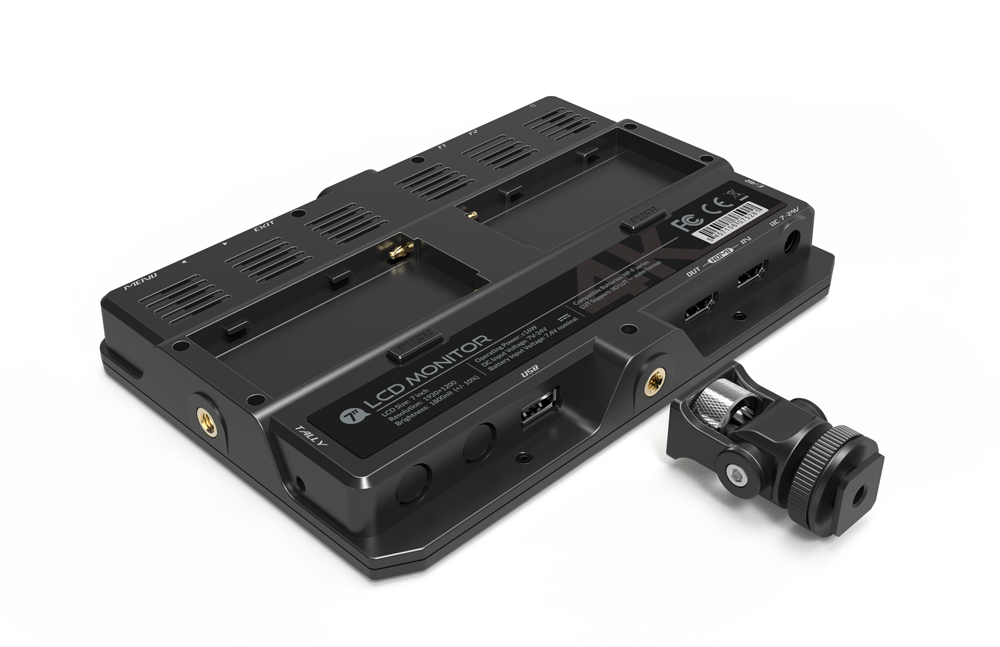

With 1/4" thread at the bottom of the device, the Lilliput H7 is capable of being mounted on any device that has a Hot Shoe mount attachment point. Included in the box is a mount which allows for 360° rotation on the horizontal axis and 180° tilt on the vertical axis.

Features:

• 4K (3840*2160) Ultra-HD native resolution
• Dual Battery Plates
• Easy-to-use Hot Shoe Mounting
• HDR, 3D-LUT & Color space
• Peaking Focus & False Color
• High contrast: 1200:1
• 160° viewing angle
• HDMI Interface
• Wide voltage: DC7-24V
