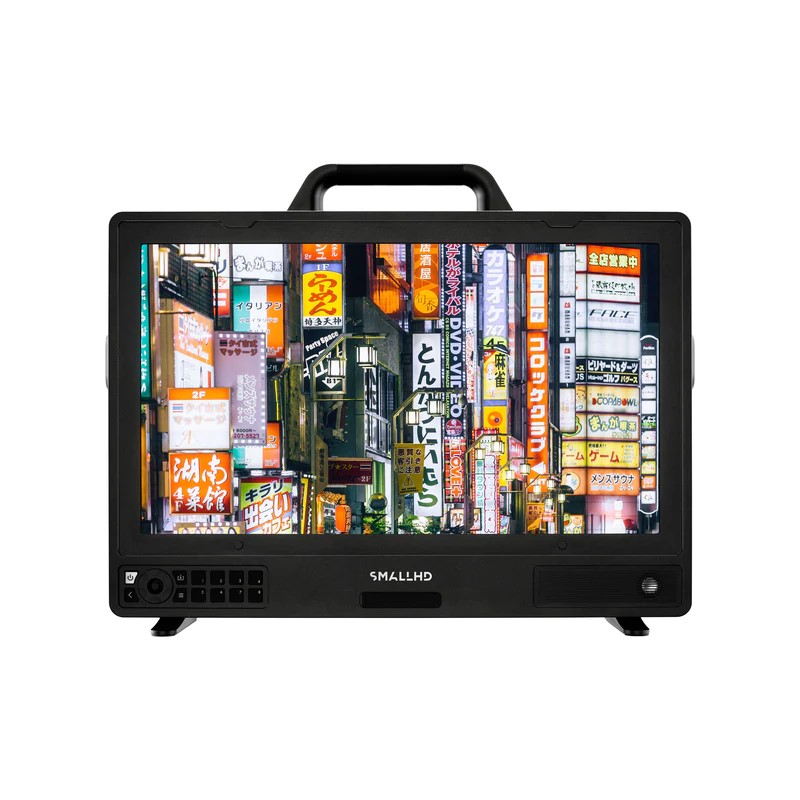

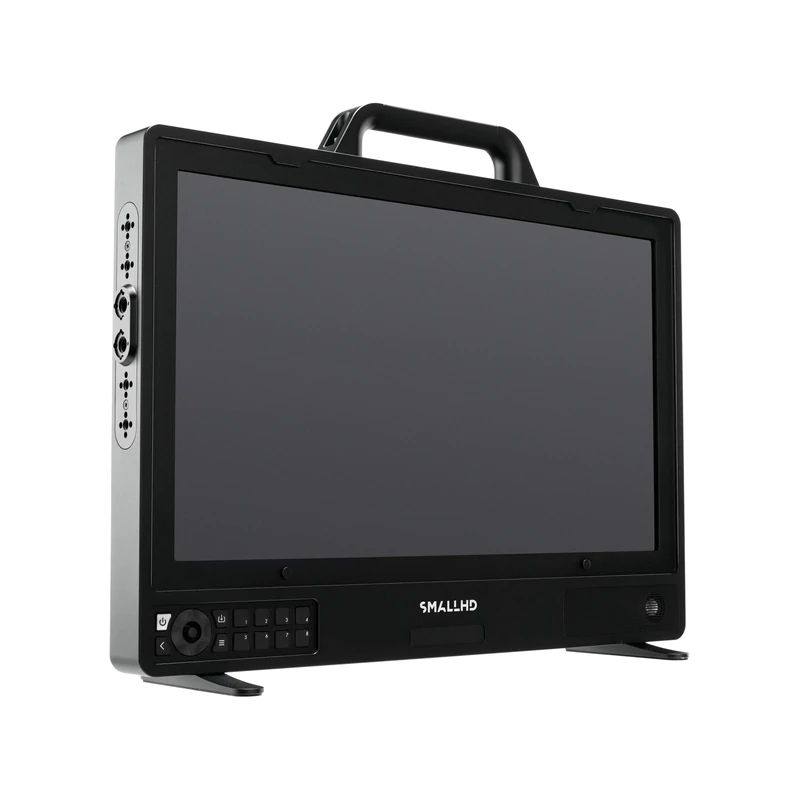

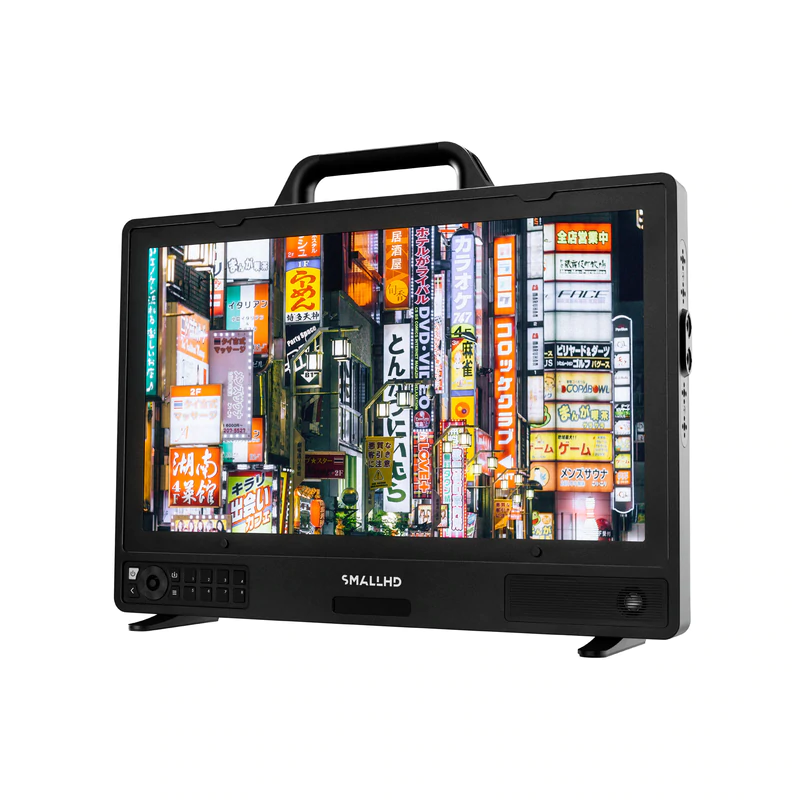

SmallHD Cine 18" 4K High-Bright Monitor
Model: 16-1801
About: SmallHD Cine 18" 4K High-Bright Monitor
The SmallHD Cine 18 offers a perfect blend of screen size, brightness, color-accuracy, and portability, making it the most flexible High-Bright 4K Monitor for any production scenario. It’s big enough for Video Village, bright enough for daylight viewing, and its ultra-lightweight aluminum unibody construction is the result of years of real-world, on-set testing. Features include 1100nits brightness, exceptional image quality, 1000:1 contrast ratio, and 4x 12G-SDI Inputs/Outputs for workflows up to 4K resolution. Ideal for Video Village, ACs, DPs, DITs, or as a director’s monitor.
Features:
- Display: 18", 3840 x 2160, 1100nits
- Backlight Type: Edgelit LCD
- SDI: 4x 12G-SDI in, 4x 12G-SDI out
- HDMI: 1x HDMI 2.0 in, 1x HDMI 2.0 out
- Power Input: 1x 4-pin XLR
Display
- Diagonal Size: 18.4
- Resolution: 3840x2160
- Brightness: 1100nits
- Contrast: 1300:1
- Gamut: 100% REC.709
- Color Depth: 10-bit (8+2)
- Backlight Type: Edgelit
- Display Size: 18"
- Panel Resolution: 3840 x 2160
- Color Bit Depth: 10-bit (8+2)
EVF
- Weight: 11.15lbs/5.06kg
Input Signal
- 12G-SDI Input Types: 4x 12G-SDI
- HDMI Input Types: 1x HDMI 2.0 (4K60)
Output Signal
- 12G-SDI Output Types: 4x 12G-SDI
- HDMI Output Types: Coming Soon
- Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack(coming soon)

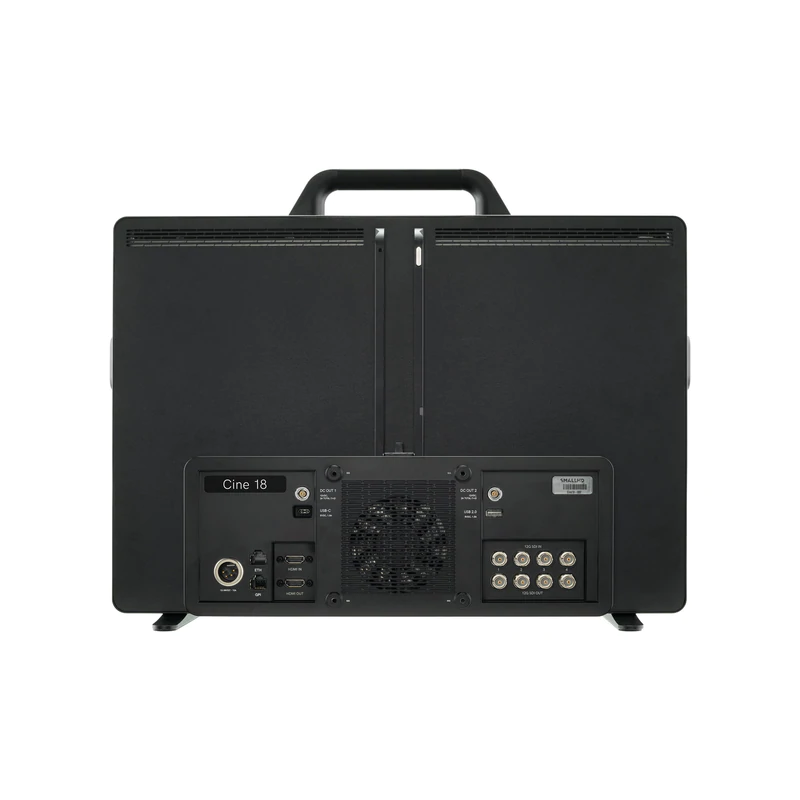

Data I/O
- Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI
Power
- Input: 1x XLR 4-pin 12 - 34VDC IN (210W max, 12V-34V, 18A max)
- Output: 2x 2pin (12V / 2A combined) 1x USB (2.4A) (Front) 1x USB (1.5A) (Front) 1x USB-C (5V / 1.5A)
- Battery Plate Included: No
- Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
UPC: 811786033201
Reviews: SmallHD Cine 18" 4K High-Bright Monitor
Warranty: SmallHD Cine 18" 4K High-Bright Monitor
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and SmallHD do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
