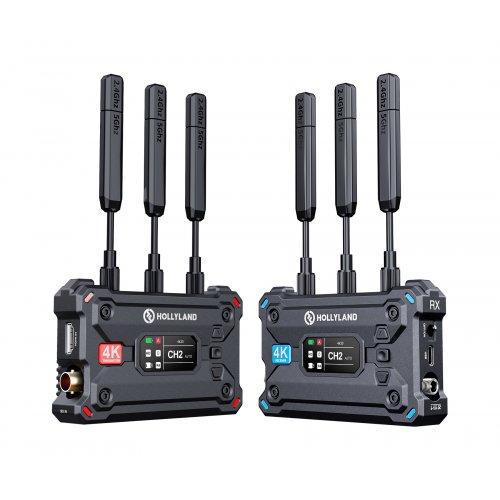

Hollyland Pyro S Wireless Video Transmission System - SDI

About: Hollyland Pyro S Wireless Video Transmission System - SDI

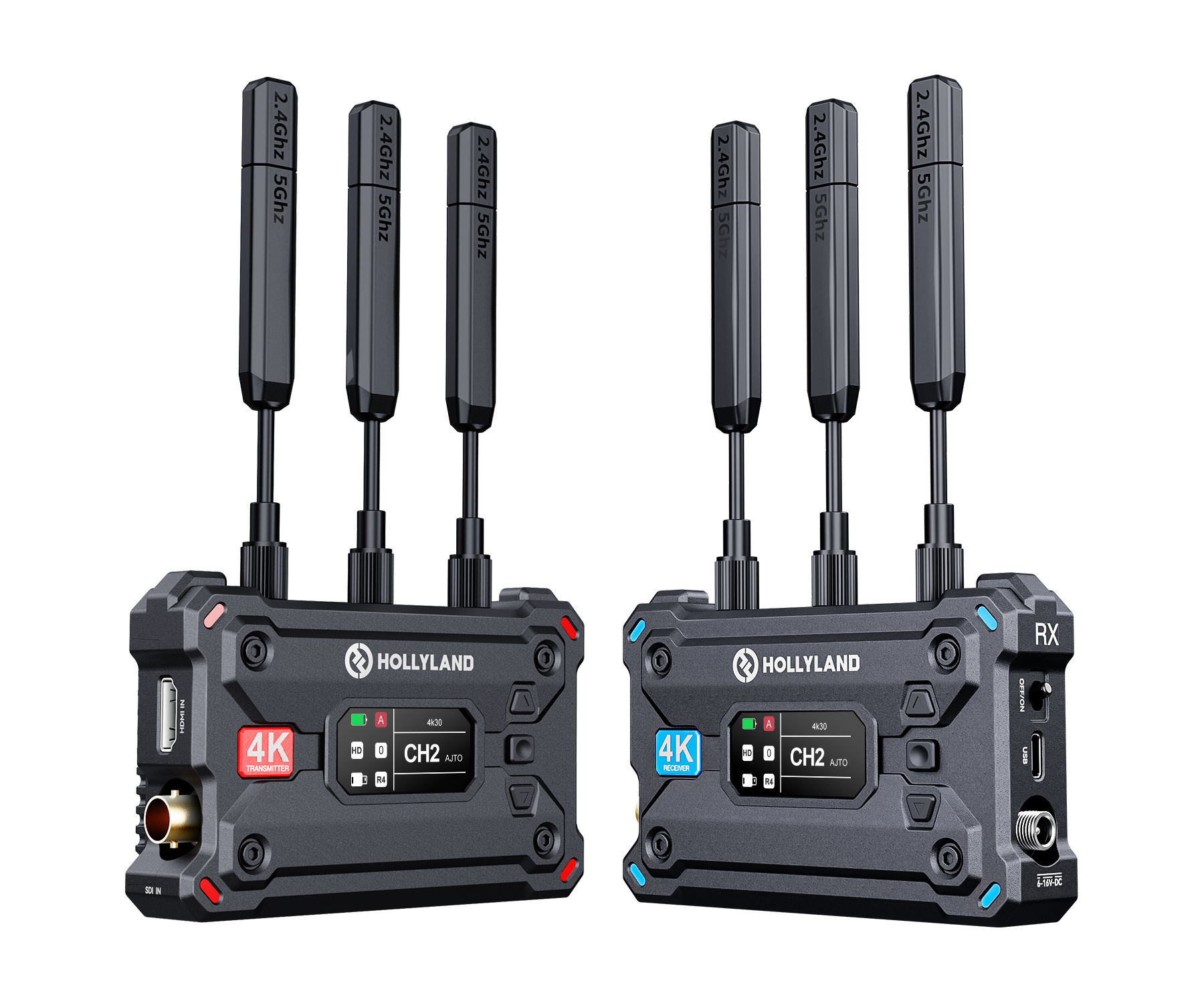

Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S’s magnesium alloy shell makes it easier to carry and handle. It’s ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.

• ​1 Transmitter & 4 Receivers - Offers more flexibility when additional monitoring needs emerge on set.
• 1,300ft (400m) LOS Range - Ultra-long-range wireless transmission capability.
• 0.05s Low Latency - Excels with increased transmission distance while preserving video quality and minimizing latency.
• 2.4GHz & 5GHz Dual Band - Provides better signal transmission performance and efficiency.
• Auto Frequency Hopping - Guarantees reliable and uninterrupted wireless video transmission.
• HDMI & SDI - Supports both HDMI and SDI ports for maximum compatibility.
• Multiple Power Supply Options - Offers versatility, reliability, and convenience.
• UVC & RTMP Streaming - Suitable for streaming live content from local sites to global audiences.
• 4K30 Transmission - Presents images with superior clarity, detail, and realism.
• Ready Out of the Box - Preset grouping eliminates the need for tedious setup.

More Flexible. Meet More Monitoring Needs.

Pyro S’s WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Broadcast Mode

• Activated - When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.
• Deactivated - When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
  • *Connection to the monitoring app may affect the transmission range.

New Solution - Faster. Longer. Stronger.

With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro S features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 50ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

• 1,300ft (400m) - Transmission Range
• 50ms - Low Latency
• 2.4GHz/5GHz - Dual-Band Technology

​Dual Boosts. Less Latency and More Stability.

Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.

• Smooth Mode - The bitrate dynamically adjusts in this mode to achieve the lowest 50ms latency for ultra-long-distance transmission.
• HD Mode - Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).

ADH - Auto Dual-Band Hopping

With our developed Auto Dual-Band Hopping (ADH) technology, Pyro S operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

Dual Band - 2.4GHz & 5GHz.

Pyro S offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro S, you won’t have to worry about video drop issues any more.

Intelligent - Auto Frequency Hopping

Pyro S is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

Seamless Connectivity - Both HDMI & SDI Input/Output.

Pyro S is the perfect solution for professional shooting and commercial projects. The transmitter features one HDMI input and one SDI input, while the receiver provides one SDI output and one HDMI output.

High Definition - 4K. Crisp and Sharp.

With 4k/30fps transmission capabilities, Pyro S presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.

Effortless Streaming - The Real-Time Shooting Scenes

• USB Video Class - UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring capture cards or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.
• RTMP Streaming - With RTMP (Real-Time Messaging Protocol), just input your wireless key and connect your USB Wi-Fi dongle to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro S will offer you a straightforward and convenient live streaming experience.
  • * Some network card models may not be compatible.

Smooth Transmission - Smart Channel Scan.

Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

Preset Grouping & Pairing - Easy Setup. Ready to Go.

Pyro S supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.

Magnesium Alloy Shell - Lighter. Stronger. Stiffer.

The shell of Pyro S is made of aerospace-grade magnesium-aluminum alloy, which is more robust, rigid, 30% lighter, and better at heat dissipation than aluminum-only models.

Fan Control - Efficient Cooling System.

Pyro S offers a two-speed fan adjustment. The cooling system helps to regulate device temperature, preventing overheating and ensuring stable signal transmission.

Auto Mode

The device automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation.

Low-Speed Mode

The fan operates at the lowest speed, reducing noise generation. This mode is suitable for environments where low noise levels are required.

Full Color - LCD Display.

The LCD display on both units offers vibrant, vivid colors and an easy-to-read interface. With it, you can monitor the status and setting information, including battery level, current group, transmission resolution, frame rate, current channel, and more.

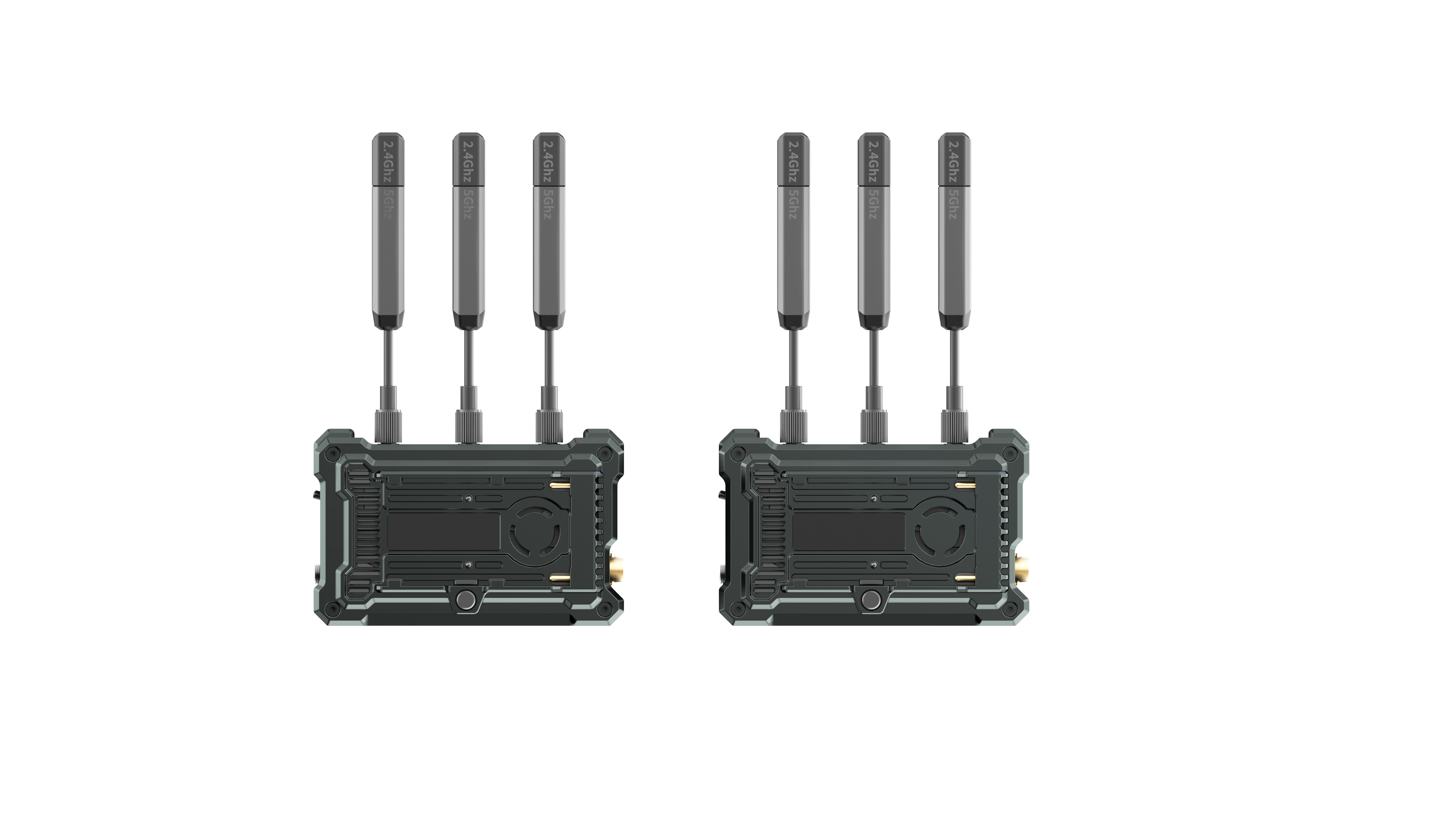

Say Goodbye to Low Battery Anxiety - Multiple Power Supply Options.

Each unit can support power input from an NP-F battery or a DC power source.

• *Charging cable and NP-F battery are not included in the package.

Specifications

• Transmitter
  • Port
    • DC Input: 2.0mm Core Socket
    • HDMI Input: HDMI 1.4b
    • SDI Input: 3G SDI
    • USB-C: USB 2.0 OTG
    • Antenna: SMA Male
  • Power Supply
    • Battery Voltage Range: 6.8 – 8.4V
    • DC Voltage Range: 6 – 16V
  • Power Consumption - < 11W
  • Net Weight - 207g
  • Dimensions (LxWxH) - 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
  • Input/Output Format
    • HDMI Input
      • 720p50/59.94/60
      • 1080i50/59.94/60
      • 1080p23.98/24/25/29.97/30
      • 1080p50/59.94/60
      • 3840*2160 30/25/24/29.97/23.98
    • SDI Input
      • 1080p60/59.94/50
      • 1080i60/59.94/50
      • 1080p30/29.97/25/24/23.98
      • 720p60/59.94/50
      • 1080psf23.98/24
      • 1080psf25/29.97/30
  • Operating Frequency
    • 5 GHz Frequency Band
      • 5.150 – 5.250 GHz
      • 5.250 – 5.350 GHz
      • 5.470 – 5.725 GHz
      • 5.725 – 5.850 GHz
    • 2.4 GHz Frequency Band
      • 2.412 – 2.484 GHz
  • Transmit Power - < 23 dBm
  • Receiver Sensitivity - /
  • Latency - as low as 50ms
  • Bandwidth - 20 MHz (Broadcast: 40 MHz)
  • Temperature
    • -10 – 45℃ (working)
    • -40 – 60℃ (storage)
• Receiver
  • Port
    • DC Input: 2.0mm Core Socket
    • HDMI Output: HDMI 1.4b
    • SDI Output: 3G SDI
    • USB-C: USB 2.0 OTG
    • Antenna: SMA Male
  • Power Supply
    • Battery Voltage Range: 6.8 – 8.4V
    • DC Voltage Range: 6 – 16V
  • Power Consumption - < 8W
  • Net Weight - 207g
  • Dimensions (LxWxH) - 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
  • Input/Output Format
    • HDMI Output
      • 720p50/59.94/60
      • 1080i50/59.94/60
      • 1080p23.98/24/25/29.97/30
      • 1080p50/59.94/60
      • 3840*2160 30/25/24/29.97/23.98
    • SDI Output
      • 1080p50/59.94/60
      • 1080i50/59.94/60
      • 1080p23.98/24/25/29.97/30
      • 720p50/59.94/60
      • 1080p23.98/24
      • 1080i50/59.94/60
  • Operating Frequency
    • 5 GHz Frequency Band
      • 5.150 – 5.250 GHz
      • 5.250 – 5.350 GHz
      • 5.470 – 5.725 GHz
      • 5.725 – 5.850 GHz
    • 2.4 GHz Frequency Band
      • 2.412 – 2.484 GHz
  • Transmit Power - /
  • Receiver Sensitivity - -85 dBm (Broadcast: -80 dBm)
  • Latency - as low as 50ms
  • Port
    • DC Input: 2.0mm Core Socket
    • HDMI Input: HDMI 1.4b
    • SDI Input: 3G SDI
    • USB-C: USB 2.0 OTG
    • Antenna: SMA Male
  • Bandwidth - 20 MHz (Broadcast: 40 MHz)
  • Temperature
    • -10 – 45℃ (working)
    • -40 – 60℃ (storage)

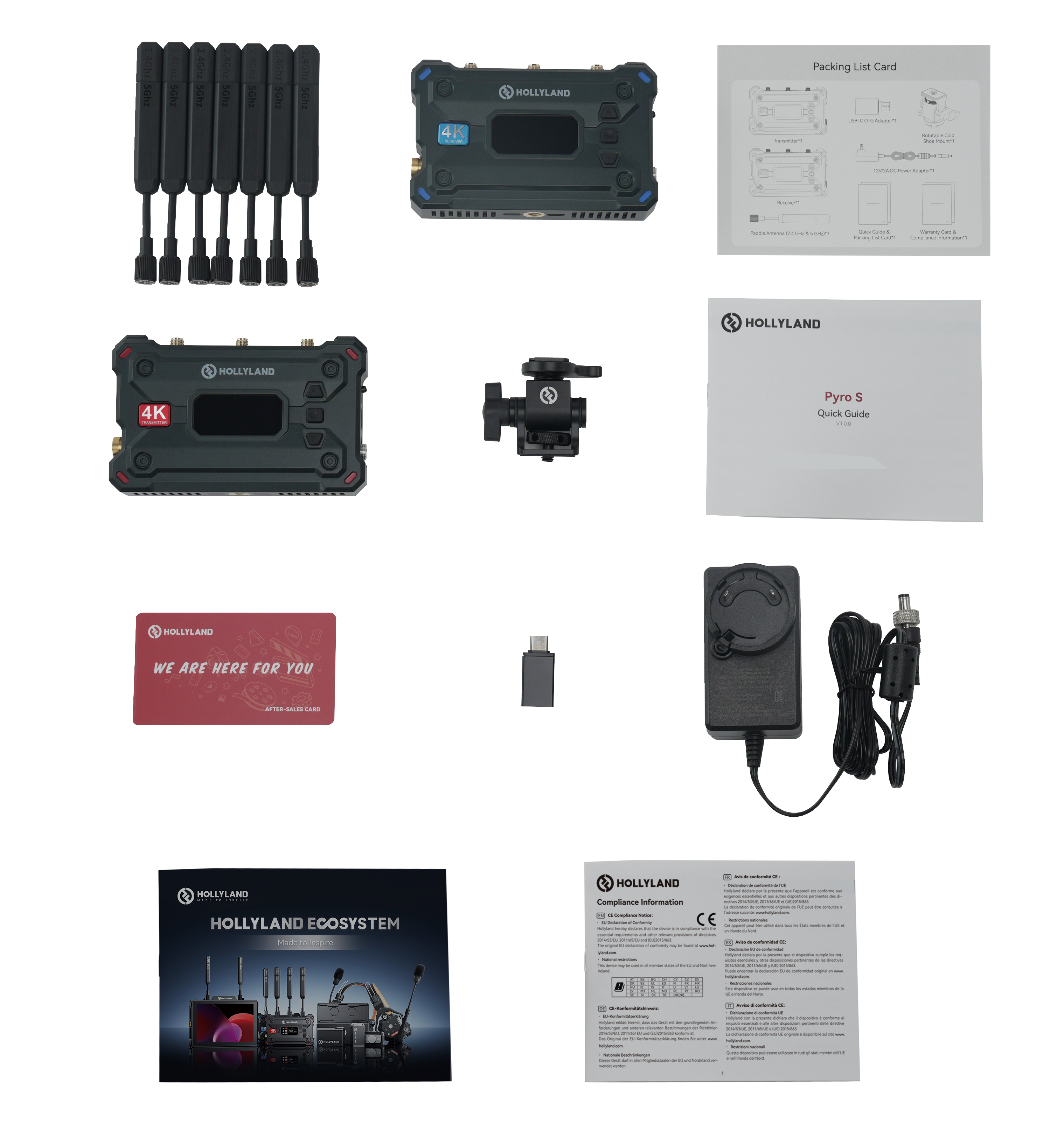

What's in the Box

• 1x Pyro S Wireless Video Transmitter
• 1x Pyro S Wireless Video Receiver
• 7x Paddle Antenna (2.4 GHz & 5 GHz)
• 1x Rotatable Cold Shoe Mount
• 1x USB-C OTG Adapter
• 1x User Manual
• 1x Packing List Card
• 1x Warranty Card
• 1x 12V/2A DC Power Adapter
• 1x Compliance Information
• 1x Hollyland Ecosystem Leaflet
