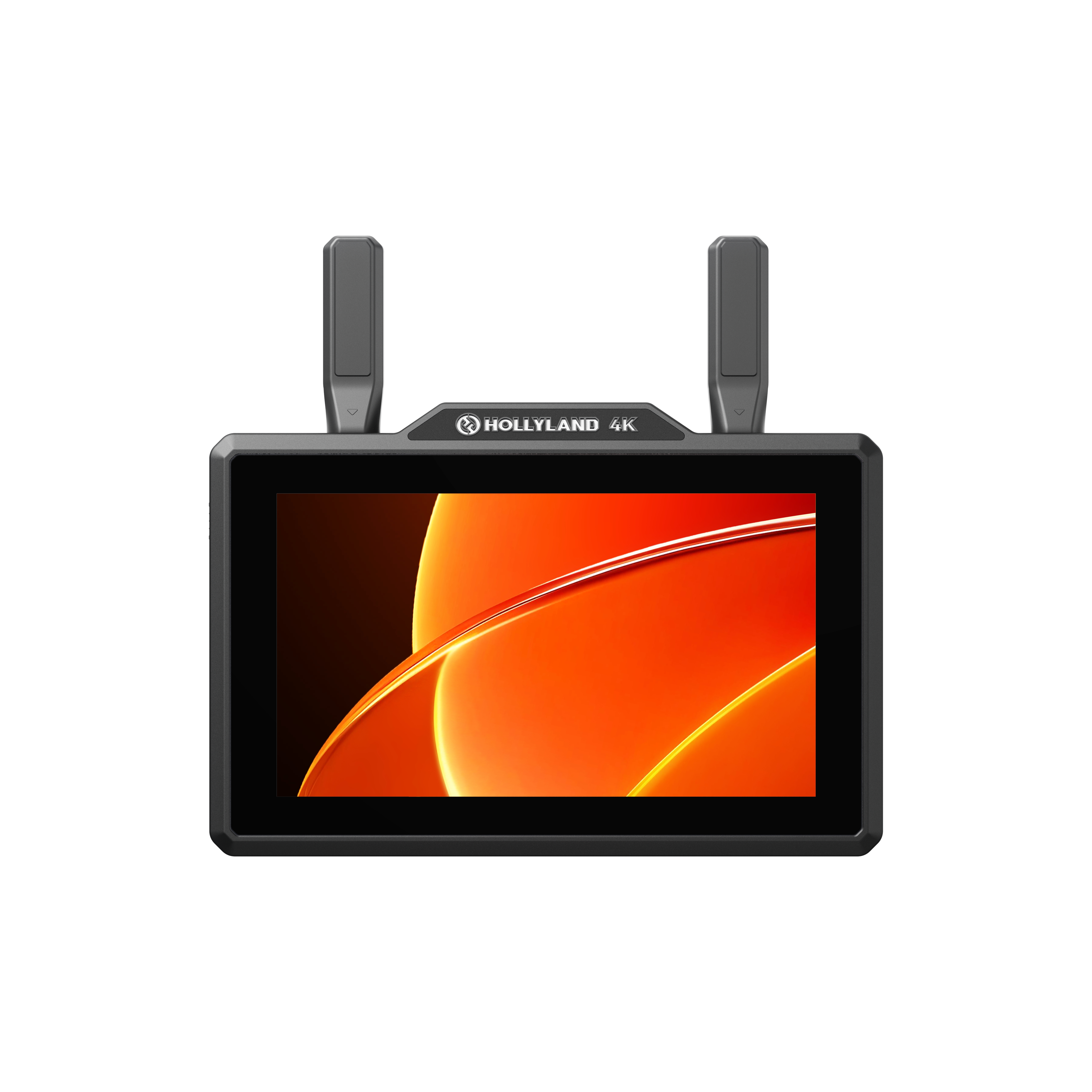

Hollyland Pyro 5 4K 5.5-Inch Wireless Transceiving Monitor

About: Hollyland Pyro 5 4K 5.5-Inch Wireless Transceiving Monitor

The Pyro 5 4K features a 5.5-inch wireless monitor with do-it-all performance. With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool. Proxy recording and RTMP live streaming make the Pyro 5 4K more than just a monitor — it’s your multi-tasking hub on set, built to simplify and speed up every step of production.

• 5.5 Inches & 1500 Nits
• More Than a Screen
• Camera Control
• 1 TX & 4 RX, 400m LOS Range
• Pyro Ecosystem
• 4K30
• SDI & HDMI Ports
• Dual-Band & Low Latency
• Proxy Recording

Pyro Series

With Pyro, you can enhance collaboration and productivity on every shoot to new heights.

4K30 Wireless Transmission - Compatible with the Pyro Ecosystem

Pyro 5 4K delivers end-to-end 4K30 performance across the entire Pyro ecosystem for seamless, ultra-clear image workflows.

Wifi Broadcast Technology - Shoot. Sync. Share.

The Pyro 5 4K features a 5.5-inch wireless monitor designed for flexible on-set collaboration. Powered by cutting-edge Wi‑Fi‑Broadcast technology, it allows one transmitter to connect with up to four receivers while maintaining stable, real-time video transmission.

Broadcast Mode

In Broadcast Mode, one transmitter connects to up to four receivers with intelligent camera views switching and auto frequency hopping. Ideal for multi-cam setups, it delivers stable performance at up to 200m line-of-sight or 100m back-to-back.

Dual-Band. Stronger Signal. Smoother Feeds.

Built with a dual-band 2.4 GHz / 5 GHz transmission system, the Pyro 5 4K automatically adapts to changing environments — delivering robust, interference-resistant video even in signal-heavy locations.

Direct Camera Control. Just a Tap Away.

Adjust ISO, aperture, shutter speed, white balance, and focus mode directly from the 5.5″ touchscreen monitor — and even trigger camera focus with a simple tap. Experience fast, intuitive camera control that keeps you fully in the creative flow.

More Than a Monitor. Efficient Proxy Recording.

Proxy files can be recorded directly to an SD card while monitoring in real-time. Automatically organized into folders, proxy files are ready to review or cut.

The proxy files now include timecode, perfectly synced with your camera for easier, more accurate editing.

Multi-Cam Switching.

The Pyro 5 4K supports switching between camera groups, keeping up with fast-paced live productions.

• Note: The function is currently only compatible with the Pyro 7.

Lock Pairing.

When multiple Pyro systems are in use, Lock Pairing ensures each receiver stays securely connected to its original transmitter — no signal mix-ups.

1,500nits - Shoot Bright. See Brighter.

The 1500-nit screen stays bright and readable, even in the most challenging outdoor lighting.

Auto Frequency Hopping

The Pyro 5 4K is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

Smart Channel Selection

At startup, the system automatically scans and locks onto the optimal frequency channel. Channels can also be manually scanned and switched via the receiver, with visual signal strength indicators for each frequency.

Take Control of Your - Image Flow.

Choose between high-fidelity visuals or ultra-low latency — whichever suits your shoot best.

• HD Mode: Delivers stunning clarity with a 12 Mbps bitrate and a minimum latency of 75ms. Ideal for critical image monitoring.
• Smooth Mode: The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.
  • Note: All performance figures are from Hollyland laboratory tests and may vary with real-world conditions.

Precision Meets Ease Image Analysis.

Advanced image analysis tools — now more accurate, more user-friendly, and made for fast decision-making on set.

• Waveform: Displays the horizontal representation of exposure levels in an image, clearly showing overexposed and underexposed areas.
• Vectorscope: Displays color hues and their saturation levels in an image.
• Histogram: Displays the proportional information of exposure levels in an image, clearly showing the overall exposure balance of the image.
• Focus Assist: Paints a highlight around in-focus edges with colored lines (red, green, blue, white or yellow), enabling fast and accurate focusing.
• Zebra Pattern: Displays a stripe pattern over a specific brightness range (IRE) on an image. You can adjust the upper IRE value and lower IRE value as needed.
• False Color: Assigns different colors to areas of different brightness in an image to get quick exposure readings.
• 3D LUTs: Allows you to preview the color processing result by importing LUTs via a USB flash drive.
• Aspect Mark: Defines the aspect ratio of an image by cropping certain parts on the corners of an image. The transparency ranges from 0 to 100. Supports the following aspect ratios: 16:9, 16:10, 4:3, 1:1, 1.85:1, and 2.35:1. You can also customize the aspect ratio.
• Crosshatch: Overlays a geometric grid pattern over an image with customizable rows and columns to display the image in nine grids, sixteen grids, or twenty-five grids.
• Anamorphic: Restores image to its original aspect ratio, allowing you to correctly view images when using anamorphic lenses.
• Flip: Flips an image.
• Zoom In: Supports 1-4x zoom-in. You can swipe across the screen to change the area to be zoomed in.
• Image Overlay: Captures the current image or chooses a file in the SD card to overlay the screen image.
  • Note: Pyro 5 is currently not supported for image overlay.

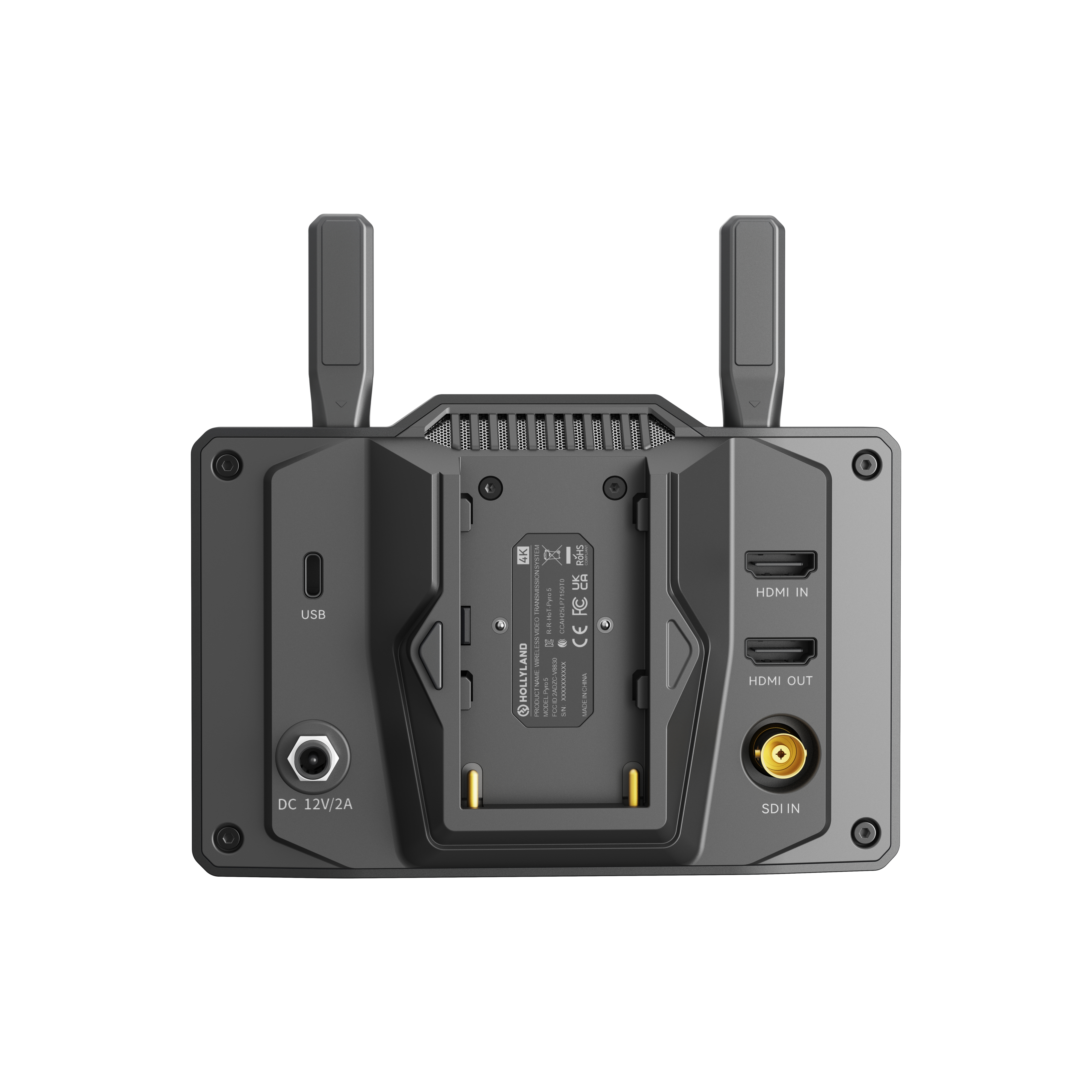

HDMI & SDI Ports. Connect to What You Need.

With HDMI input and loopout, along with SDI input, the Pyro 5 4K fits seamlessly into a wide range of production setups.

Built to Feel Good. Made to Last.

A dual-injection shell keeps the device light in hand and strong enough to handle the roughest shoots. The easy-install antennas make setup, transport, and storage faster and easier than ever. Every detail is designed for the field — from the rugged build to the streamlined setup.

Go Live, Anywhere. RTMP Streaming

Stream directly to Zoom, YouTube Live, TikTok, and more with the HollyView App and RTMP support. Just connect a 4G LTE Wi‑Fi modem, enter your stream key, and you’re live — no extra setup needed.

Specifications

• Input Port
  • Transmitter Mode: HDMI 1.4b + 3G SDI
  • Receiver Mode: /
• Output Port
  • Transmitter Mode: Loop-Out HDMI 1.4b
  • Receiver Mode: HDMI 1.4b
• Color Depth Capability
  • Transmitter Mode: HDMI Input: YUV 422 / YUV 444 8-bit
  • Receiver Mode: HDMI Output: RGB 888
• Audio Format
  • Transmitter Mode: HDMI 1.4b 2-Channel
  • Receiver Mode: HDMI 1.4b 2-Channel
• Antenna: SMA Male
• Power Input: DC Input (2.0mm core socket)
• Headphone Jack: 3.5mm
• Upgrade Port: USB-C (USB 2.0 OTG) / SD Card Slot
• Screen Size: 5.5″ Touchscreen
• Screen Resolution: 1920x1080 Pixels
• Color Gamut: Rec.709
• Aspect Ratio: 16:9
• Screen Brightness: 1,500 nits
• Contrast Ratio: 1000 : 1
• Power Input Voltage
  • NPF: 6V – 16V
  • DC In: 10V – 18V DC
• Video Bitrate: Maximum 12 Mbps
• Video Encoding Format: H.264
• Power Consumption
  • Transmitter Mode: < 18.9W
  • Receiver Mode: < 16W
• Operating Frequency
  • 2.412 – 2.484 GHz
  • 5.150 – 5.250 GHz
  • 5.250 – 5.350 GHz
  • 5.725 – 5.850 GHz
• Transmit Power: Transmitter Mode: < 23 dBm
• Receiver Sensitivity: Receiver Mode: Non-Broadcast: -85 dBm; Broadcast: -80 dBm
• Transmission Latency: Approx. 60ms (Tested in a laboratory environment with 1080p60)
• Bandwidth: Non-Broadcast: 20 MHz; Broadcast: 40 MHz
• HDMI Input
  • 720p50/59.94/60
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080p50/59.94/60
  • 3840*2160p23.98/24/25/29.97/30 Hz
• HDMI Loopout
  • 720p50/59.94/60
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080p50/59.94/60
  • 3840*2160p23.98/24/25/29.97/30 Hz
• HDMI Output
  • 720p50/59.94/60
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080p50/59.94/60
• SDI Input
  • 1080p50/59.94/60 (Level A)
  • 1080p50/59.94/60 (Level B)
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080psf23.98/24
  • 1080psf25/29.97/30
  • 720p50/59.94/60
• HDMI Loopout
  • 1080p50/59.94/60 (Level A)
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080psf23.98/24
  • 1080i50/59.94/60
  • 720p50/59.94/60
• HDMI Output
  • 1080p50/59.94/60 (Level A)
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080psf23.98/24
  • 1080i50/59.94/60
  • 720p50/59.94/60
• Operating Temperature: – 10℃ to 45℃
• Storage Temperature: – 40℃ to 60℃
• Weight: 0.91 lbs (410g)
• Dimensions (LxWxH): 5.97 x 4.03 x 1.59 in (151.6 x 102.3 x 40.5 mm)

What's in the Box

• 1x Pyro 5 4K
• 2x Easy-Install Short Antenna
• 1x USB-C OTG Adapter
• 1x Pyro 5 4K Tempered Glass Screen Protector
• 1x USB-C to USB-C Cable
• 1x 1/4″ Cold Shoe
