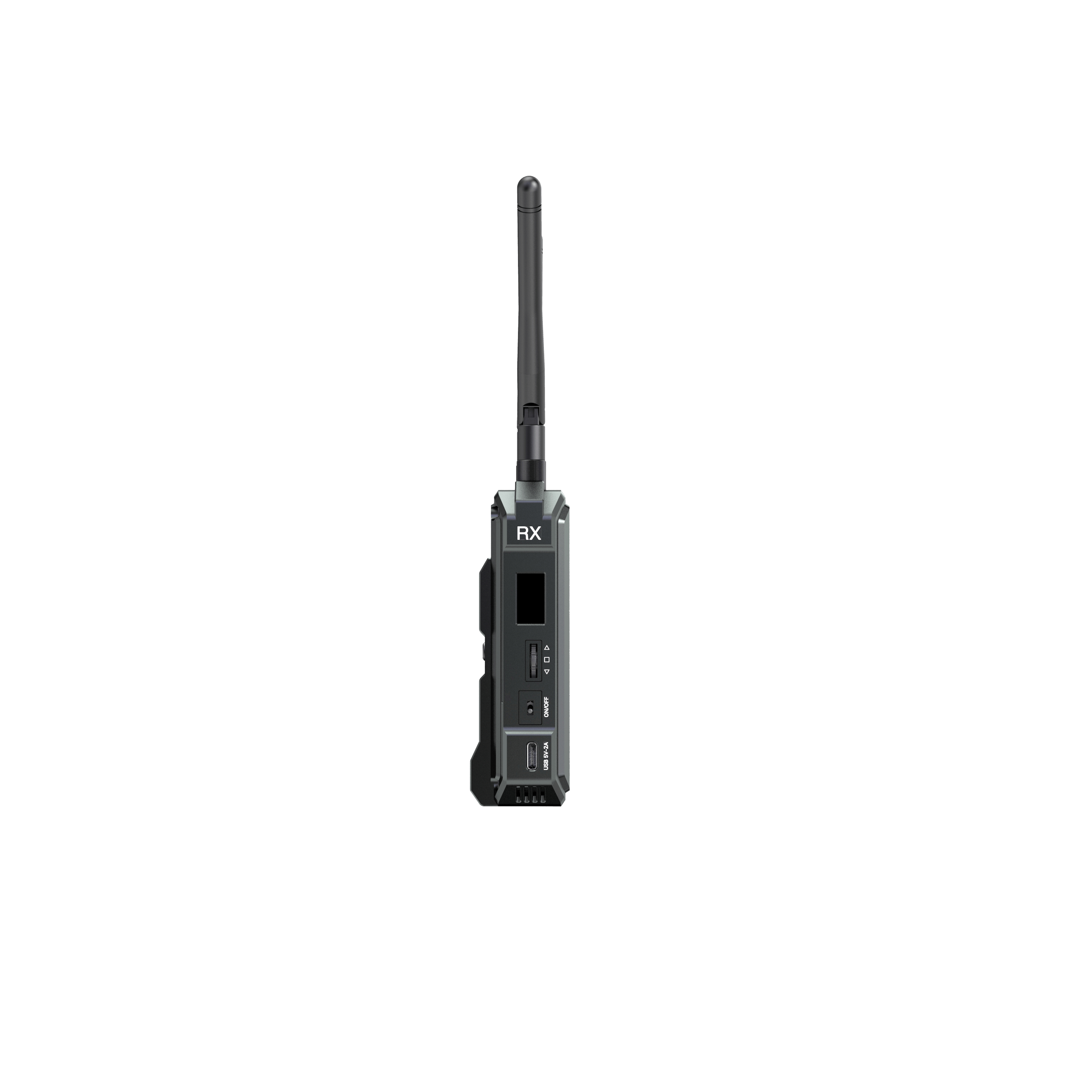

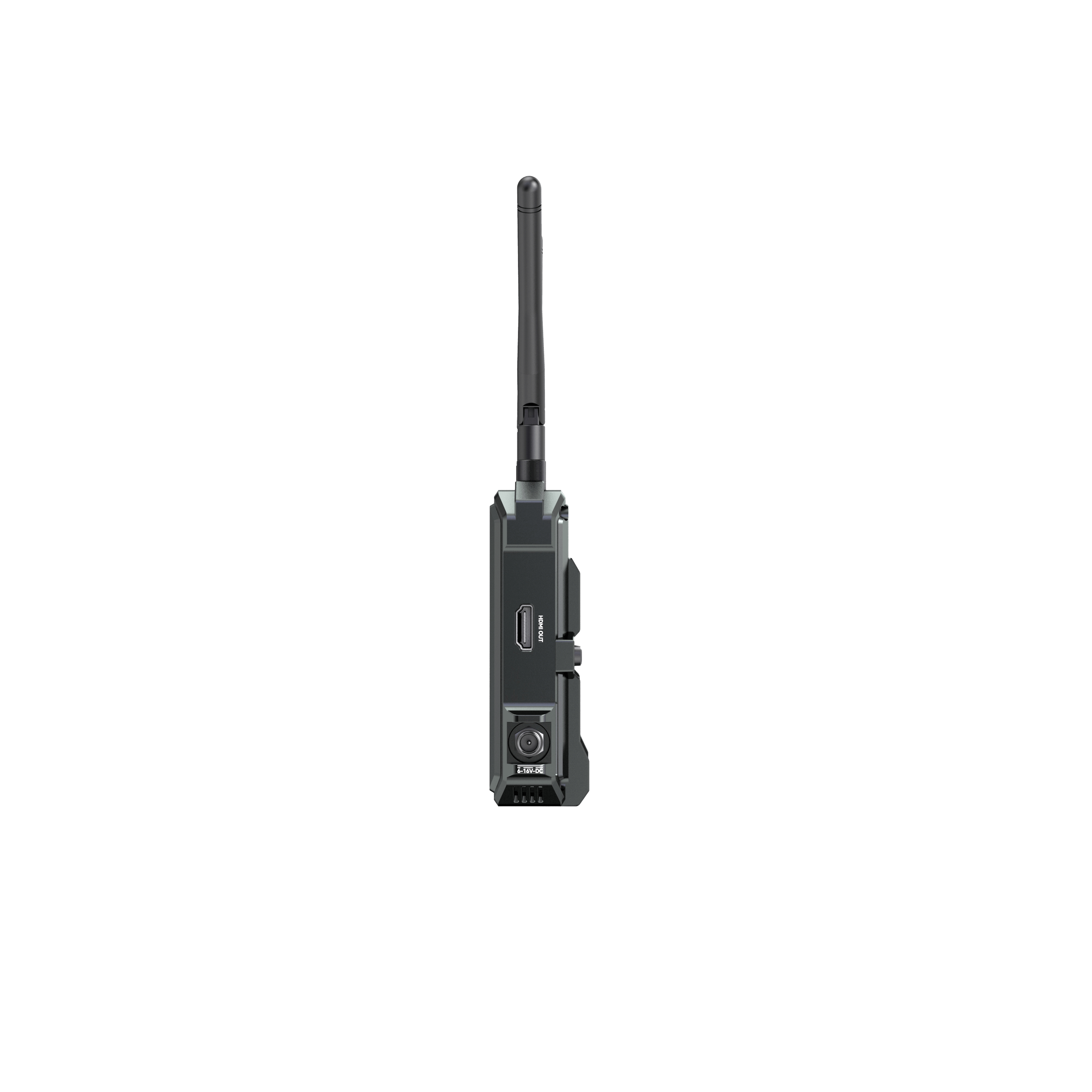

Hollyland Pyro H Wireless Video Receiver
Model: HL-PYRO H RX
About: Hollyland Pyro H Wireless Video Receiver
Pryo H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland’s pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With a new level of performance in transmission range, and latency, among other things, Pyro H is to make a difference.
Specifications
- Port
- DC Input: 2.0mm Core Socket
- HDMI Loopout: HDMI 1.4b
- USB-C: USB 2.0 OTG
- Antenna: SMA Male
- Power Supply
- USB-C: 5V/2A (not supported in Broadcast mode)
- Battery Voltage Range: 6.8 – 8.4V
- DC Voltage Range: 6 – 16V
- Power Consumption - < 4W
- Net Weight - 192g
- Dimensions (LxWxH) - 4.3 × 2.45 × 1.3 in. (109 × 62.3 × 33.4 mm)
- Input/Output Format
- HDMI
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p50/60
- 4K30/25/24
- HDMI
- Operating Frequency
- 5 GHz Frequency Band
- 5.150 – 5.250 GHz
- 5.250 – 5.350 GHz
- 5.470 – 5.725 GHz
- 5.725 – 5.850 GHz
- 2.4 GHz Frequency Band
- 2.412 – 2.484 GHz
- 5 GHz Frequency Band
- Transmit Power - /
- Receiver Sensitivity - -85 dBm (Broadcast: -80 dBm)
- Latency - 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
- Range - 1,300ft (400m)(test data in an open, interference-free environment)
- Bandwidth - 20 MHz (Broadcast: 40 MHz)
What's in the Box
- 1x Pyro H Wireless Video Receiver
- 2x Cylindrical Antenna (2.4GHz & 5GHz)
- 1x Rotatable Cold Shoe Mount
- 1x USB-C OTG Adapter
- 1x Quick Guide
- 1x WarrantyCard
- 1x Packing List Card
- 1x Compliance Information
UPC: 191460006043
