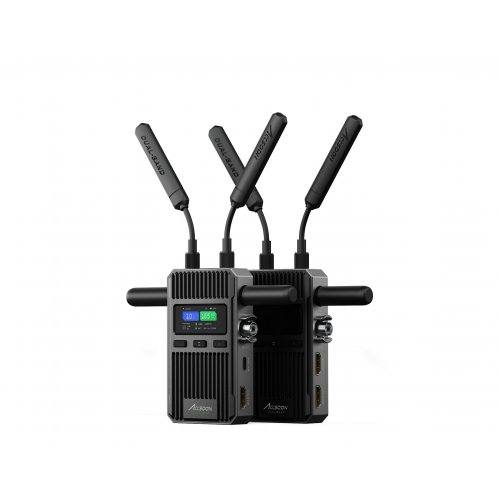

Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range

Model: ACS-WIT08-S

Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range
  • Free Shipping!
  •  In Stock - Ship or Pick-up
  • Not yet reviewed



About: Accsoon CineView 2 SDI 1080P Wireless Video Transmission System w/ 1500ft Range

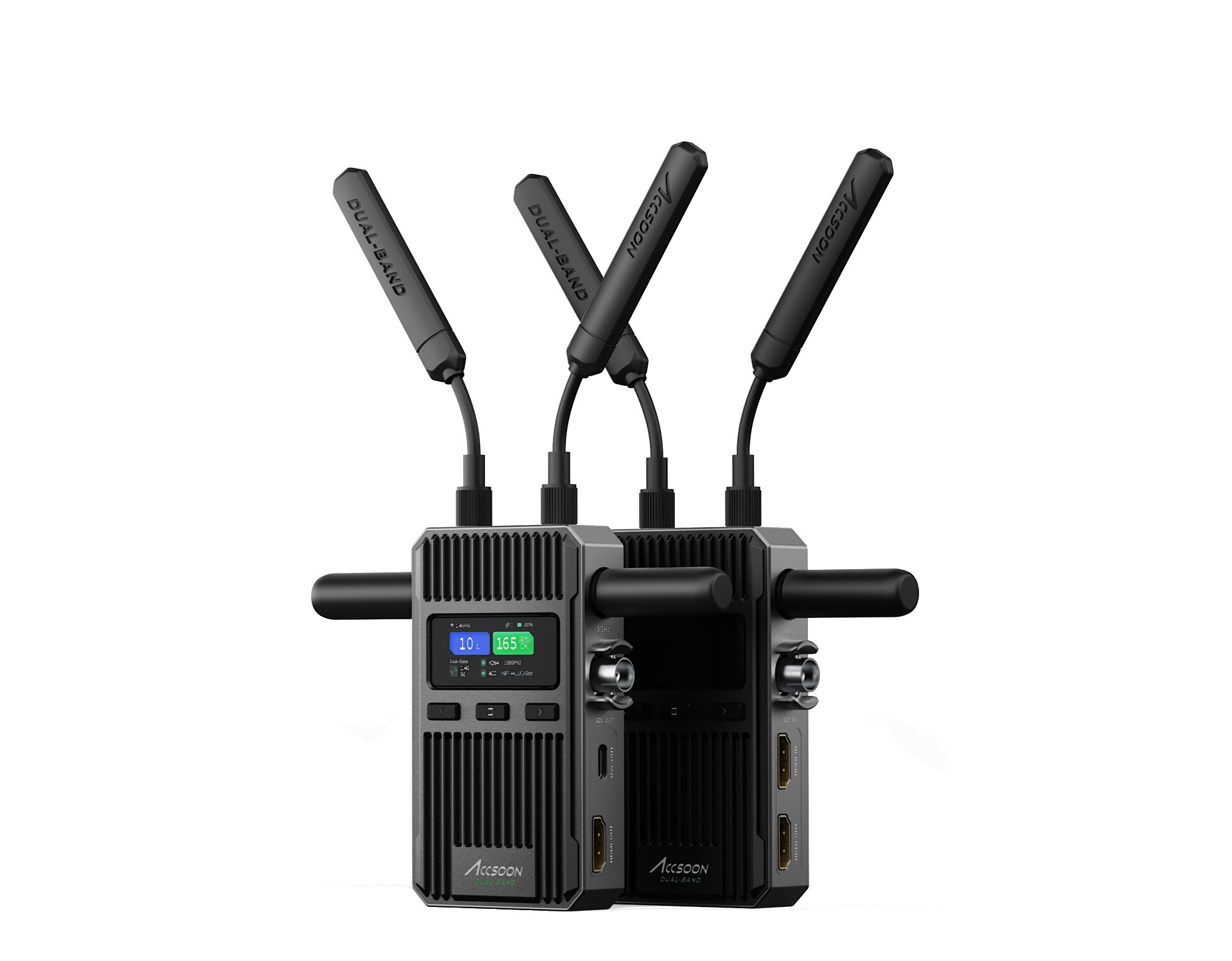

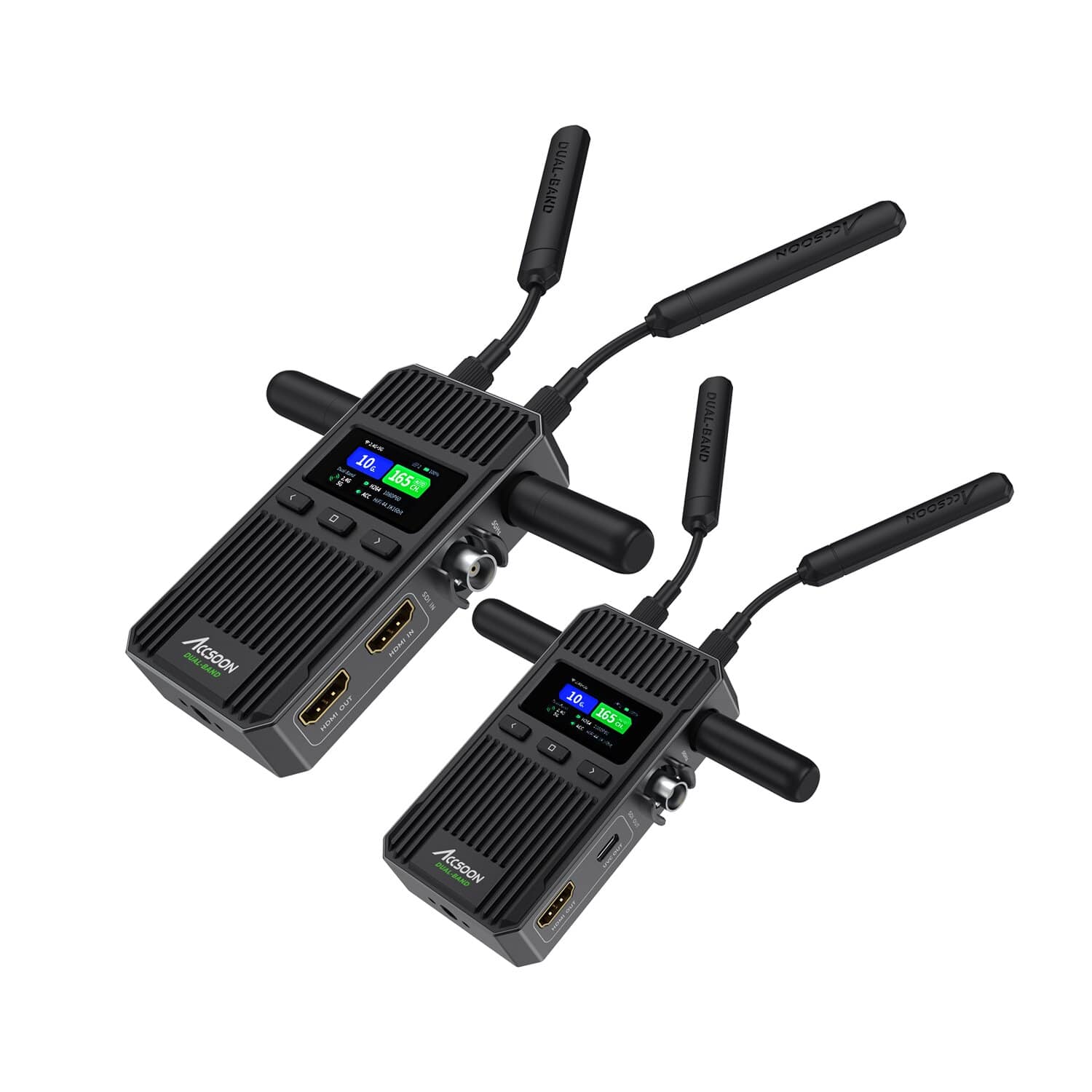

The CineView 2 is the latest addition to Accsoon esteemed CineView product family. Expanding on Accsoon US patented 2.4GHz+5GHz Dual-Band technology and featuring an all-new antenna design, the CineView 2 can seamlessly transmit 1080P 60fps video and audio signals across a 1500ft (450m) line of sight range, all while maintaining an impressively low latency of under 50ms.

  • High Reliability 2.4GHz+5GHz Dual-Band Transmission Technology
  • Extreme Low Latency of Less Than 50ms
  • Monitoring on Up to 4 Devices, Mix and Match
  • Long-Range Transmission Range Up to 1500ft/450m

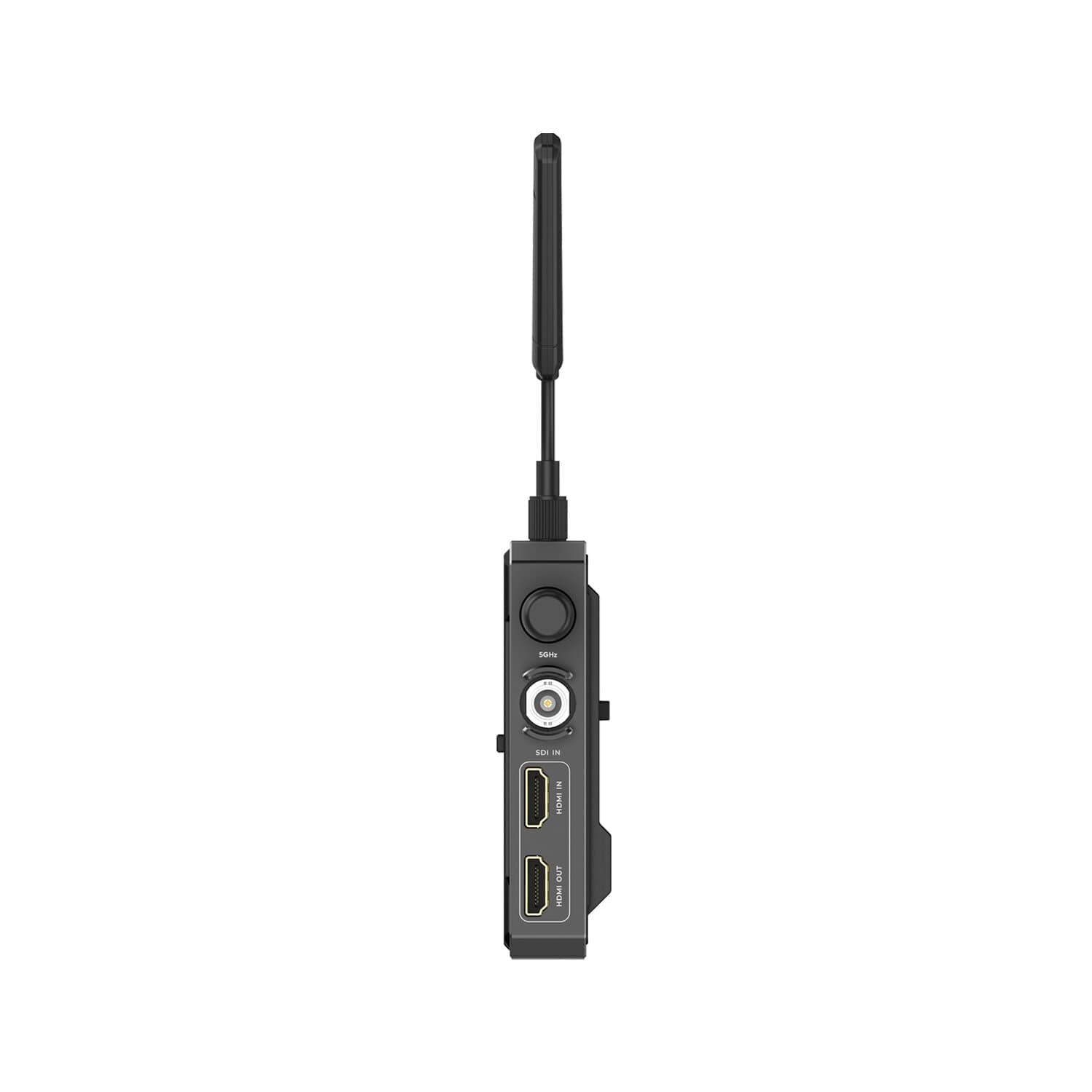

  • Transmitter: SDI & HDMI Input, HDMI Loop-Out
  • Transmitter: SDI to HDMI Pass-through

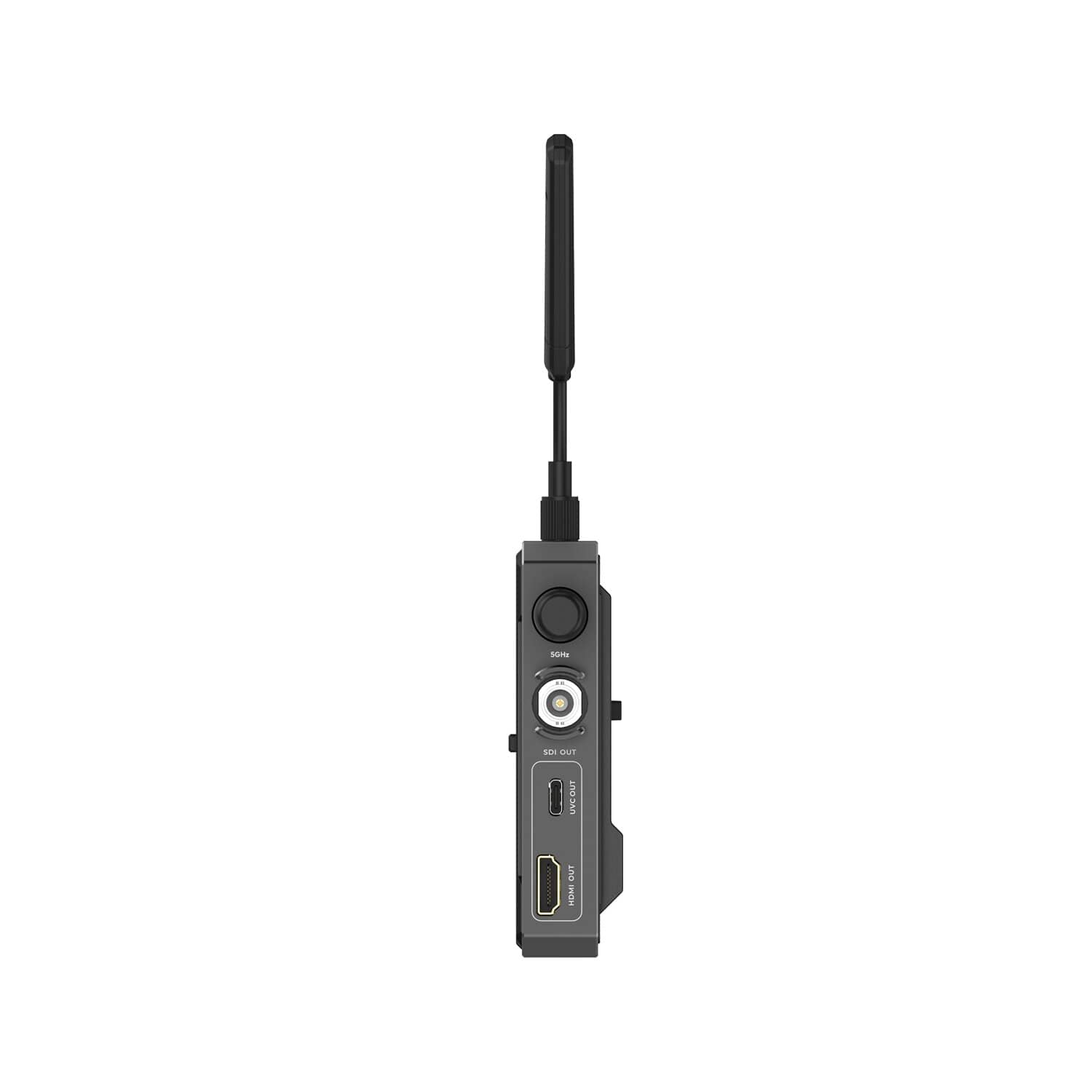

  • Receiver: SDI & HDMI and UVC Output

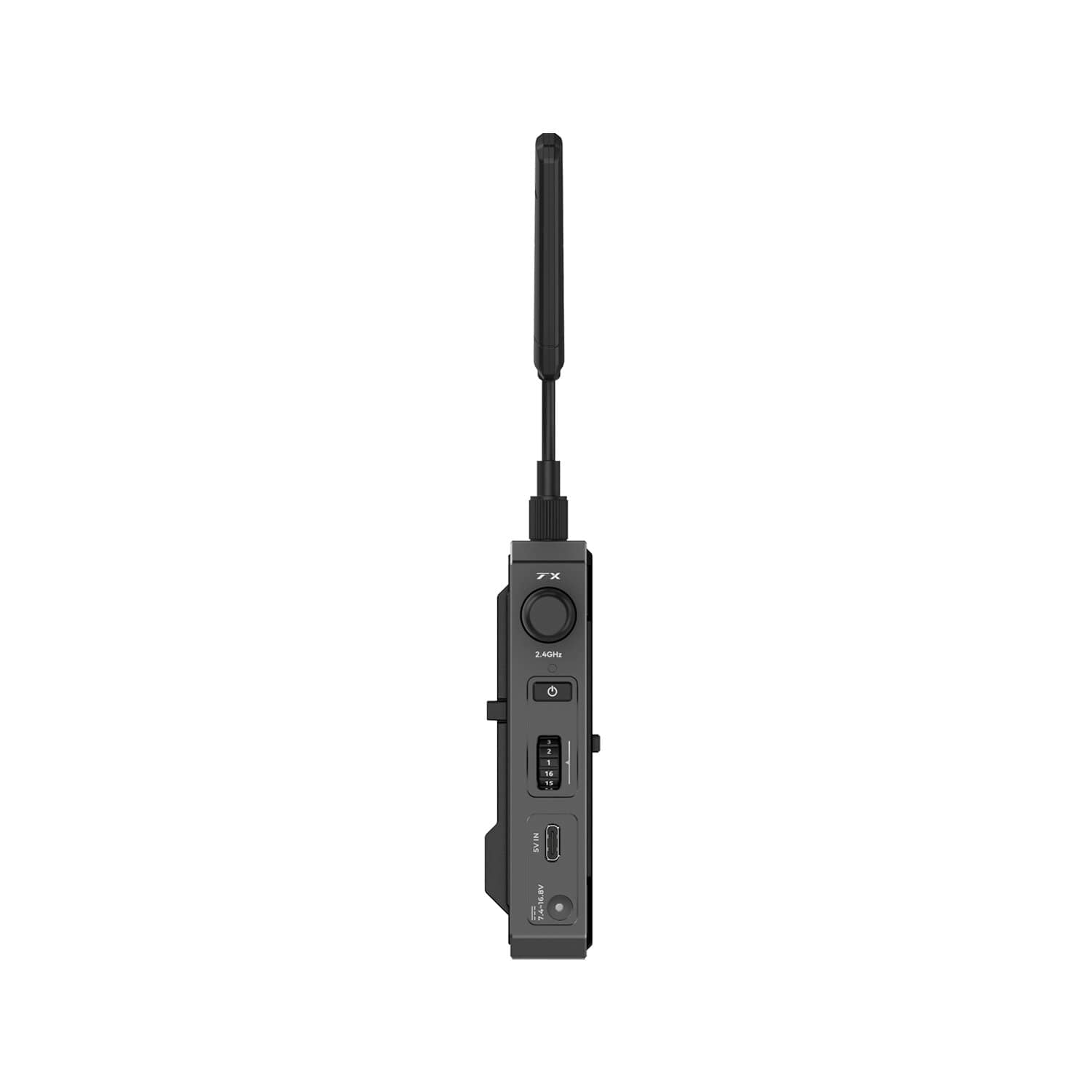

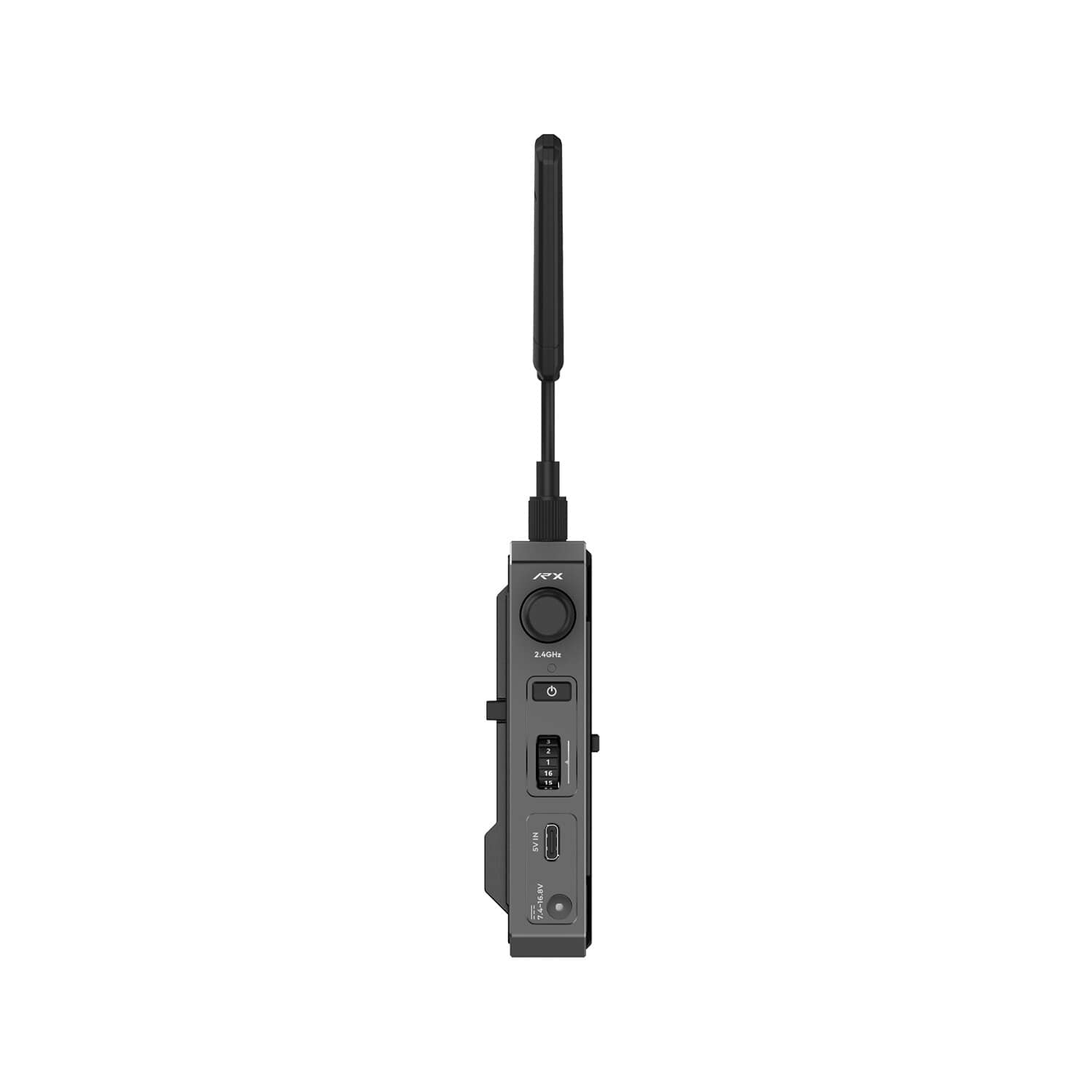

  • Power with NP-F Battery, DC or USB-C Power
  • Wireless Monitoring Made Simple with Accsoon SEE App
  • Automatic Channel Selection
  • Easy TX/RX Group Pairing
  • High Grade Aircraft Quality Aluminum Alloy

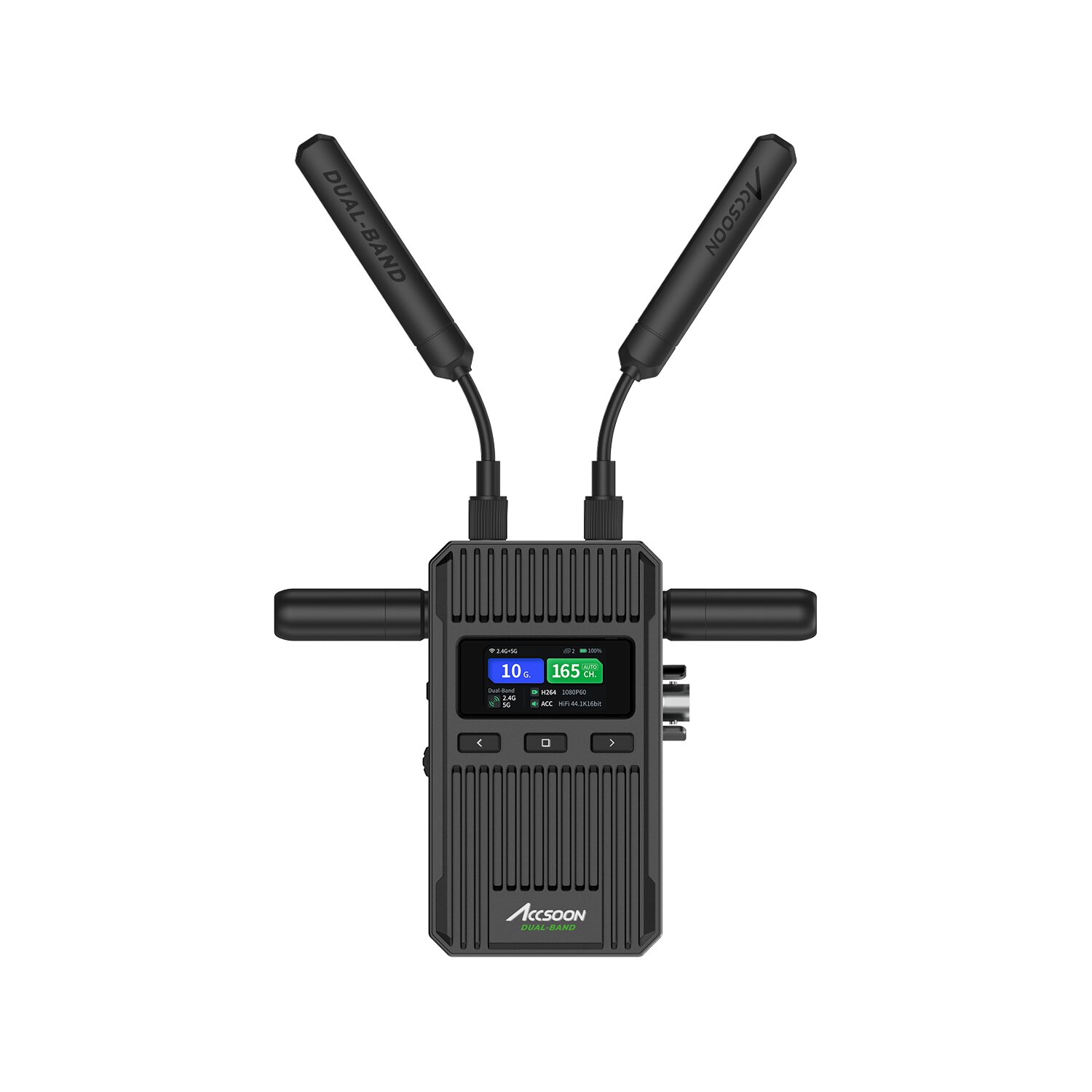

  • 1.47 Inch Full-Color LCD Display

Monitor On Up To Four Devices - Market Proved Wireless Stability

Each CineView 2 transmitter can wirelessly send the video to any combination of dedicated CineView receiver units and smart devices (both iOS and Android) totaling up to four.

New Antenna Design, Stronger Signal

Accsoon continues to push the limits of stable wireless transmission. With the benefits from the newly designed antennas, the CineView 2 surpasses the performance of the CineView SE/HE by extending the transmission range even further, now reaching an impressive 1500 feet.

Monitor On Up To Four Devices

Each CineView 2 transmitter can wirelessly send the video to any combination of dedicated CineView receiver units and smart devices ( both iOS and Android ) totaling up to four.

No Fan Noise, Quiet Shooting

Classic CineView design, ensuring efficient heat dissipation, quiet shooting with no fan noise.

Cross-Compatibility with Other CineView Models

CineView 2 are backwards compatible with the current CineView SE, HE and Quad models, allowing users to mix and match these as required.

Smart App
Get more out of your CineView with our Accsoon See app for easy and professional monitoring.

Specifications

  • Transmitter
    • Video Input - HDMI, 3G SDI
    • Video Output - HDMI Loop-Out
    • SDI Input Format
      • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
      • 1080i: 50/59.94/60i
      • 720p: 50/59.94/60p
    • HDMI Input Format
      • 4096*2160: 23.98/24/25/29.97/30/50/59.94/60p
      • 3840*2160: 23.98/24/25/29.97/30/50/59.94/60p
      • 1080p: 23.98/24/25/29.97/30/50/59.94/60p
      • 1080i: 50/59.94/60i
      • 720p: 50/59.94/60p
    • HDMI Loop-out Format - Identical to the HDMI/SDI video input
    • DC Port - 5.5mmx2.1mm, center positive
    • DC Voltage - 7.4~16.8V

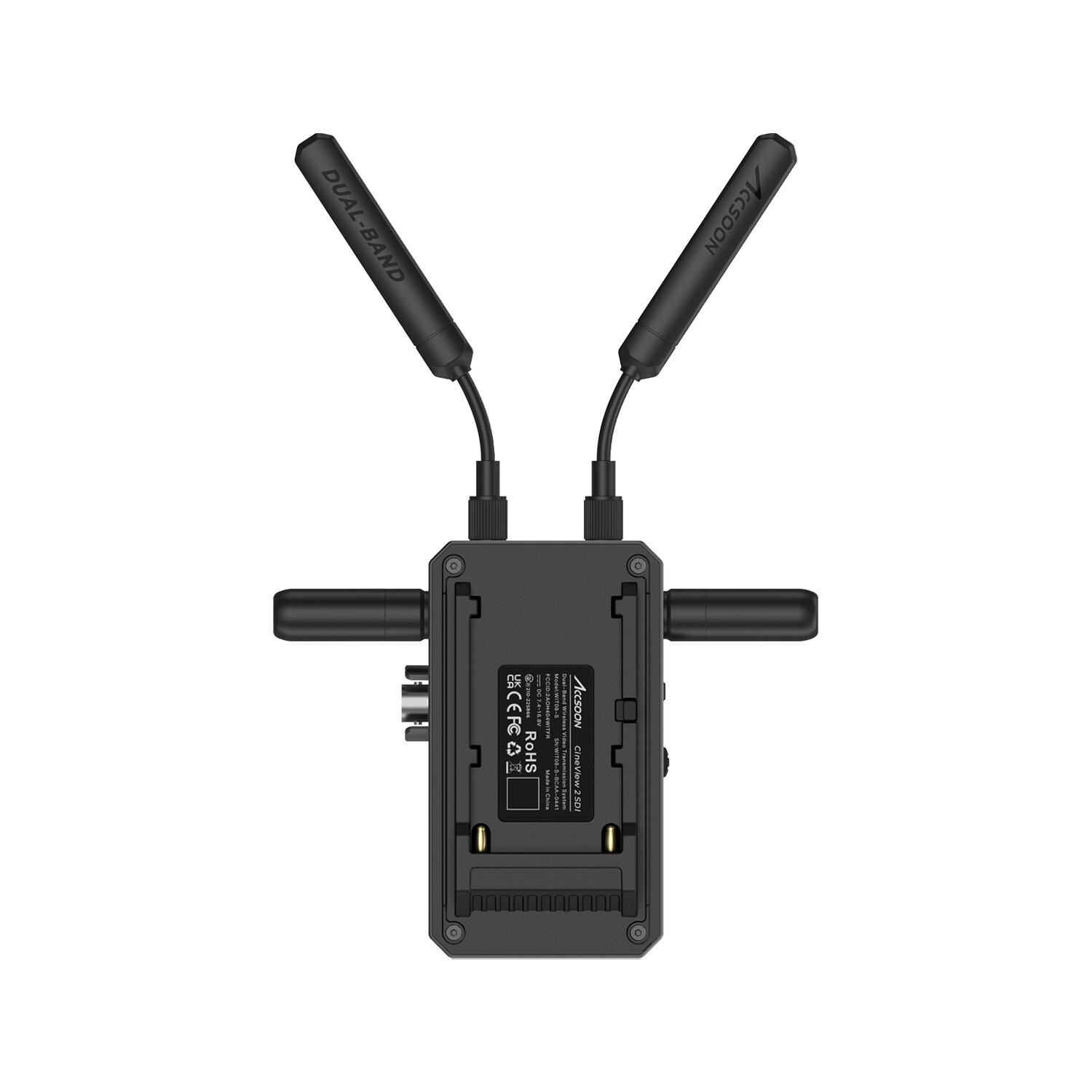

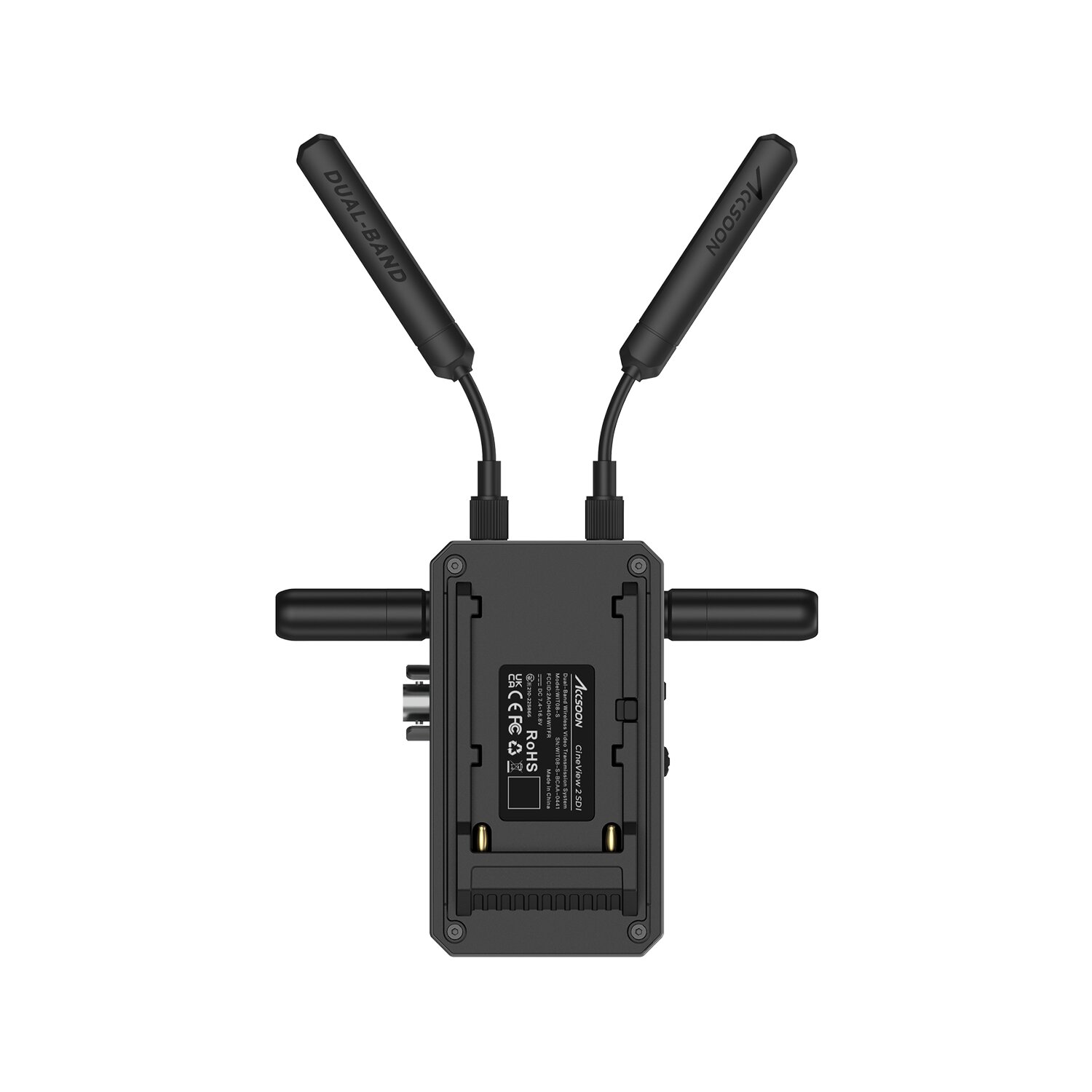

    • Battery - Compatible with NP-F550, NP-F750, NP-F970
    • USB-C Power Input - USB-C 5V/3A
    • Audio - 44.1KHz/48KHz 16/20/24bit
    • Latency - <50ms (Camera latency not included)

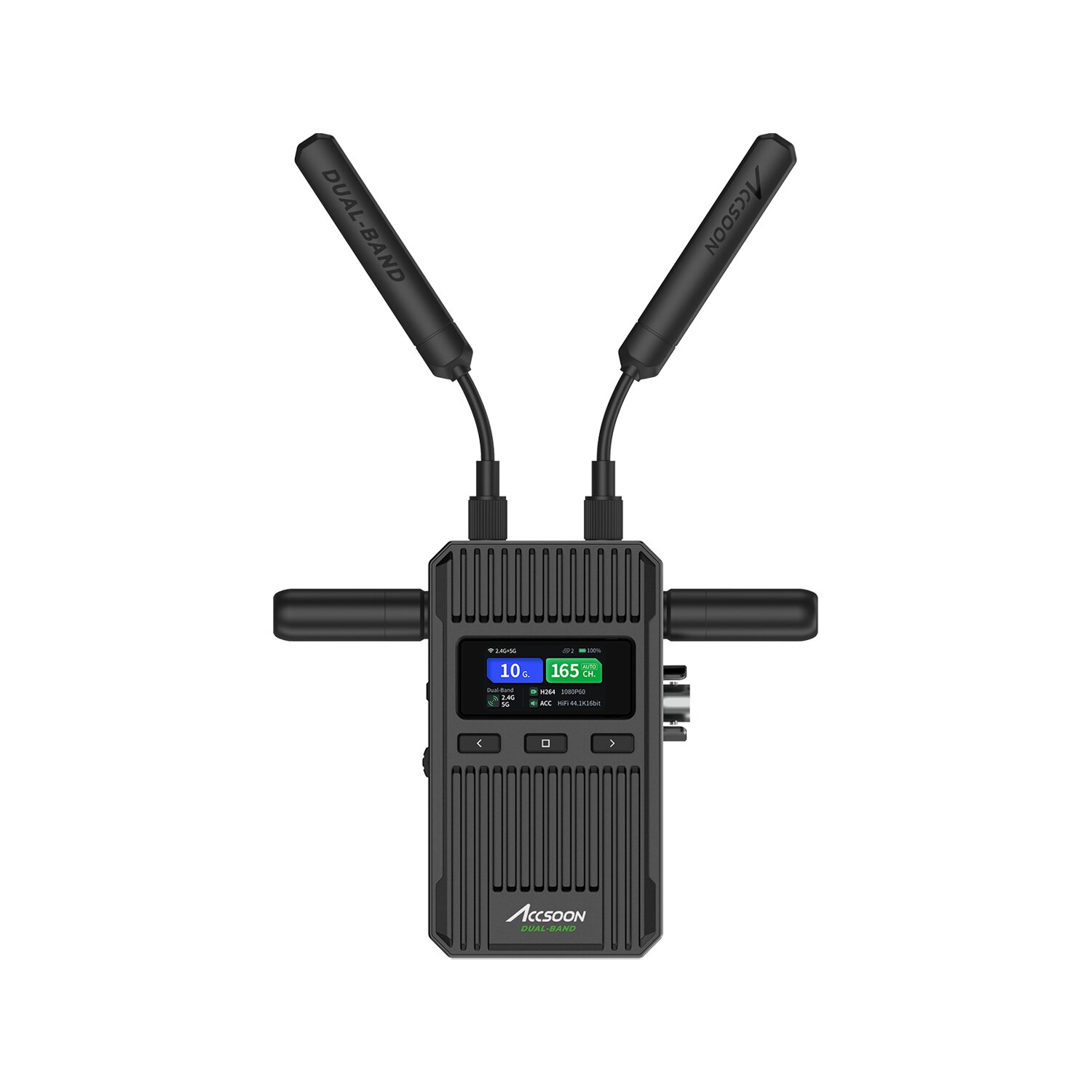

    • Display - 1.47 inch Full-Color LCD Screen
    • Transmission Power
      • 2.4GHz: 20dBm
      • 5GHz: 20dBm
    • Transmission Range - 1500ft/450m (No obstacles, no interference)
    • Power Consumption - <6W
    • Operating Environment Temperature - -10~40℃
    • Dimensions (Antennas Not Included) 60mm x 27.5 mm x 106.5mm
    • Weight (Antennas Not Included) 210g
  • Receiver
    • Video Output - HDMI, 3G SDI, UVC
    • SDI Output Format
      • 1080p: 24/25/30/50/60p Level A
      • 1080i: 50/60i
      • 720p: 50/60p
    • HDMI Output Format
      • 1080p: 24/25/30/50/60p
      • 1080i: 50/60i
      • 720p: 50/60p
    • DC Port - 5.5mmx2.1mm, center positive
    • DC Voltage - 7.4~16.8V
    • Battery - Compatible with NP-F550, NP-F750, NP-F970
    • USB-C Power Input - USB-C 5V/3A
    • Audio - 44.1KHz/48KHz 16/20/24bit
    • Latency - <50ms (Camera latency not included)
    • Display - 1.47 inch Full-Color LCD Screen
    • Transmission Power
      • 2.4GHz: 20dBm
      • 5GHz: 20dBm
    • Transmission Range - 1500ft/450m (No obstacles, no interference)
    • Power Consumption - <5W
    • Operating Environment Temperature - -10~40℃
    • Dimensions (Antennas Not Included) - 60mm x 27.5 mm x 106.5mm
    • Weight (Antennas Not Included) - 210g

What's in the Box

  • 1x Transmitter
  • 1x Receiver
  • 2x Cold Shoe Mount Adapter
  • 4x Dual-Band Antenna (Long)
  • 4x Dual-Band Antenna (short)
  • 1x User Manual / Warranty Card

UPC: 664918772383
