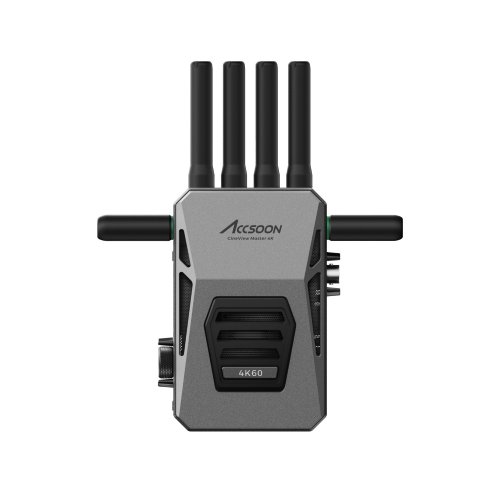

Accsoon CineView Master 4K Wireless Receiver

About: Accsoon CineView Master 4K Wireless Receiver

Experience high quality details with CineView Master 4K. From input to output, this fully end-to-end 4K60 solution offers stunning 4K resolution at a fluid 60 frames per second, perfect for monitoring, recording, live-streaming and any other video productions.

• True 4K60
• Tri-Band + DFS - 2.4GHz+6GHz+5GHz
• <25 MS - Best in Class Latency
• 2.5 KM Transmission Range
• MFi Certified Video to iPhone/iPad
• RTMS 4.0 - Proprietary RTMS 4.0 Protocol
• Multiple Streams for Diverse Needs
• 8K High Performance Processor
• Industrial Aesthetic Design
• Intelligent Heat Dissipation

Cutting-Edge Wireless Technology Pioneering Multi-Frequency Transmission

Accsoon Tri-Band transmission technology is a quantum leap forward from the previous Dual-Band transmission technology. Based on the proprietary RTMS 4.0 protocol developed by Accsoon, it integrates 2.4GHz, 5GHz, and all-new 6GHz frequencies, enabling intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency, and the ability to gracefully manage multiple connections.

Accsoon Tri-Band Transmission vs. SDR

• 300% Greater interference resistance
• 1500% Wider bandwidth
• 1000% Better transmission efficiency

25 ms Best in Class Latency - Follow the Moment, Focus the Frame

Accsoon CineView Master 4K significantly reduces latency from input to output to only 25ms. This near real-time performance is notably faster and directly addresses the demands of cinematographers, camera operators and assistants, ensuring precision and efficiency in fast-paced filming environments, enhancing overall productivity in professional filmmaking.

2.5 km Extended Long Distance - Maximized Creative Range Within Reach

Accsoon CineView Master 4K with its original revolutionary Tri-band transmission technology and innovative hardware design, achieves an impressive 2.5 km ultra-long transmission distance. Distance is no barrier to the CineView Masrer 4K. Not only does it work over vast distances, it does so with incredible stability, pushing the limits to make it the highest performing Accsoon system to date.

Multiple Video Streams for Diverse Needs On-set

• 4K60 Superior Video Quality
• 1080P High Bitrate Wired Connection
• 1080P Wireless Transmission

Direct On-camera Video Output to Your iPhone/iPad

• Superb Image Quality - Resolution Up to 4K60
• Apple Standard Display - iPhone and iPad displays have been designed, tested, and manufactured for Apple quality and performance standards.
• Charge Your iOS Device - Charge the connected iPhone or iPad at the same time over Lightning or USB-C.
• Wired Connection Without Latency - Create smoothly and seamlessly, with every detail in real time.
• Camera to Cloud - Easily share your creations to Frame.io through the C2C integration, enabling real-time automatic uploads from almost any camera to the cloud.
  • Compatible with: iPhone/iPad equipped with Apple A14 proccesor and above

Versatile Wireless Connections for Any Production Crew

• CineView Master 4K Receiver - Delivers stable, high-quality video transmission for sharp and smooth on-site monitoring.
• Wireless Monitoring Made Easy with Accsoon SEE App - Adapts to versatile shooting needs, stays flexible and efficient even during fast movements.

Empowered 8K Processor - Wireless Optimized to Perfection

Accsoon developed the proprietary RTMS 4.0 protocol to work with the new High-Performance A/V Processor with 8K capabilities. In combination the protocol and the processor represent a remarkable 400% increase in processing capabilities. Driving even greater performance for synchronized multi-video streams, the processor can effortlessly manage Tri-Band multi-stream video transmission even under the most demanding conditions.

Balancing Form and Function - Engineered for Toughness

The CineView Master 4K blends beauty with utility, featuring clean lines and a balanced structure. Built to withstand the rigors of production, with its unique angles and an industrial aesthetic, the design is fresh and modern.

Intelligent, Quiet Heat Dissipation

• STANDARD MODE - Allows peak fan speeds, ensuring performance in every environment.
• QUIET MODE - Reduces fan speed, limiting the amount of noise.
• OR JUST TURN IT OFF - For audio-critical scenarios where absolutely no fan noise is permissible.

Versatile Interfaces

• Transmitter
  • 3G SDI for professional camera setups
  • HDMI 2.0 input: Full 4K60 transmission capability
  • HDMI 2.0 output: Passes through lossless 4K60 video signals
  • USB Wired video to iOS (MFi certified)
  • DC Input (12V 2A)

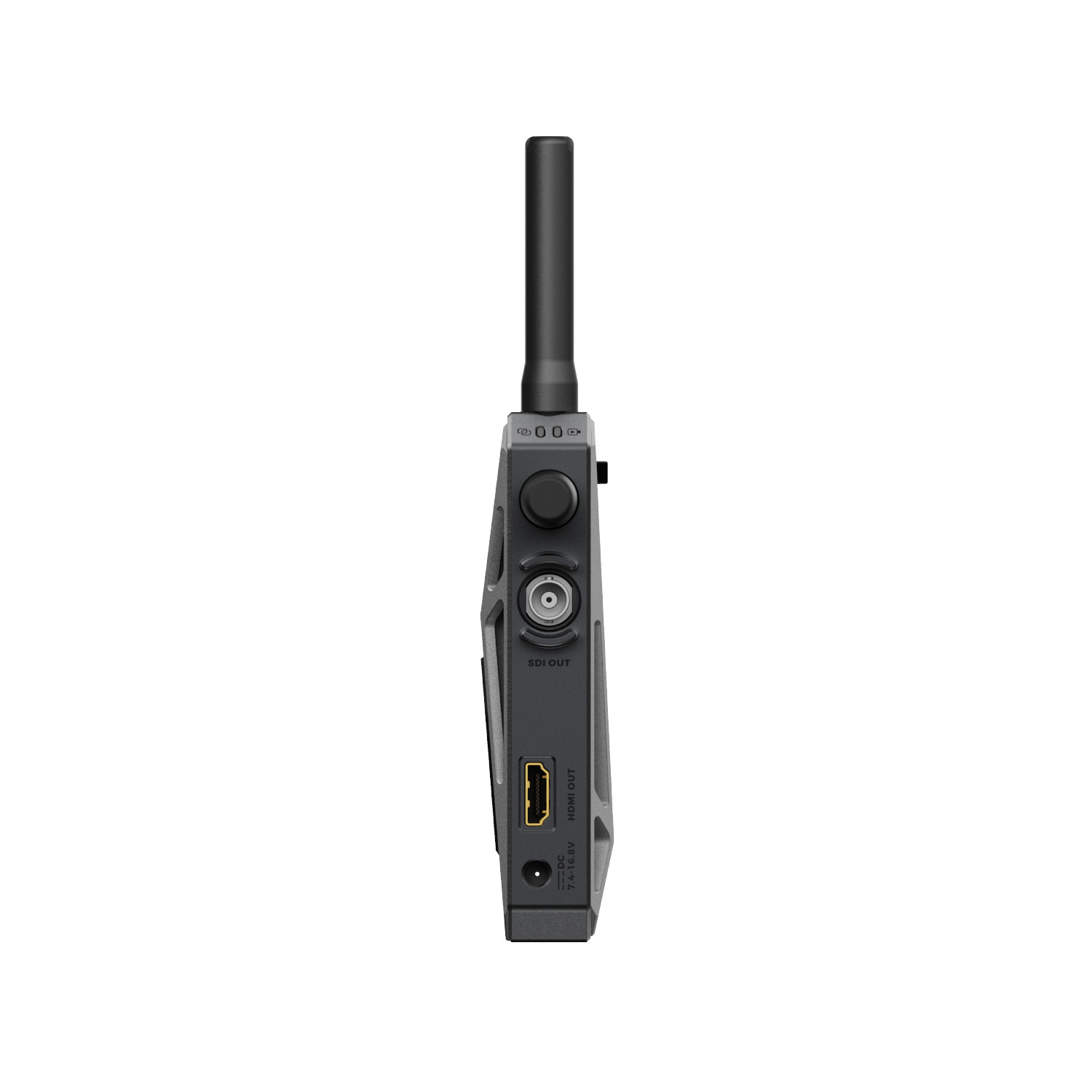

• Receiver
  • 3G SDI for professional monitoring setups
  • HDMI 2.0 output: 4K60 output capability
  • DC Input (12V 2A)

Flexible Power Options

• NP-F Battery
• DC Input (12V 2A)
• V-Mount Battery: Compatible with Accsoon V-lock battery adapter

Specifications

• Receiver
  • A/V Processor - 8K High Performance Processor
  • Protocol - Proprietary RTMS 4.0 protocol developed by Accsoon
  • Video Output - HDMI, 3G SDI
  • SDI Output Format - 1080p: 24/25/30/50/60p Level A
  • HDMI Output Format
    • 4K (3840*2160): 24/25/30/50/60p
    • 1080p: 24/25/30/50/60p
  • HDMI Loop-out Format - Identical to the HDMI video input
  • DC Port - 5.5mmx2.1mm, center positive
  • DC Voltage - 7.4~16.8V
  • Battery - Compatible with NP-F550, NP-F750, NP-F970 battery
  • Power Consumption - 5.0W average
  • Audio HDMI embedded, SDI embedded
  • Latency
    • 1080p 60 < 25ms
    • 4K 60 < 35ms
      • (Camera latency not included)
  • Transmission Range ≥ 2.5 km
    • (No obstacles, no interference)
  • Operating Environment Temperature - -10~40℃
  • Dimensions (Antennas Not Included) - 130mm x 95mm x 32 mm
  • Weight (Antennas Not Included) - 320g
