Accsoon CineView Nano Wireless Video Transmission for Mobile Devices

About: Accsoon CineView Nano Wireless Video Transmission for Mobile Devices

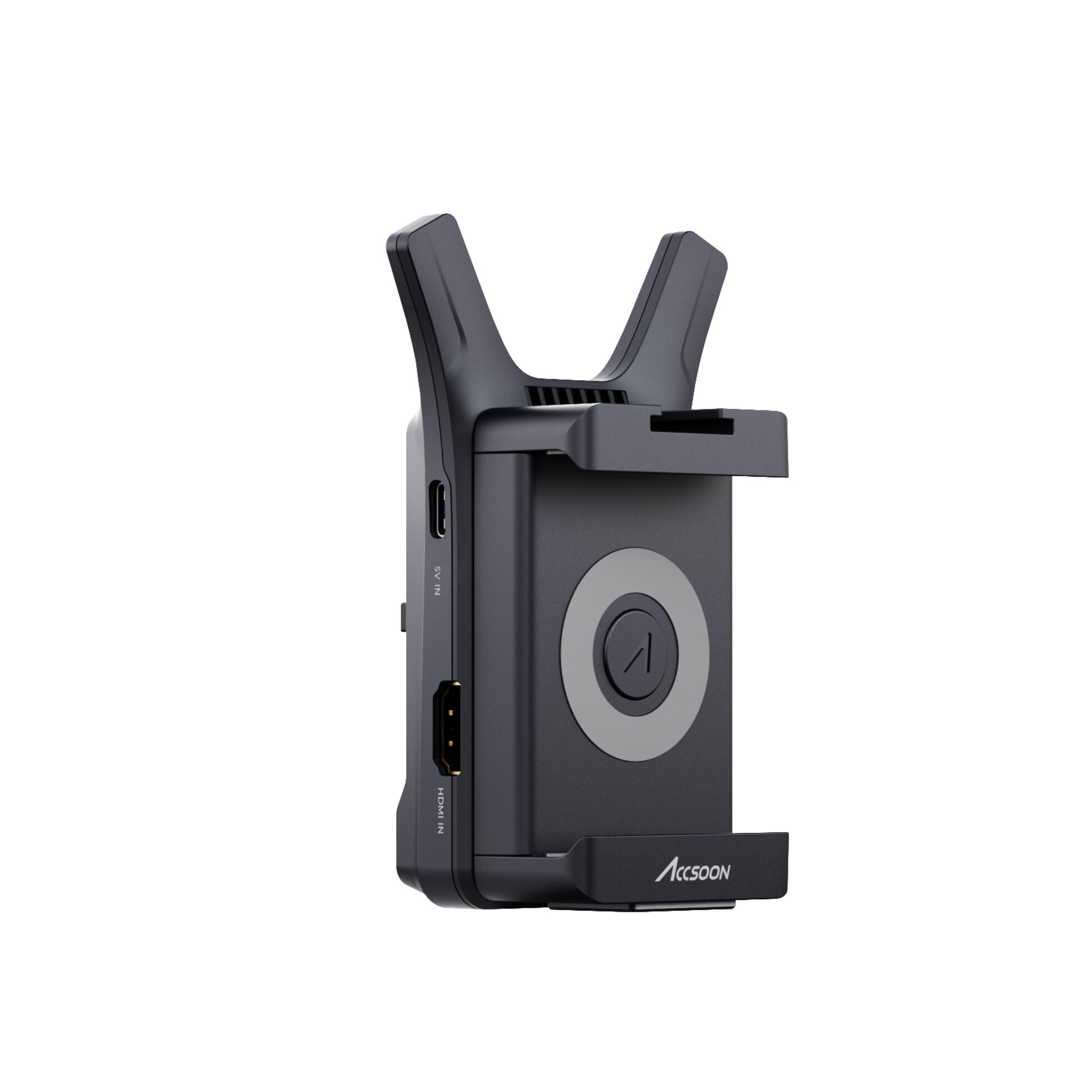

Accsoon CineView Nano is a smaller, lighter version of the CineView wireless system. The CineView Nano accepts up to a full HD 1080p60 HDMI signal via a HDMI port, and it wirelessly transmits the signal to up to four separate iOS/Android mobile devices at the same time. The signal is sent over 5GHz up to 500ft line of sight with a low latency of approximately 60ms.

• Market Proved Stability
• Latency Less Than 0.06s
• 1 Transmitter for 4 Devices
• Long-Distance Transmission of 500ft/150m

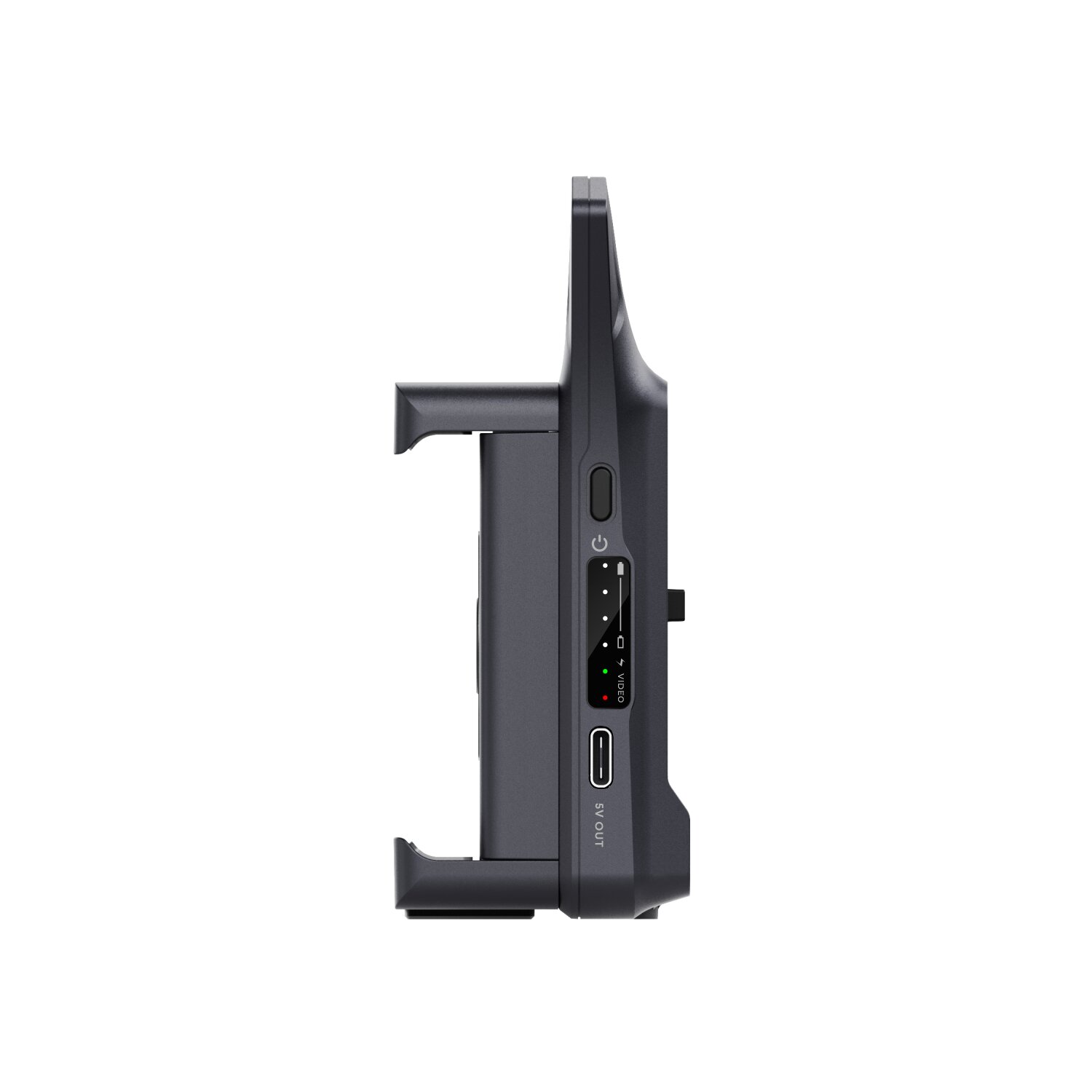

• Removable Phone Clamp
• Versatile Mounting Options
• Easy to Use with Phone
• No Fan Design

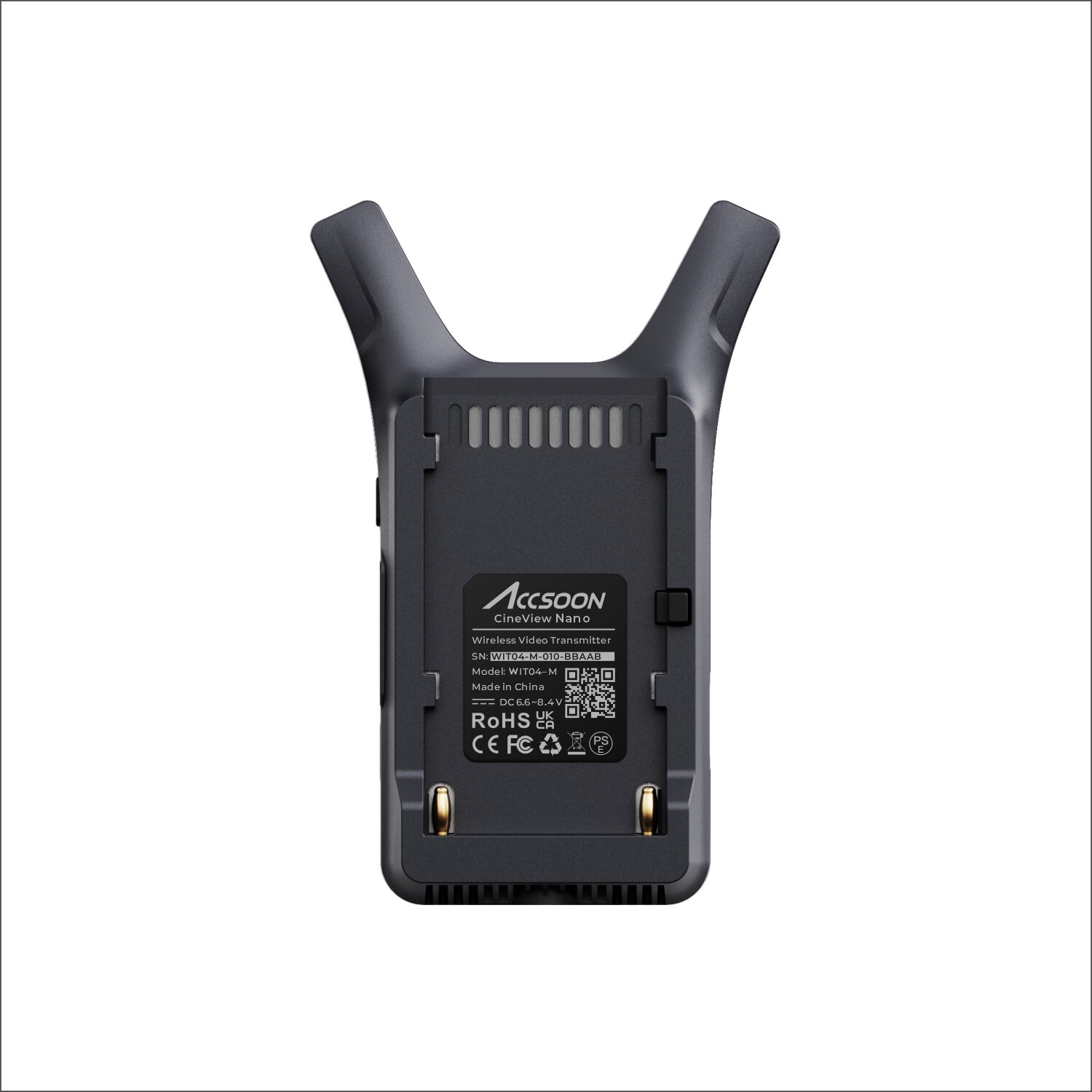

• Powered by NP-F Battery or USB-C
• Wireless Remote Monitoring App Accsoon SEE
• Automatic Channel
• FHD Video and High-Quality Audio Transmission
• Built-in Antenna
• Firmware Update with Ease

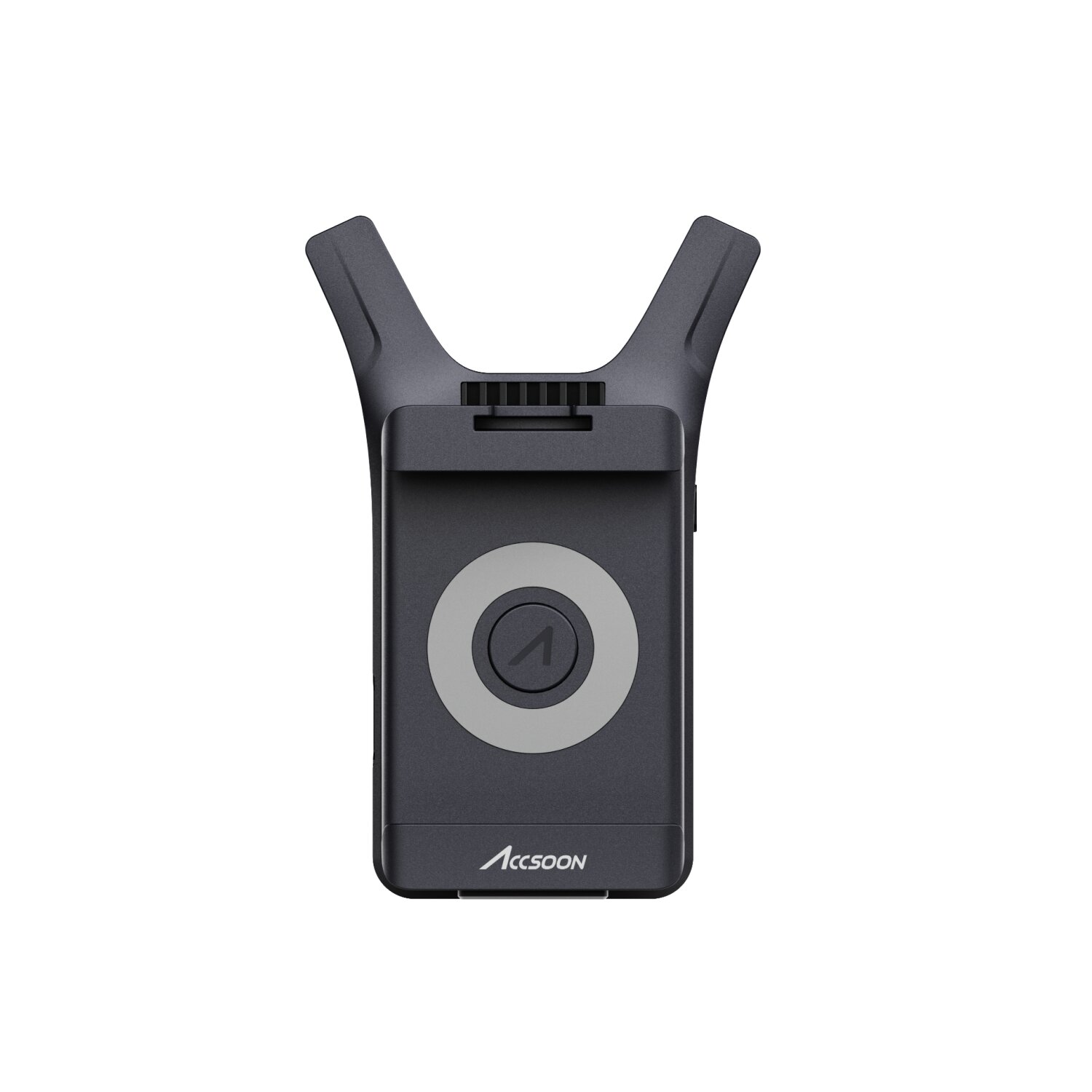

Ultra-Compact, Pocket-Sized Design

About 76mm x 113mm in size, CineView Nano weighs only 72.3g and is less than half the weight of the CineView HE/SE transmitter. It also has an aluminum housing for durability. Two integrated antennas built in to maintain the small size.

HDMI Monitoring Made Easier

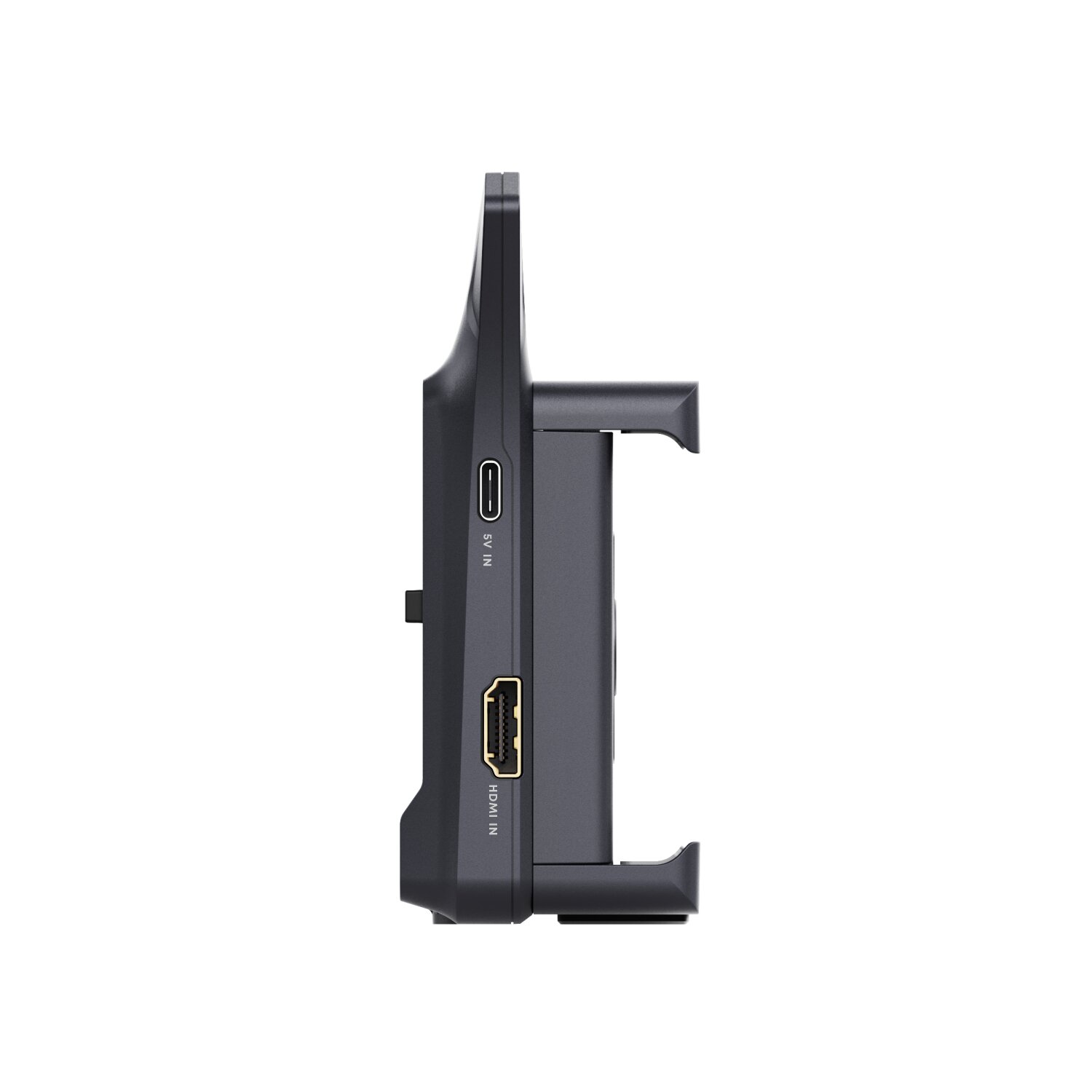

CineView Nano features one HDMI-in port and uses 5G WiFi signal to send video wirelessly to up to 4 tablets or phones with both Android or iOS system.

Low Latency, Long Range

With an average latency of around 60ms, Nano has nearly undetectable lag that transmits to a maximum distance of 500ft.

Mounting & Powering

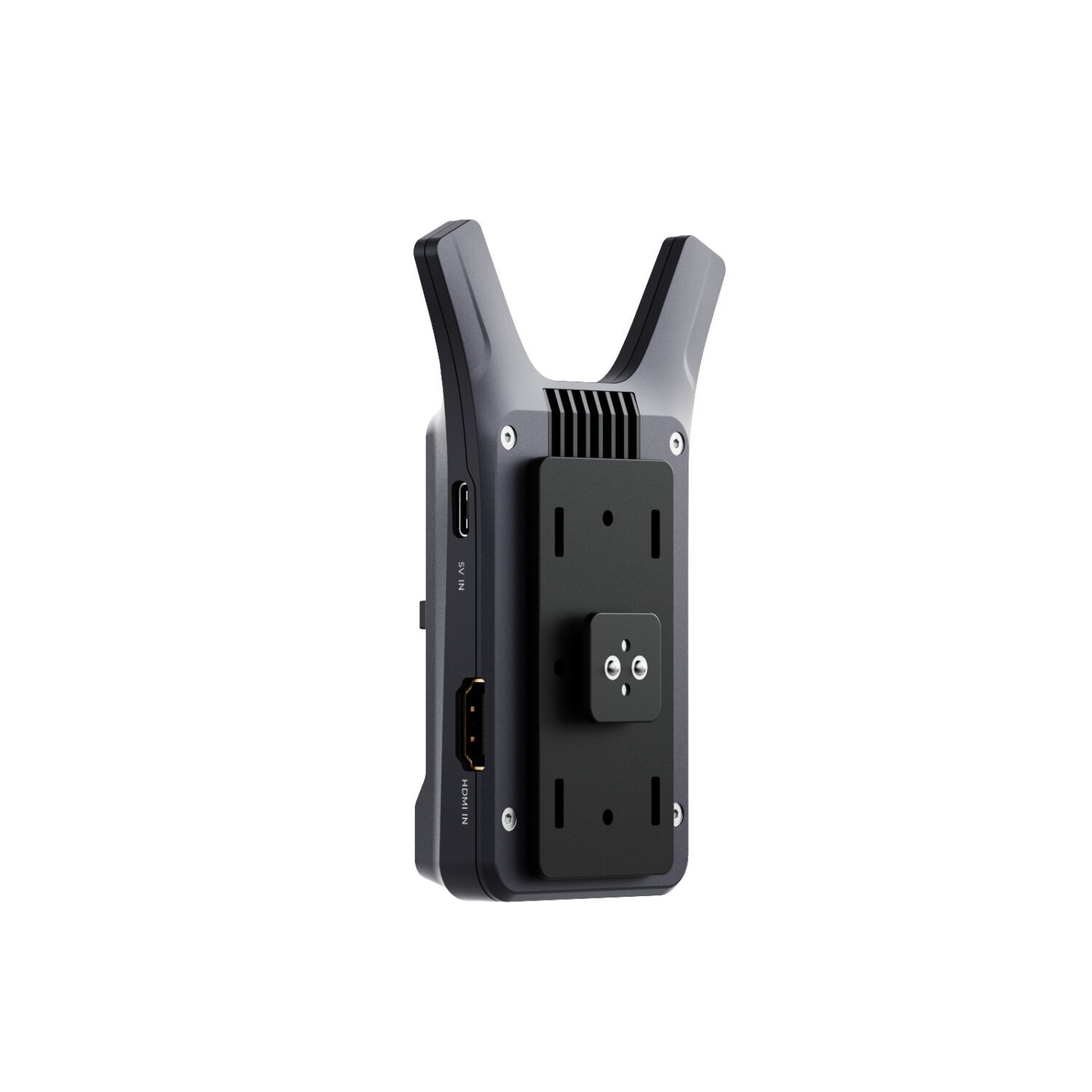

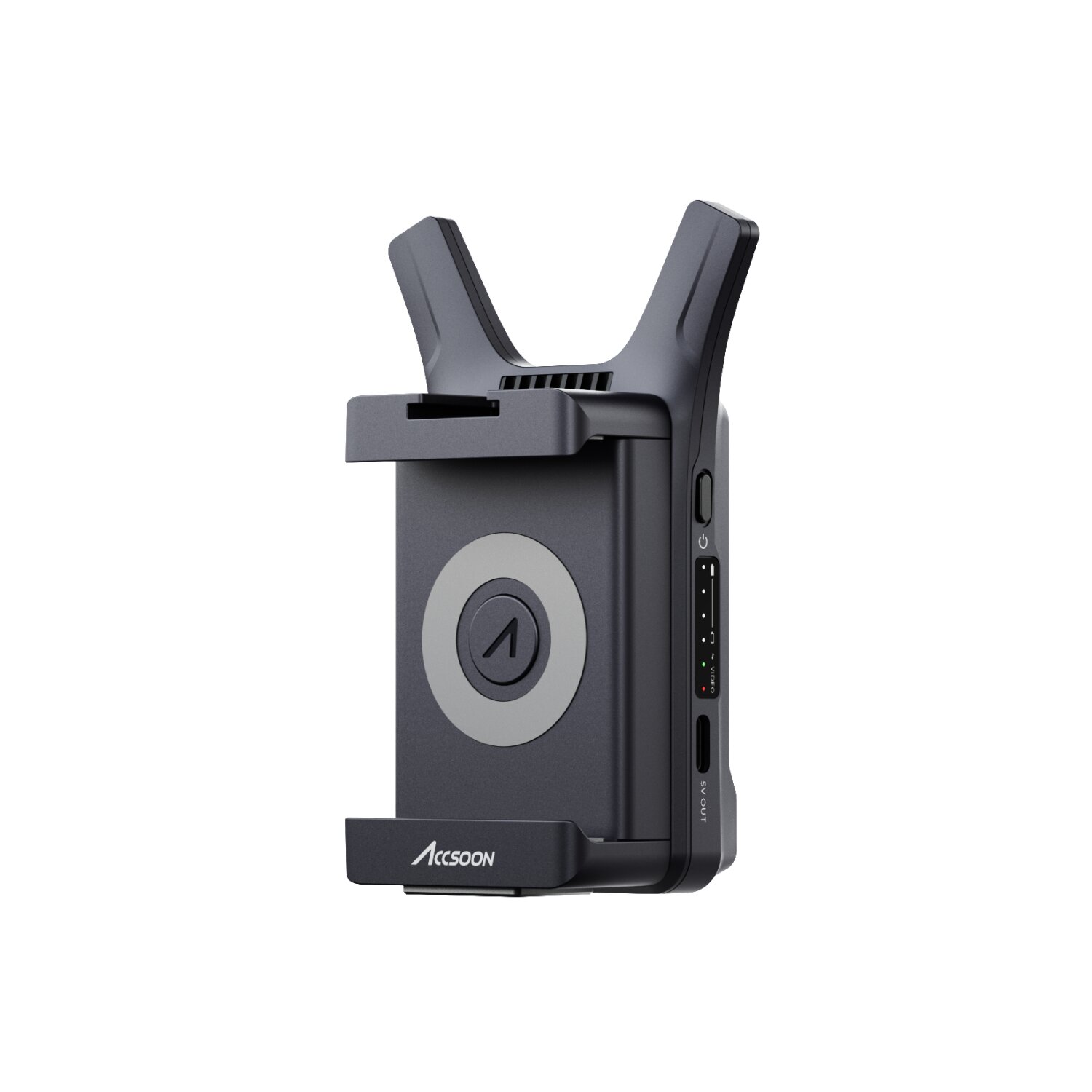

CineView Nano offers a 1/4″-20 mounting point on the bottom and can easily be mounted on your camera. It also features a well-designed phone holder to secure your phone while monitoring.

Get More Out Of Accsoon See App

• Grids
• Desqueeze
• Mirror

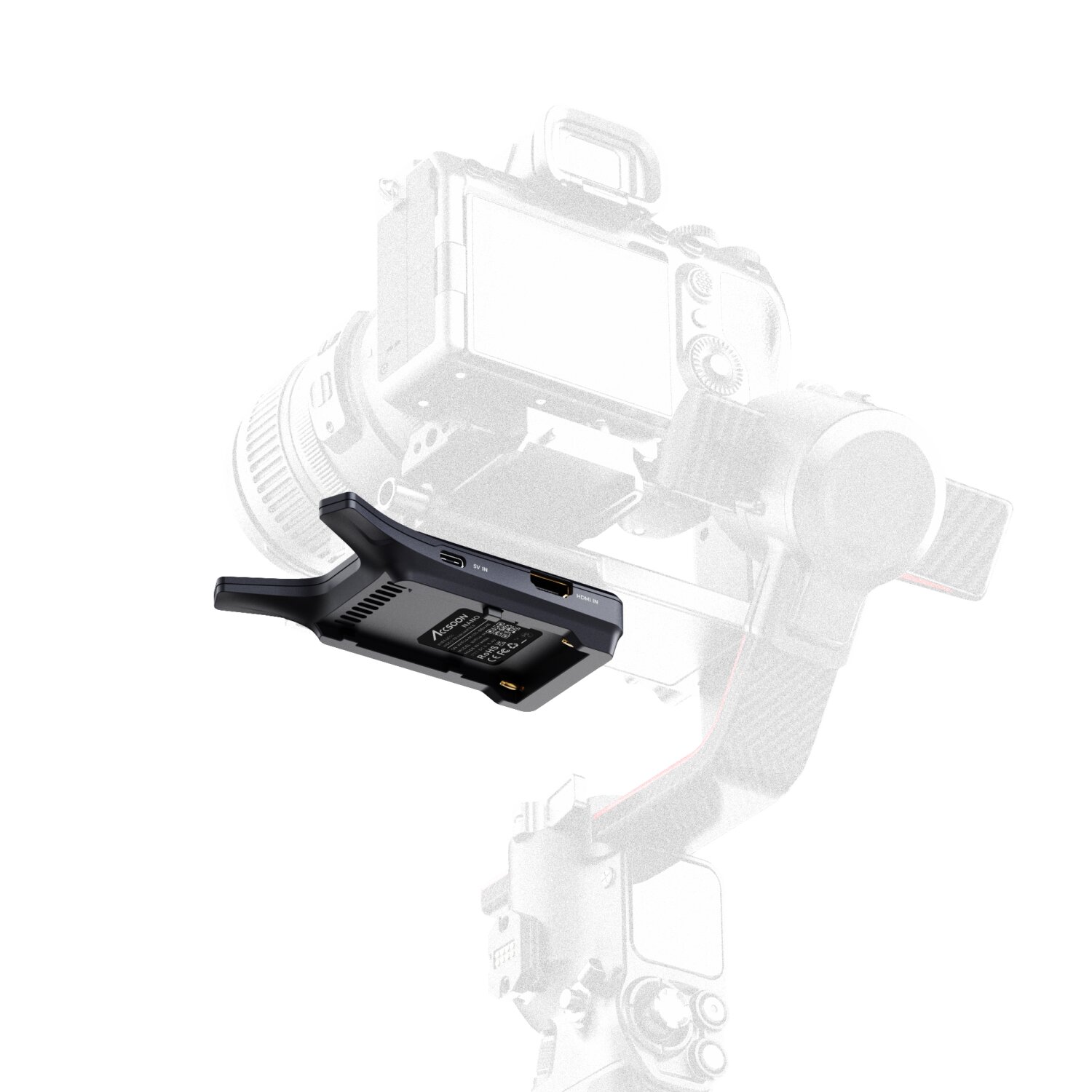

On your gimbal too

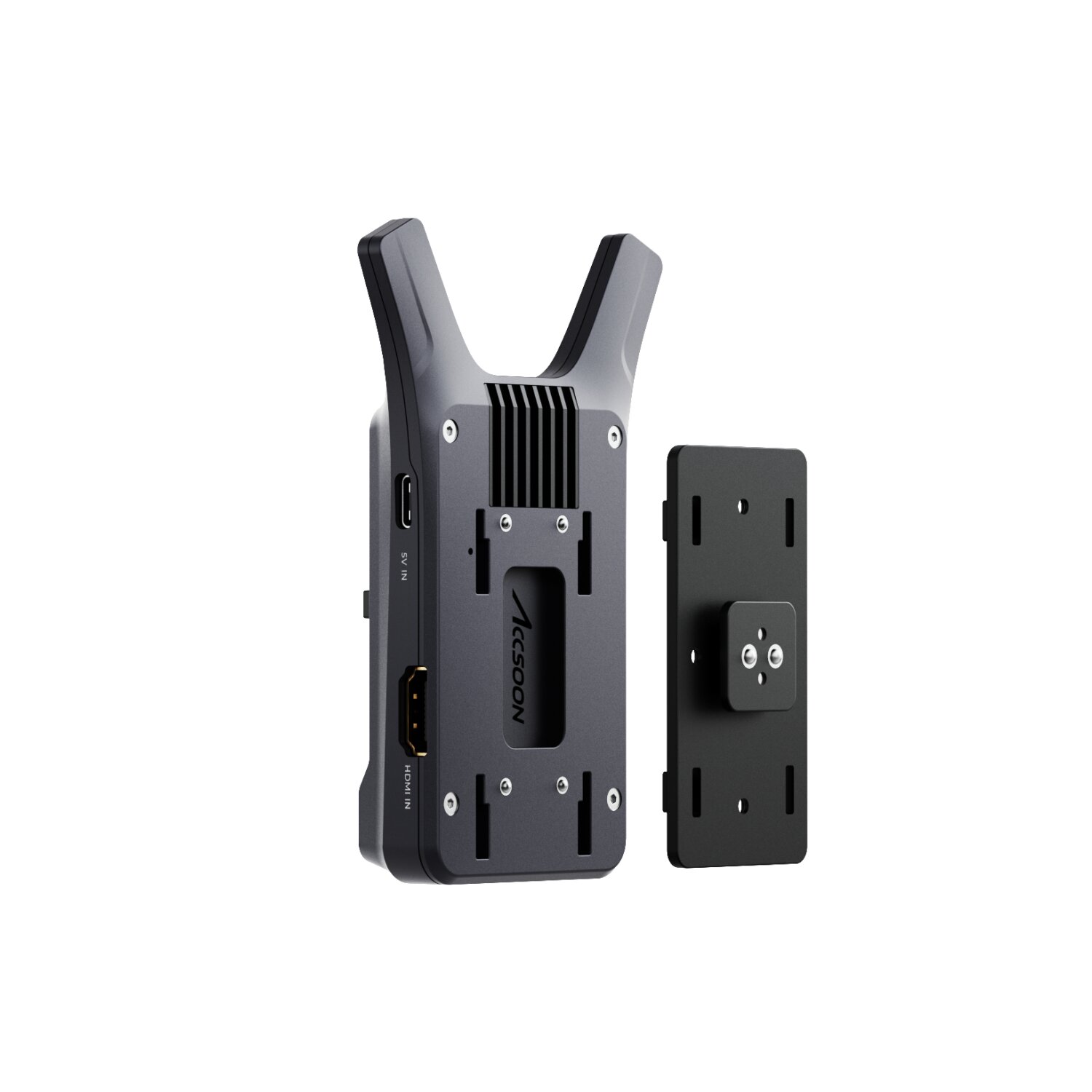

Alternatively, the phone clamp can be detached and replaced with a gimbal attachment plate compatible with DJI RS2/RS3 gimbals. This conveniently situates the CineView Nano underneath the camera mounting plate for optimal balance and ease of access.

Specifications

• Video Input - HDMI
• Video Output - 1080p 23.98/24/25/29.97/30/50/59.94/60fps
• Audio - 44.1KHz/48KHz 16bit/24bit PCM via HDMI
• Latency - ＜0.06s (Camera latency not included)
• Transmission Power - 17~20dBm
• Transmission Range - 500ft (No obstacles, no interference)
• Power Consumption - 2.5 Watt (Without charging other devices)
• Operating Environment Temperature - -10~40°C
• Dimensions - 76mm × 113mm × 20mm
• Weight - 72.3g

What's in the Box

• 1x Transmitter
• 1x Phone Clamp
• 1x Cold Shoe Mount Adapter
• 1x RS2/3 Pro Gimbal Adapter
• 1x User Manual
