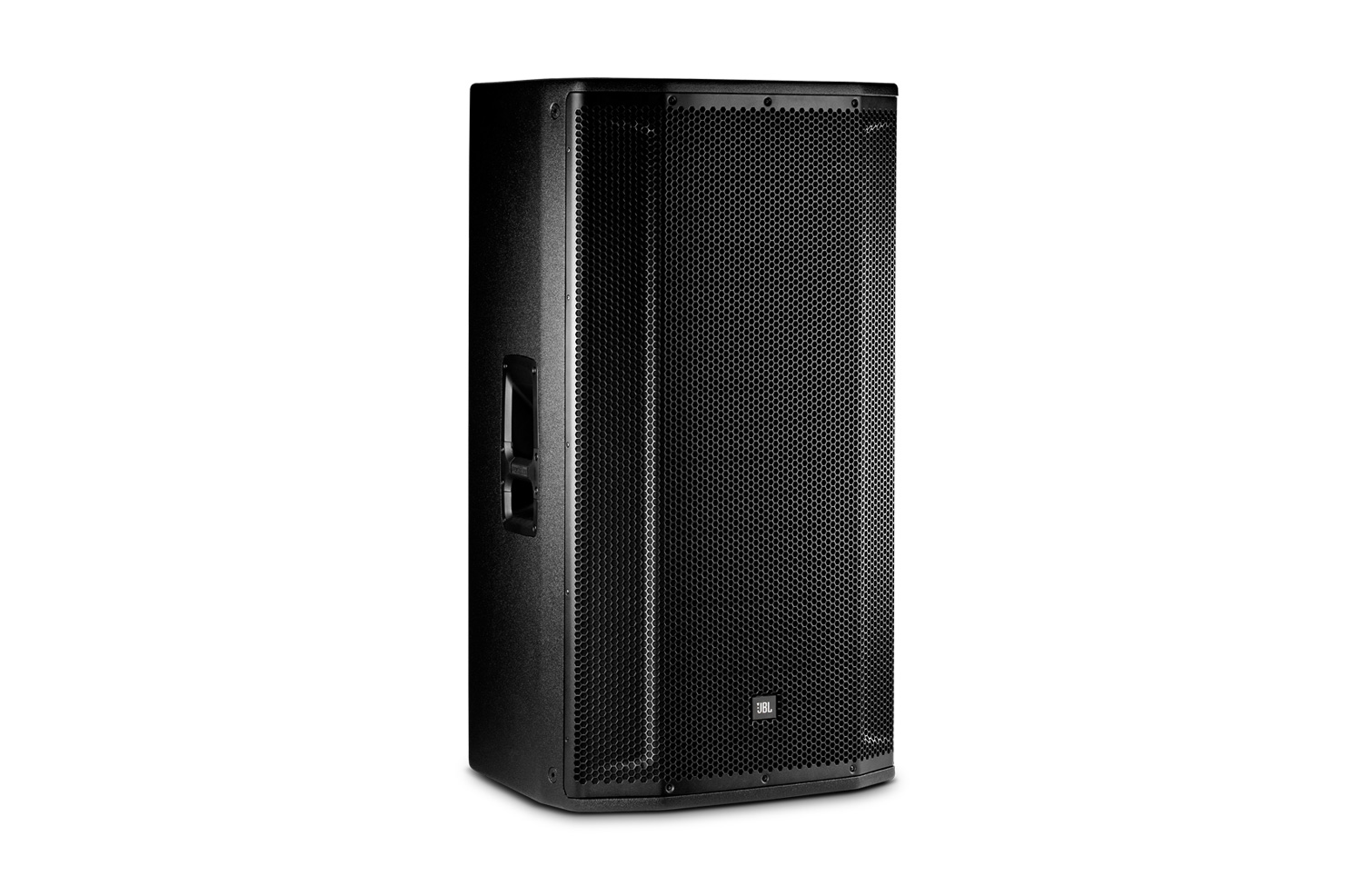

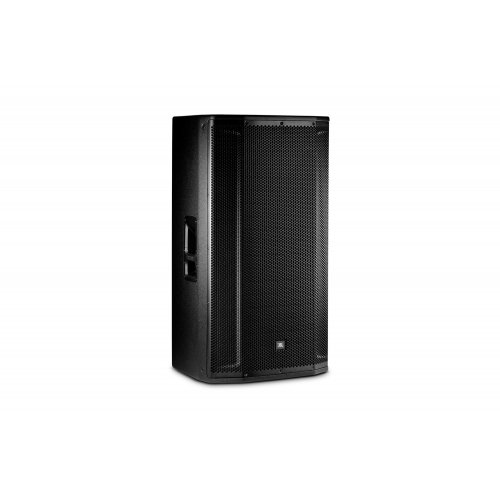

JBL SRX835 15in Three-Way Passive Speaker

Model: SRX835

JBL SRX835 15in Three-Way Passive Speaker
JBL SRX835 15in Three-Way Passive Speaker
JBL SRX835 15in Three-Way Passive Speaker
  • This Item Ships via Truck
    Shipping Charges Apply
  •  More Coming Soon! Contact us for Lead Time
  • Not yet reviewed




About: JBL SRX835 15in Three-Way Passive Speaker

SRX835 is a three-way full range speaker with a 15” woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Features

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 32Hz-20kHz
  • Frequency Response: 43Hz-20kHz
  • Max SPL: 130dB (Peak)
  • Coverage Pattern: 60x40
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.

Specifications

  • System Type Passive 15”, three-way, bass-reflex
  • Maximum SPL Output 124dB (Continuous), 130dB (Peak)
  • Frequency Response (-10dB) 32hz - 20khz
  • Frequency Response (-3 dB) 43Hz - 20Hz
  • Sensitivity 95dB
  • System Power Rating 3200W Peak, 1600W Program, 800W Continuous
  • Nominal Impedance 8 Ohm

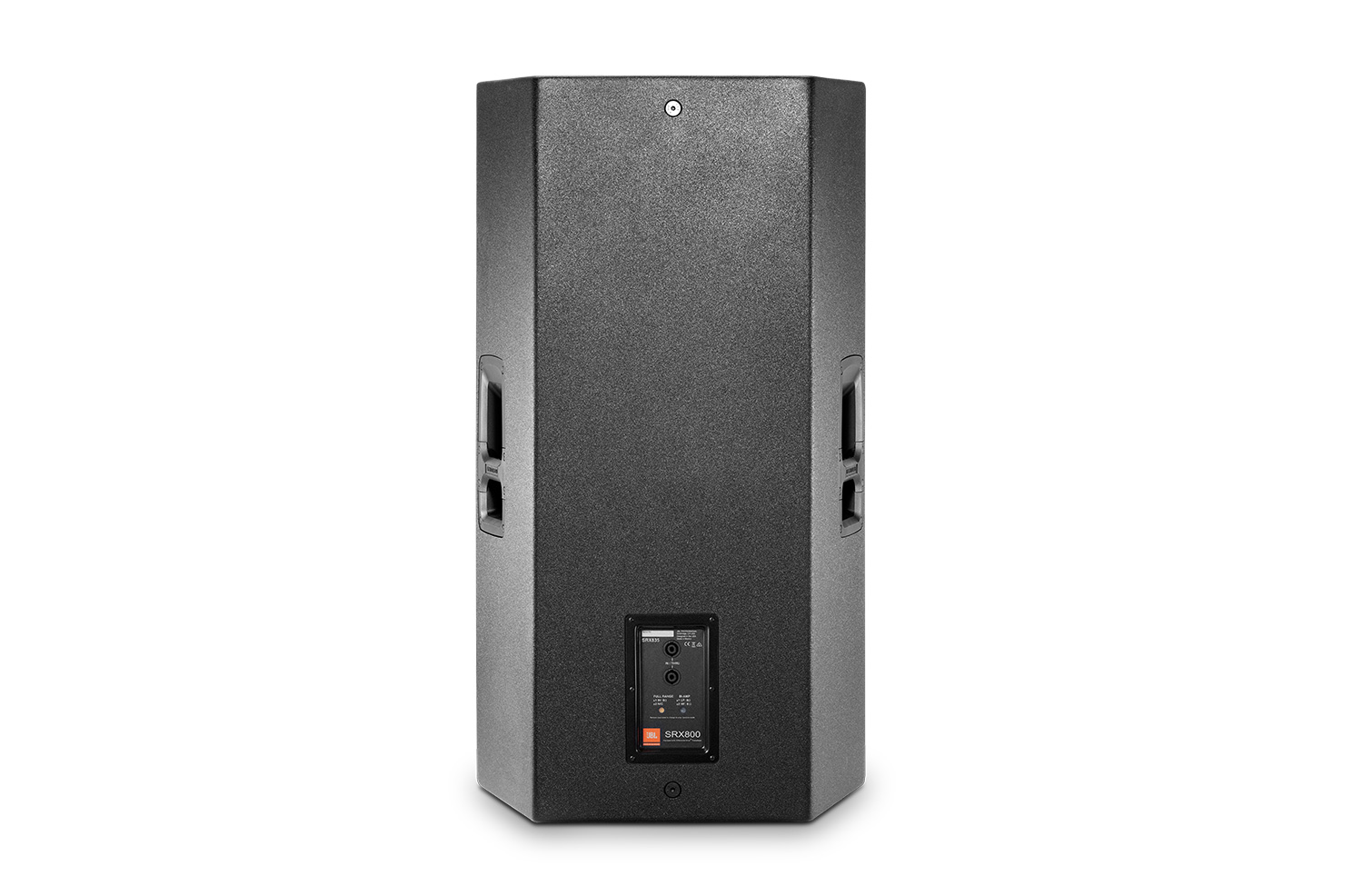

  • Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
  • Operational Modes Passive/Bi-Amp

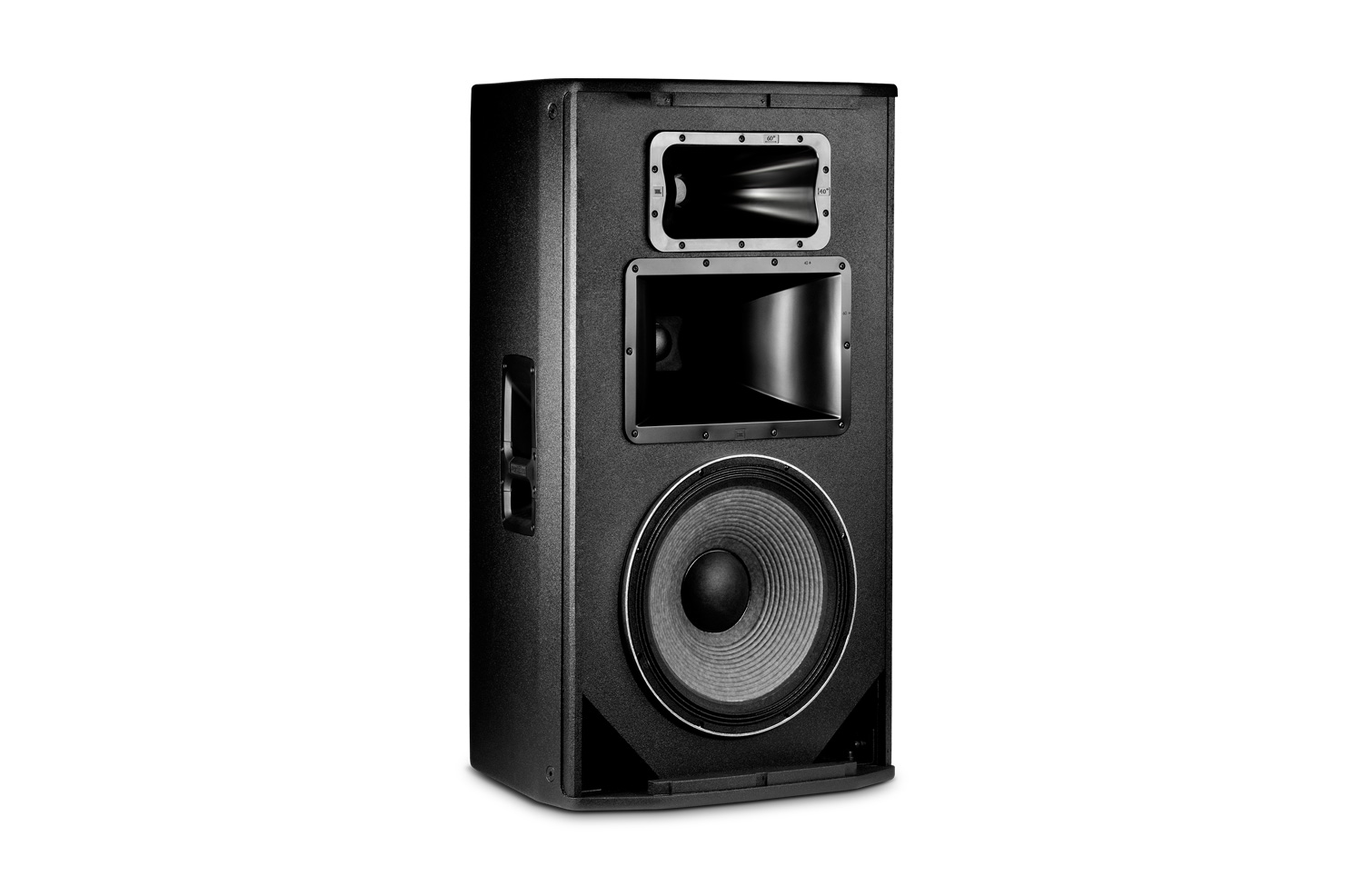

  • LF Driver 2275F
  • MF Driver 2107H
  • HF Driver 2432H
  • Coverage Pattern 60 x 40
  • Crossover Frequency 330hz & 2.4khz
  • Enclosure 18mm Duraflex coated plywood
  • Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
  • Handles 2
  • Finish Obsidian Duraflex™ finish
  • Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
  • Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
  • Weight 95.0 lbs (43.1kg)

UPC: 691991001642

Reviews: JBL SRX835 15in Three-Way Passive Speaker

There are currently no product reviews.


Warranty: JBL SRX835 15in Three-Way Passive Speaker

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Pro Products:

The warranty on JBL professional loudspeaker products (except for enclosures, electronic components, and portable products) is valid for 5 years from the date of the first consumer purchase. Enclosures and electronic components are warranted for 1 year from the date of original purchase.

Extended 7 Year Warranty

  • EON ONE Compact
  • EON700 Series
  • EON ONE MK2
  • PRX ONE

Note: The extended warranty program applies to all product components, except batteries, which continue to include a robust, three-year warranty.
