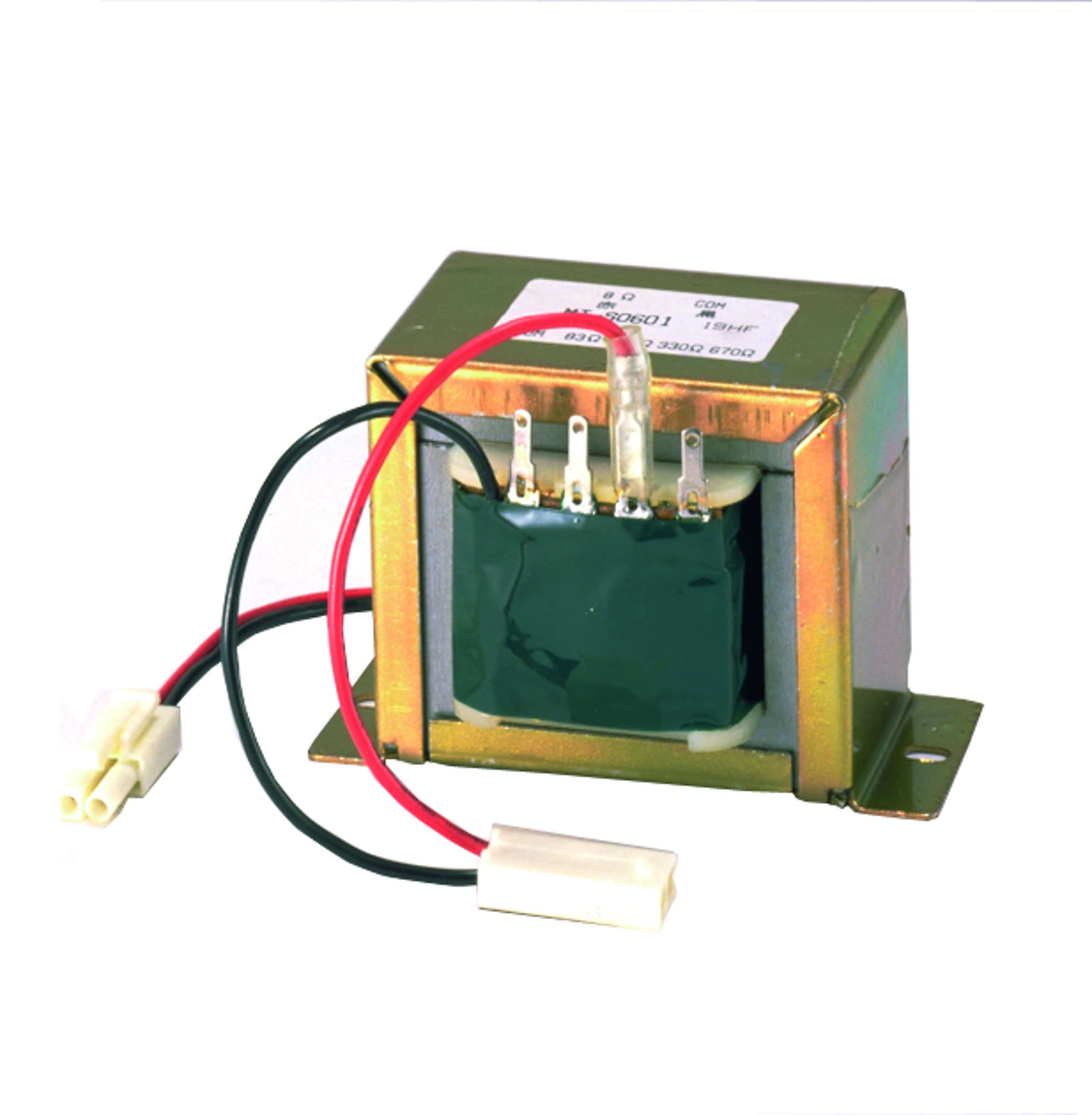

TOA Canada MT-S0601 Matching Transformer
Model: MT-S0601
About: TOA Canada MT-S0601 Matching Transformer
The MT-S0601 matching transformer is designed to be installed in the speaker and used to convert the low impedance speaker into the high-impedance version.
Specifications
- Rated Input - 60 W
- Primary Impedance
- 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W)
- 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
- Secondary Impedance - 8 Ω
- Weight - 1.2 kg
- Included Accessories - 1x Impedance indication label
