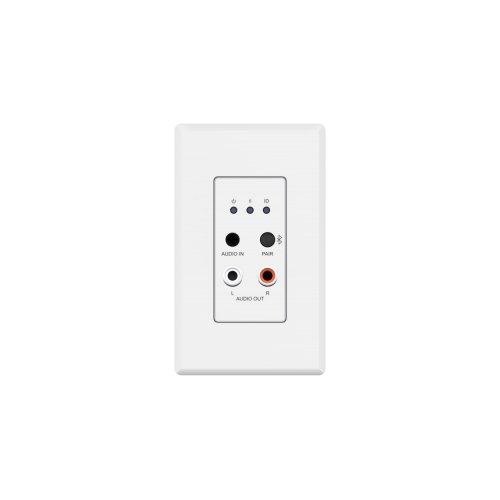

BLUSTREAM DA11ABL Bluetooth & Analog Audio Dante Wall Plate

About: BLUSTREAM DA11ABL Bluetooth & Analog Audio Dante Wall Plate

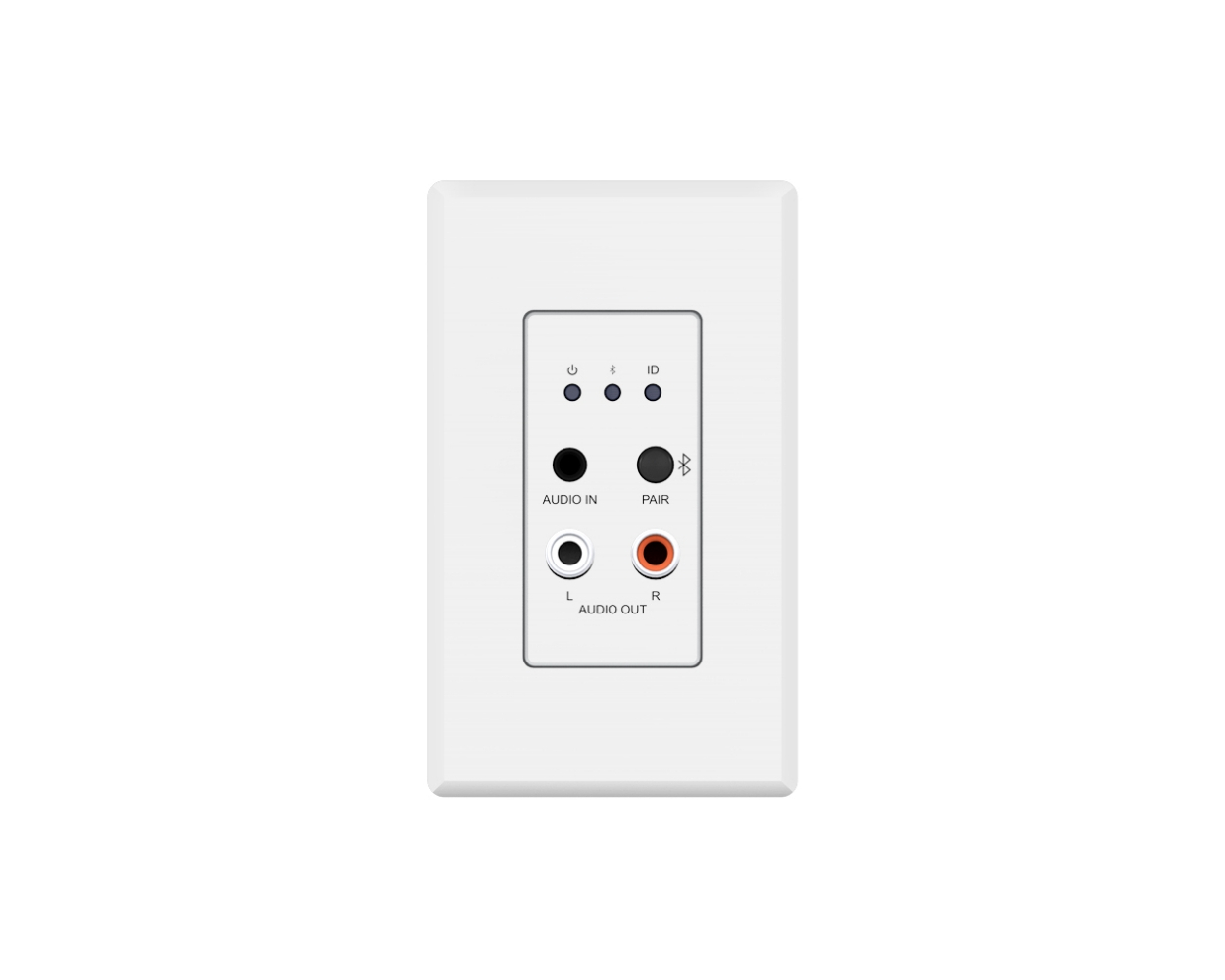

The DA11ABL-WP-US-V2 is a multi-input / output wall plate to convert Bluetooth and analog audio within a digital Dante networked audio system. The DA11ABL-WP-US-V2 converts 2 input channels of Bluetooth or unbalanced audio to Dante digital audio, and 2 channels of Dante audio to 2 x output channels of unbalanced audio.

The DA11ABL-WP-US-V2 is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows installation into most single-gang US junction boxes. The DA11ABL-WP-US-V2 is the ideal BYOD interface to allow any Bluetooth device to stream audio wirelessly to a Dante audio system.

• Dante network wall plate interface for Bluetooth and analog L/R audio inputs, and L/R audio outputs
• Converts 2ch Bluetooth, or un-balanced audio sources to Dante audio
• Converts 2x Dante audio channels to un-balanced audio outputs
• Adjustable input sensitivity from +24dBu to -28dBV and output gain from +20dBu to -28 dBV via web GUI or API
• Dante Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (not included) for when network switch does not support PoE
• White magnetic faceplate surround and US Decora style backbox compatibility
• In-built web-GUI for configuration and control

Specifications

• Audio Input Connections: 1 x Analog Left / Right audio (3.5mm stereo jack)
• Audio Output Connections: 2x Analog RCA (Left / Right)
• Network Connection: 1 x PoE Dante Ethernet Connection (RJ45)
• Bluetooth: Bluetooth V5.0 - SBC / MP3 / AAC / APT-X / APTX-LL / APTX-HD, 44.1K-48KHz 16 / 24Bit
• Mounting Hole Spacing: US 83mm CTC
• Backbox Requirements: US single gang junction box
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
• Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector
• Module Dimensions (WxHxD): 50mm x 104mm x 48mm (without faceplate)
• Faceplate Dimensions (WxHxD): 70mm x 115mm x 5mm
• Cut Out Dimensions (WxHxD): 46mm x 56mm x 39mm
• Shipping Weight: 0.42 Kg

What's in the Box

• 1x DA11ABL-WP-US-V2
• 1x Magnetic Faceplate
• 1x Quick Reference Guide
