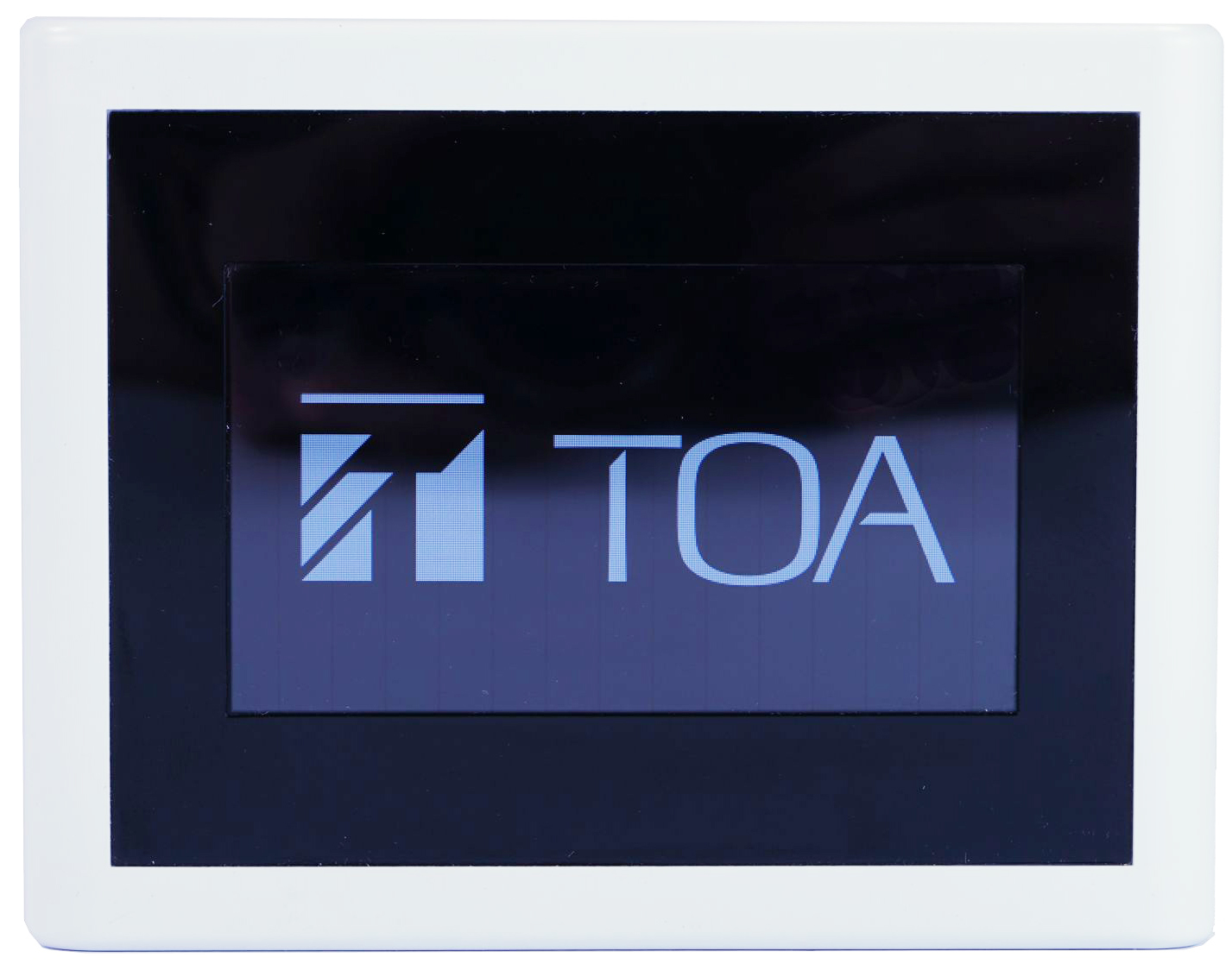

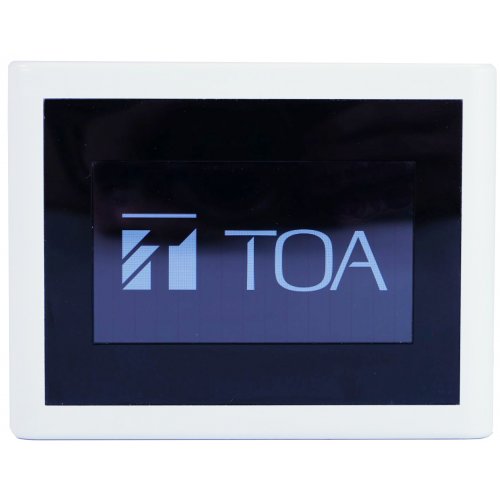

TOA M-800RCT Remote Audio Control Panel w/ Touch Display for M-8080D-AM (White)
Model: M-800RCT-AM
About: TOA M-800RCT Remote Audio Control Panel w/ Touch Display for M-8080D-AM (White)
Designed for exclusive use with the M-8080D, the M-800RCT Remote Audio Control Panel with touch display, can do volume adjustments, routing choices, preset choices, and give system information.
- Input/Output signal routing
- Volume control
- Preset Control
- 4.3" touch screen
- Direct power supply by network cable
- LCD screen with output level display
- RD port IN, for connection to M-8080D
- RD port LINK for daisy chain connection
- 100m CAT5e cable length
Specifications
- Power source - 24 V DC Powered by M-8080D or M-804EX or external
- Indicator
- Touch LC-Display
- Displays device information: ID, Volume, communication status
- Touch LC-Display
- Inputs
- RD In:
- Transmits and receives AES3 digital audio plus control data
- Connect to M-8080D, M-804EX or M-800RC, M-800RCT for daisy chain, RJ45 connector
- RD In:
- Outputs
- RD EXP:
- Transmits and receives control data
- Connect to M-800RC or M-800RCT, RJ45 connector
- RD EXP:
- Control keys, buttons and knobs - Volume / Routing / Presets
- Operating temperature - 0°C to +40°C
- Operating humidity - 90% RH or less (no condensation)
- Finish - Polycarbonate resin, ABS resin, traffic white (RAL 9016 or equivalent), Panel.
- Dimensions (WxHxD) - 5.91 x 4.53 x 1.1 inch (150 x 115 x 28 mm)
- Weight - 0.62 lb (0.28 kg)
What's Included
- 4x Wall mounting screw (4 x 30)
- 4x Plastic anchor
- 4x Box mounting screw (4 x 20)
