TOA M-804EX 4 Port Expander Mofule for M-8080D-AM
Model: M-804EX-AM
About: TOA M-804EX 4 Port Expander Mofule for M-8080D-AM
Designed for exclusive use with the M-8080D, the M-804EX Extension Module 4 Ports is a port expander featuring a star connection of the controllers.
- 1 digital port In (from M-8080D)
- 1 digital port Out for audio plus control
- 3 digital port Out for control only
- 24V DC power supply
Specifications
- Power source - 24 V DC Powered by M-8080D or external

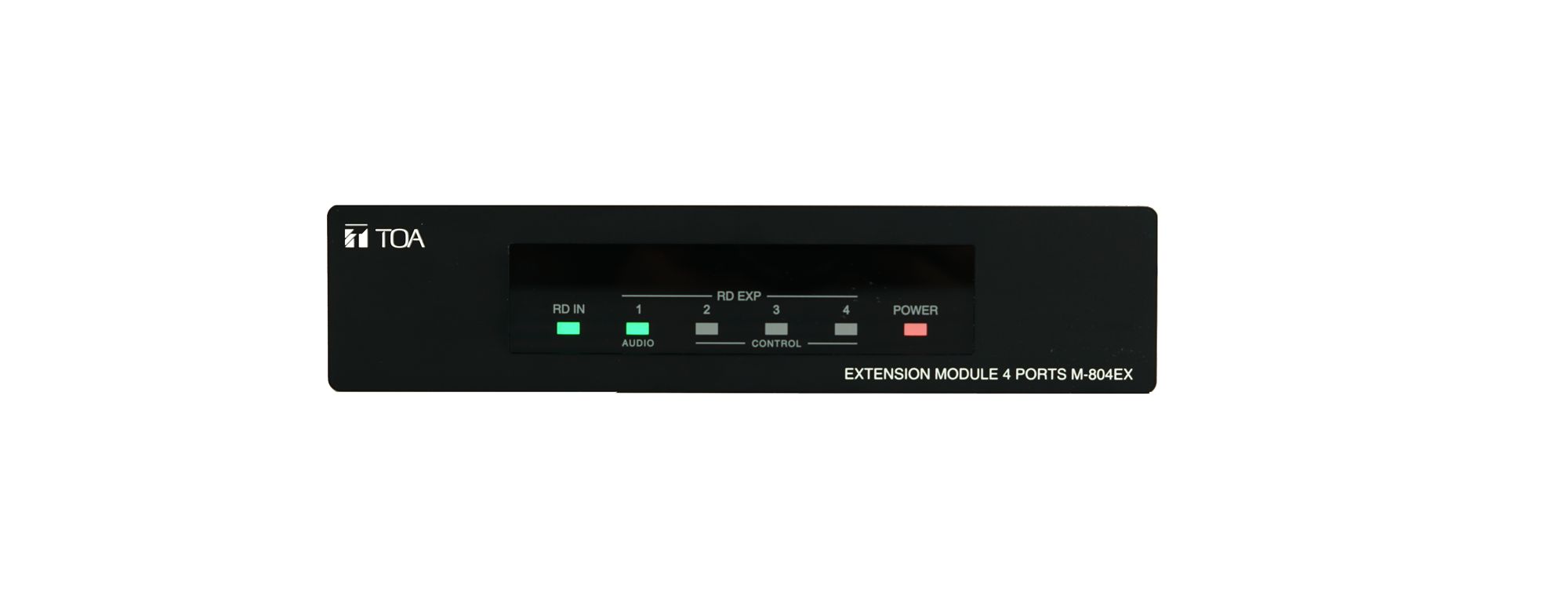

- Indicator
- RD IN (Green)
- RD exp audio (Green)
- RD exp control (Green) x3
- Power (Red)

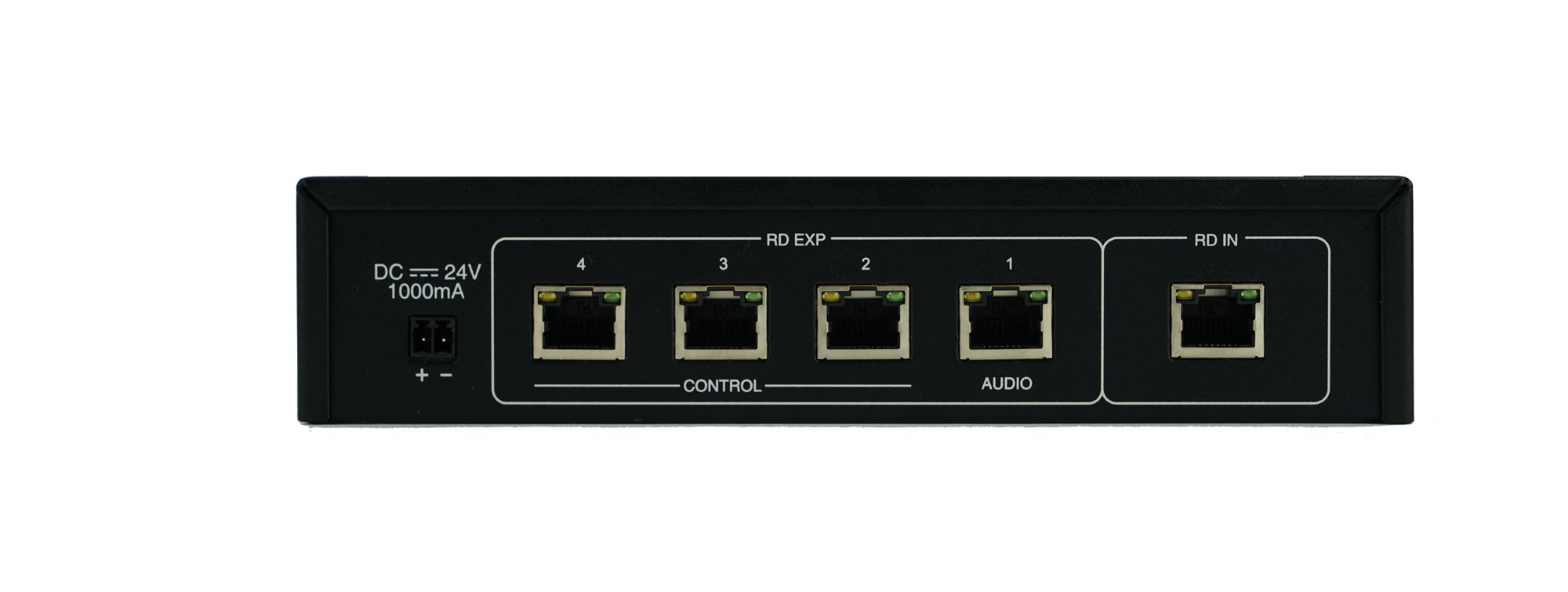

- Inputs
- RD IN: Transmits and receives AES3 digital audio plus control data
- Connect to M-8080D, RJ45 connector
- RD IN: Transmits and receives AES3 digital audio plus control data
- Outputs
- RD EXP: Port 1: transmits and receives AES3 digital audio and control data
- Connect to M-822IO, M-800RC, M-800RCT or M-800RM, RJ45 connector
- Port 2 - 4: transmits and receives control data
- connect to M-800RC or M-800RCT, RJ45 connector
- RD EXP: Port 1: transmits and receives AES3 digital audio and control data
- Operating temperature - 0°C to + 40°C (32°F to 104°F)
- Operating humidity - 90 % or less (no condensation)
- Finish - Aluminium, Steel, surface-treated, paint, black
- Dimensions (WxHxD) - 7.72 x 1.74 x 5.24 inch (196.2 x 44.2 x 133 mm)
- Weight - 2.03 lb (0.92 kg)
What's Included
- Removable terminal plug (2p)
- CAT5e cable (2m)
- Plastic foot pad x4
