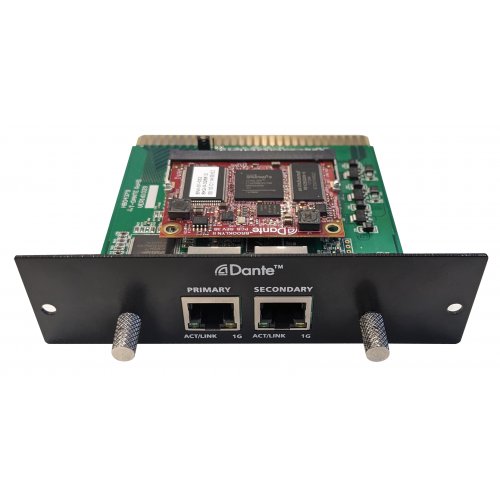

TOA M-800DT-AM Dante module for M-8080D-AM
Model: M-800DT-AM
About: TOA M-800DT-AM Dante module for M-8080D-AM
Simply connect up to 16 x M-8080D Matrix Mixer Systems to extend your audio structure
The M-800DT Dante module provides an easy-to- use audio over ethernet connection between up to 16 M-8080D Matrix Mixer Systems. It adds 8 Inputs and 8 Outputs to expands the possibilities of the M-8080D system to a total of 192 Inputs and Outputs.
Designed for exclusive use with the M-8080D, the M-800DT Dante Module provides a complete, ready-to-use Dante interface with up to 8 channels of bidirectional digital streaming.
The M-800DTis an unparalleled DSP mixer ideal- for multi-zone paging, for music distribution and in room-combining applications.
Features
- Low latency Dante Audio over IP
- Compatible with all IP network configurations and with redundancy support.
- Powered by Dante Brooklyn II module from Audinate
- Allows the operation of up to 16 M-8080D units as one system
- Supports up to 192 inputs and outputs allowing for system scalability
- Works with any exiting IT system compatible with the Dante Network Specifications
Specifications
- Power source - 5 V DC (Powered by M-8080D)
- Audio Codec - TDM, I2S
- Digital audio i/F - Dante In: 8 channels, Out: 8 channels
- Digital audio l/F - SPI Master and Slave
- Network I/F - RGMII/MII
- Operating temperature - 0 °C to +40 °C (32 °F to 104 °F)
- Finish - Steel plate, surface-treated, paint, black
- Dimensions (WxHxD) - 4.81 x 1.32 x 4.70 inch (122.2 x 33.5 x 119.5 mm)
- Weight - 0.26 lbs (0.118 kg)
